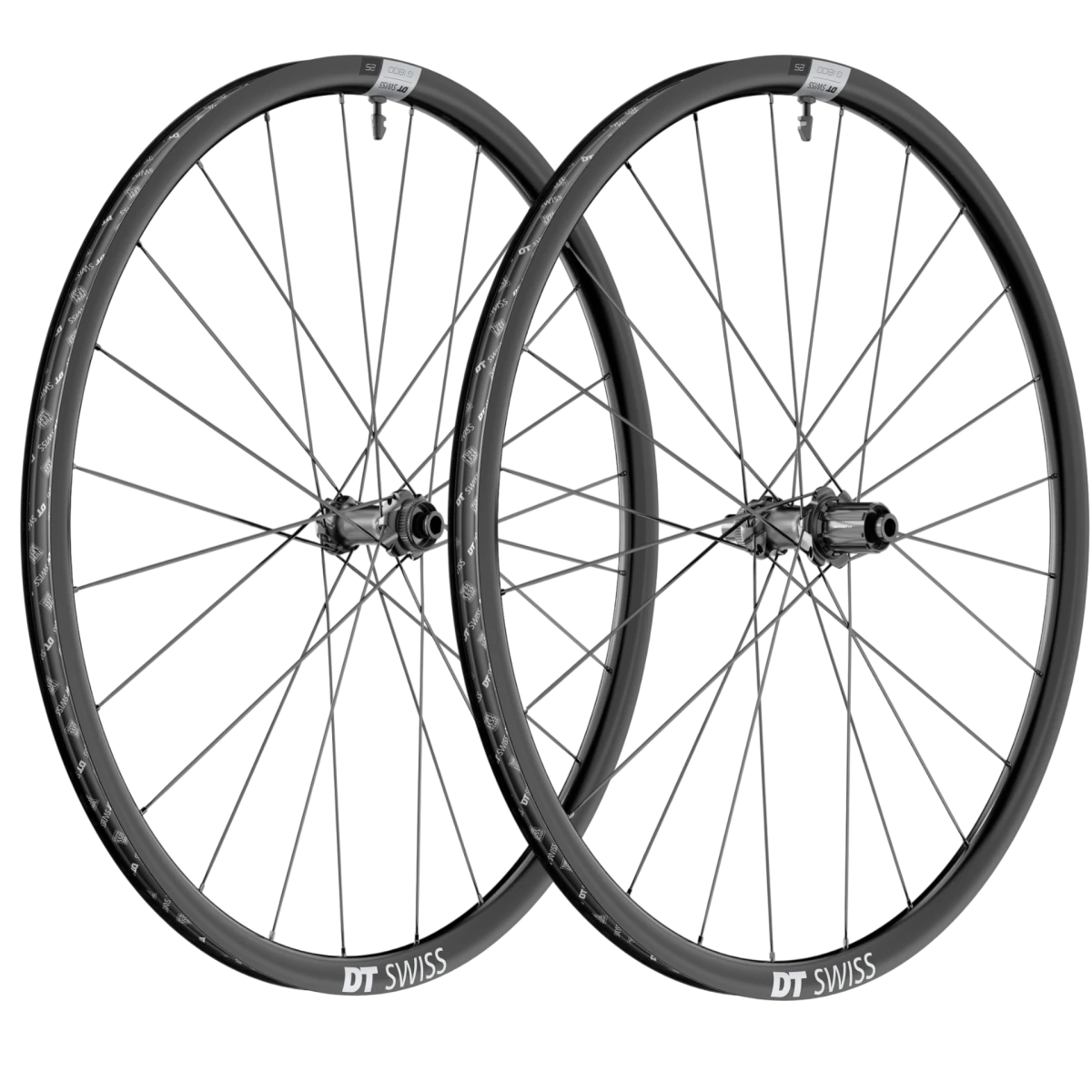

Versatile 650b Wheelset for Gravel, Allroad, and E-Bikes.
The DT Swiss G 1800 SPLINE 650b db 25 wheelset combines stability, comfort, and reliable performance for use on asphalt and gravel. The 25 mm high aluminum rims with a 24 mm inner width provide an optimal base for modern gravel and allroad tires.
At the front, the proven DT Swiss 370 hub ensures long-lasting function, while at the rear, a DT Swiss 370 hub with Ratchet LN 18 System provides consistent power transmission. In combination with DT aero comp® wide Straightpull spokes, a robust and balanced wheelset is created – approved for e-bikes up to 250 W.

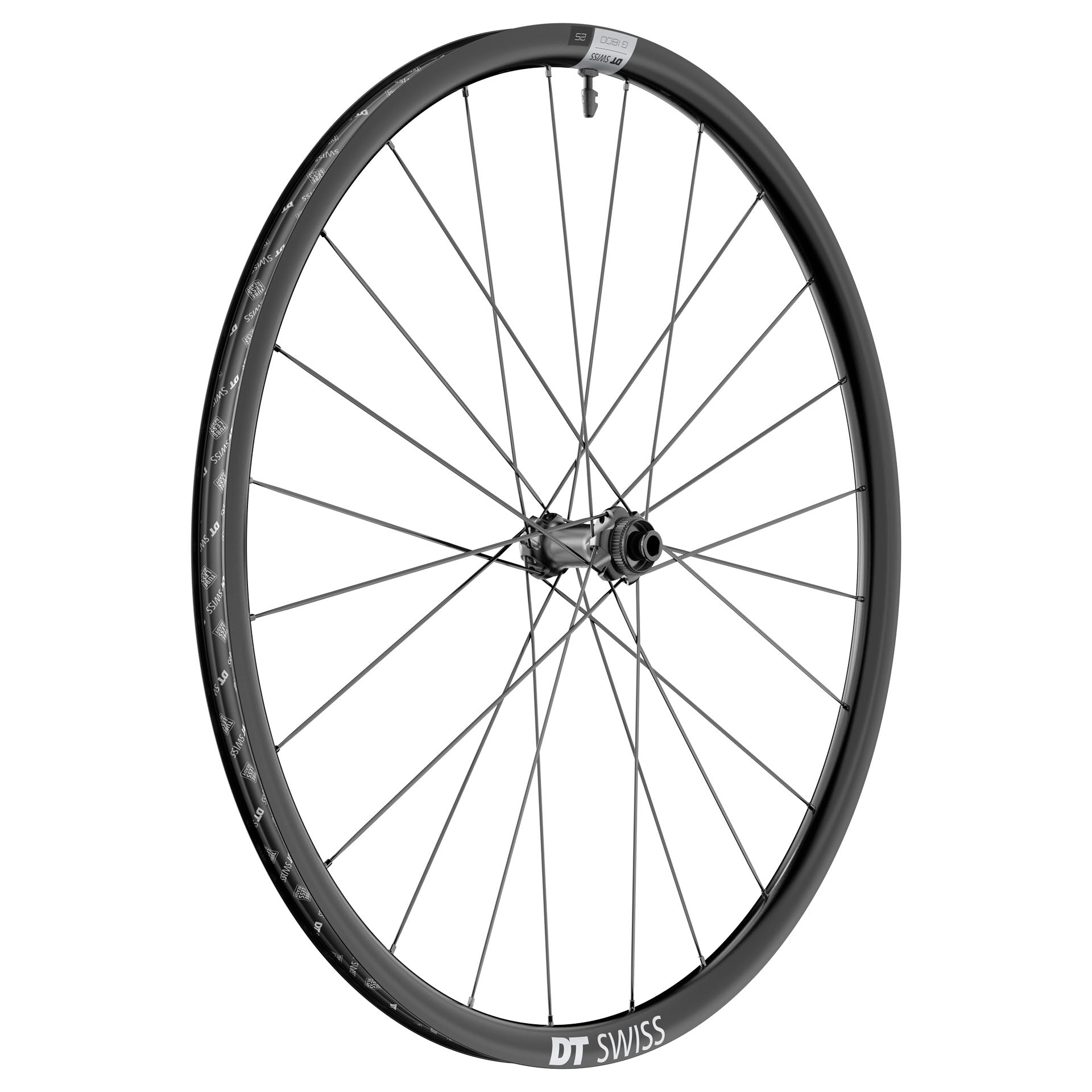

Technical Data Front Wheel:
- Size: 27.5" / 650B
- Inner Width: 24 mm
- Rim Height: 25 mm
- Axle: 12x100 mm Thru Axle
- Brake Disc Mount: Centerlock
- Hub: DT Swiss 370
- Weight: 857 g

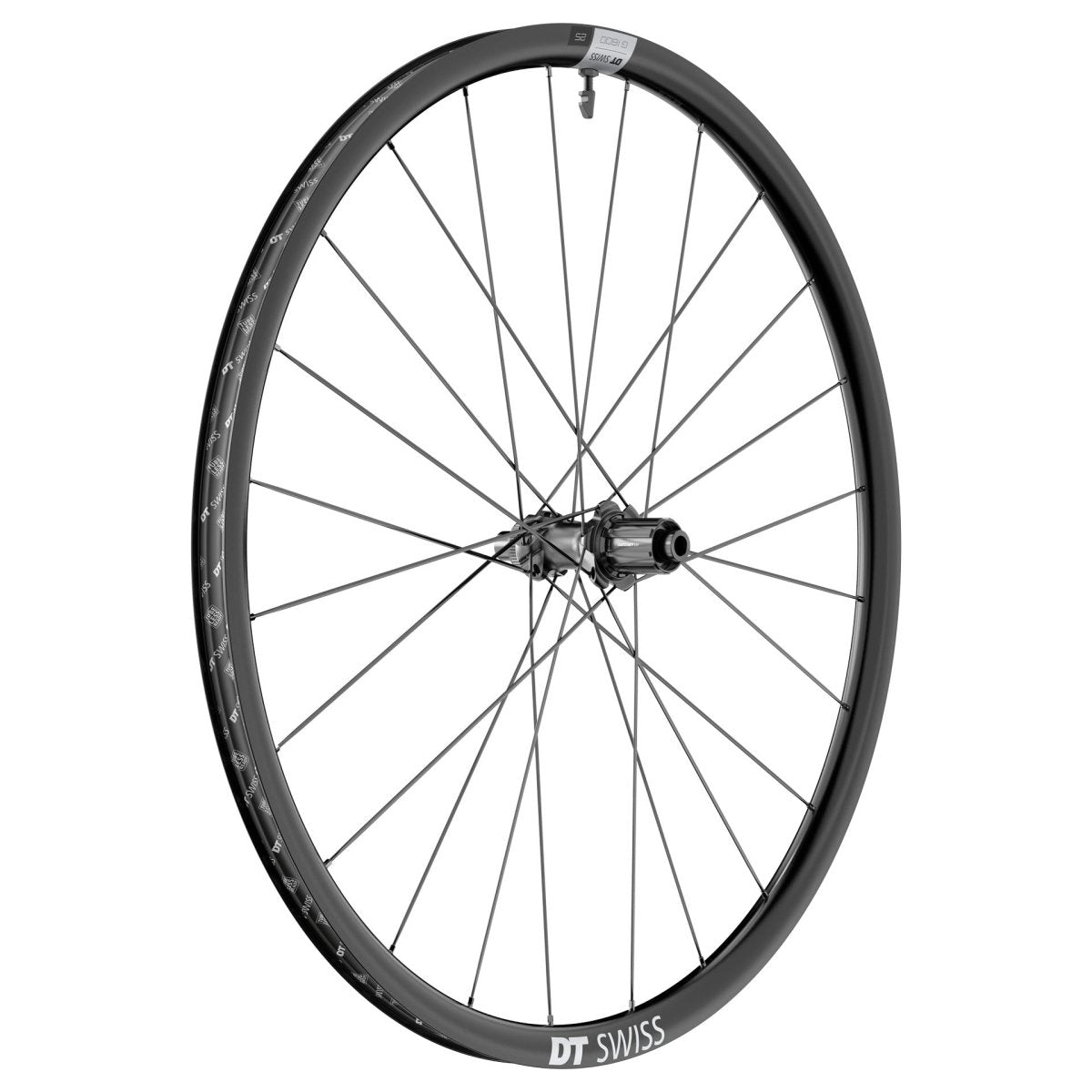

Technical Data Rear Wheel:
- Size: 27.5" / 650B
- Inner Width: 24 mm
- Rim Height: 25 mm
- Axle: 12x142 mm Thru Axle
- Brake Disc Mount: Centerlock
- Freehub: Shimano HG
- Hub: DT Swiss 370 with Ratchet LN 18
- Weight: 986 g
General Data:
- Rim: Aluminum, Hooked / Crotchet tubeless TC
- Spokes: DT aero comp® wide Straightpull
- Max. System Weight: 130 kg
- ASTM: 2
- E-Bike Approval: Yes (up to 32 km/h / 250 W)
SKU: 1296 (R52) + 1297 (R53)
DT Swiss G 1800 SPLINE Wheelset 27.5" | 24mm Inner Width | 12x100 / 12x142mm Thru Axle | Centerlock | Shimano HG
Check compatibility
Will this wheel fit your bike?
In our short video, we explain what to look out for when checking axle size, freehub type and brake rotor mount.
Versatile 650b Wheelset for Gravel, Allroad, and E-Bikes.
The DT Swiss G 1800 SPLINE 650b db 25 wheelset combines stability, comfort, and reliable performance for use on asphalt and gravel. The 25 mm high aluminum rims with a 24 mm inner width provide an optimal base for modern gravel and allroad tires.
At the front, the proven DT Swiss 370 hub ensures long-lasting function, while at the rear, a DT Swiss 370 hub with Ratchet LN 18 System provides consistent power transmission. In combination with DT aero comp® wide Straightpull spokes, a robust and balanced wheelset is created – approved for e-bikes up to 250 W.
Technical Data Front Wheel:
- Size: 27.5" / 650B
- Inner Width: 24 mm
- Rim Height: 25 mm
- Axle: 12x100 mm Thru Axle
- Brake Disc Mount: Centerlock
- Hub: DT Swiss 370
- Weight: 857 g
Technical Data Rear Wheel:
- Size: 27.5" / 650B
- Inner Width: 24 mm
- Rim Height: 25 mm
- Axle: 12x142 mm Thru Axle
- Brake Disc Mount: Centerlock
- Freehub: Shimano HG
- Hub: DT Swiss 370 with Ratchet LN 18
- Weight: 986 g
General Data:
- Rim: Aluminum, Hooked / Crotchet tubeless TC
- Spokes: DT aero comp® wide Straightpull
- Max. System Weight: 130 kg
- ASTM: 2
- E-Bike Approval: Yes (up to 32 km/h / 250 W)
