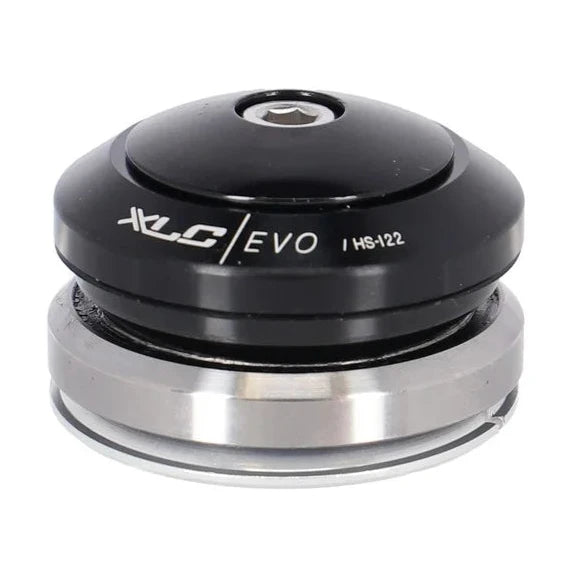

The XLC Evo A-Head Headset HS-I22 is a fully integrated headset that offers precise steering and optimal stability. It is specially designed for fork steerer tubes from 1 1/8" to 1 1/4" and is perfect for bikes with tapered head tubes. The top cap is made of robust aluminum, while the crown race is made of hardened steel to ensure durability. The sealed semi-cartridge bearings provide smooth and low-maintenance operation.

Features:

• Ahead headset, fully integrated and tapered
• Top cap and cone made of aluminum
• Sealed semi-cartridge bearings
• S.H.I.S. Standard: IS42/28.6 IS47/33
• Precise steering and improved stability

Specifications:

• Material: Aluminum (Topcap), hardened steel (crown race)
• S.H.I.S. Standard: IS42/28.6 IS47/33
• Compatibility: 1 1/8" to 1 1/4" steerer tubes
• Compatibility Steerer Tube Top: 28.6 mm
• Compatibility Steerer Tube Bottom: 33 mm
• Compatibility Head Tube Top: 42 mm (IS Fully Integrated)
• Compatibility Head Tube Bottom: 47 mm (IS Fully Integrated)
• Bearings: Sealed semi-cartridge bearings
• Stack Height (bottom): 1 mm
• Stack Height (top): 8.7 mm
• Total Height: 9.7 mm
• Color: Black
• Weight: 90 g

Scope of delivery:

• XLC Evo A-Head Headset HS-I22 Tapered IS42/28.6 IS47/33 (1 1/8" - 1 1/4")

EAN: 4055149441715 | Manufacturer No.: 2500519000
