The TRP Slate T4 HD-M806 is a powerful 4-piston disc brake for MTBs and E-MTBs. Developed based on the World Cup-proven DH-R EVO, it offers maximum braking power, ergonomic levers, easy installation, and durable performance. With a top-loading caliper, 5 mm hydraulic hose, and heat-stable mineral oil, it is perfectly suited for tough trails and demanding riders.

Highlights:

• 4-piston caliper: high braking force and precise modulation
• Ergonomic brake levers: tool-free reach adjustment & hinged clamp
• Top Loading: easy pad replacement from above
• 5.0 mm hydraulic hose: stiffer & more reliable pressure point
• Compatible: I-Spec & Matchmaker (adapter sold separately)

Technical data:

• Manufacturer: TRP
• Model: Slate T4 HD-M806
• Position: Front (left, front brake)
• Braking system: Hydraulic disc brake
• Caliper: 4-piston, forged & CNC machined
• Brake mount: Postmount
• Lever: ergonomic, tool-free reach adjustment
• Brake pads: Resin pads (new compound, incl.)
• Hose length: 850 mm (filled)
• Oil: TRP Mineral Oil (heat-stable, low viscosity)
• Hose type: 5 mm High-Flow hydraulic hose
• Brake rotor compatibility: 1.8 mm thick
• Color: Black (matte)

Scope of delivery:

• 1x TRP Slate T4 HD-M806 front disc brake (left), pre-assembled & filled
• incl. resin brake pads

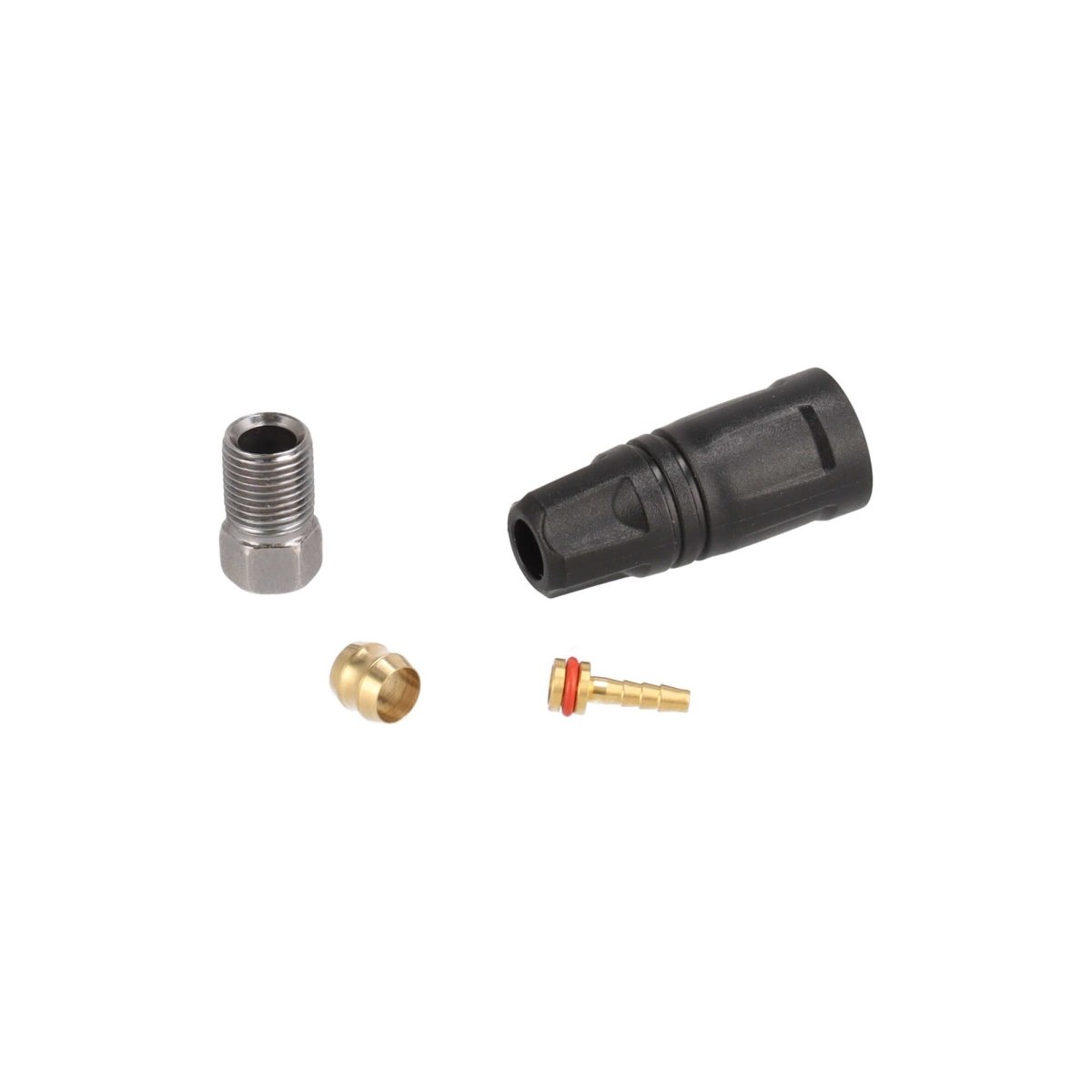

• incl. olive, insert pin, hose filled (bleeding may be necessary after installation)
• Note: Bleeding material not included
• Note: Workshop packaging (without outer packaging)

Manufacturer article no.: ABHD000773 | EAN: 4717592033526

TRP Slate T4 – 4-piston braking power inspired by the DH-R EVO, now perfect for MTB & E-MTB.
