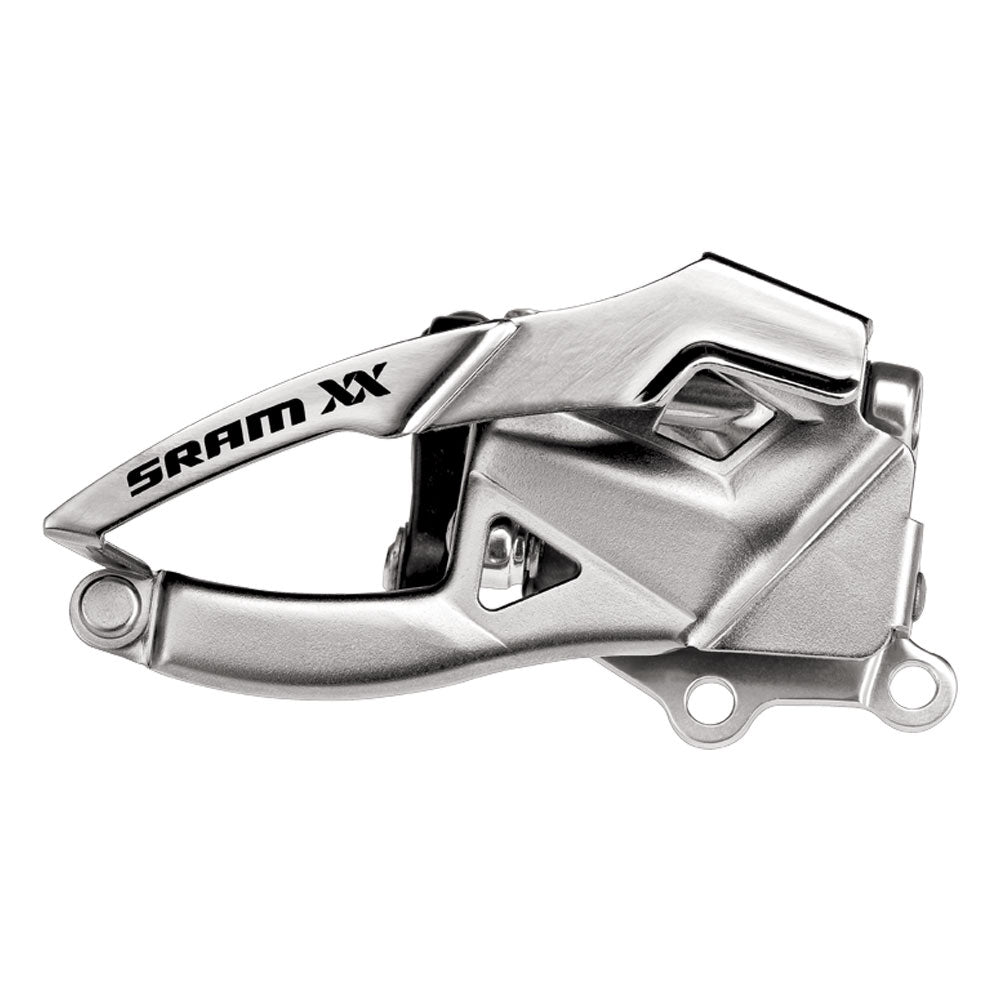

Precise 2x10 Performance for Compact XX Drivetrains.

The SRAM XX Low Direct Mount front derailleur is designed for performance-oriented 2x10-speed MTB setups and specifically tuned for compact chainring combinations with 42/28 teeth. It ideally complements lightweight cross-country and marathon bikes if you want a wide gear range with crisp shifting.

Thanks to the direct-low mounting, the front derailleur sits directly on your frame's corresponding direct-mount tab. This ensures very stiff, close-to-frame actuation, a clean look, and precise chain guiding. The top pull cable routing is designed for frames with cable routing from above and allows for clean, short cable routing from the shifter to the front derailleur.

Designed for SRAM 10 Speed Powerchain 2x MTB drivetrains, the XX front derailleur offers fast, defined gear changes between small and large chainrings – even under load on a steep climb. The approved chainstay angle of 66–69° fits many modern XC and trail frames with the appropriate direct-mount standard.

Highlights:

• 2x10 High-End Front Shifting: optimized for XX double cranksets with 42/28 teeth.
• Low Direct Mount: direct, frame-hugging mounting for maximum stiffness and precise shifting behavior.
• Top Pull Cable Routing: ideal for frames with top cable routing and a clean cockpit.
• For Modern Geometries: designed for chainstay angles of 66–69° on many XC and trail bikes.

Technical Data:

• Model: SRAM XX Front Derailleur Low Direct Mount | Top Pull
• Intended Use: MTB, Cross Country, Marathon, Trail (2x-setup)
• Speeds: 2x10-speed
• Compatible Chainrings: 42/28 teeth
• Mounting Type: Direct-Low (Low Direct Mount on frame, without clamp)
• Cable Routing: Top Pull (shift cable from above)
• Chainstay Angle: 66–69°
• Drivetrain Compatibility: SRAM 10 Speed Powerchain, 2x MTB
• Shifting Actuation: mechanical shift cable
• Color: black / silver (model-dependent XX Race design)

Scope of Delivery:

• 1 x SRAM XX Front Derailleur | Low Direct Mount | Top Pull | 2x10-speed | for 42/28 teeth

Manufacturer Part No.: 00.7615.065.120 | EAN: 710845628726

The SRAM XX Low Direct Mount Top Pull front derailleur is the right choice if you want to run a lightweight, precise 2x10 MTB setup with 42/28 chainrings and direct-mount tabs on your frame.
