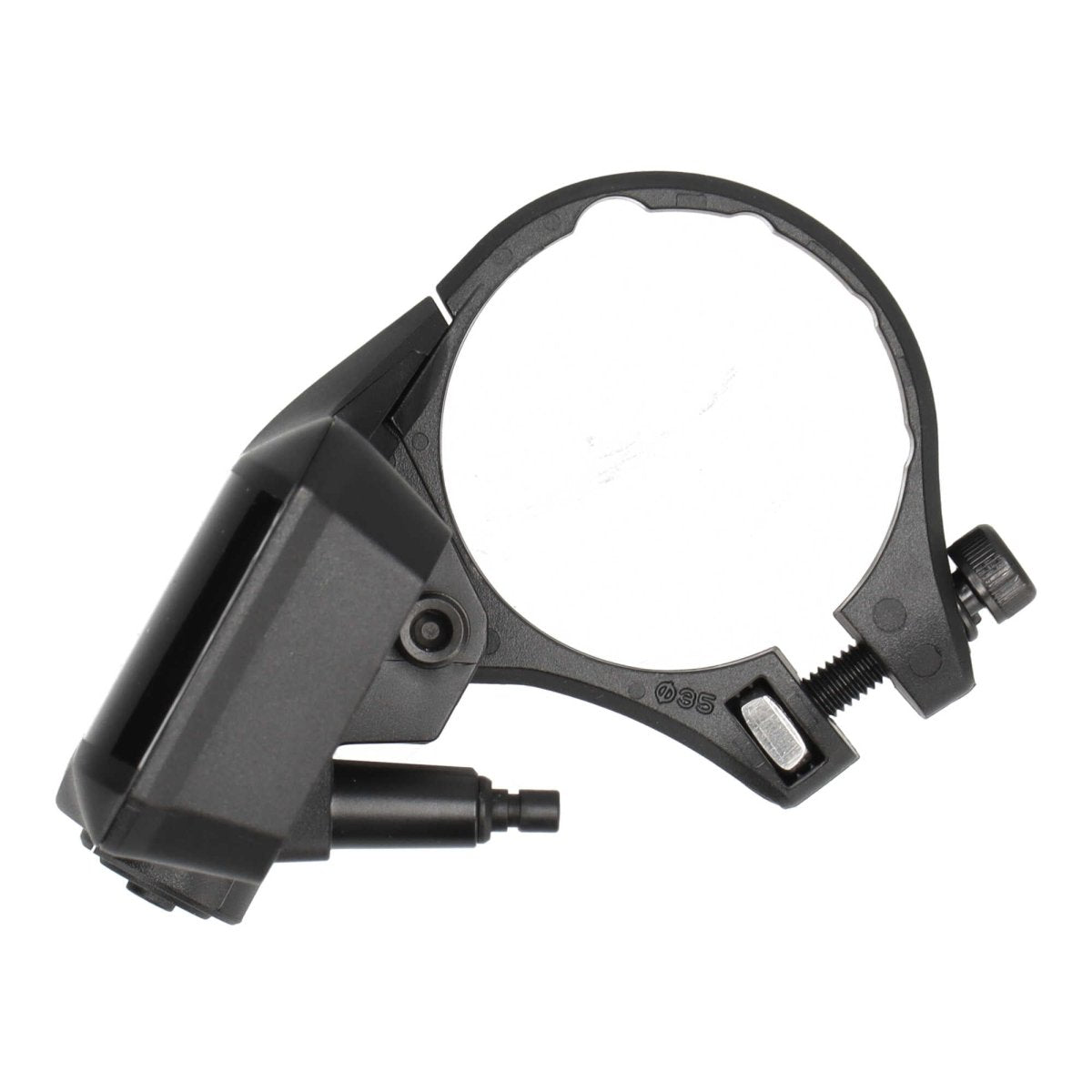

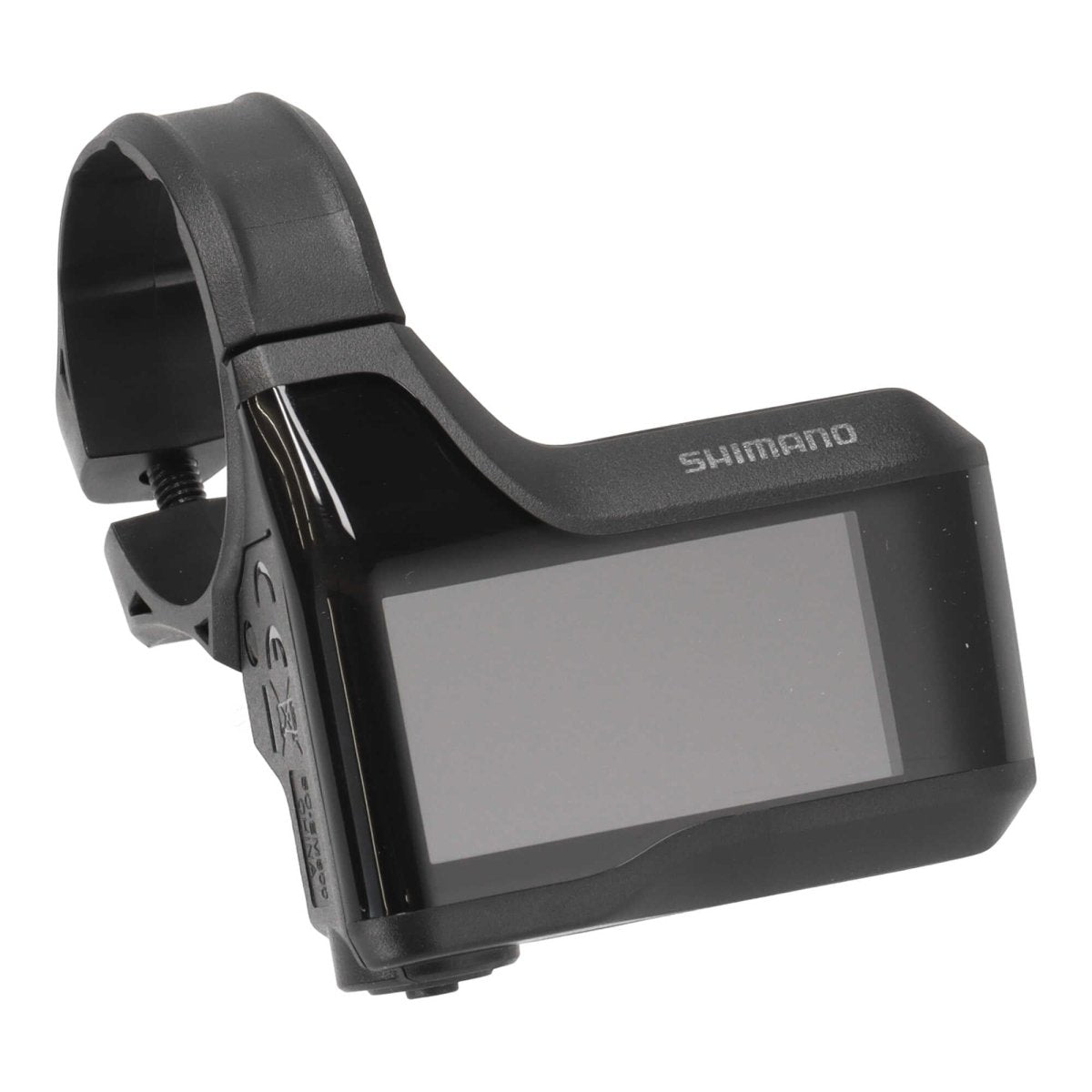

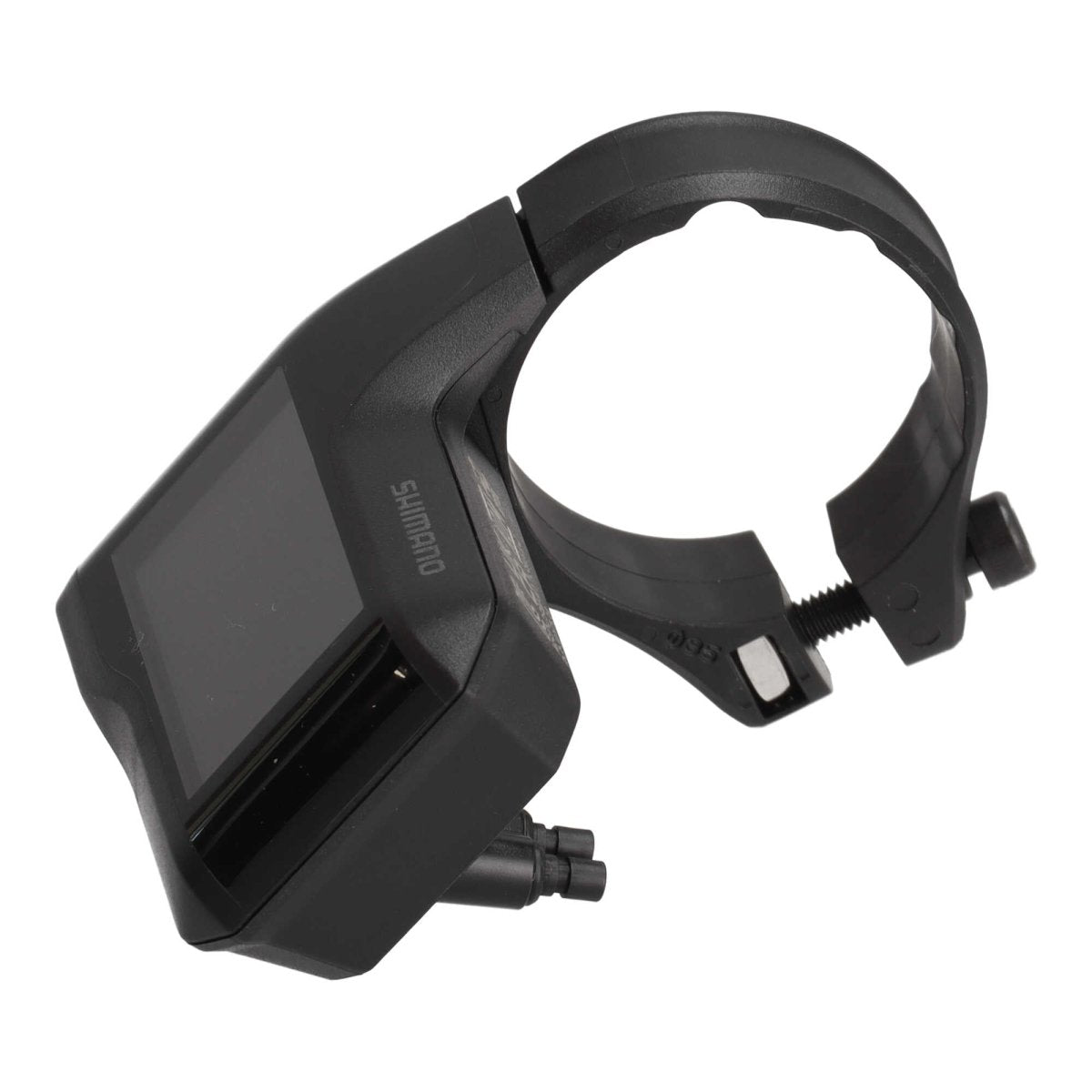

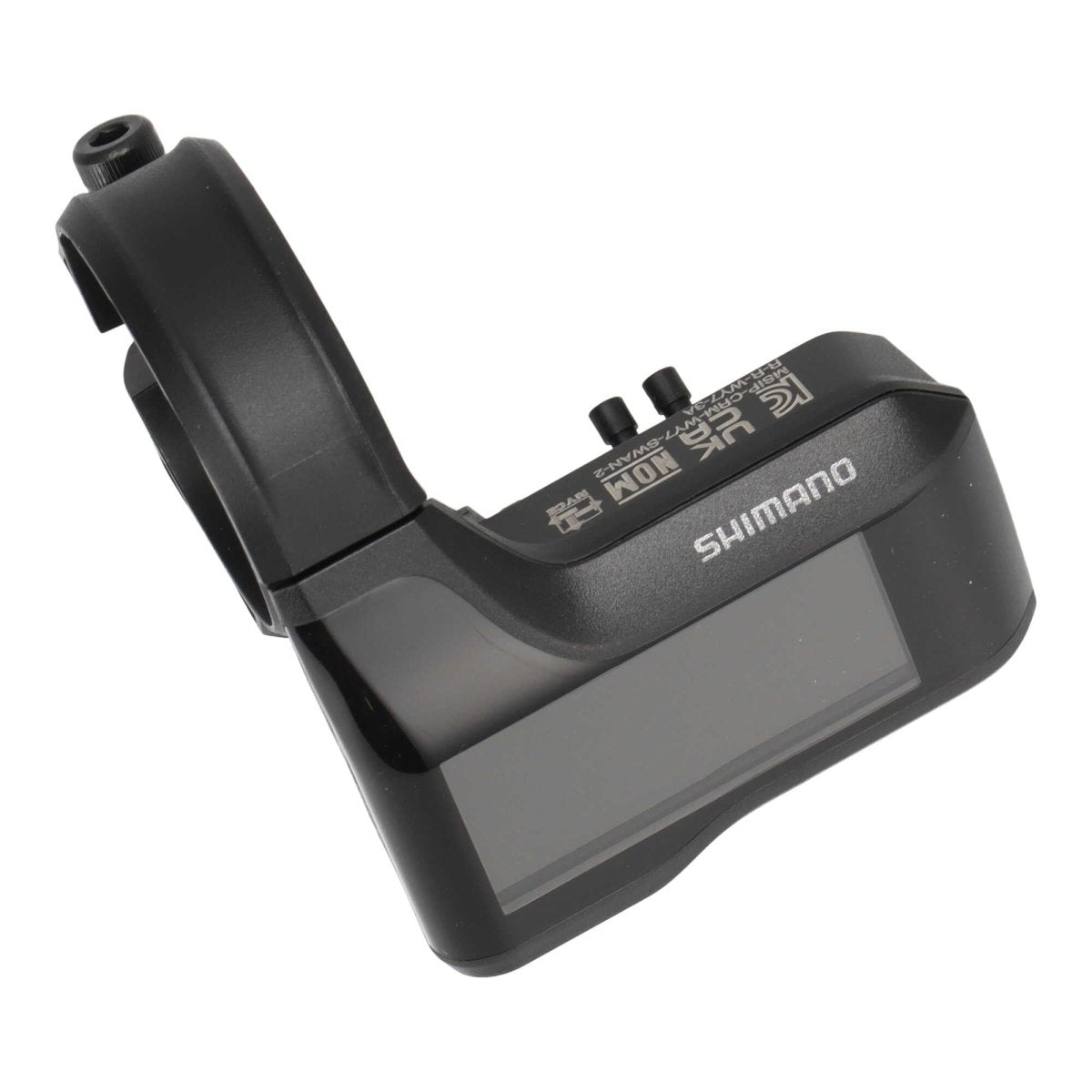

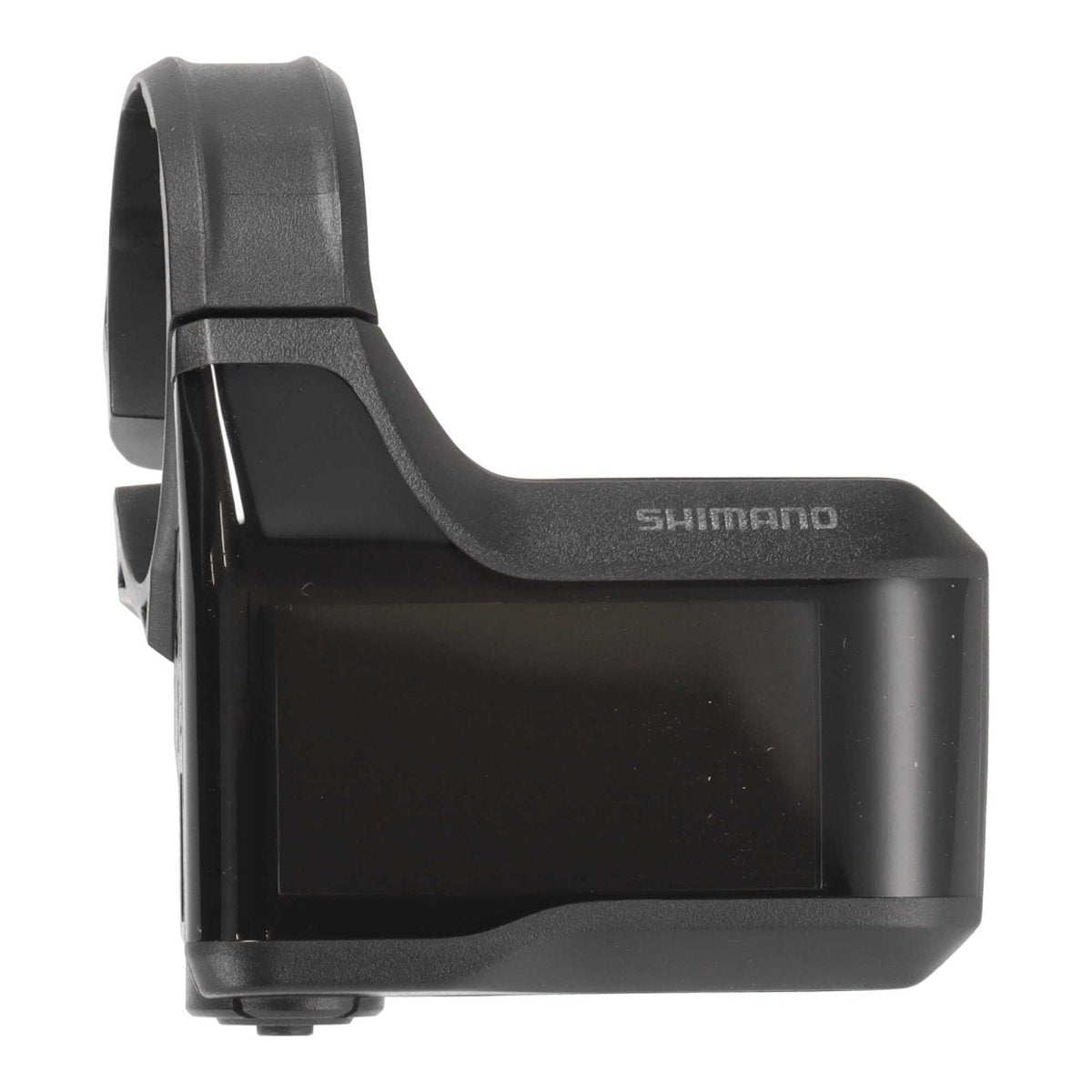

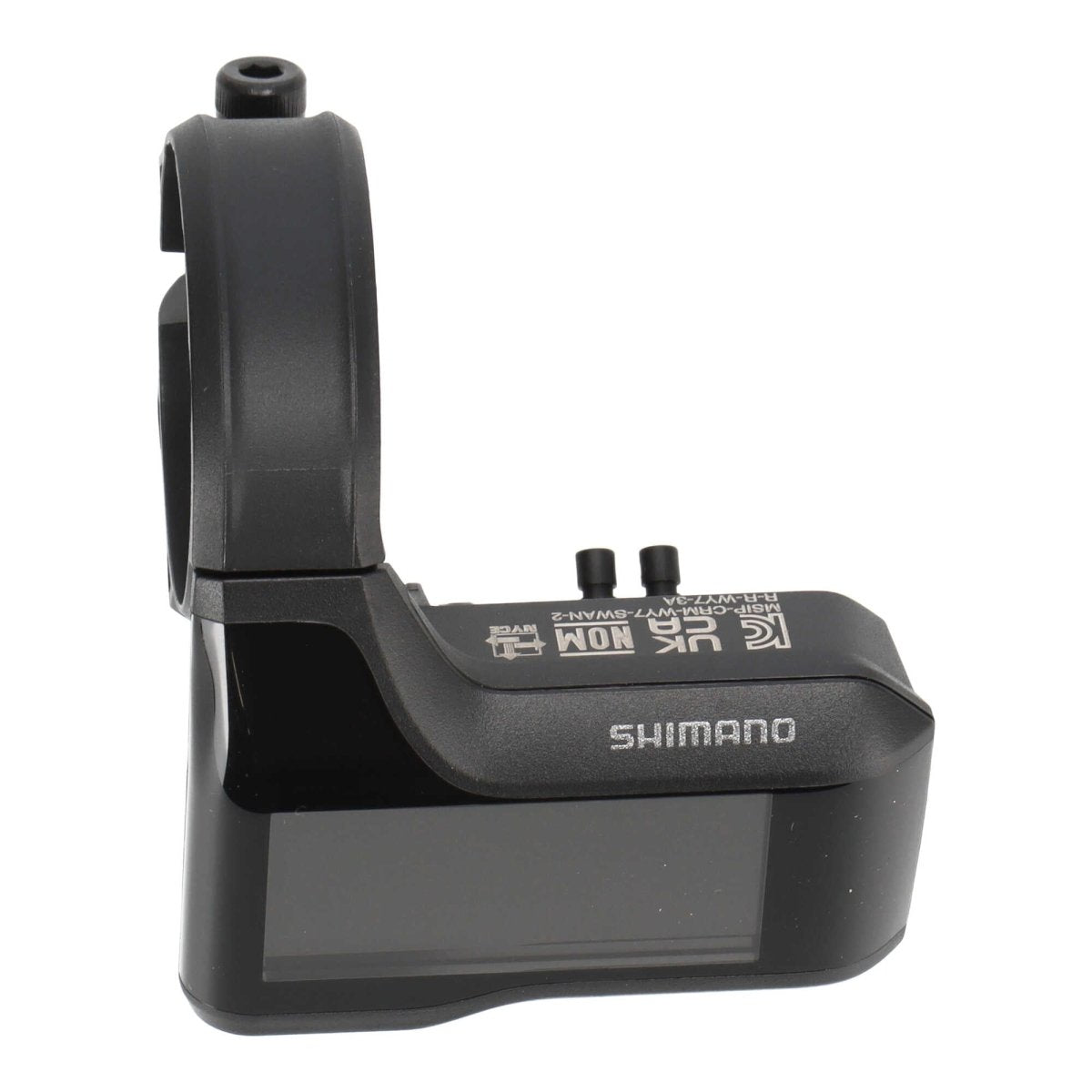

The Shimano STePS EP8 SC-EM800 Display gives you full control and an overview of your e-mountain bike. With a 1.6" color display, intuitive menu navigation, and wireless connectivity (Bluetooth LE / ANT), it is the perfect companion for challenging trails. The onboard computer is optimally designed for MTB use – flat, compact, and perfectly readable, even in direct sunlight.
The display shows all relevant riding data such as support mode, speed, cadence, range, and much more. Thanks to the D-FLY wireless system, the e-bike system can be conveniently configured via an app.
Functions:
- Support modes (color-coded)
- Speed: current, max., average
- Battery charge level, range & range overview
- Riding time, distance, total mileage
- Cadence, time
- Error messages & maintenance instructions
- Gear indicator & Auto Shift (Di2 only)
- Walk Mode display
Technical details:
- Display: 1.6" LCD color display with backlight
- Clamp diameter: 35 mm (WITHOUT 31.8 mm adapter)
- Connectivity: Bluetooth LE & ANT private
- Language: incl. German, English, French
- Connections: 4x ports for EW-SD300 cable
- Series: Shimano STePS EP8
- Compatible with DU-EP800, DU-EP801, DU-EP600, DU-EP500
- Weight: 41g (self-weighed)
Scope of delivery:
- 1x SHIMANO Steps SC-EM800 Display for e-bikes 35 mm (without adapter for 31.8 mm handlebars)
- incl. mounting material
- Note: Workshop packaging (without retail packaging)
Manufacturer article no.: ISCEM800D | EAN: 4550170153212
SKU: D2B3
SHIMANO Steps SC-EM800 Display for e-bikes 35 mm clamp
The Shimano STePS EP8 SC-EM800 Display gives you full control and an overview of your e-mountain bike. With a 1.6" color display, intuitive menu navigation, and wireless connectivity (Bluetooth LE / ANT), it is the perfect companion for challenging trails. The onboard computer is optimally designed for MTB use – flat, compact, and perfectly readable, even in direct sunlight.
The display shows all relevant riding data such as support mode, speed, cadence, range, and much more. Thanks to the D-FLY wireless system, the e-bike system can be conveniently configured via an app.
Functions:
- Support modes (color-coded)
- Speed: current, max., average
- Battery charge level, range & range overview
- Riding time, distance, total mileage
- Cadence, time
- Error messages & maintenance instructions
- Gear indicator & Auto Shift (Di2 only)
- Walk Mode display
Technical details:
- Display: 1.6" LCD color display with backlight
- Clamp diameter: 35 mm (WITHOUT 31.8 mm adapter)
- Connectivity: Bluetooth LE & ANT private
- Language: incl. German, English, French
- Connections: 4x ports for EW-SD300 cable
- Series: Shimano STePS EP8
- Compatible with DU-EP800, DU-EP801, DU-EP600, DU-EP500
- Weight: 41g (self-weighed)
Scope of delivery:
- 1x SHIMANO Steps SC-EM800 Display for e-bikes 35 mm (without adapter for 31.8 mm handlebars)
- incl. mounting material
- Note: Workshop packaging (without retail packaging)
Manufacturer article no.: ISCEM800D | EAN: 4550170153212
