Precise Damping for Trail, Enduro & All-Mountain.

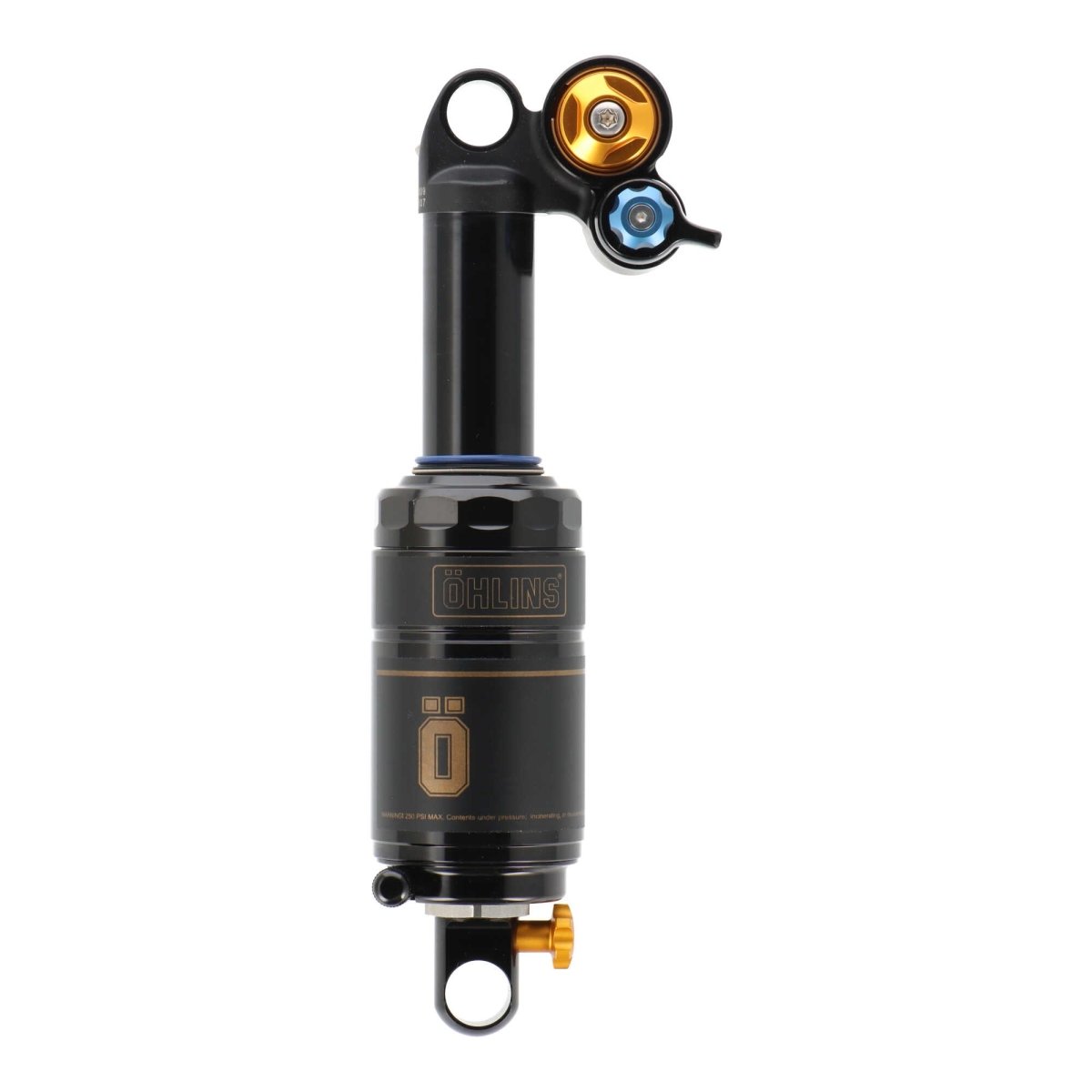

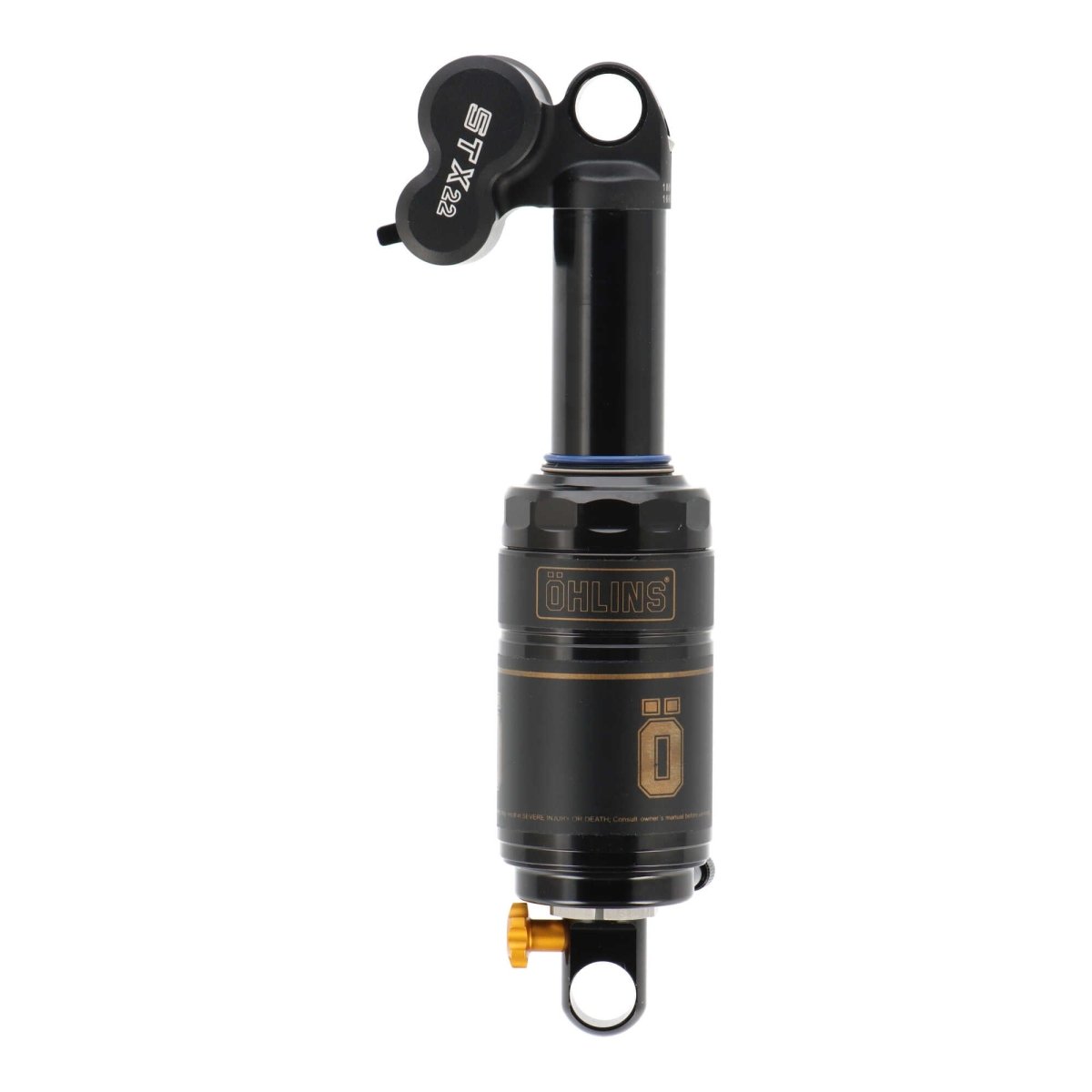

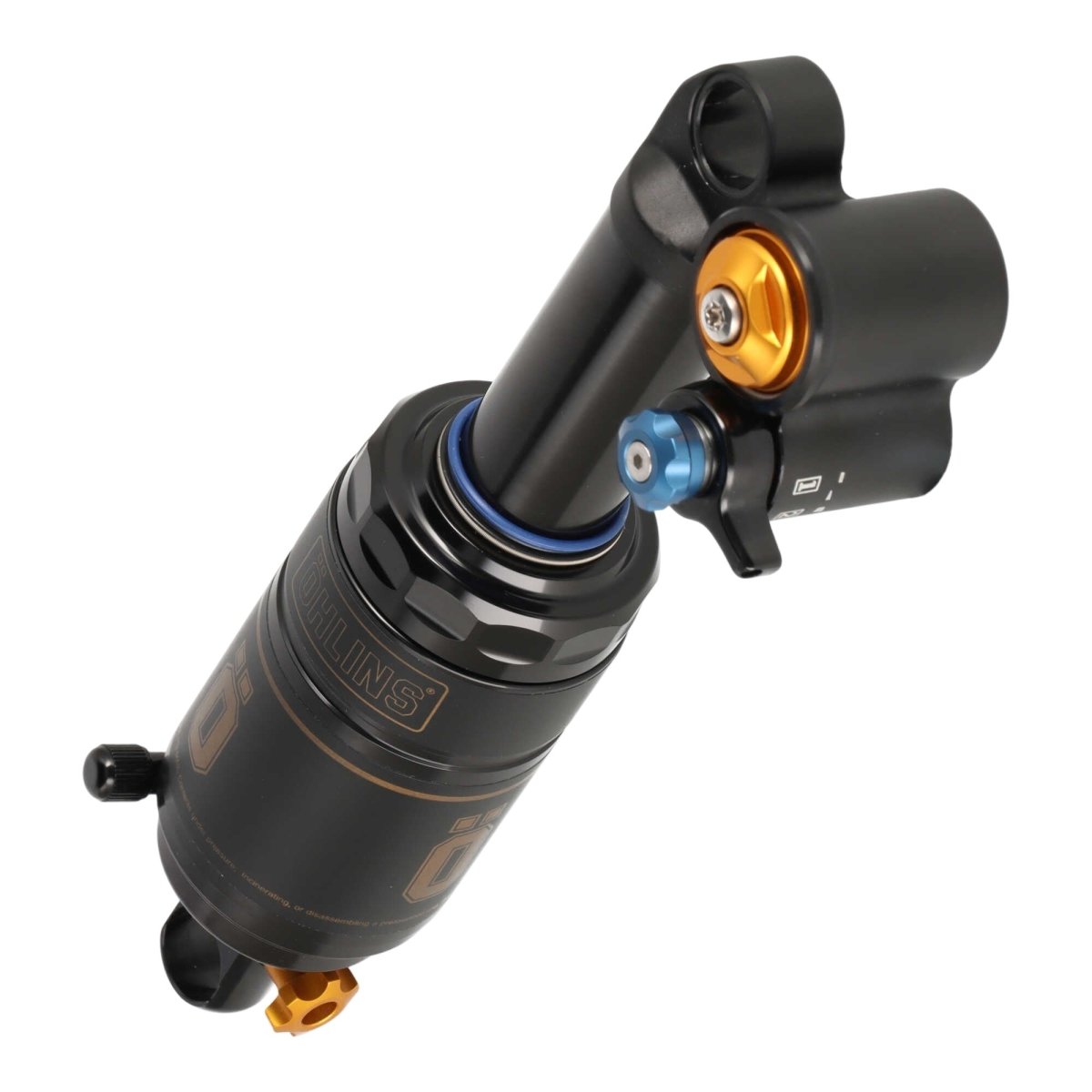

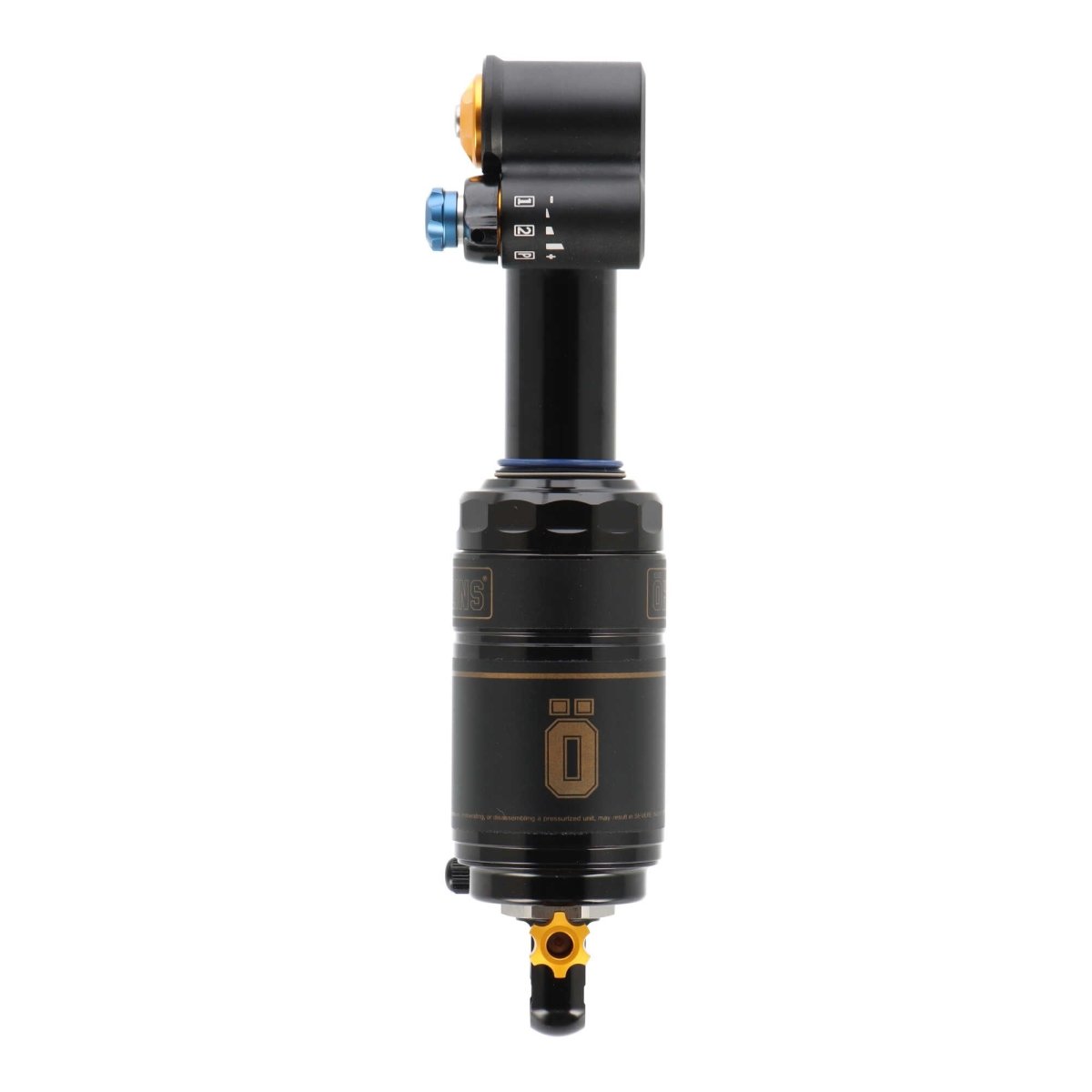

The Öhlins STX 22 Air in size 200 x 51 mm (model 1881) is a versatile air shock for demanding MTB use. Its generously sized piston works with a finely tuned compression valve and optimally controls the oil flows in the shock – for sensitive response, plenty of grip, and a plush, controlled ride.

The independently adjustable high- and low-speed compression as well as the rebound damping can be adjusted externally. Additionally, a Climb Mode is available, which stiffens the rear for long climbs, thus improving pedaling efficiency and traction. On descents, you benefit from finely metered support in the mid-travel range, without having to sacrifice reserves for hard impacts.

The STX 22 Air's air spring uses a low-friction sealing system that allows for rapid pressure equalization between the air chambers. The result: sensitive initial travel, controlled damping in the mid-travel, and high bottom-out resistance. The characteristic curve can be tuned from rather linear to significantly progressive via air pressure, volume spacers, and oil quantity – tailored to riding style, frame, and area of use.

The hard-anodized aluminum housing ensures a low weight from approx. 340 g and high durability. As is customary for Öhlins, the shock is fully serviceable and thus ideally suited for service, maintenance, and individual tuning. A 2-year warranty underlines the high-quality construction.

Highlights:

• Fine response & high control: large piston with a balanced damper valve for grip and stability – uphill and downhill.
• Extensive adjustment options: external high- and low-speed compression, rebound damping plus Climb Mode for a firm chassis uphill.
• Tunable air spring: spring rate adjustable via air pressure, progression via spacers and oil – from comfortable to race-oriented.
• STX technology: derived from the Öhlins motorsport world, optimized for mountain bikes.
• Durable & service-friendly: hard-anodized aluminum housing, fully serviceable design, ideal for regular maintenance.

Technical Data:

• Model: Öhlins STX 22 Air Universal MTB (Model 1881)
• Type: Air shock
• Eye-to-eye length: 200 mm
• Stroke: 51 mm
• Technology: STX
• Weight: from approx. 340 g (manufacturer's specification)
• Material: Aluminum, hard-anodized
• Adjustments: Spring rate (air pressure), progression (spacers/oil), high-speed compression, low-speed compression, rebound, Climb Mode
• Damping Features: sensitive response, plush mid-damping, high bottom-out reserves
• Service: fully serviceable for maintenance and repair
• Warranty: 2 years
• Application: Trail, All-Mountain, Enduro (Universal MTB)

Scope of Delivery:

• 1 x Öhlins STX 22 Air shock 200 x 51 mm | Universal MTB | Model 1881
• 1 x User manual
• Note: Workshop packaging (without outer packaging)

Manufacturer Part No.: 1881 | EAN: [EAN] | GTIN: [GTIN]

For all who really want to use their suspension: The Öhlins STX 22 Air combines sensitive response with a wide adjustment range – ideal for precisely tuning your MTB to the trail, riding style, and weight.
