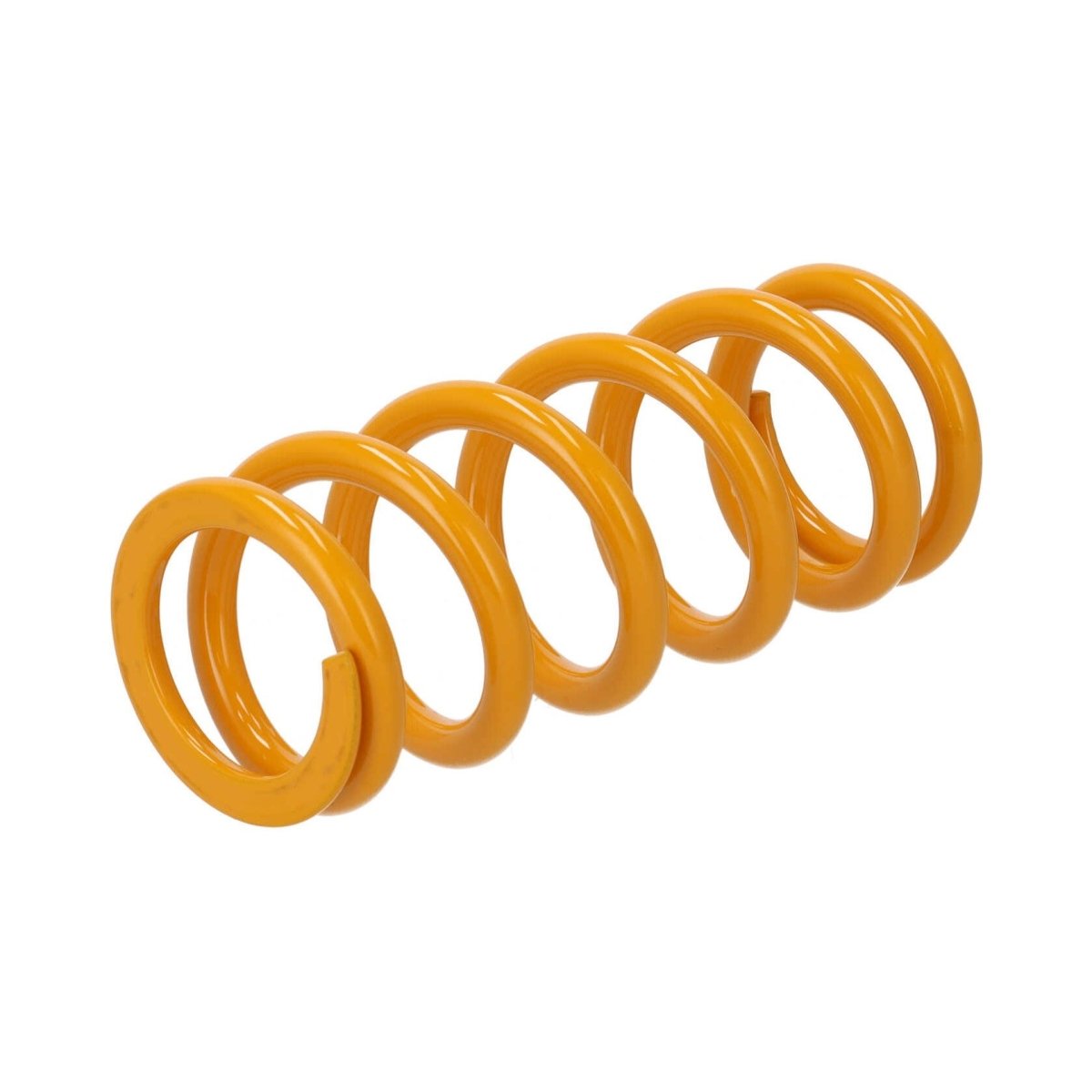

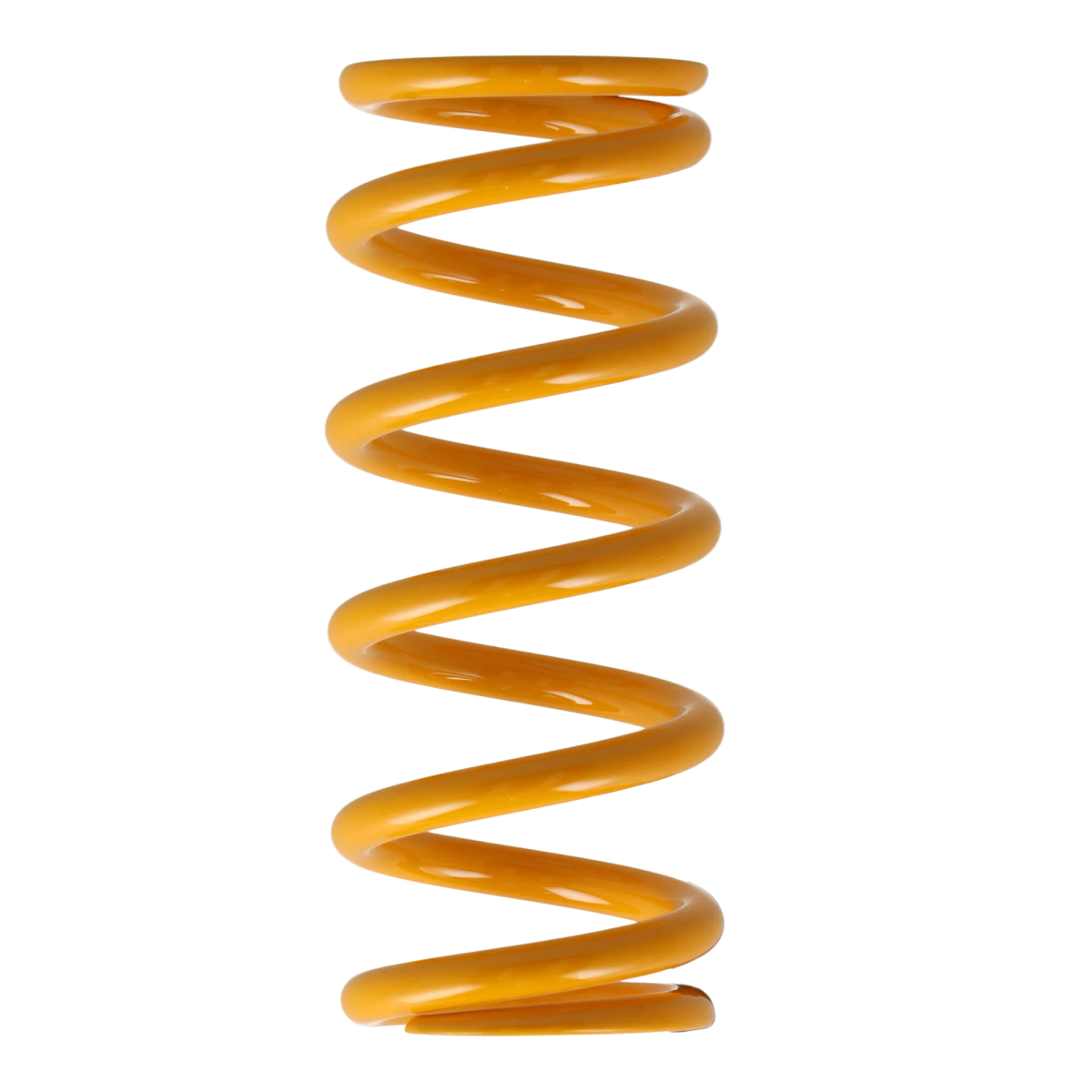

Finely tuned performance for your suspension: The Öhlins steel spring 708 lbs (124 N/mm) was specially developed for use with the TTX22M damper. It fits dampers with up to 57 mm stroke and impresses with durability, low weight and the highest manufacturing quality.

Thanks to precise manufacturing with a tolerance of only 1.5%, the spring ensures constant performance – even during intensive use in trail and gravity areas. The surface is powder-coated, which, in addition to the striking yellow appearance, also offers optimal corrosion protection.

Highlights:

• Suitable for TTX22M Coil shocks with up to 57 mm travel
• Spring rate: 124 N/mm (708 lb/in)
• Maximum precision due to tight manufacturing tolerances (1.5%)
• Robust steel construction with powder coating
• Easy replacement without special tools

Technical data:

• Compatible with: Öhlins TTX22M shocks
• Spring rate: 124 N/mm (708 lb/in)
• For shock travel: up to 57 mm
• Outer diameter: 36 mm
• Material: Steel, powder-coated
• Color: Yellow

Scope of delivery:

• 1x Öhlins steel spring 708 lbs (124 N/mm) for up to 57 mm shock travel
• Note: Workshop packaging (without outer packaging)

Article number: 18075-19

The optimal addition to your Öhlins suspension – precise, robust, durable.
