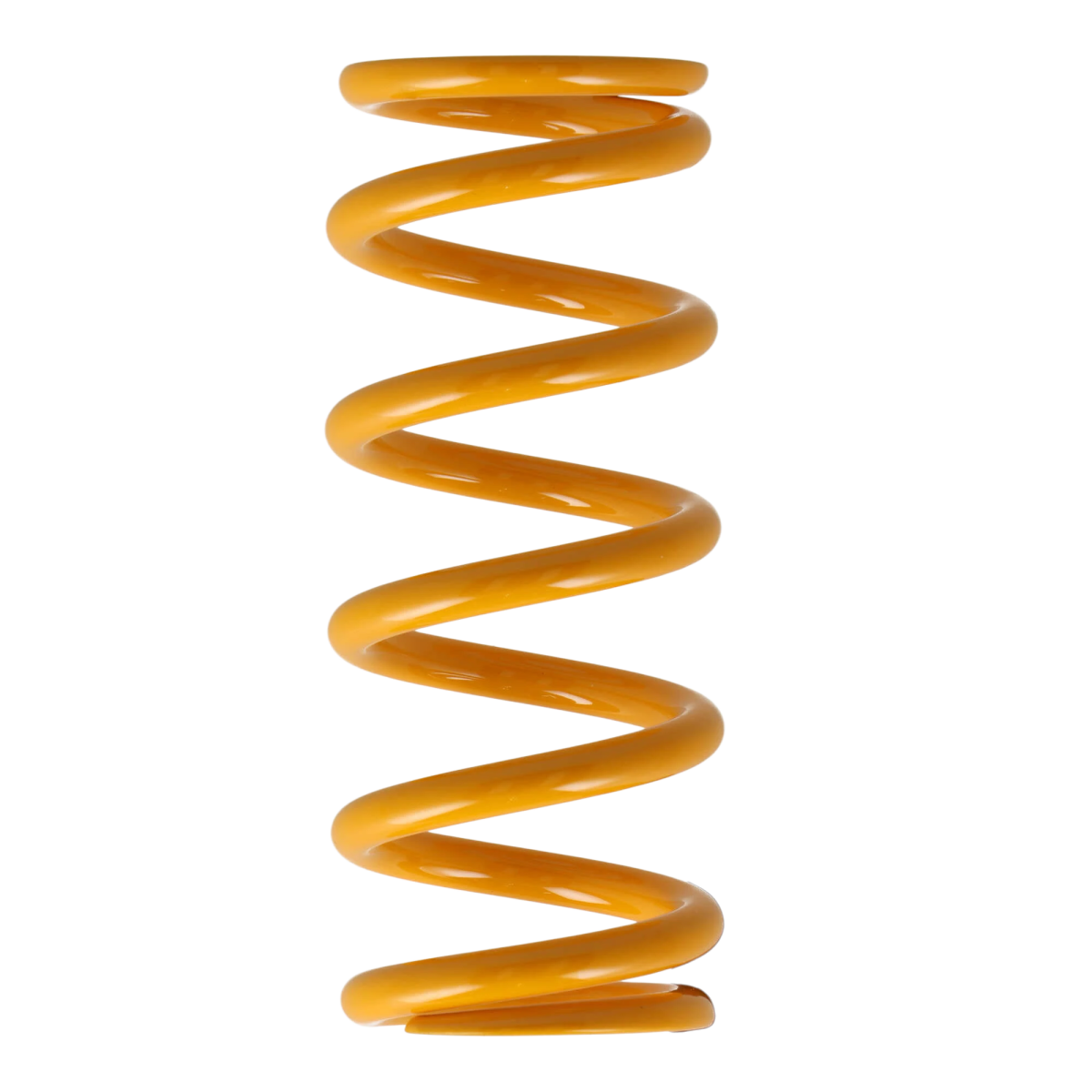

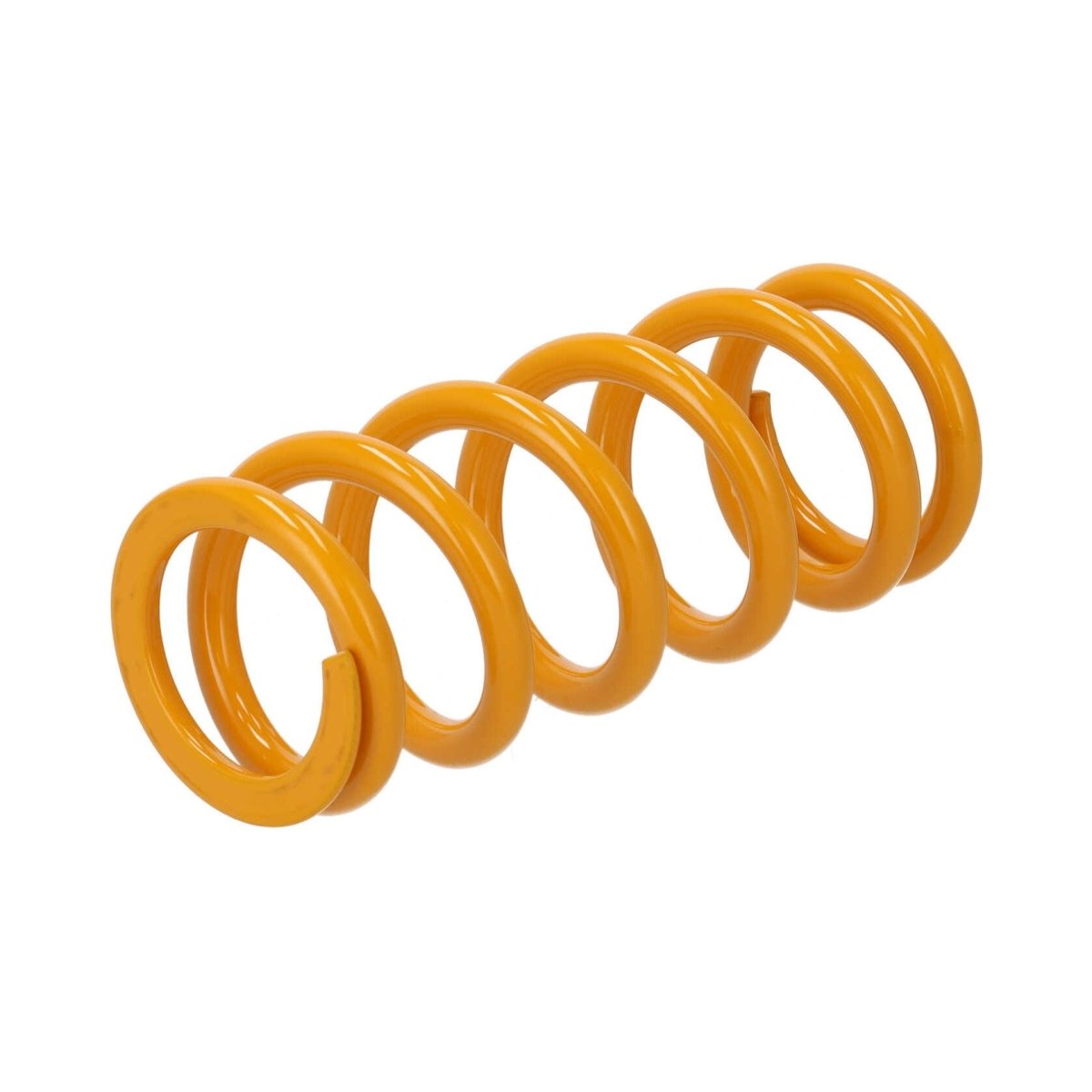

Finely Tuned Performance for Your Suspension: The Öhlins Steel Spring 480 lbs (84 N/mm) was specially developed for use with the TTX22M damper. It fits dampers with up to 50 mm stroke and impresses with its durability, low weight, and highest manufacturing quality.

Thanks to precise manufacturing with a tolerance of only 1.5%, the spring ensures constant performance – even during intensive use in trail and gravity areas. The surface is powder-coated, which, in addition to its striking yellow appearance, also offers optimal corrosion protection.

Highlights:

• Suitable for TTX22M Coil dampers with up to 50 mm travel
• Spring rate: 84 N/mm (480 lb/in)
• Maximum precision due to tight manufacturing tolerances (1.5%)
• Robust steel construction with powder coating
• Easy replacement without special tools

Technical Data:

• Compatible with: Öhlins TTX22M dampers
• Spring rate: 84 N/mm (480 lb/in)
• For damper stroke: up to 50 mm
• Outer diameter: 36 mm
• Material: Steel, powder-coated
• Color: Yellow

Scope of delivery:

• 1x Öhlins Steel Spring 480 lbs (84 N/mm) for up to 50 mm damper stroke
• Note: Workshop packaging (without outer packaging)

Article number: 18076-11

The optimal addition to your Öhlins suspension – precise, robust, durable.
