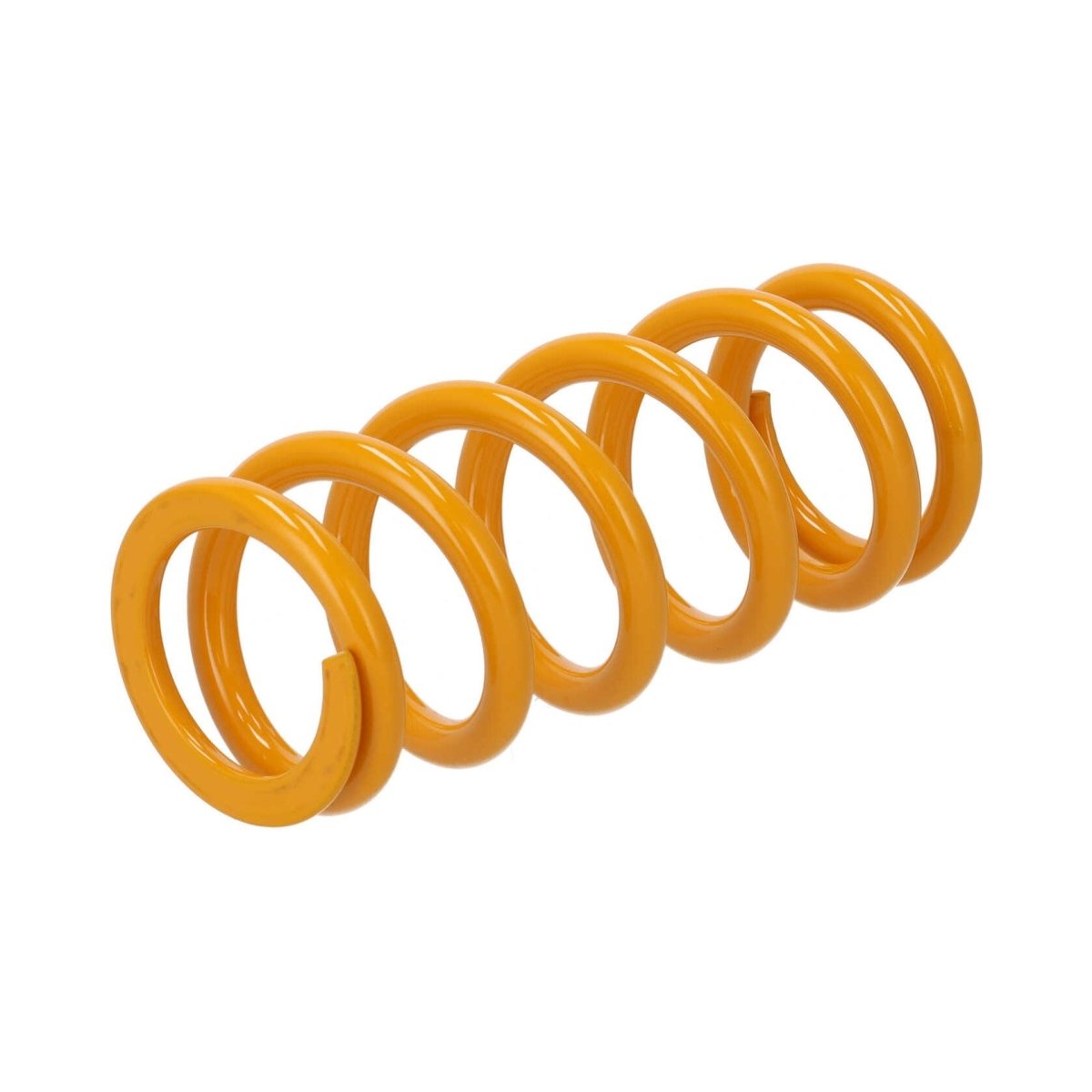

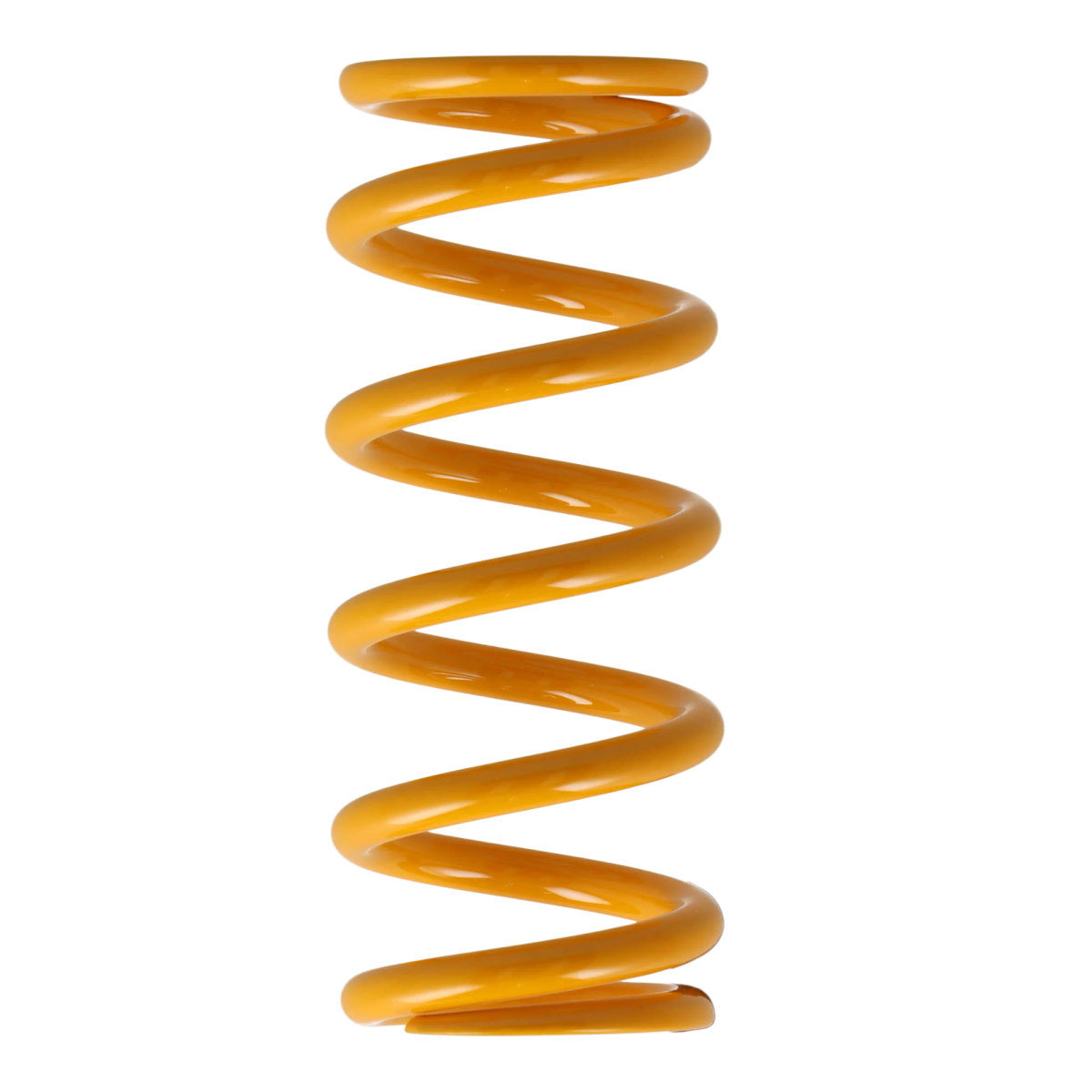

Finely Tuned Performance for Your Suspension: The Öhlins Steel Spring 274 lbs (48 N/mm) was specifically developed for use with the TTX22M shock. It fits shocks with 77–89 mm stroke and impresses with its durability, light weight, and highest manufacturing quality.

Thanks to precise manufacturing with a tolerance of only 1.5%, the spring ensures consistent performance – even during intense use in trail and gravity riding. The surface is powder-coated, which, in addition to the distinctive yellow look, also offers optimal corrosion protection.

Highlights:

• Suitable for TTX22M Coil shocks with 77–89 mm stroke
• Spring rate: 48 N/mm (274 lb/in)
• Maximum precision due to tight manufacturing tolerances (1.5%)
• Robust steel construction with powder coating
• Easy replacement without special tools

Technical Data:

• Compatible with: Öhlins TTX22M shocks
• Spring rate: 48 N/mm (274 lb/in)
• For shock stroke: 77–89 mm
• Outer diameter: 36 mm
• Material: Steel, powder-coated
• Color: Yellow

Scope of Delivery:

• 1x Öhlins Steel Spring 274 lbs (48 N/mm) for 77–89 mm shock stroke
• Note: Workshop packaging (without outer packaging)

Item number: 18065-02

The optimal addition to your Öhlins suspension – precise, robust, durable.
