Modern aluminum trail frame for smooth-running 29" setups with balanced suspension travel.

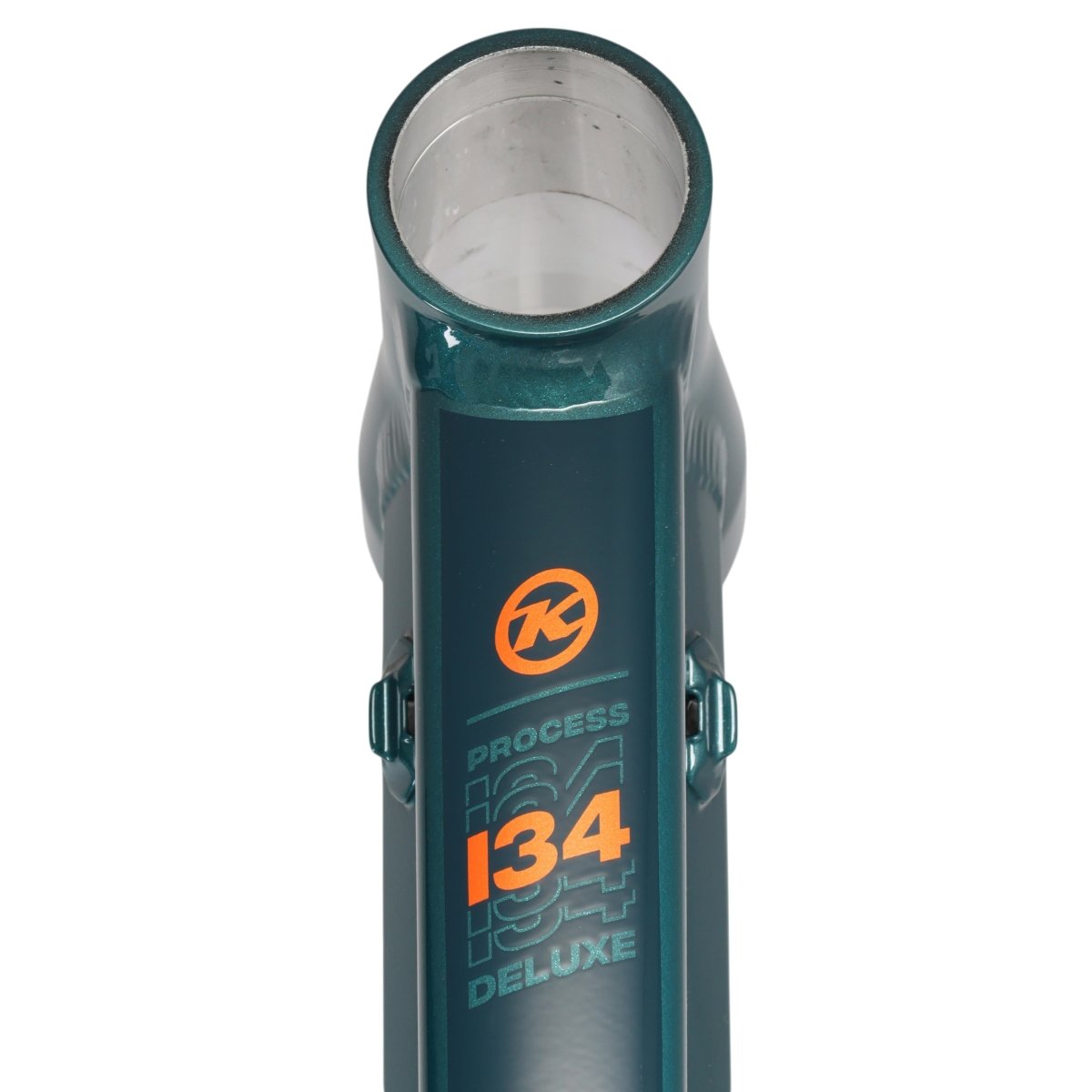

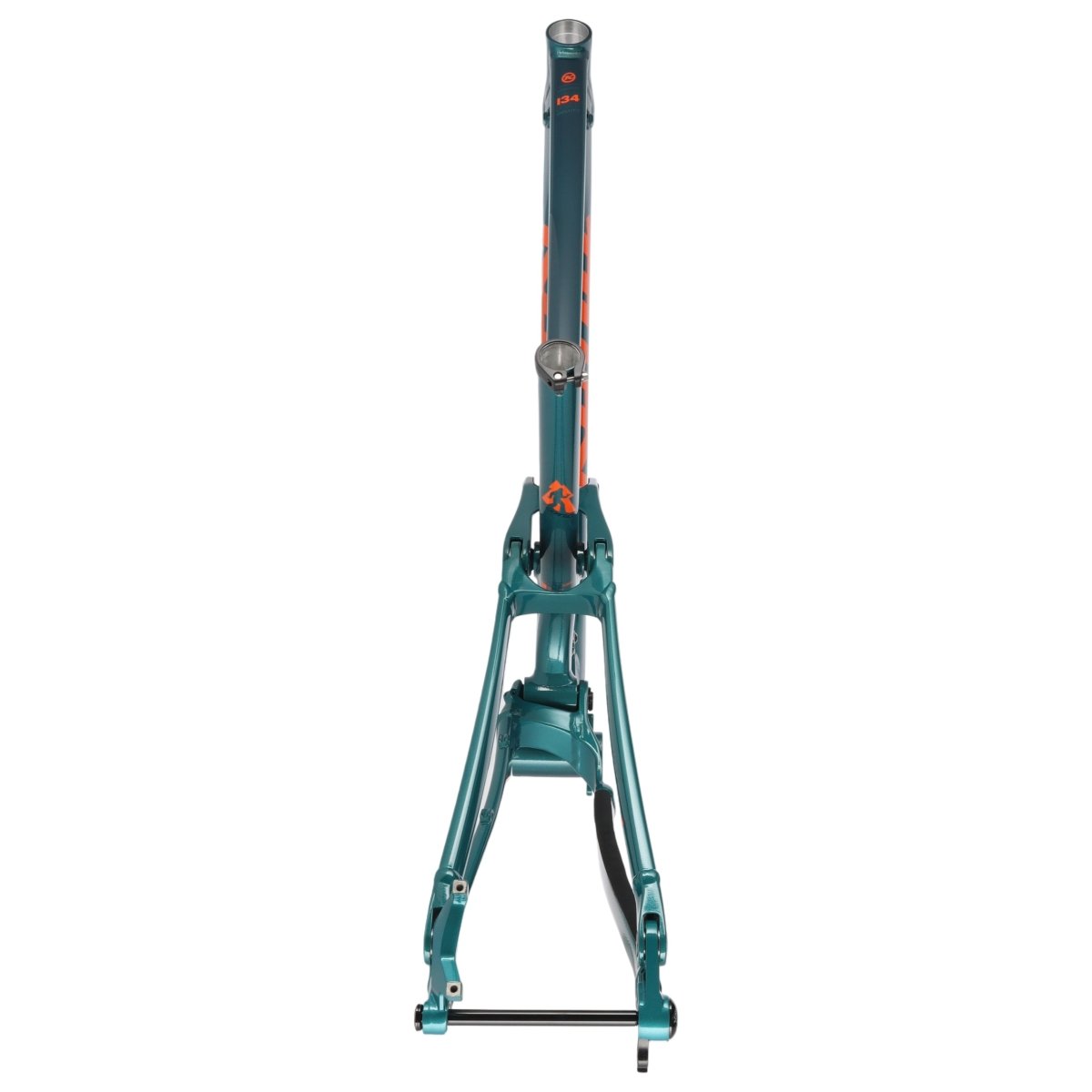

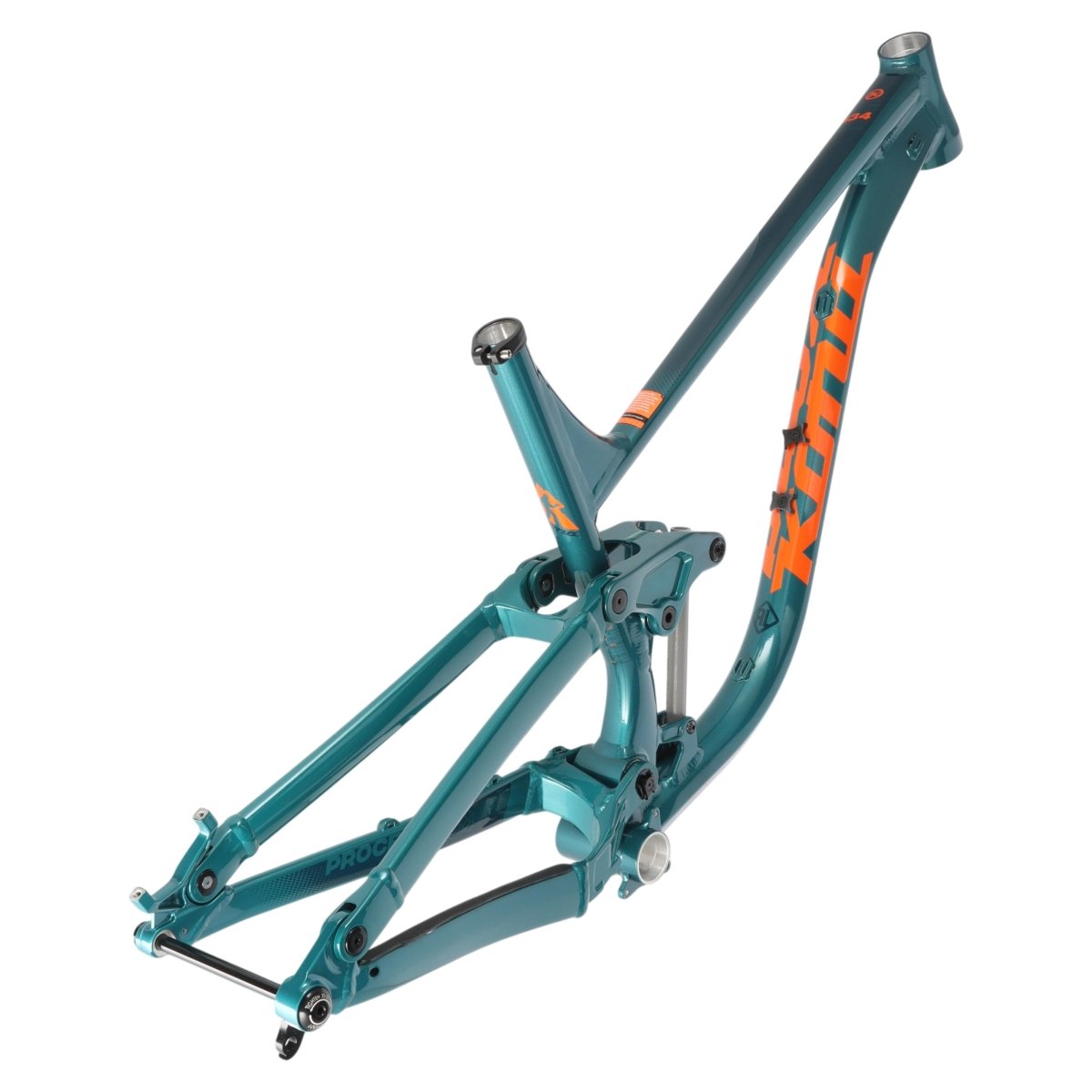

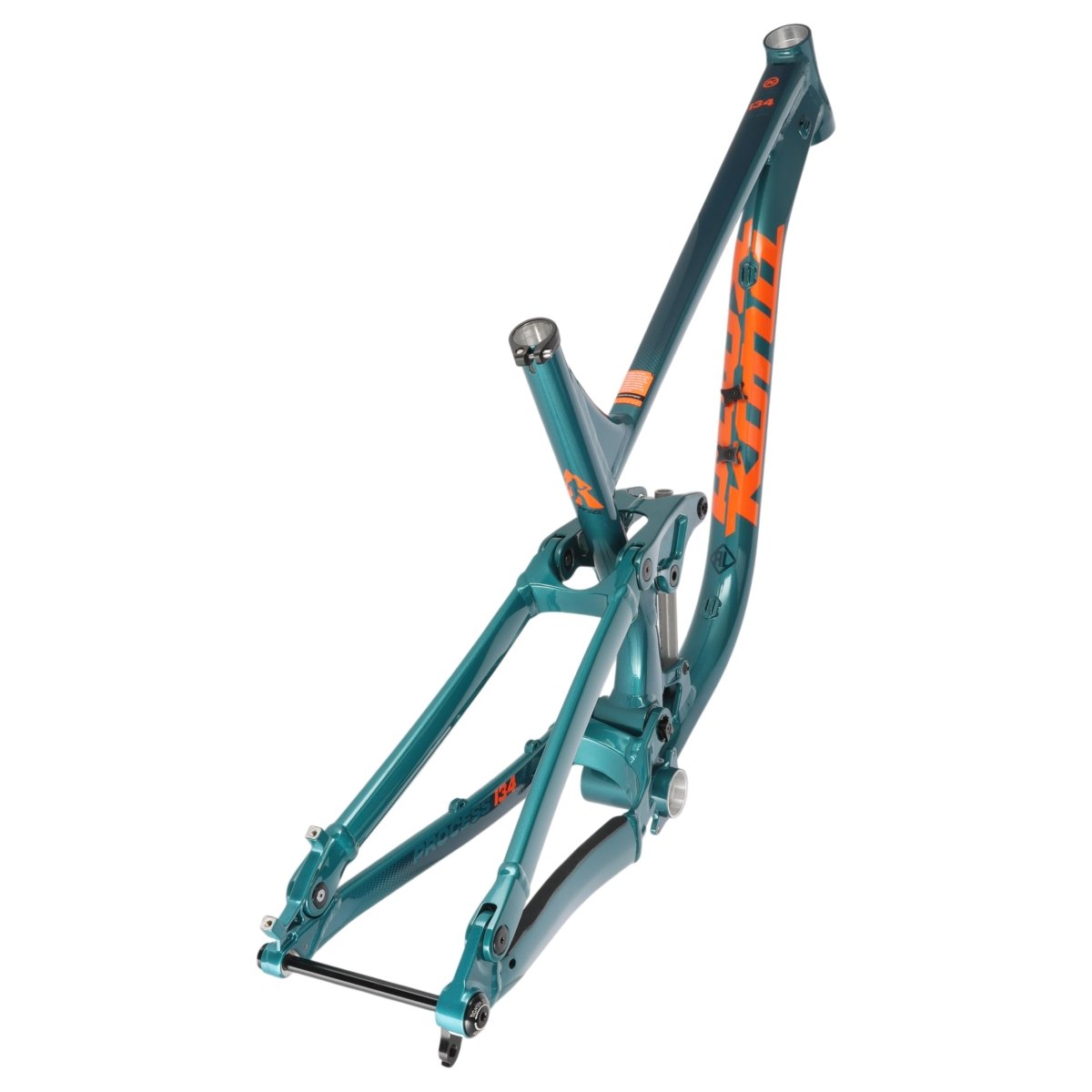

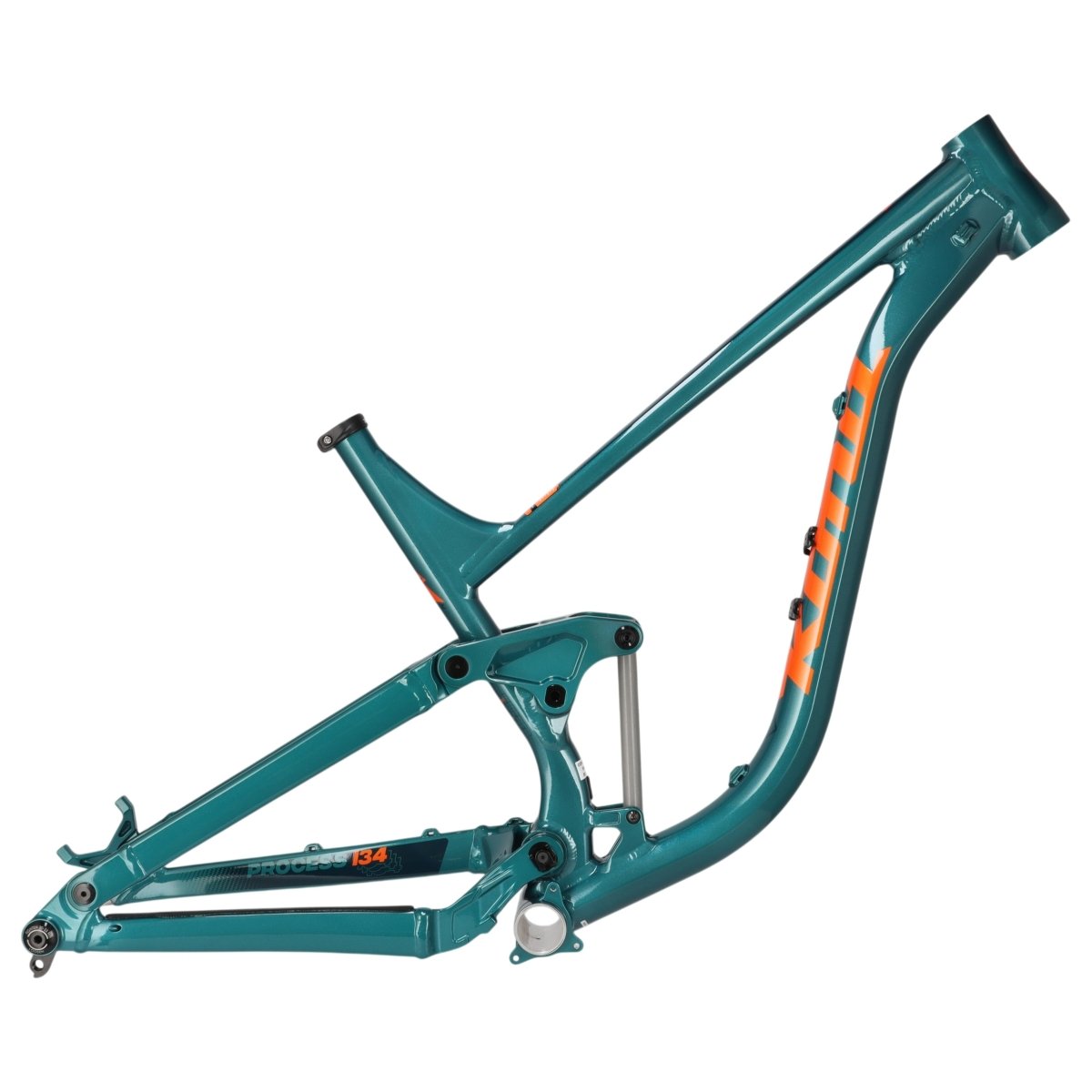

The Kona Process 134 DL frame (model year 2021) in frame size XL is a stable and versatile base for a modern trail bike. Designed for 29" wheels with 140 mm front travel and 134 mm rear travel, the frame offers high running smoothness, control, and safety on fast trails and technical descents. The striking color scheme turquoise / orange ensures a sporty, distinctive appearance.

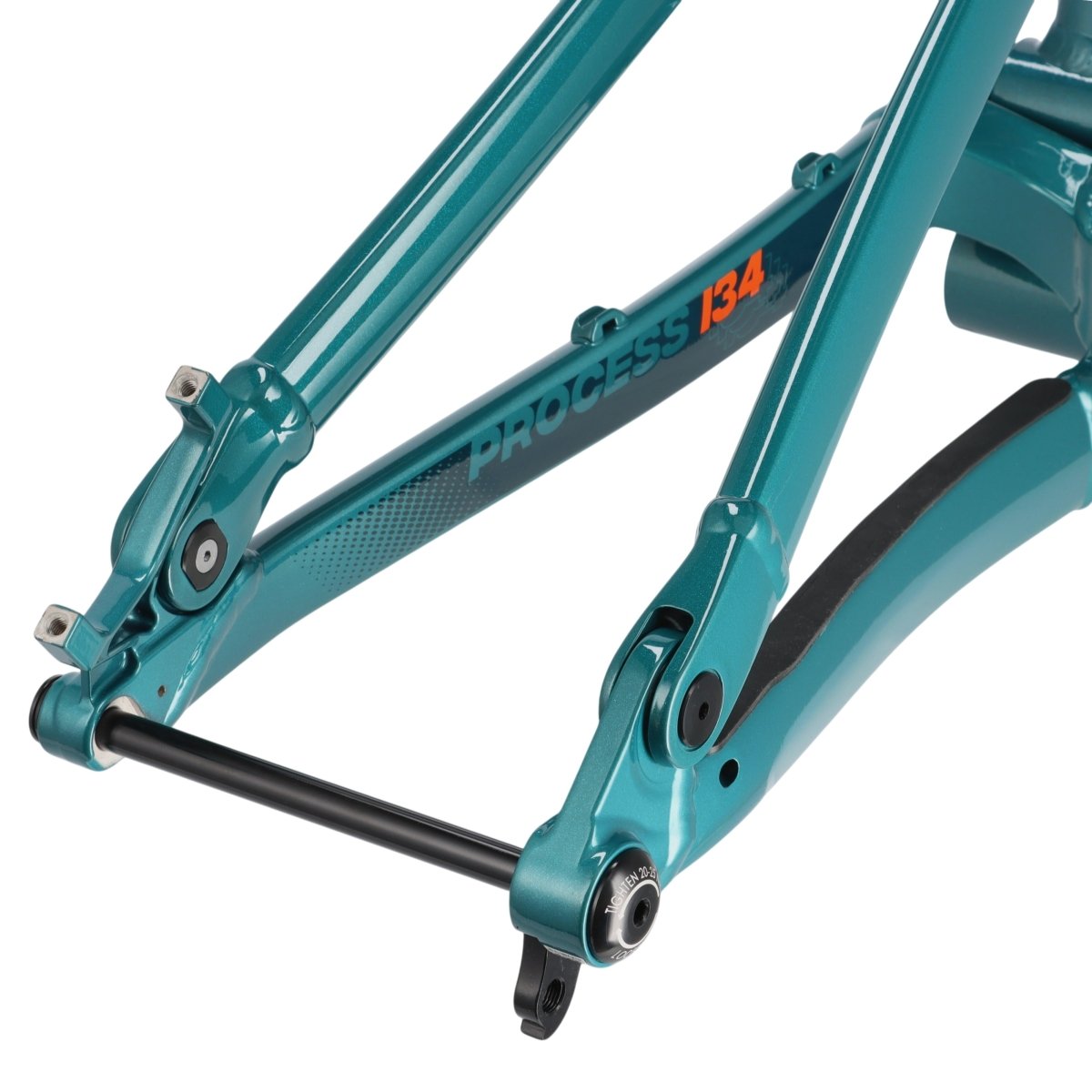

The rear triangle is designed for the Boost standard (12x148 mm) and offers high stiffness as well as precise handling. With a PF92 bottom bracket and a head tube standard of 44 mm top / 55.95 mm bottom, the frame meets the common standards of the model year.

The frame uses a seat post with a 31.6 mm diameter and a seat clamp with 34.9 mm. The specified frame weight is 3640 g.

Highlights:

• Aluminum trail frame (2021): robust and durable for demanding trails.
• 29" wheels: high running smoothness and superior rollover capability.
• 140 / 134 mm travel: balanced trail performance with reserves.
• Boost 12x148 mm: stiff rear triangle for precise handling.
• 31.6 mm seatpost: compatible with common dropper posts.

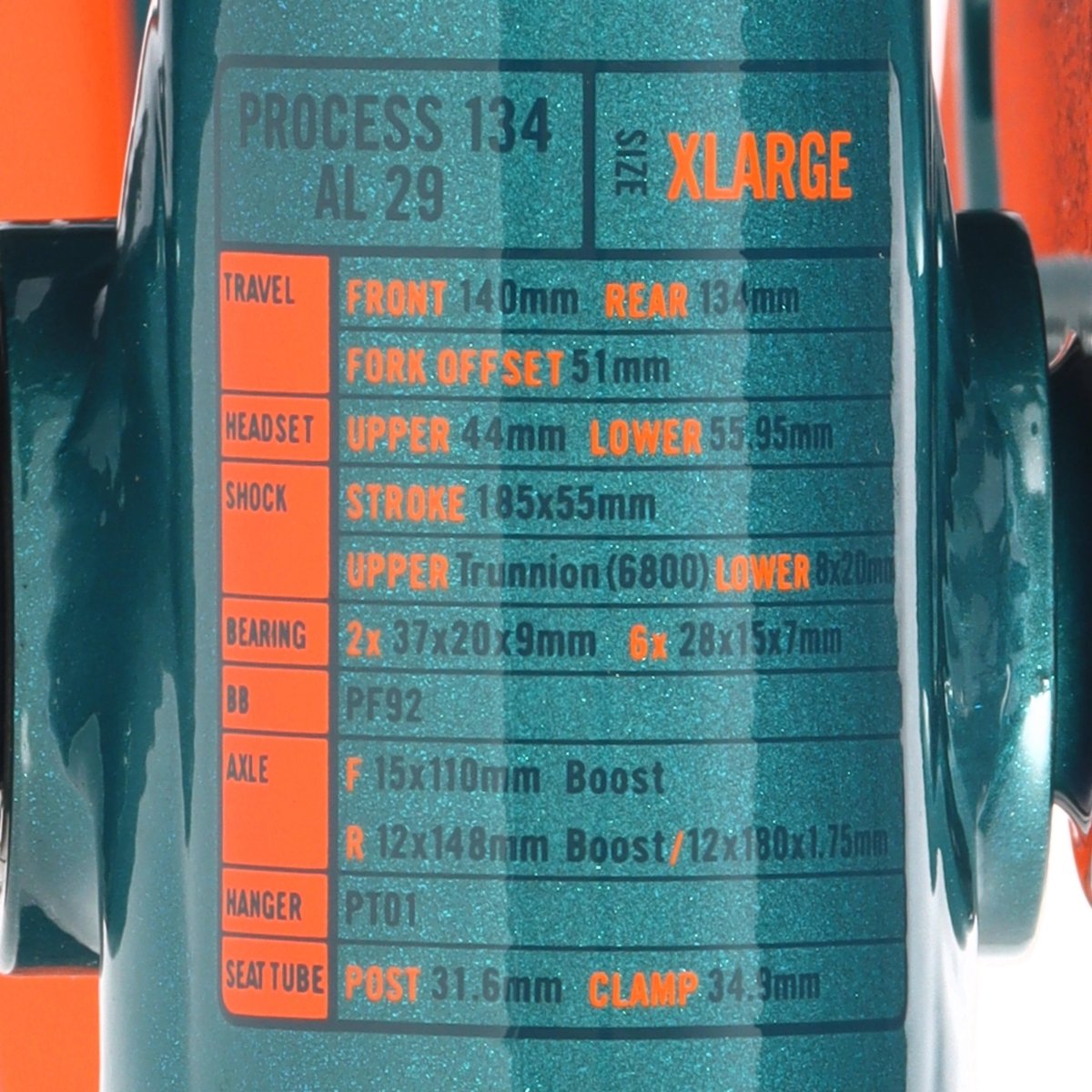

Technical Data:

• Manufacturer: Kona
• Model: Process 134 DL
• Model Year: 2021
• Frame Type: Bicycle frame / Frameset Full Suspension
• Area of Use: All mountain, Trail
• Material: Aluminum
• Frame Size: XL
• Color: turquoise / orange
• Inch / Wheel Size: 29"
• Travel: 140 mm front / 134 mm rear
• Rear Axle: 12 x 148 mm Boost
• Seat Tube / Clamp: 31.6 mm / 34.9 mm
• Bottom Bracket: PF92
• Headset / Head Tube Standard: top 44 mm / bottom 55.95 mm
• Weight: 3640 g
• EAN: 341073142286

Scope of Delivery (as pictured):

• 1 x Kona Process 134 DL Aluminum Frame | Size XL | 29"
• Includes thru-axle and derailleur hanger

The Kona Process 134 DL frame (2021) is a reliable aluminum base for a modern 29" trail bike with balanced suspension travel and high running smoothness.
