Versatile aluminum trail frame for modern 27.5" setups with balanced suspension travel.
The Kona Process 134 DL frame (model year 2020) in frame size S is a robust base for a modern trail bike. Designed for 27.5" wheels with 140 mm front travel and 134 mm rear travel, the frame offers a balanced ratio of control, reserves, and efficiency. The green color ensures a striking, sporty appearance.
The rear triangle is designed for the Boost standard (12x148 mm) and provides high stiffness for precise handling. With a PF92 bottom bracket and a head tube standard of 44 mm at the top / 55.95 mm at the bottom, the frame meets the common standards of the model year. Information on brake mounts is not available and was deliberately not added.
The frame has a seat tube diameter of 31.6 mm (front) and 34.9 mm (rear), according to the available specifications. The specified frame weight is 3570 g. The scope of delivery includes Maxxis Minion DHF EXO TR 3C tires in 27.5x2.5" WT (front) and 27.5x2.3" (rear) for excellent grip and control on challenging trails.
Highlights:
- Aluminum frame (2020): robust and reliable for tough trail use.
- 140 / 134 mm travel: balanced trail performance with reserves.
- Boost 12x148 mm: stiff rear triangle for precise handling.
- PF92 bottom bracket: stable, modern bottom bracket standard.
- Maxxis Minion DHF 3C: strong trail tire setup with plenty of grip.

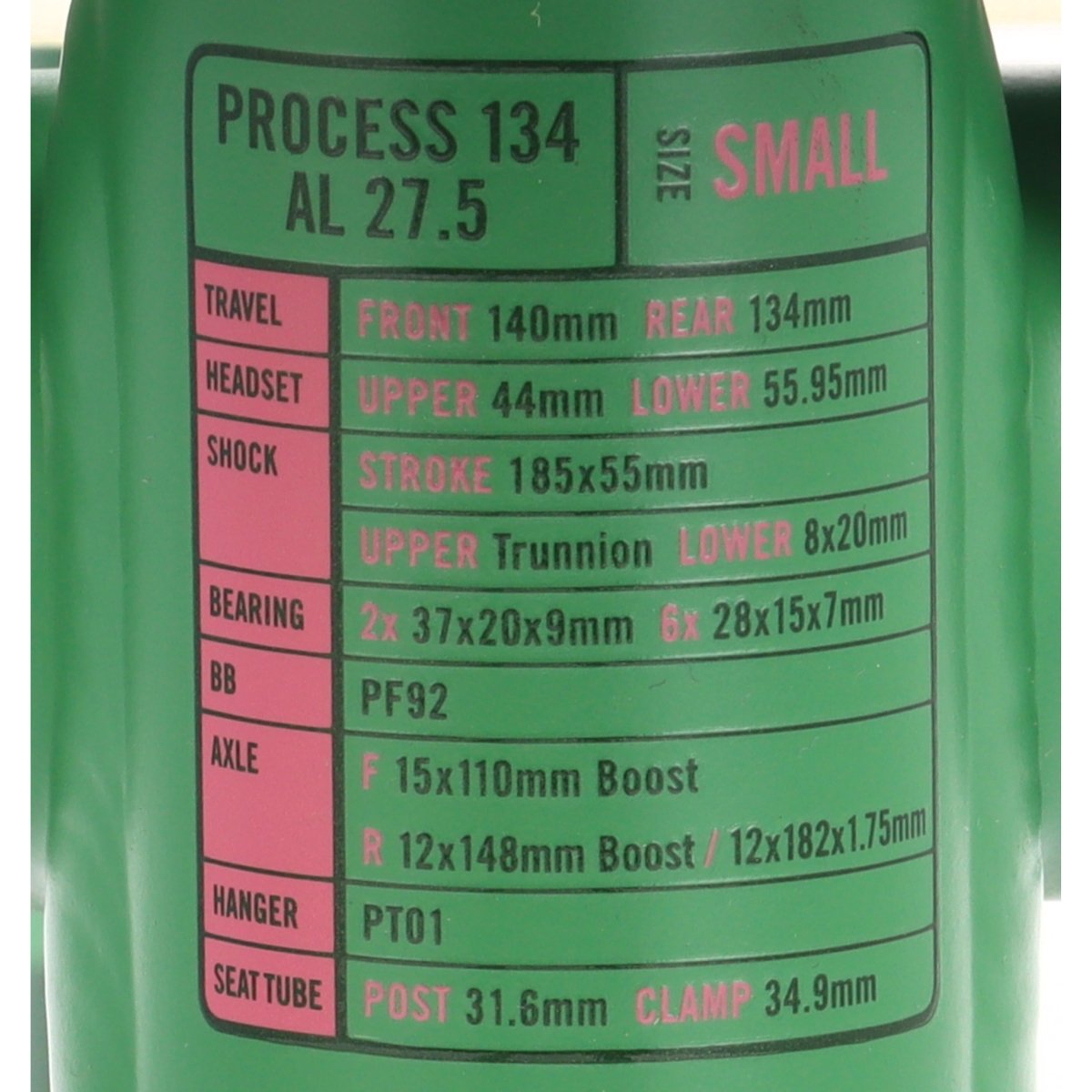

Technical data:
- Manufacturer: Kona
- Model: Process 134 DL
- Model year: 2020
- Frame type: Bicycle frame / Frameset
- Material: Aluminum
- Frame size: S (Small)
- Color: green
- Inch / Wheel size: 27.5"
- Travel: 140 mm front / 134 mm rear
- Rear axle: 12 x 148 mm Boost
- Seat tube diameter: 31.6 mm (front) / 34.9 mm (rear)
- Bottom bracket: PF92
- Headset / Head tube standard: top 44 mm / bottom 55.95 mm
- Weight: 3570 g
- EAN: 841073134151
Scope of delivery:
- 1 x Kona Process 134 DL Aluminum Frame | Size SM | 27.5"
The Kona Process 134 DL frame (2020) is a reliable aluminum base for a modern 27.5" trail bike with balanced suspension travel and excellent grip.
SKU: U4C2
Kona Process 134 DL | Aluminum Full Suspension Trail Frameset 27.5" | Boost 12x148 mm | Size S
Versatile aluminum trail frame for modern 27.5" setups with balanced suspension travel.
The Kona Process 134 DL frame (model year 2020) in frame size S is a robust base for a modern trail bike. Designed for 27.5" wheels with 140 mm front travel and 134 mm rear travel, the frame offers a balanced ratio of control, reserves, and efficiency. The green color ensures a striking, sporty appearance.
The rear triangle is designed for the Boost standard (12x148 mm) and provides high stiffness for precise handling. With a PF92 bottom bracket and a head tube standard of 44 mm at the top / 55.95 mm at the bottom, the frame meets the common standards of the model year. Information on brake mounts is not available and was deliberately not added.
The frame has a seat tube diameter of 31.6 mm (front) and 34.9 mm (rear), according to the available specifications. The specified frame weight is 3570 g. The scope of delivery includes Maxxis Minion DHF EXO TR 3C tires in 27.5x2.5" WT (front) and 27.5x2.3" (rear) for excellent grip and control on challenging trails.
Highlights:
- Aluminum frame (2020): robust and reliable for tough trail use.
- 140 / 134 mm travel: balanced trail performance with reserves.
- Boost 12x148 mm: stiff rear triangle for precise handling.
- PF92 bottom bracket: stable, modern bottom bracket standard.
- Maxxis Minion DHF 3C: strong trail tire setup with plenty of grip.
Technical data:
- Manufacturer: Kona
- Model: Process 134 DL
- Model year: 2020
- Frame type: Bicycle frame / Frameset
- Material: Aluminum
- Frame size: S (Small)
- Color: green
- Inch / Wheel size: 27.5"
- Travel: 140 mm front / 134 mm rear
- Rear axle: 12 x 148 mm Boost
- Seat tube diameter: 31.6 mm (front) / 34.9 mm (rear)
- Bottom bracket: PF92
- Headset / Head tube standard: top 44 mm / bottom 55.95 mm
- Weight: 3570 g
- EAN: 841073134151
Scope of delivery:
- 1 x Kona Process 134 DL Aluminum Frame | Size SM | 27.5"
The Kona Process 134 DL frame (2020) is a reliable aluminum base for a modern 27.5" trail bike with balanced suspension travel and excellent grip.
