Versatile aluminum trail frame for modern 27.5" setups with balanced suspension travel.

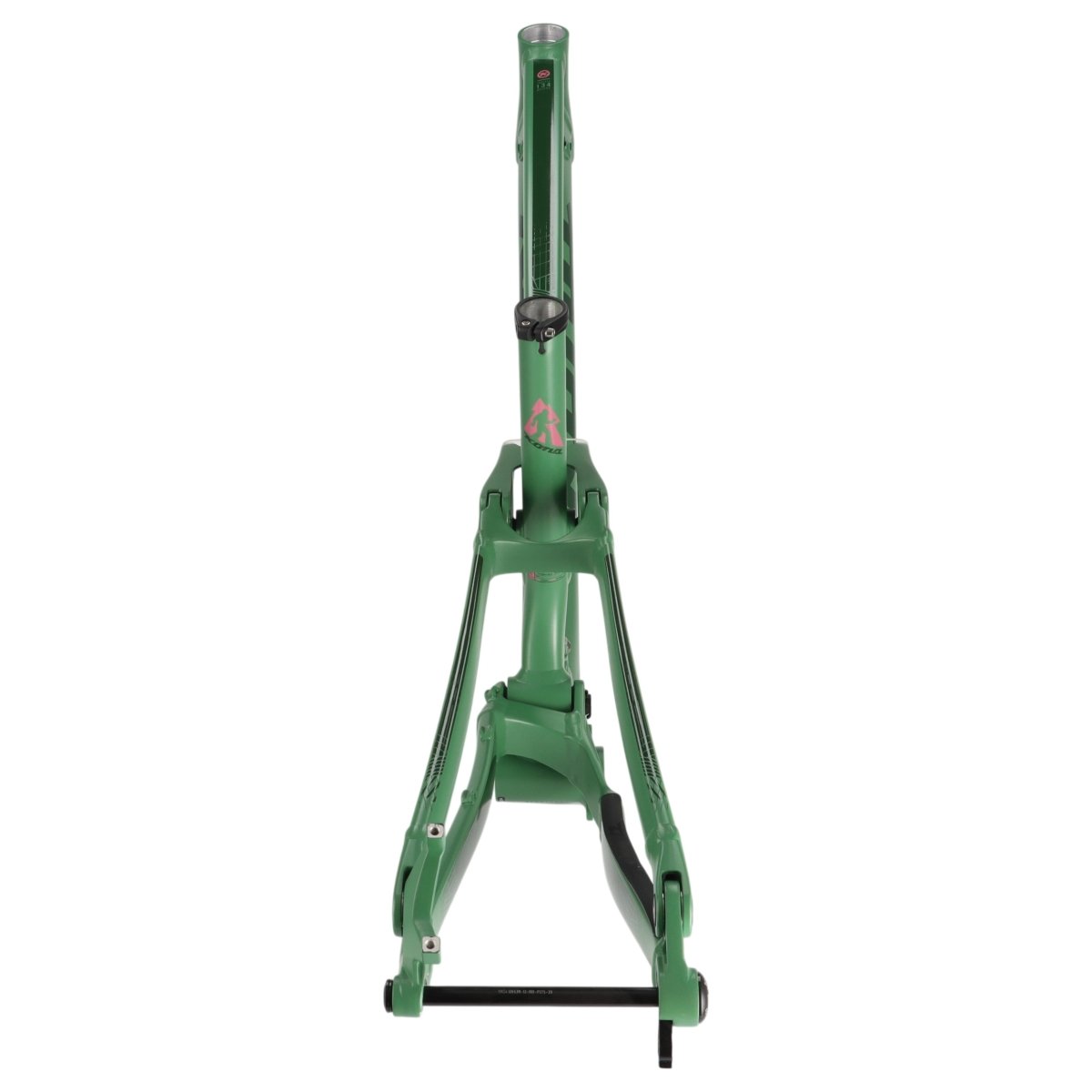

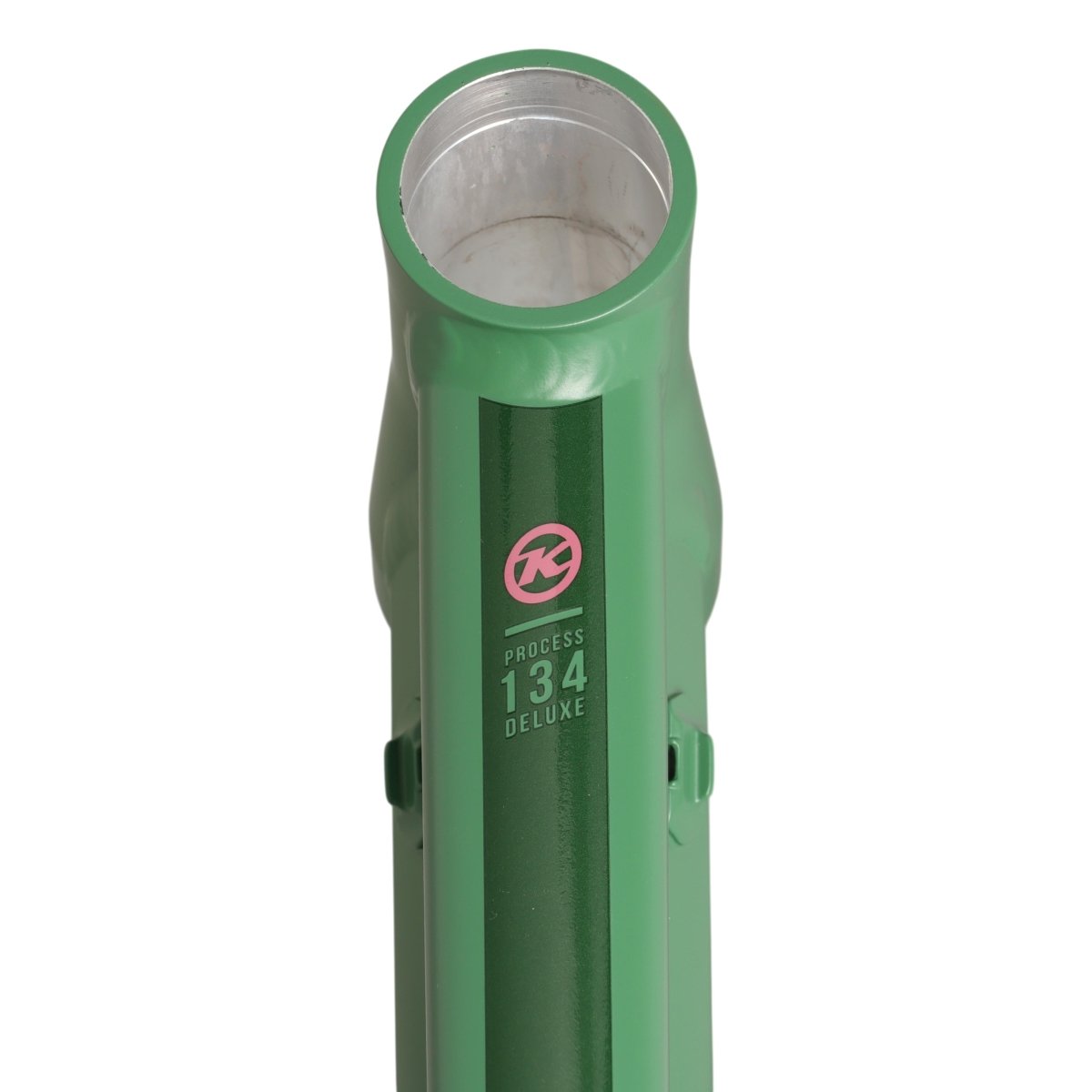

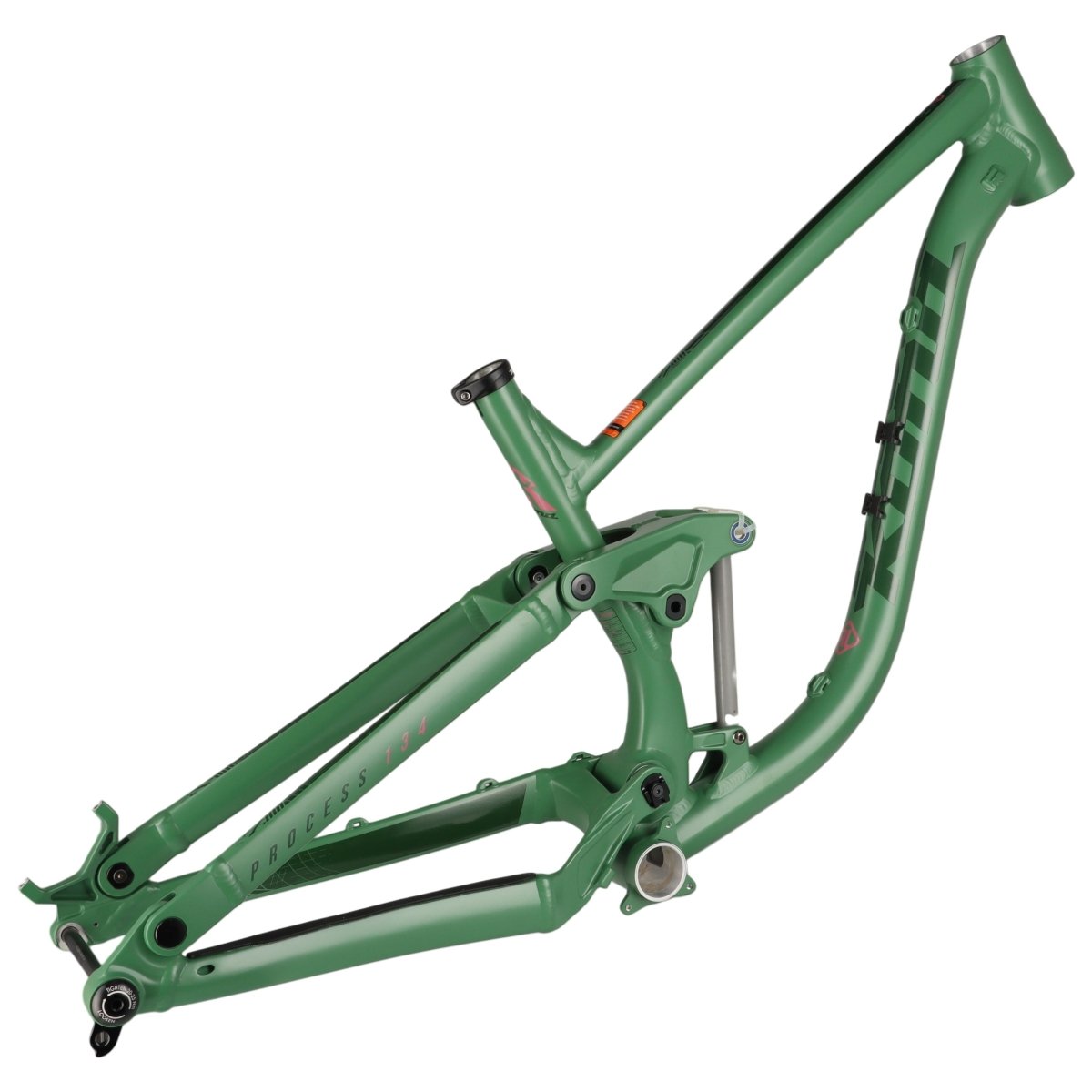

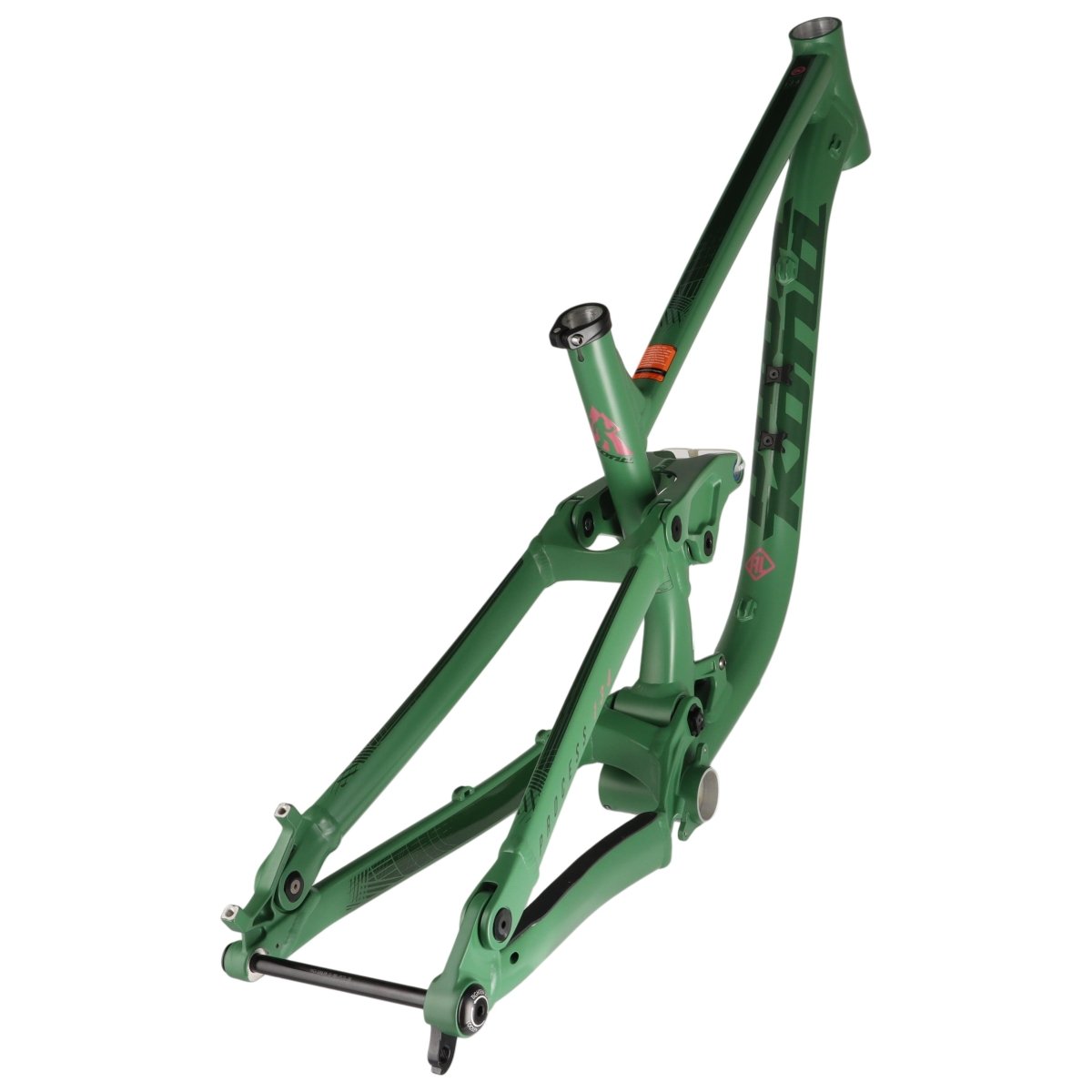

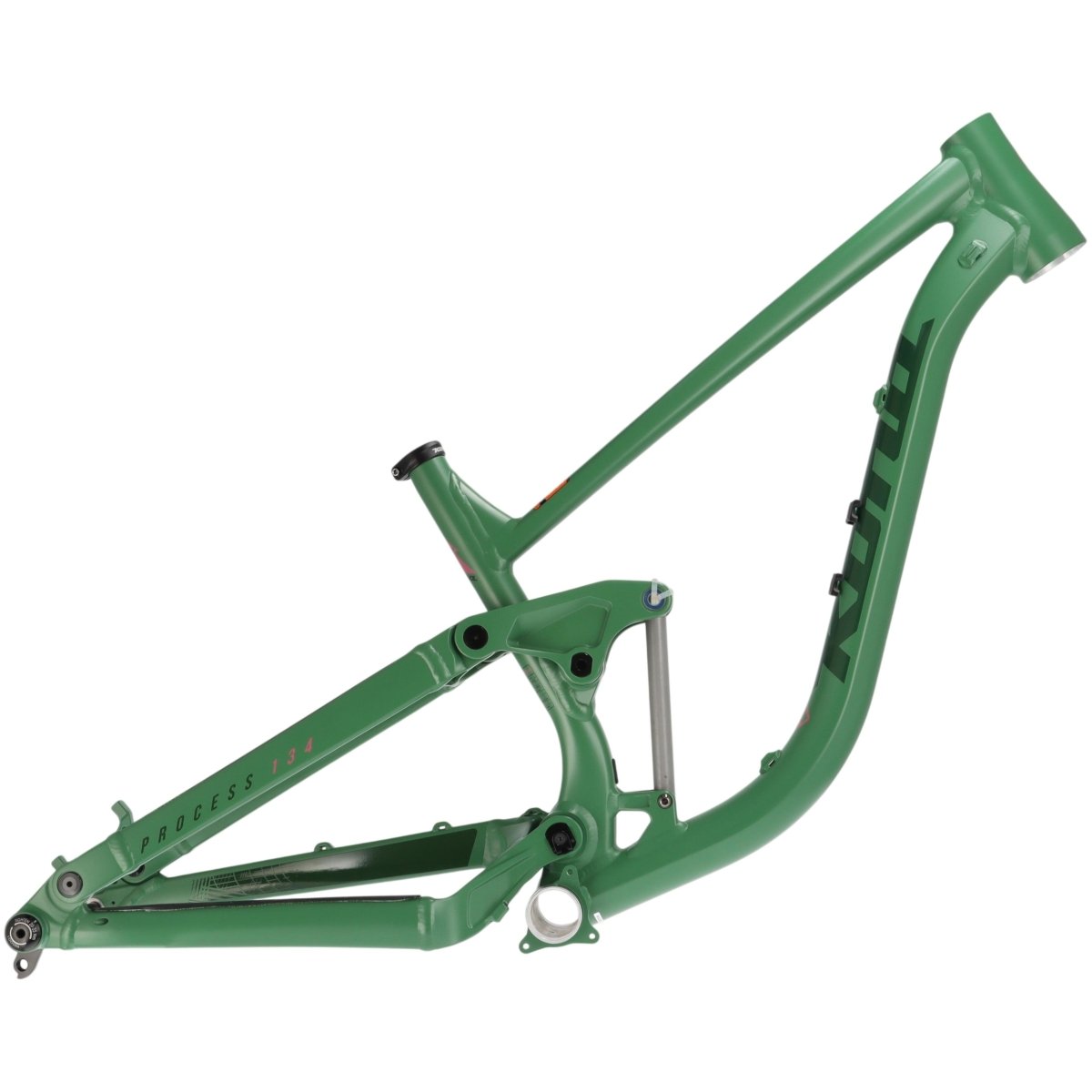

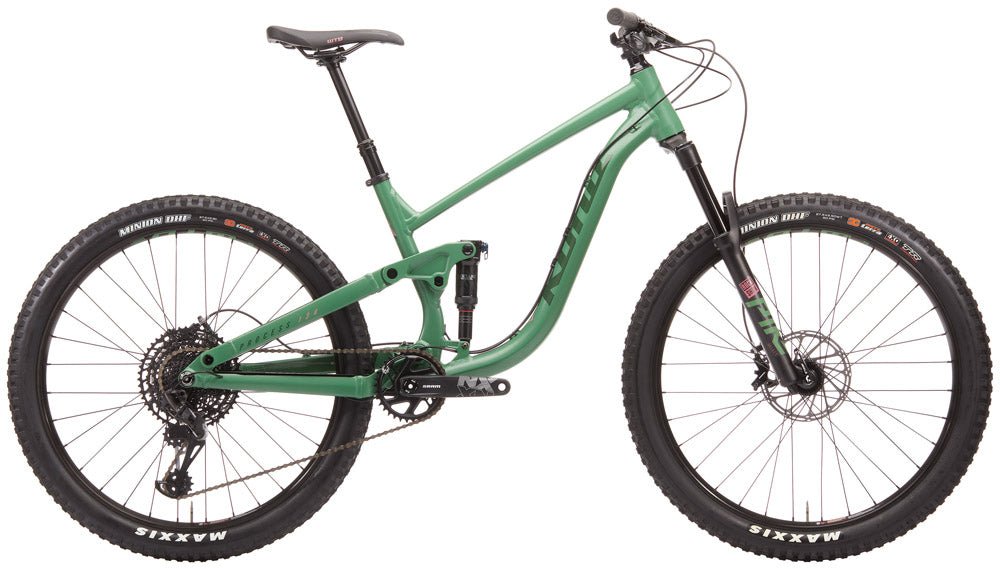

The Kona Process 134 DL frame (2020 model year) in frame size M is a reliable base for a modern trail bike. Designed for 27.5" wheels with 140 mm travel in the front and 134 mm travel in the rear, the frame offers a balanced ratio of control, efficiency, and reserves. The color green ensures a striking, sporty appearance.

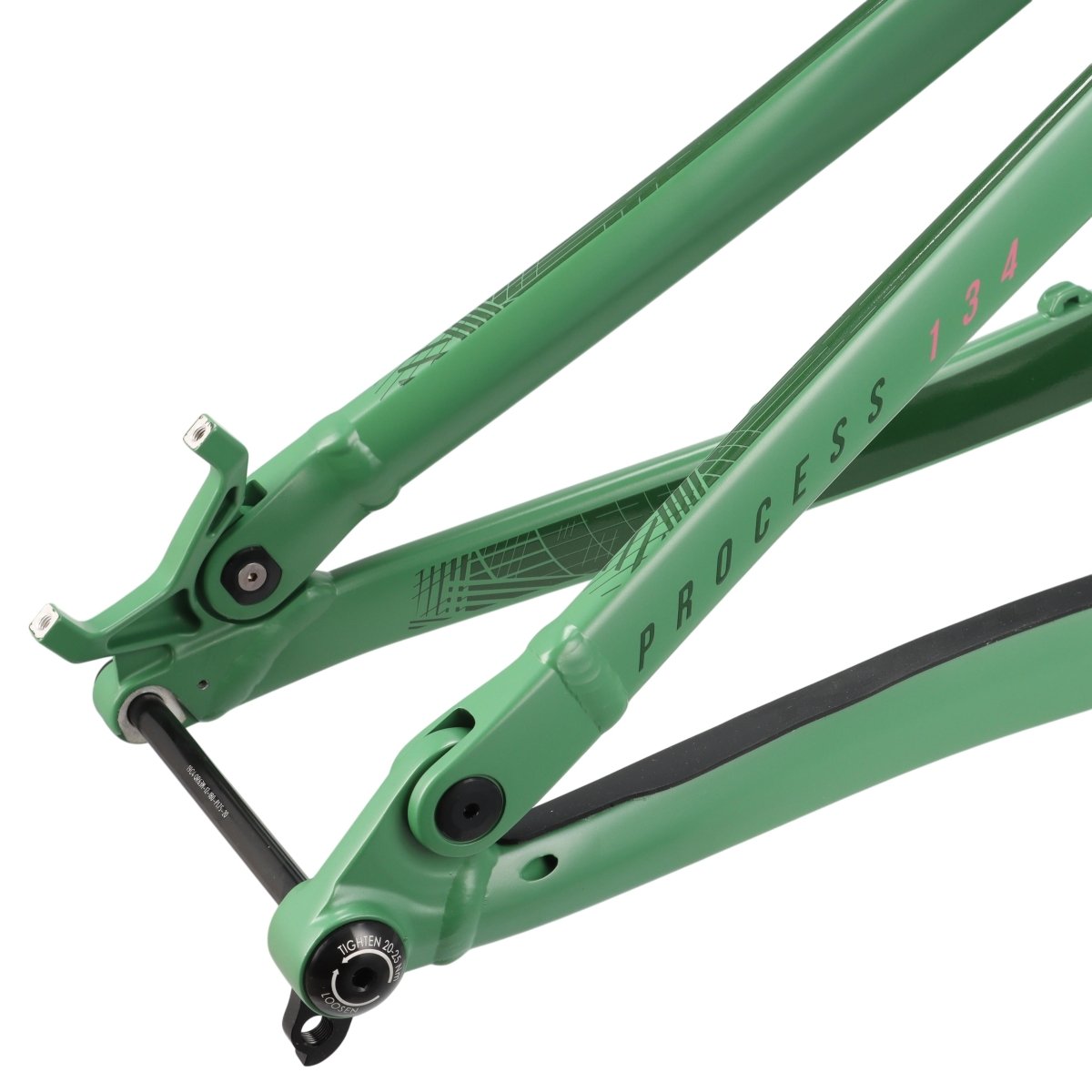

The rear triangle is designed for the Boost standard (12x148 mm) and provides high stiffness for precise handling. With a PF92 bottom bracket and a head tube standard of 44 mm top / 55.95 mm bottom, the frame meets the common standards of the model year. Information on brake mount is not available and was deliberately not added.

The frame uses a seat post with a 31.6 mm diameter and a seat clamp with 34.9 mm, according to the available information. The stated frame weight is 3520g.

Highlights:

• Aluminum frame (2020): robust and reliable for trail use.
• 140 / 134 mm travel: balanced trail performance with reserves.
• Boost 12x148 mm: stiff rear triangle for precise handling.
• PF92 bottom bracket: modern, stable bottom bracket standard.
• 31.6 mm seatpost: compatible with common dropper posts.

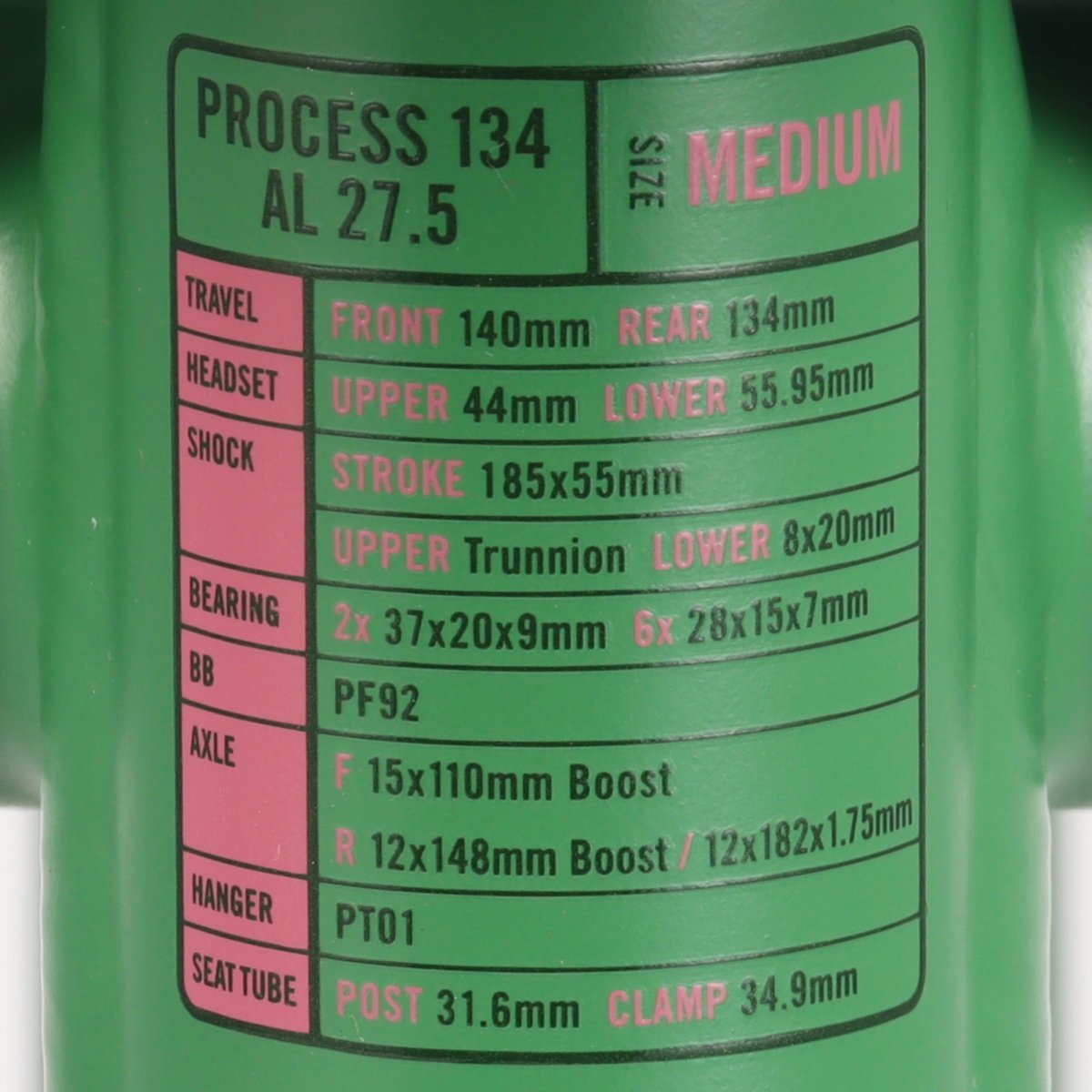

Technical data:

• Manufacturer: Kona
• Model: Process 134 DL
• Model year: 2020
• Frame type: Bicycle frame / frameset
• Material: Aluminum
• Frame size: M
• Color: green
• Inches / Wheel size: 27.5"
• Travel: 140 mm front / 134 mm rear
• Rear axle: 12 x 148 mm Boost
• Seat tube / clamp: 31.6 mm / 34.9 mm
• Bottom bracket: PF92
• Headset / Head tube standard: top 44 mm / bottom 55.95 mm
• Weight: 3520 g
• EAN: 841073134168

Scope of delivery:

• 1 x Kona Process 134 DL Aluminum Frame | Size M | 27.5"

The Kona Process 134 DL frame (2020) is a robust aluminum base for a modern 27.5" trail bike with balanced suspension travel.
