Lightweight carbon trail frame for efficient 27.5" setups with 140 mm travel.

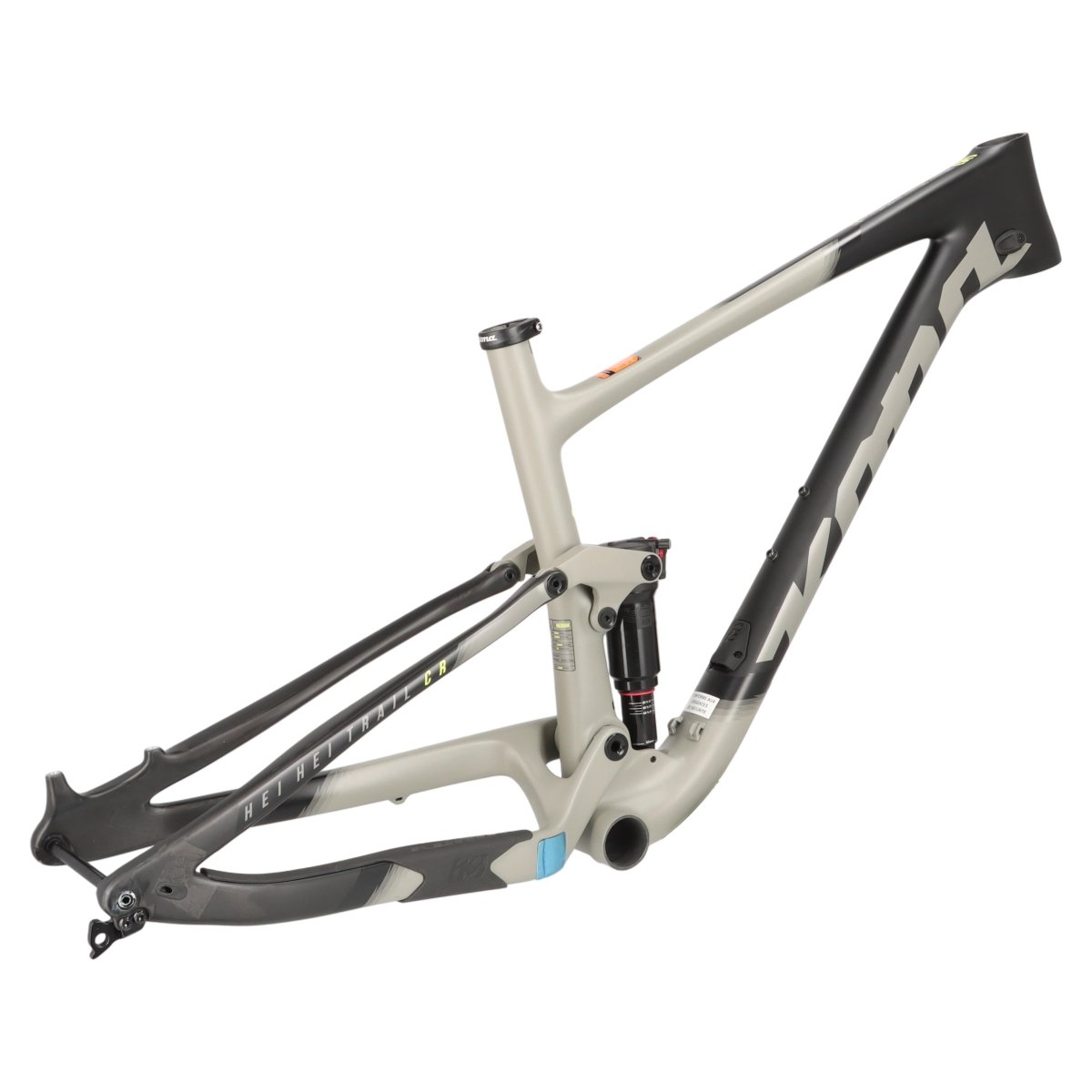

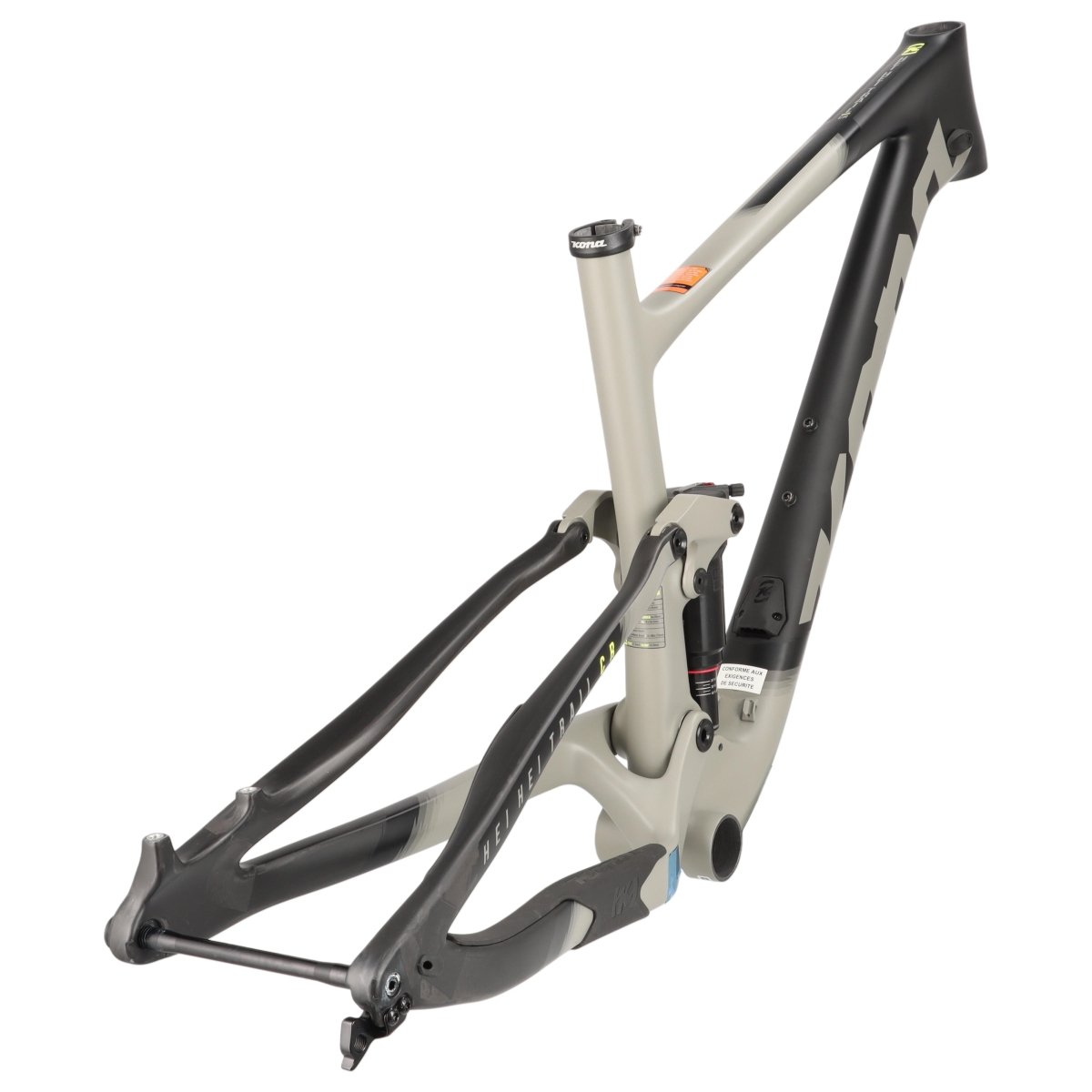

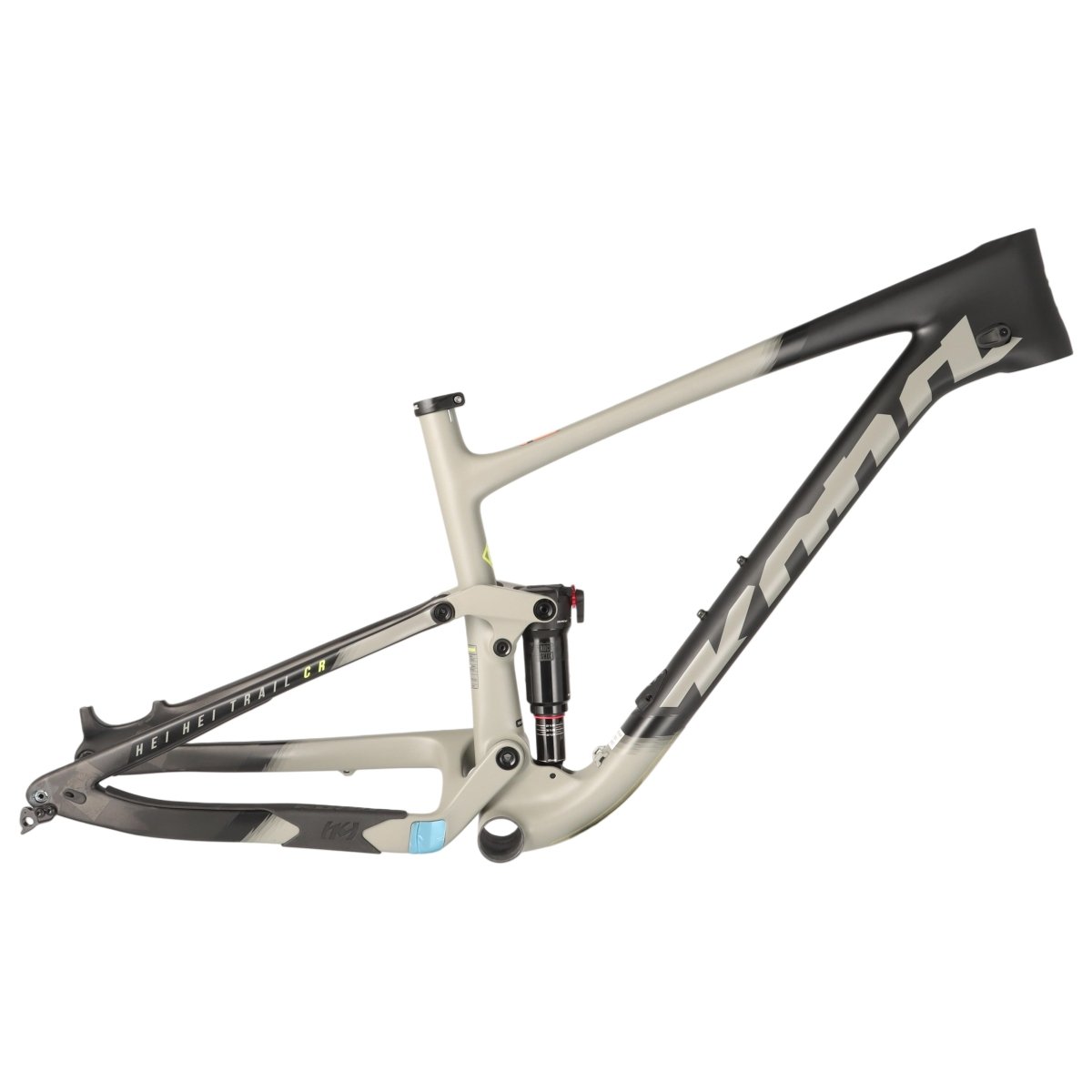

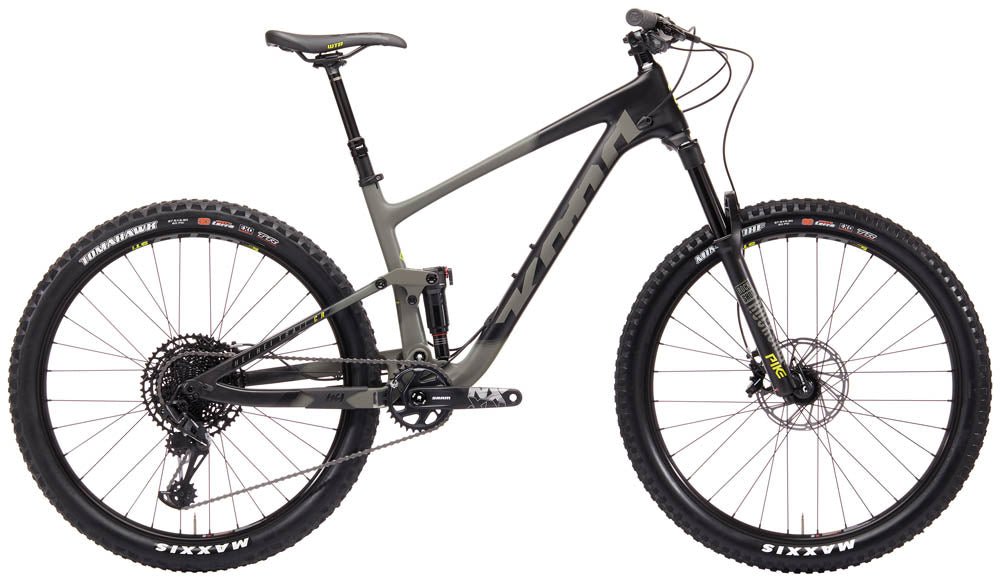

The Kona Hei Hei Trail CR Frame (Model Year 2019) in frame size MD is aimed at athletic trail riders seeking a balanced combination of efficiency and control. Designed for 27.5" wheels and 140 mm travel front and rear, the frame provides a versatile base for modern trail builds. The color gray / black (Kona) ensures a clean, timeless look.

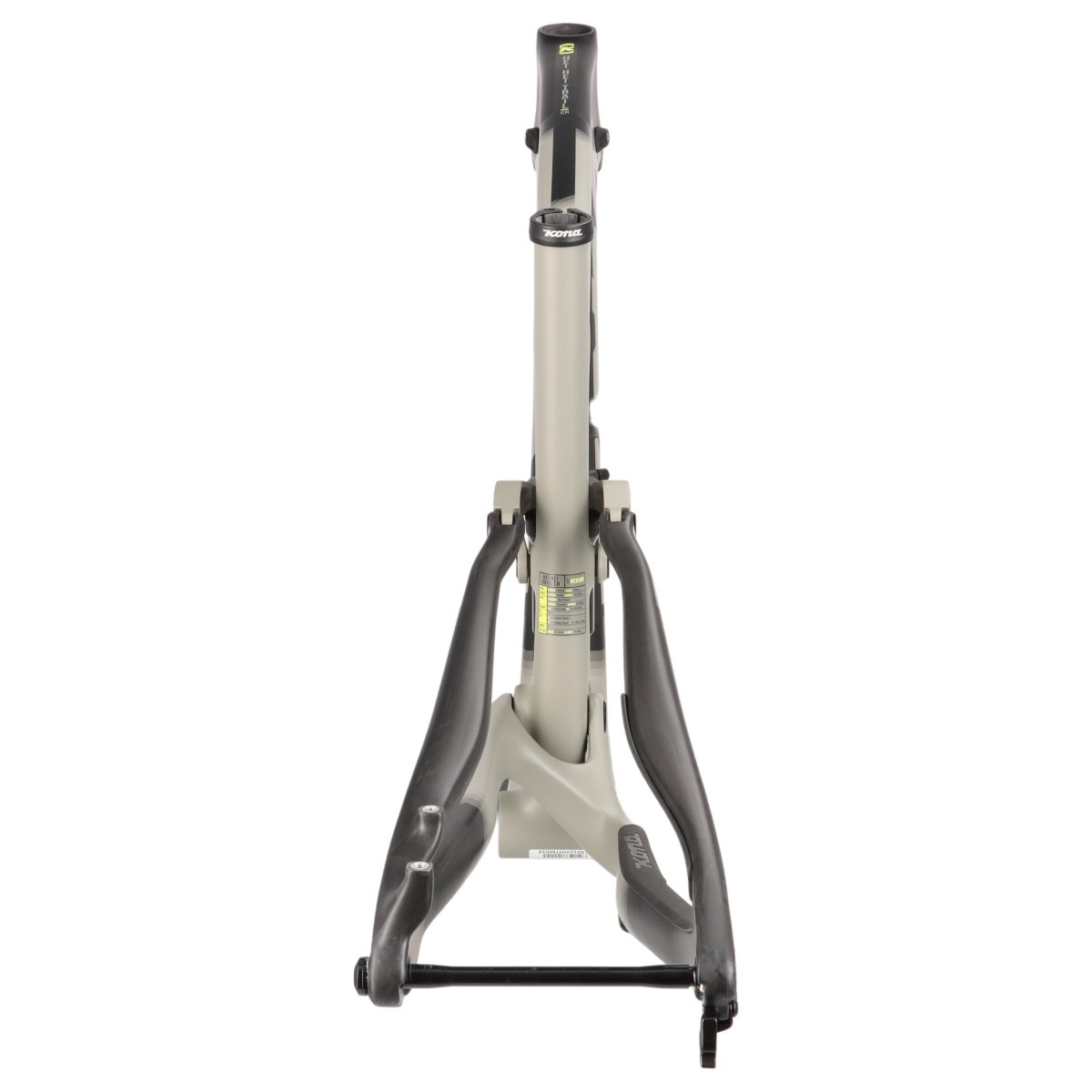

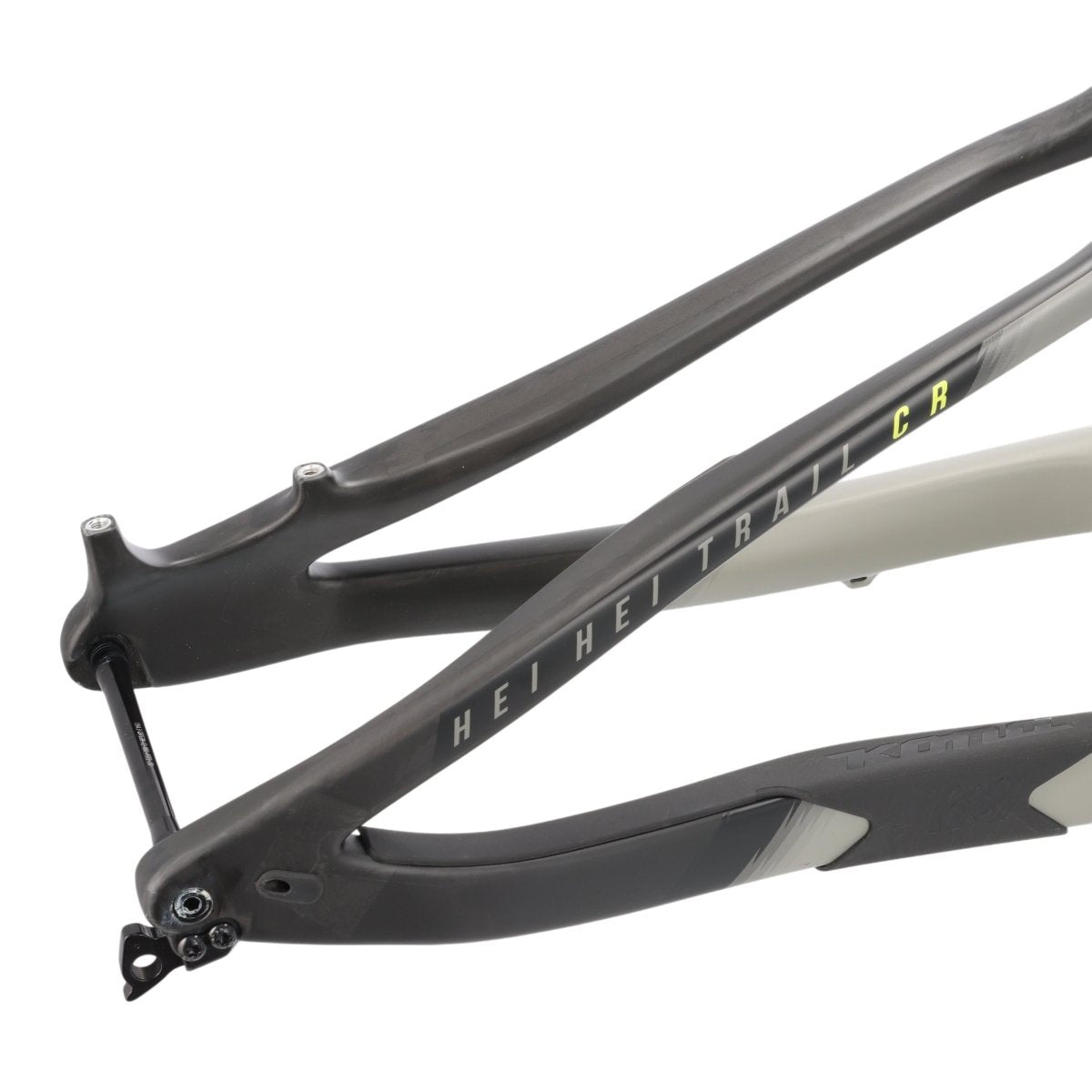

The rear triangle uses the Boost standard (12x148 mm) for high stiffness and precise handling. With a PF92 bottom bracket and a head tube standard of 44 mm top / 55.95 mm bottom, the frame meets the specifications of the model year. Information on brake mount is not available and was deliberately not added.

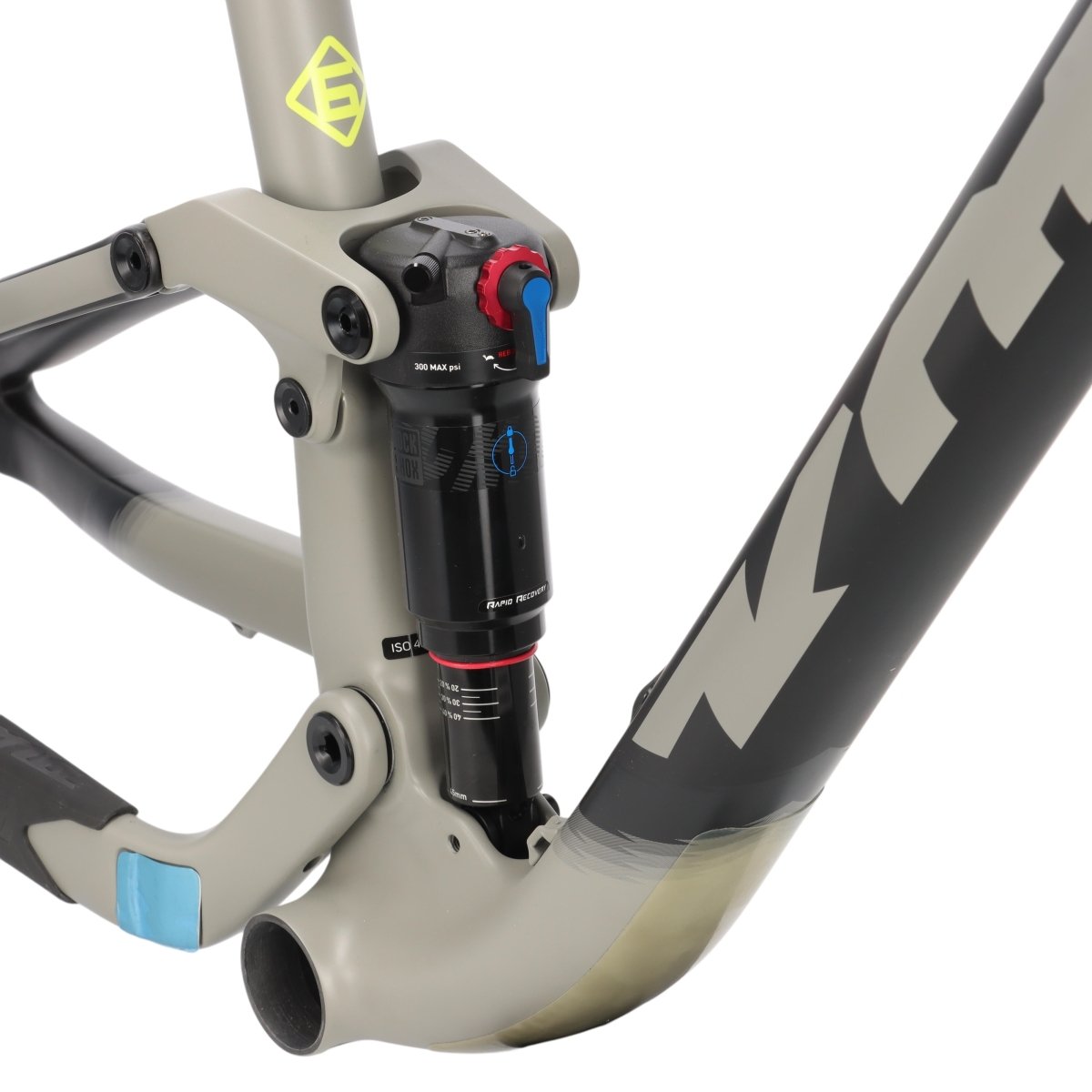

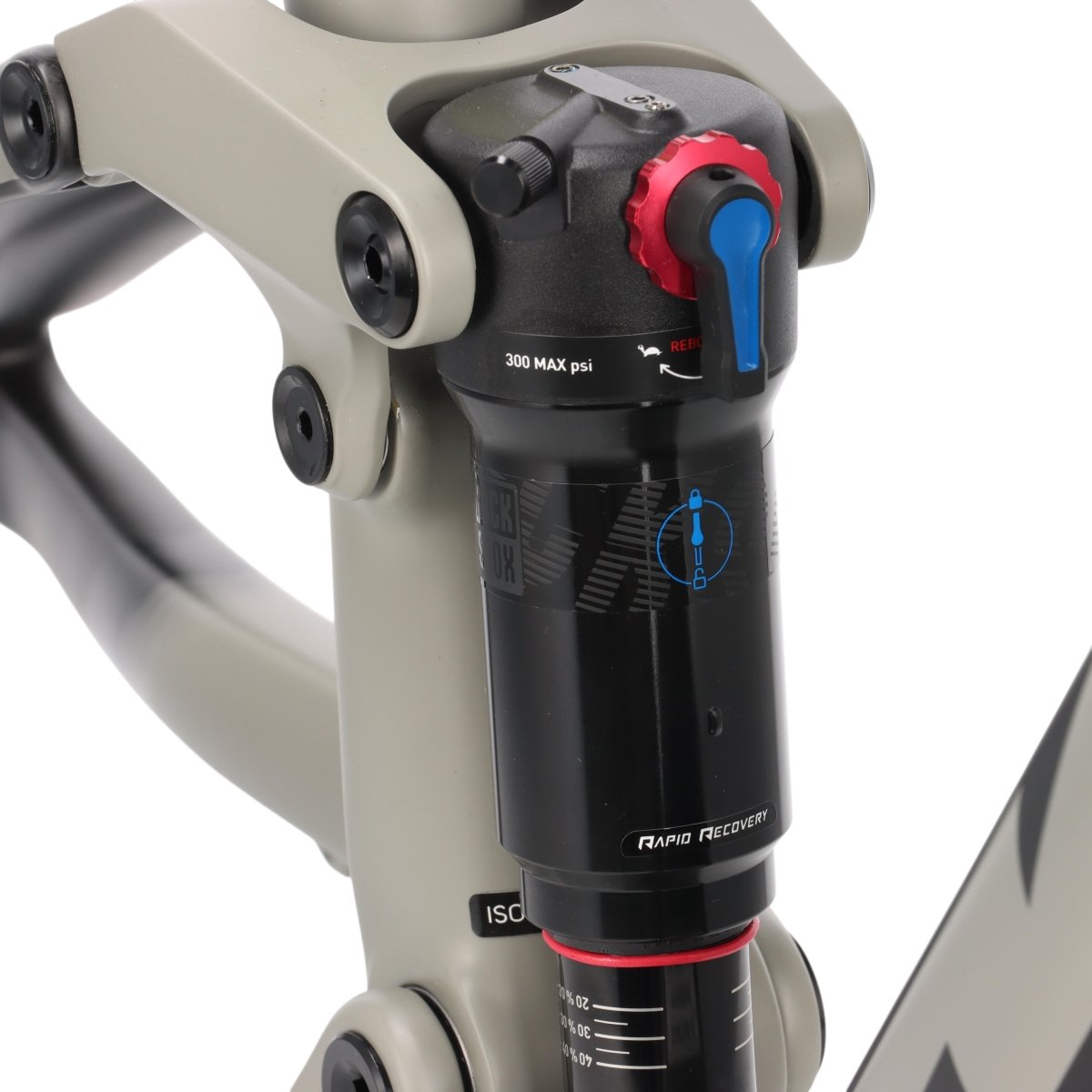

The frame is equipped with a RockShox Deluxe RL Solo Air Trunnion shock. The seat tube diameter of 31.6 mm allows the use of many common seatposts. The specified weight is 2610 g.

Highlights:

• Carbon Frame (2019): lightweight and efficient foundation for trail bikes.
• 140 mm travel f/r: balanced trail performance with reserves.
• Boost 12x148 mm: modern rear triangle standard for stable wheels.
• PF92 bottom bracket: robust, wide bottom bracket standard.
• RockShox Deluxe RL Trunnion: matching rear shock included.

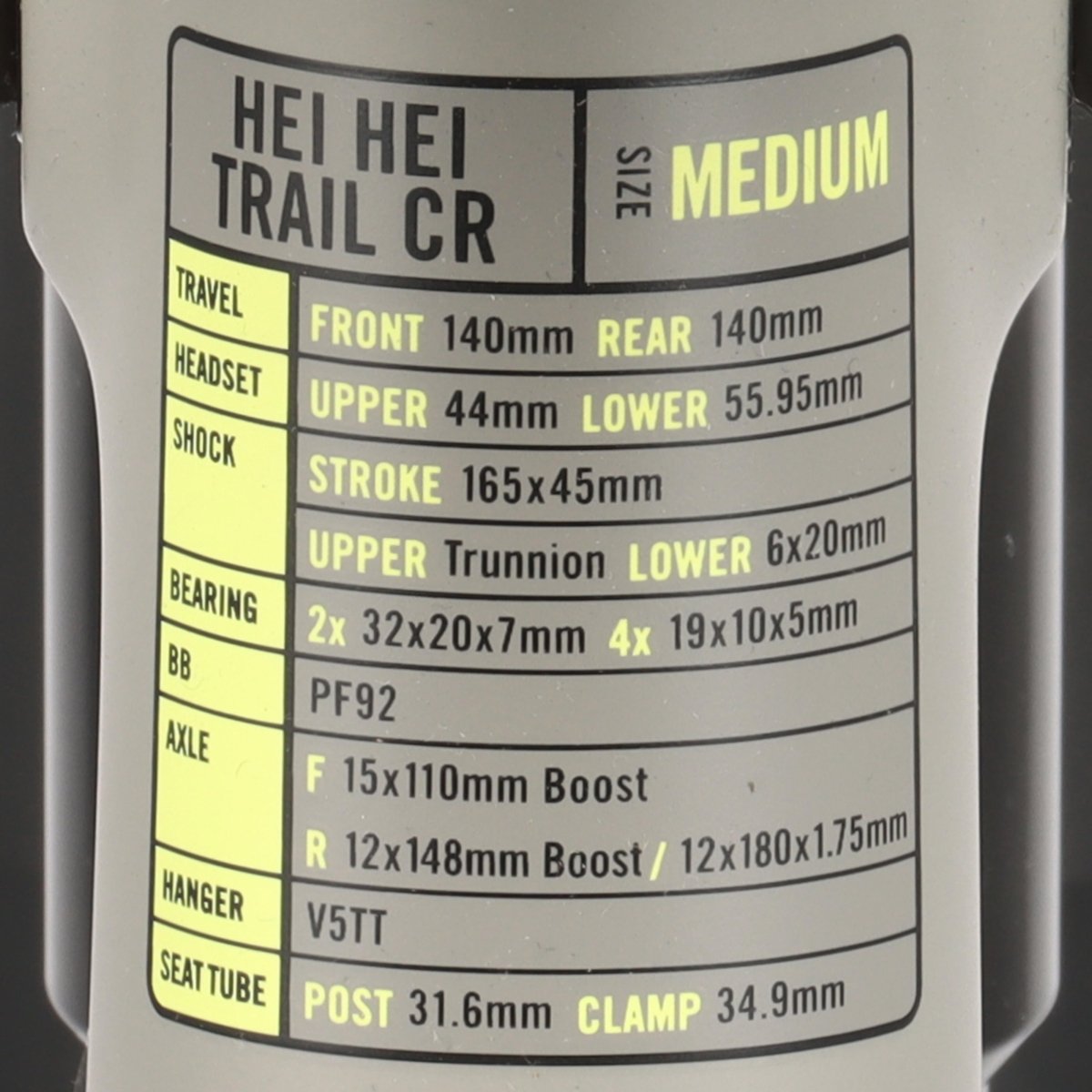

Technical Data:

• Manufacturer: Kona
• Model: Hei Hei Trail CR
• Model Year: 2019
• Frame Type: Bicycle Frame / Frameset
• Material: Carbon
• Frame Size: MD
• Color: gray / black (Kona)
• Inches / Wheel Size: 27.5"
• Travel: 140 mm front / 140 mm rear
• Rear Axle: 12 x 148 mm Boost
• Seat Tube Diameter: 31.6 mm
• Bottom Bracket: PF92
• Headset / Head Tube Standard: top 44 mm / bottom 55.95 mm
• Rear Shock: RockShox Deluxe RL Solo Air Trunnion
• Weight: 2610 g
• EAN: 841073129614

Scope of Delivery:

• 1 x Kona Hei Hei Trail CR Carbon Frame | Size MD | 27.5"
• 1 x RockShox Deluxe RL Solo Air Trunnion Shock

The Kona Hei Hei Trail CR Frame (2019) is a lightweight, efficient carbon base for a balanced 27.5" trail bike with 140 mm travel.
