Efficient aluminum frame for sporty 29" XC and trail setups.

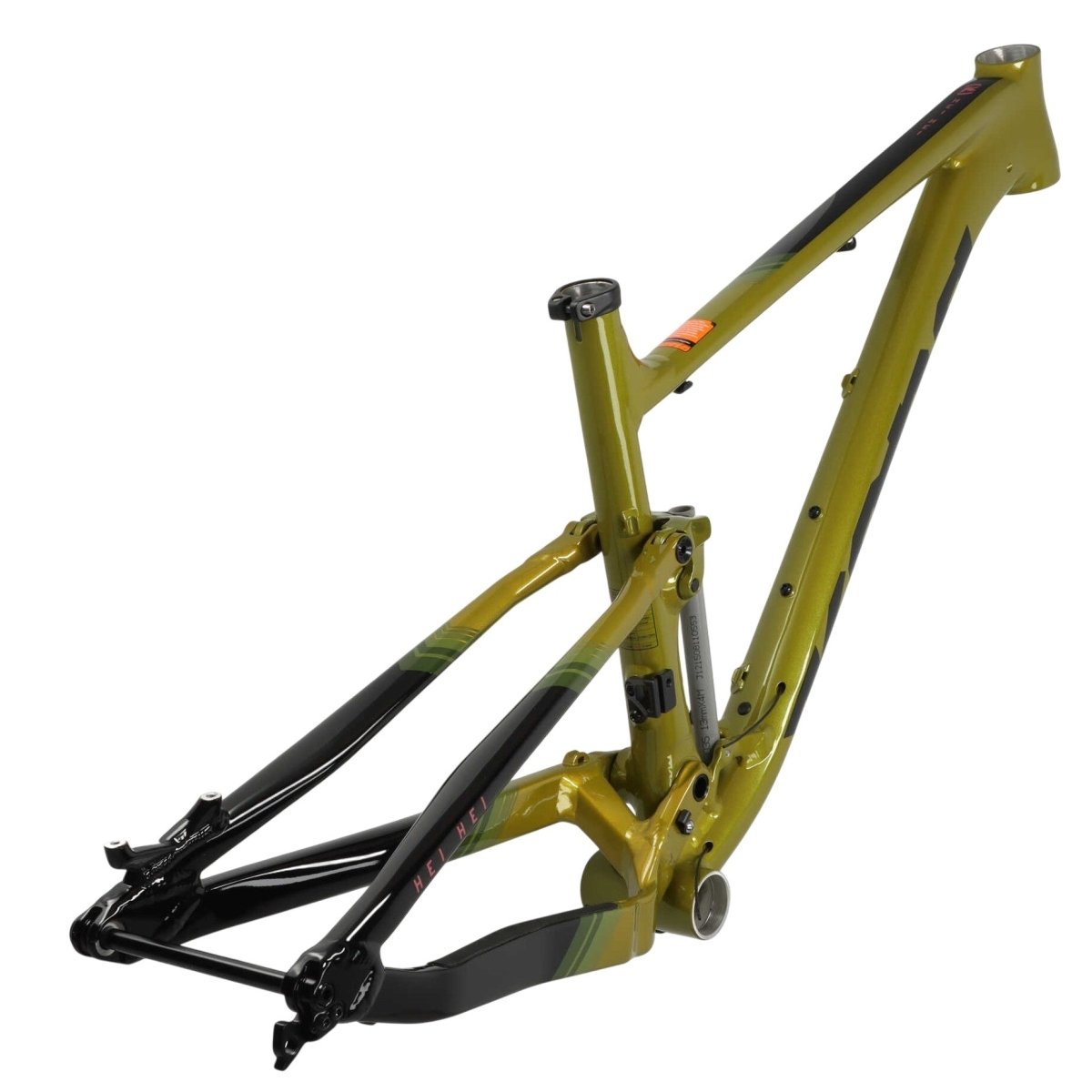

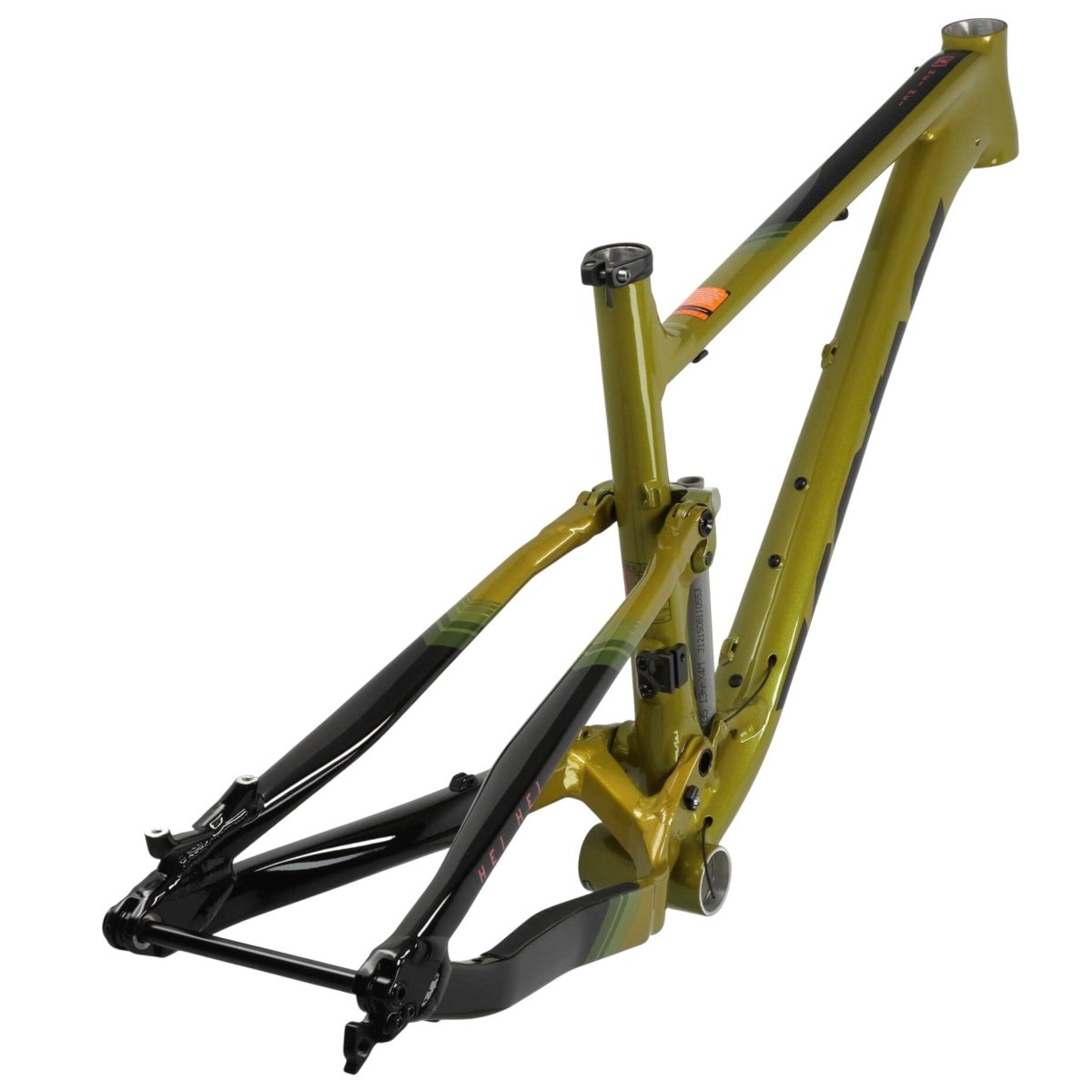

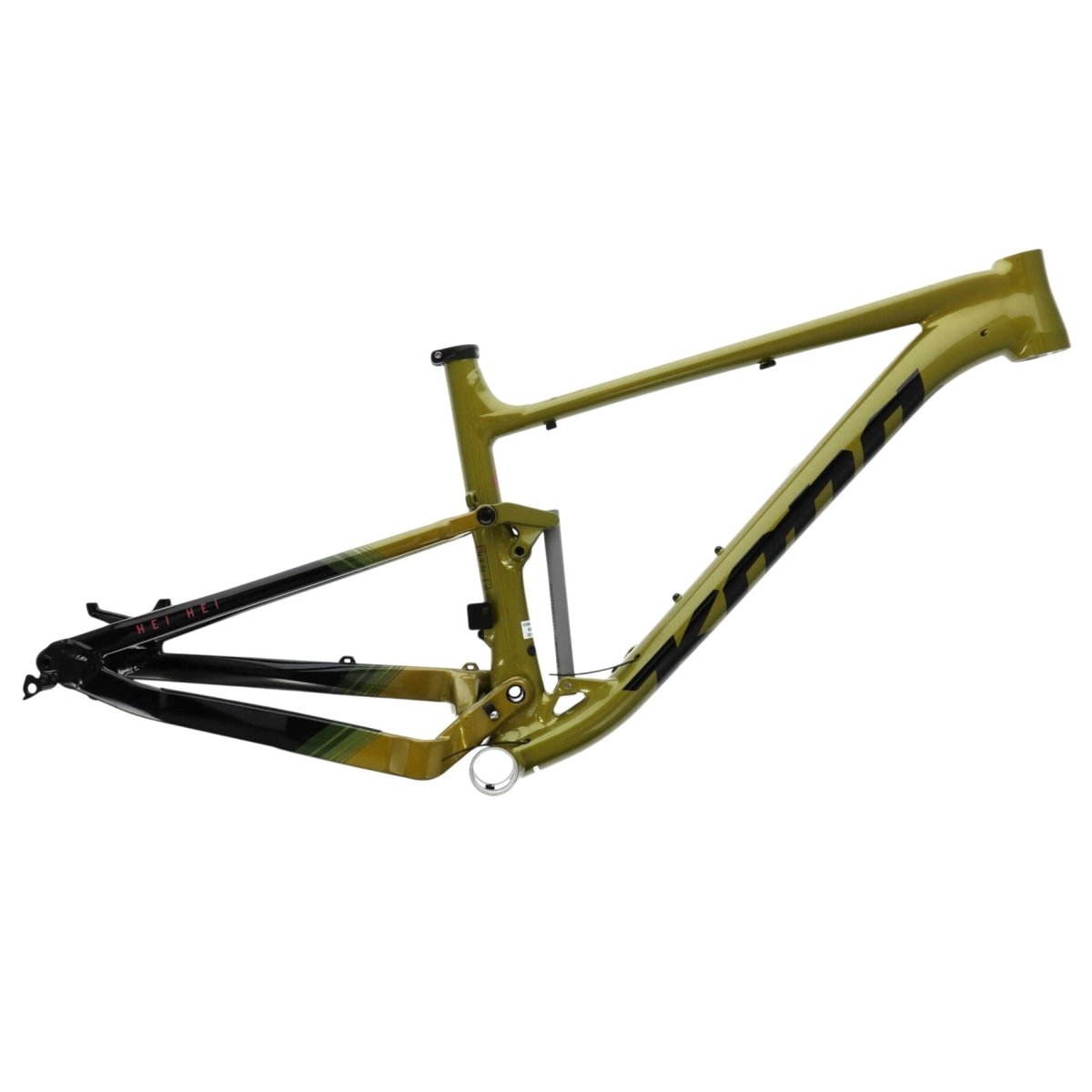

The Kona Hei Hei AL frame (model year 2021/22) is a light and efficient base for a fast cross-country or light trail bike. Designed for 29" wheels with 120 mm front travel and 100 mm rear travel, the frame is aimed at riders who value propulsion, efficiency, and controlled handling. The olive color gives the frame a clean, modern look.

The rear triangle is designed for the Boost standard (12x148 mm) and ensures high stiffness and precise handling. With a PF92 bottom bracket and the head tube standard 44 mm top / 55.95 mm bottom, the frame meets the common standards of the model year.

The frame uses a 31.6 mm diameter seatpost and a 34.9 mm seat clamp. The stated frame weight is 2860 g.

Highlights:

• Aluminum XC/Trail frame (2021): light, efficient, and durable.
• 29" wheels: fast rollover behavior and high efficiency.
• 120 / 100 mm travel: optimal for XC and sporty trails.
• Boost 12x148 mm: stiff rear triangle for precise handling.
• 31.6 mm seatpost: compatible with common dropper posts.

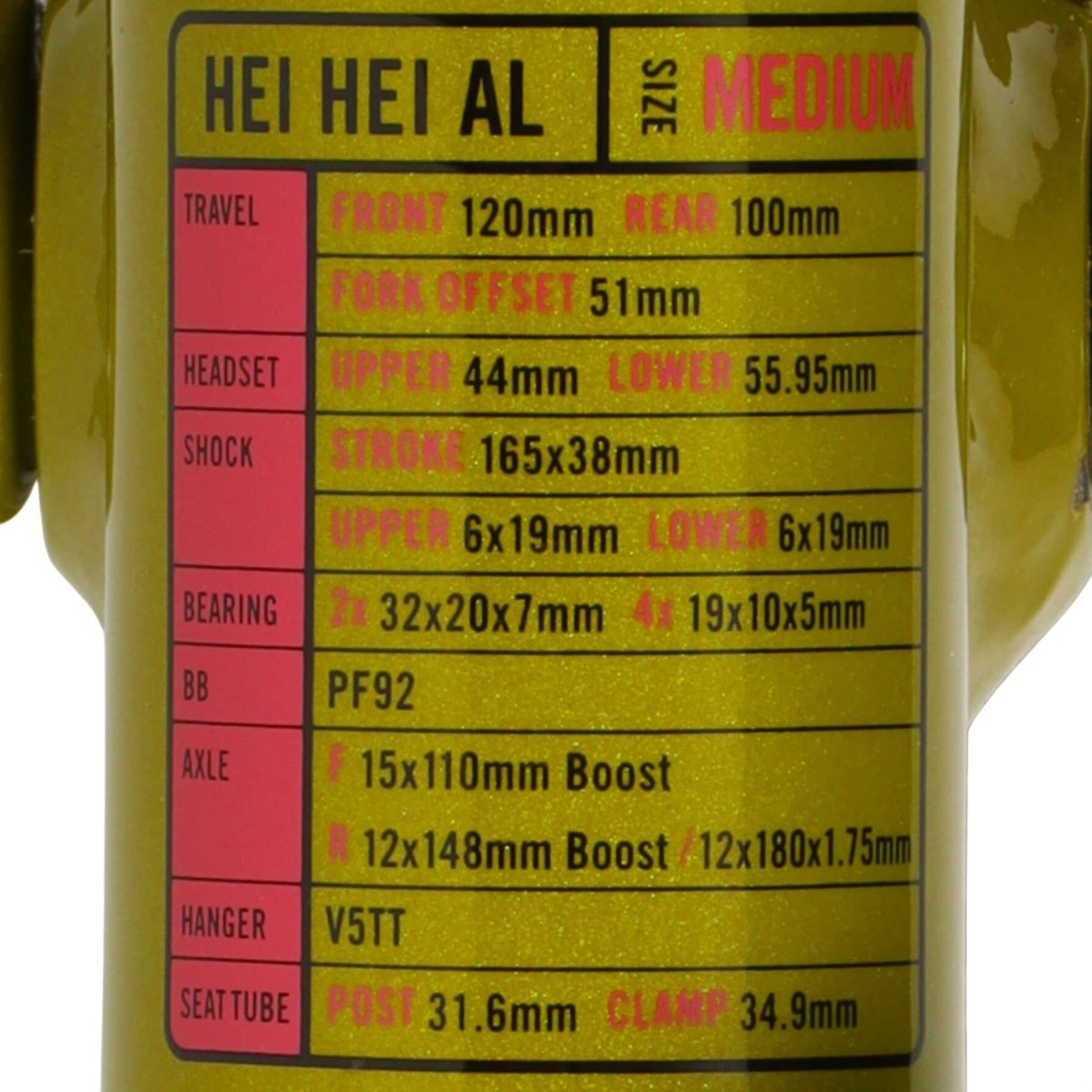

Technical Data:

• Manufacturer: Kona
• Model: Hei Hei AL
• Model year: 2021/22
• Available Frame Sizes: M / L
• Frame Type: Bicycle frame / Frameset
• Area of Use: Cross Country, Trail Full Suspension
• Material: Aluminum
• Color: olive
• Inches / Wheel Size: 29" /
• Travel: 120 mm front / 100 mm rear
• Rear Axle: 12 x 148 mm Boost
• Seat Tube / Clamp: 31.6 mm / 34.9 mm
• Bottom Bracket: PF92
• Headset / Head Tube Standard: 44 mm top / 55.95 mm bottom
• Approx. Weight: 2860 g (M), 3130 g (L)

Scope of Delivery:

• 1 x Kona Hei Hei AL Aluminum Frame | Trailbike Full Suspension | Size M or L (as selected) | 29"

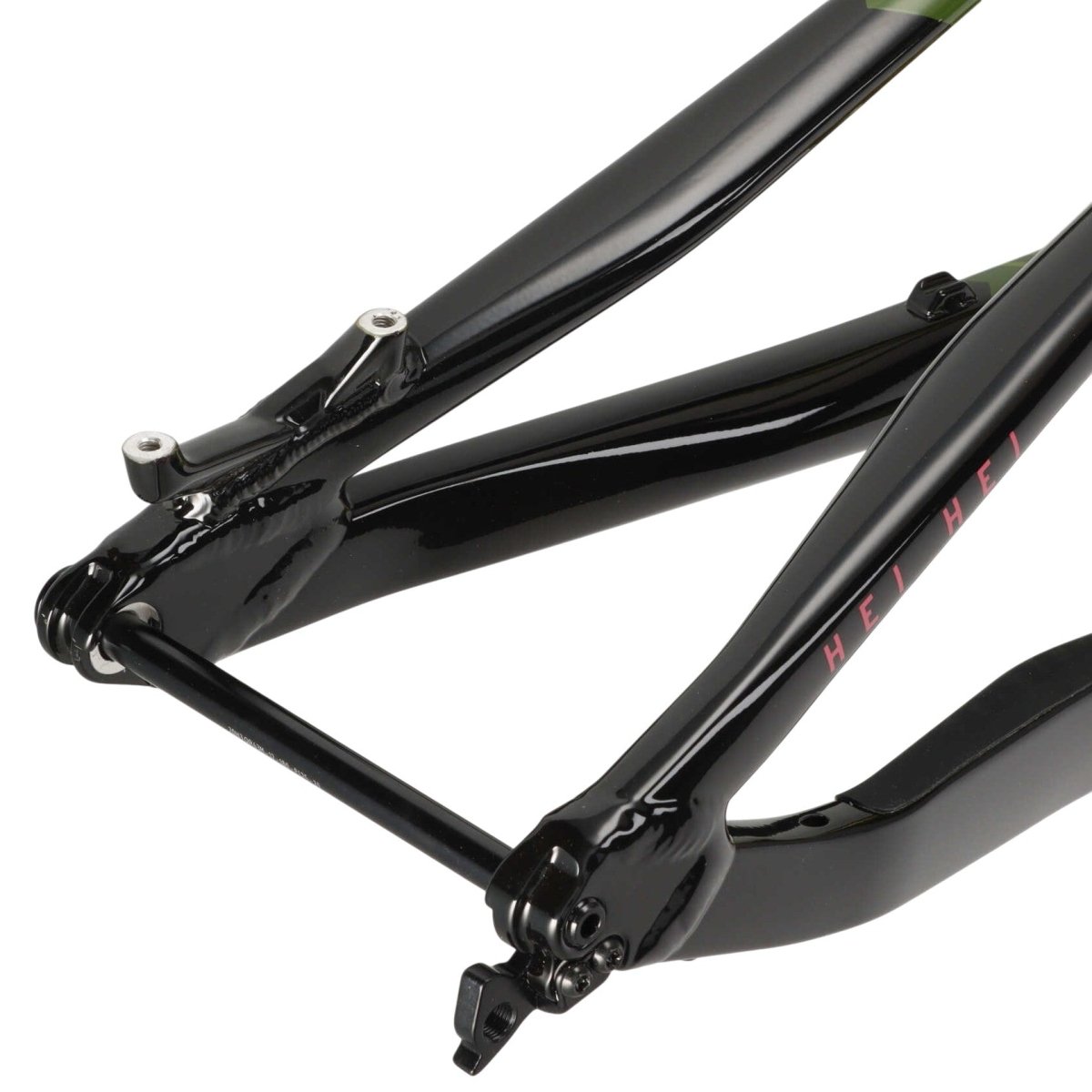

• Includes thru-axle and derailleur hanger. Without shock (as pictured).

The Kona Hei Hei AL frame (2021/22) is an efficient aluminum base for a fast 29" XC or light trail bike with a focus on propulsion and control.
