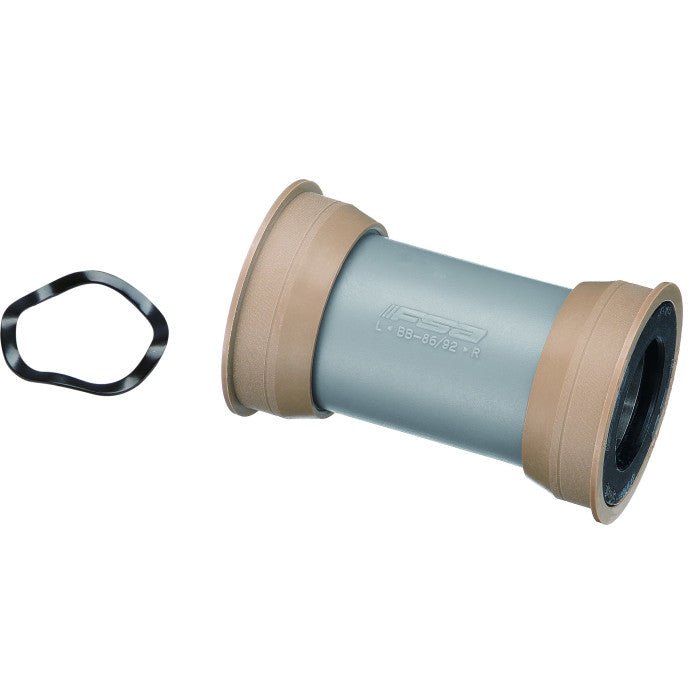

FSA BB86 Pressfit Bottom Bracket 41 x 86.5 mm for 24 mm NBD Cranks

The FSA BB86 Pressfit bottom bracket allows for easy and efficient installation of MegaExo and Ø 24 mm cranksets on BB86 frames. It is specifically designed for use with FSA carbon and aluminum cranks and, thanks to the precisely CNC-machined bearing cups, offers a durable and robust solution for your road bike. The bottom bracket is only suitable for cranksets without a pinch bolt on the left crank arm (NBD).

Features:

• Pressfit bottom bracket for BB86 frames
• Compatible with FSA MegaExo 24 mm and Shimano Road cranks*
• High-quality steel bearings for optimal performance and durability
• Cold-forged and CNC-machined bearing cups
• Suitable for Giant and Scott frames

*Note: For Shimano Road cranks, the O-ring MS150 (Shimano no. Y1F316000) is also required on the non-drive side.

Specifications:

• Area of Use: Road
• Installation Type: Press Fit BB86
• Shell Diameter: 41 mm
• Shell Width: 86.5 mm
• Axle Diameter: 24 mm
• Bottom Bracket Shell Material: Aluminum
• Bearings: Steel

Compatibility:

• MegaExo 24 mm cranks
• Shimano Road cranks (with additional O-ring MS150 for the non-drive side)

Scope of Delivery:

• 1 x Bearing cup FSA BB86 right, incl. bearing
• 1 x Bearing cup FSA BB86 left, incl. bearing
• 1 x Bottom bracket sleeve FSA

Manufacturer Part Number: 230-6042 | Model Number: BB-CF86/CZ
