Experience ultimate control on the toughest trails!

The Fox DHX Factory 230x65 mm Coil Shock is the ultimate for demanding riders seeking maximum performance and control on technical trails or downhill. With its completely new chassis and high-flow main piston, this shock offers superior damping and progressive bottom-out resistance thanks to the MCU bottom-out bumper. The 2-position adjustment allows you to make lightning-fast adjustments while riding – ideal for All Mountain, Trail, and Downhill.

Features:

• Completely newly developed chassis and damping logic
• High-flow main piston for consistent damping
• 12-position LSC (Low-Speed-Compression) adjustable
• 2-position adjuster with independent Firm mode setting
• MCU Bottom-Out Bumper for improved bottom-out resistance

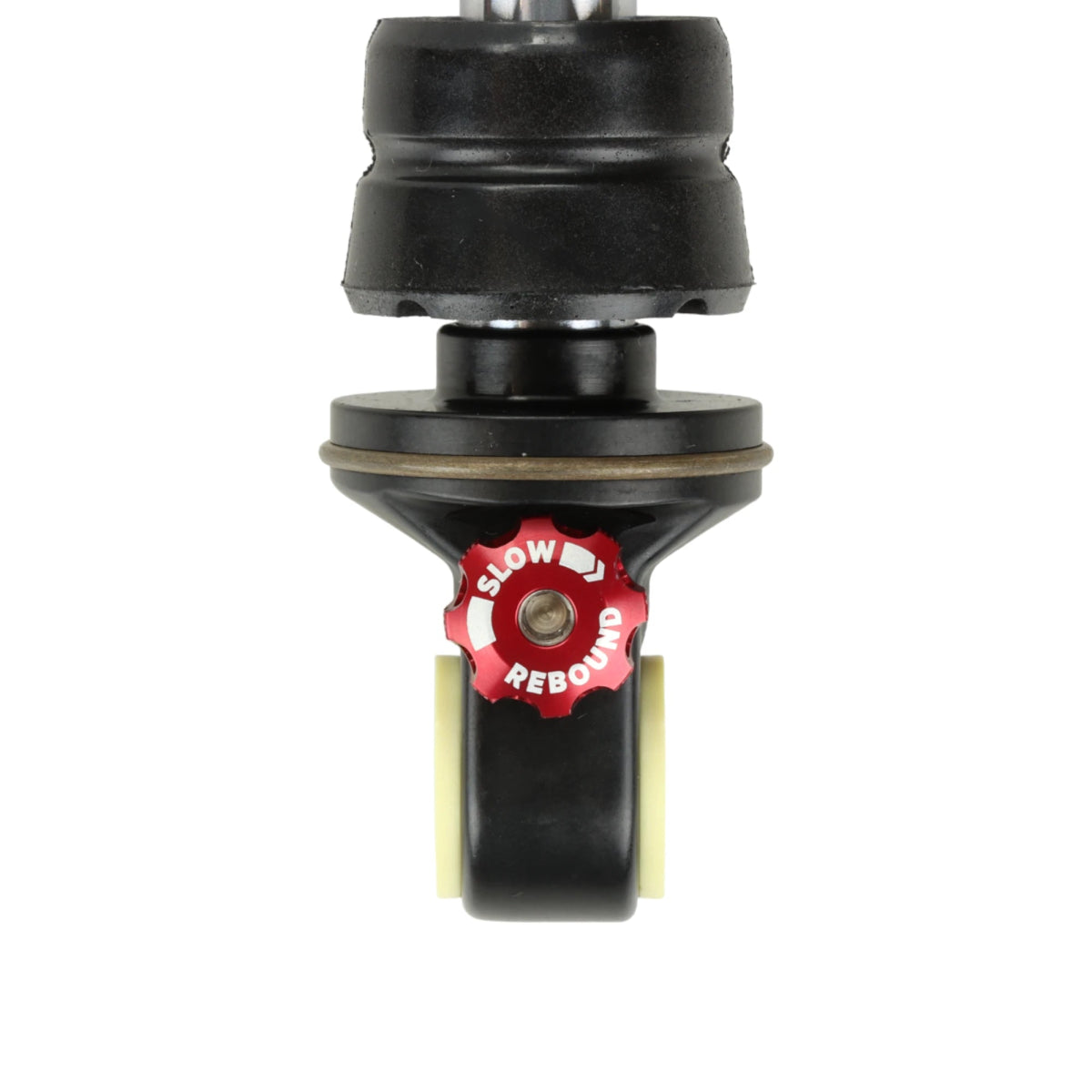

• Tool-free single-turn rebound adjuster
• Hydraulic Top-Out feature to reduce shock noise

Specifications:

• Application: MTB / All Mountain, Trail, Enduro, Downhill
• Version: Factory
• Spring: Coil spring (spring not included)
• Adjustments:
  • Low-speed compression: 11 clicks
  • Low-speed rebound: 11 clicks
  • 2 Position Open/Firm lever
• Mounting Length x Stroke: 230 x 65 mm (adaptable to 230 x 60 and 230 x 62.5 mm. Required spacers: Fox part no.: 233-00-445 (not included))
• Color: Black with orange logo
• Model Year: 2022/23

Scope of delivery:

• Fox DHX Factory 230x65 mm Coil Shock 2-Position Lockout
• (Shock bushings and coil spring are not included!)

EAN: 0821973419787 | Manufacturer No.: 978-01-039
Description: 2023_22, DHX, F-S, Cr, 2pos-Adj, FOX, AM, 230, 65, CM, PRM, Rezi LMB2, Orange Logo
