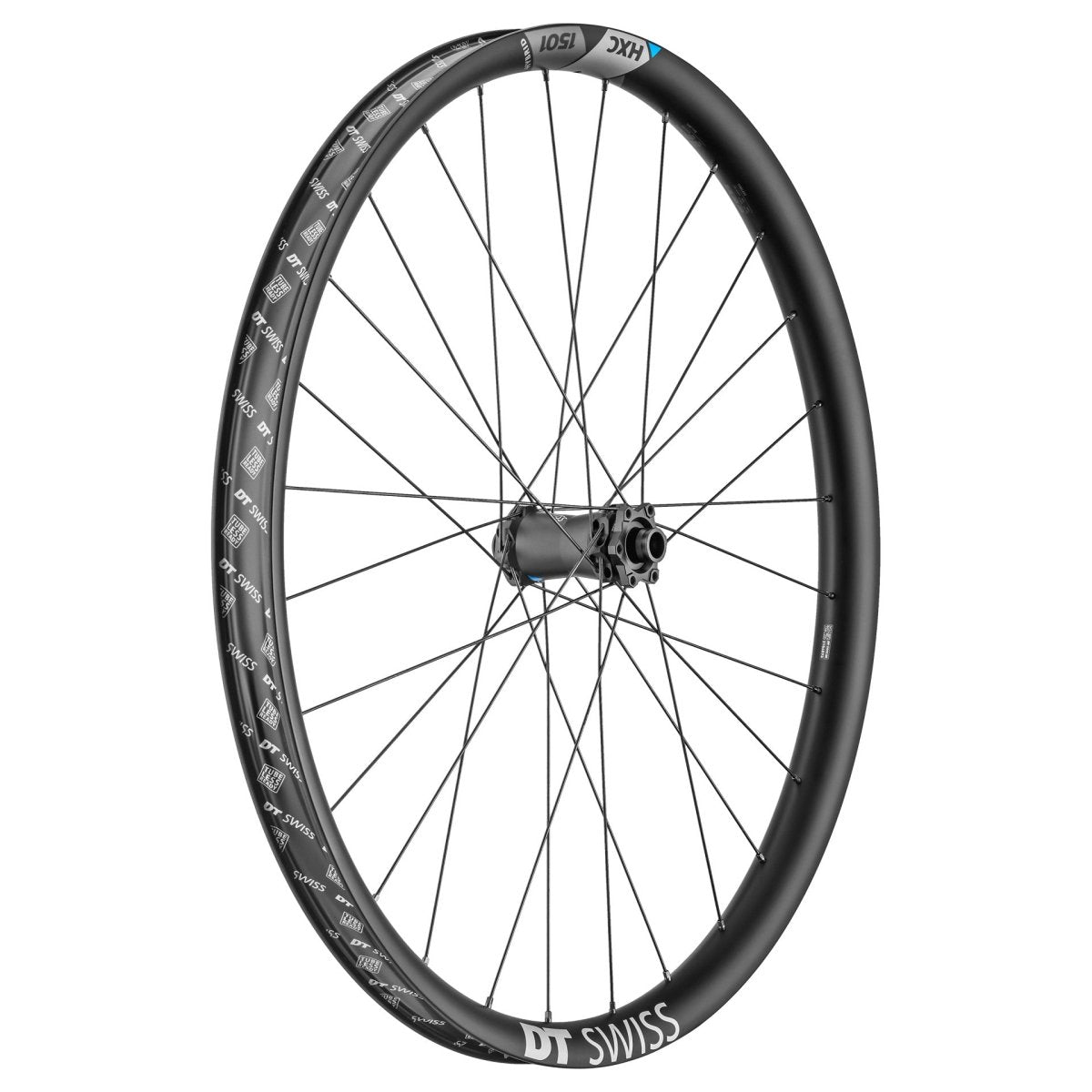

The DT Swiss HXC 1501 SPLINE ONE Carbon front wheel is the ultimate choice for high-performance E-MTBs. With a 35 mm inner width, it offers maximum tire support and grip, while the robust carbon rim and Hybrid 2 spokes provide ultimate stability at a low weight. In combination with the proven DT Swiss 240 hub, this wheel is made for the toughest trails and uncompromising performance.



Highlights:

  • Carbon Rim: Hookless Tubeless TSS construction – light, stable, and durable
  • 35 mm Inner Width: perfect support for wide E-MTB tires
  • DT Swiss 240 Hub: High-end hub for maximum efficiency
  • Hybrid 2 Straightpull Spokes: specially reinforced for E-MTBs
  • Tubeless Ready: includes Tubeless Valve for immediate use



Technical Data:

  • Manufacturer: DT Swiss
  • Model: HXC 1501 SPLINE ONE Carbon
  • Position: Front Wheel
  • Wheel Size: 27.5" (650B)
  • Rim: Carbon, Hookless Tubeless TSS
  • Inner Width: 35 mm
  • Outer Width: 41 mm
  • Rim Height: 25 mm
  • Hub: DT Swiss 240
  • Brake Disc Mount: 6-hole IS
  • Axle: 15x110 mm Boost (Thru Axle)
  • Spokes: DT Hybrid 2 Straightpull (left & right)
  • Weight: approx. 889 g (manufacturer's specification)
  • Max. System Weight: 140 kg
  • ASTM Category: 4
  • Approved for E-Bikes: Yes (up to 32 km/h / max. 250 W)
  • Color: Black



Scope of Delivery:

  • 1x DT Swiss HXC 1501 SPLINE ONE Carbon Front Wheel – 27.5", 35 mm, Boost, 6-hole
  • 1x Tubeless Valve
  • Note: Workshop Packaging (without outer packaging)



Manufacturer Part No.: WHXC150BHIXCA19199 | EAN: 7613052340579 | GTIN: 7613052340579

The DT Swiss HXC 1501 SPLINE ONE Carbon – maximum stability, ultimate control, and pure high-end performance for your E-MTB.

DT SWISS

SKU: 9199 (W4B)

DT Swiss HXC 1501 SPLINE ONE Front Wheel 27.5" | Carbon | 35 mm Inner Width | 15x110 mm Boost | 6-Bolt IS

  • Tubeless Ready – incl. valve
  • DT 240 Hub & Hybrid 2 Spokes for E-MTB Power
  • 35mm carbon rim for wide tires & maximum grip
245,00 €
UVP 787,90 € -68%
Du sparst 542,90 €
In stock, ready to be shipped
Free shipping from €200
Delivery time: 1–3 working days
Shipping with DHL
New and with 2-year warranty

Check compatibility

Will this wheel fit your bike?

In our short video, we explain what to look out for when checking axle size, freehub type and brake rotor mount.

The DT Swiss HXC 1501 SPLINE ONE Carbon front wheel is the ultimate choice for high-performance E-MTBs. With a 35 mm inner width, it offers maximum tire support and grip, while the robust carbon rim and Hybrid 2 spokes provide ultimate stability at a low weight. In combination with the proven DT Swiss 240 hub, this wheel is made for the toughest trails and uncompromising performance.



Highlights:

  • Carbon Rim: Hookless Tubeless TSS construction – light, stable, and durable
  • 35 mm Inner Width: perfect support for wide E-MTB tires
  • DT Swiss 240 Hub: High-end hub for maximum efficiency
  • Hybrid 2 Straightpull Spokes: specially reinforced for E-MTBs
  • Tubeless Ready: includes Tubeless Valve for immediate use



Technical Data:

  • Manufacturer: DT Swiss
  • Model: HXC 1501 SPLINE ONE Carbon
  • Position: Front Wheel
  • Wheel Size: 27.5" (650B)
  • Rim: Carbon, Hookless Tubeless TSS
  • Inner Width: 35 mm
  • Outer Width: 41 mm
  • Rim Height: 25 mm
  • Hub: DT Swiss 240
  • Brake Disc Mount: 6-hole IS
  • Axle: 15x110 mm Boost (Thru Axle)
  • Spokes: DT Hybrid 2 Straightpull (left & right)
  • Weight: approx. 889 g (manufacturer's specification)
  • Max. System Weight: 140 kg
  • ASTM Category: 4
  • Approved for E-Bikes: Yes (up to 32 km/h / max. 250 W)
  • Color: Black



Scope of Delivery:

  • 1x DT Swiss HXC 1501 SPLINE ONE Carbon Front Wheel – 27.5", 35 mm, Boost, 6-hole
  • 1x Tubeless Valve
  • Note: Workshop Packaging (without outer packaging)



Manufacturer Part No.: WHXC150BHIXCA19199 | EAN: 7613052340579 | GTIN: 7613052340579

The DT Swiss HXC 1501 SPLINE ONE Carbon – maximum stability, ultimate control, and pure high-end performance for your E-MTB.
