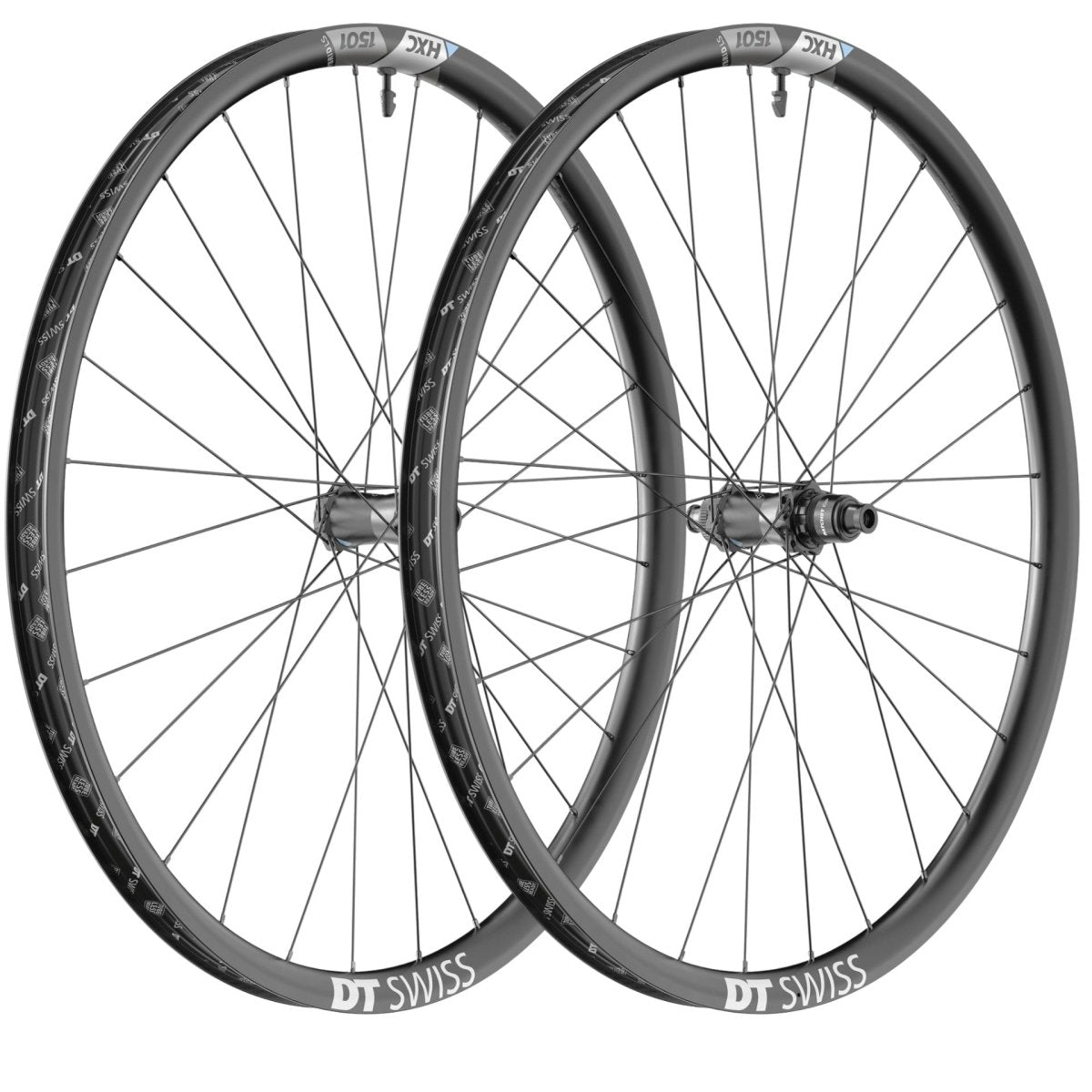

Easy propulsion, high reserves: The DT Swiss HXC 1501 SPLINE ONE LS wheelset (27.5"/650B) combines a hookless carbon rim with a 30 mm inner width and the 240 HYBRID hub platform. The Ratchet EXP OS 30T ensures direct power transfer (≈12°), and the Hybrid-4 Straightpull spokes provide E-MTB-compatible stiffness – with the reduced weight typical for LS models.

Highlights:

• LS concept (Light Support): weight-optimized for agile E-MTBs with less motor assistance
• Hookless Carbon, 30 mm: wide tire support for traction & control at low air pressure
• 240 HYBRID & Ratchet EXP OS 30T: large engagement area (approx. 12°), robust bearings & easy maintenance
• Hybrid 4 Straightpull: high-strength spokes, glued Pro-Lock nipples
• E-MTB approved: ASTM 4, up to 130 kg system weight

Technical Data (Set):

• Wheel size: 27.5" / 650B
• Tire type: Clincher, Tubeless Ready (TSS)
• Inner width (jaw width): 30 mm | Outer width: 36 mm | Rim height: 25 mm
• Rim material: Carbon, hookless
• Brake: Center Lock
• ASTM: 4 | Max. system weight: 130 kg | E-bike approval: up to 32 km/h / 250 W

Front Wheel:

• Axle: Boost 15 × 110 mm
• Hub: DT Swiss 240 HYBRID, Center Lock
• Spokes: DT Hybrid 4 Straightpull
• Net weight: approx. 808 g

Rear Wheel:

• Axle: Boost 12 × 148 mm
• Hub: DT Swiss 240 HYBRID, Ratchet EXP OS 30T, Center Lock
• Freehub: SRAM XD
• Spokes: DT Hybrid 4 Straightpull
• Net weight: approx. 891 g

Scope of Delivery:

• 1× Front Wheel HXC 1501 SPLINE ONE LS 27.5" (30 mm, CL, 15×110 mm)
• 1× Rear Wheel HXC 1501 SPLINE ONE LS 27.5" (30 mm, CL, 12×148 mm, SRAM XD)
• Includes tubeless valve
• Note: Workshop packaging (without outer packaging)

Manufacturer Part No.: WHXC15LBGIXCA19513 (Front) | WHXC15LTGDRCA19515 (Rear) | EAN: 7613052340432 (Front) | 7613052340470 (Rear)

HXC 1501 SPLINE ONE LS – maximum grip & agility on E-MTBs: lightweight carbon setup, direct ratchet drive, robust hybrid components.
