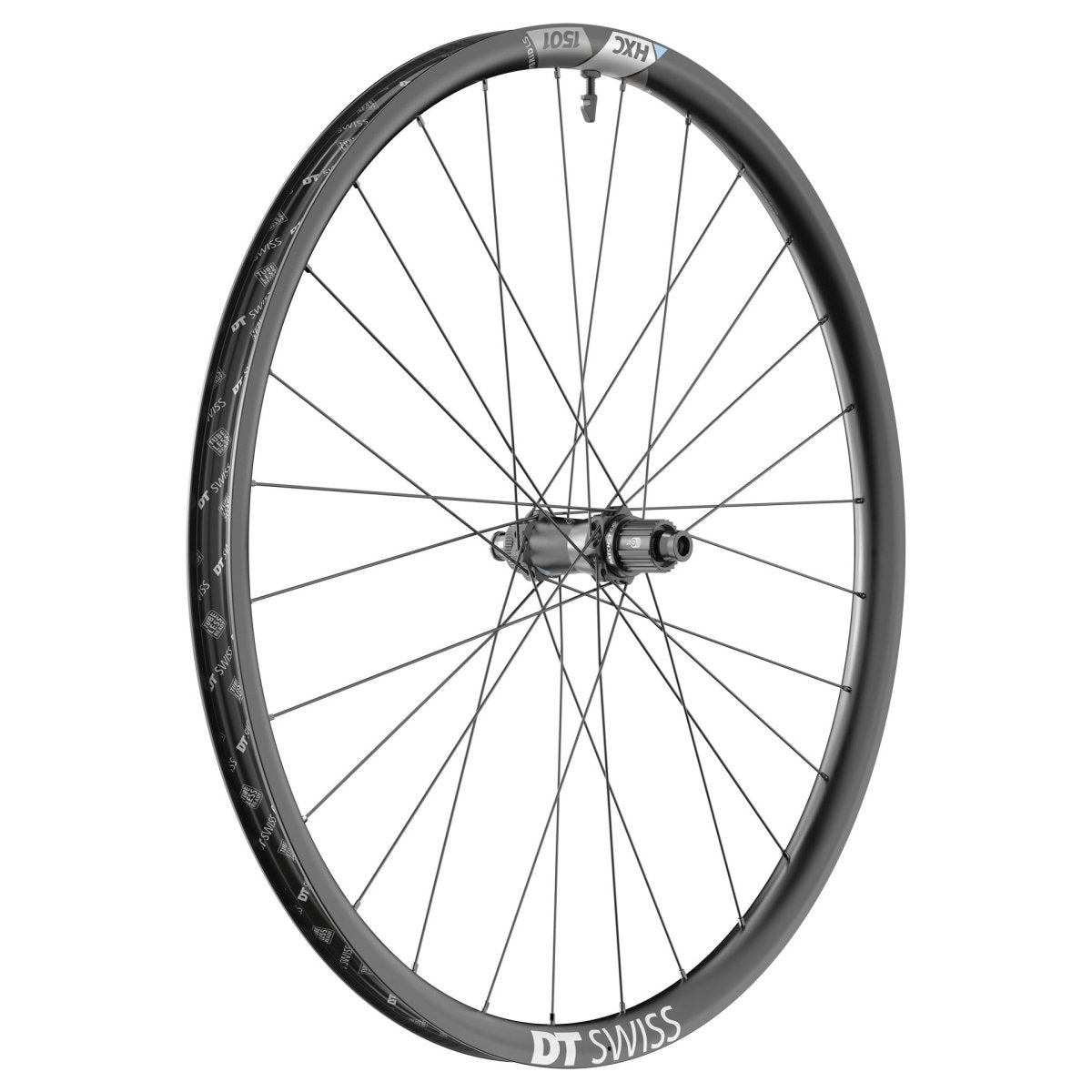

Light, stiff, E-MTB-ready: The DT Swiss HXC 1501 SPLINE ONE LS rear wheel (27.5") is the Light Support version for agile E-MTBs with less motor assistance. The hookless carbon rim with a 30 mm inner width offers maximum grip at low pressure, while the 240 HYBRID hub with Ratchet EXP OS 30T ensures direct power transmission (approx. 12° engagement).
Highlights:
- Ratchet EXP OS 30T: Stiffer, large-area star ratchet engagement (≈12°) for immediate propulsion
- LS Concept: Weight-optimized for light-support E-MTBs – high performance with lower system weight
- Hookless Carbon, 30 mm: Wide tire support for traction & control at low air pressure
- 240 HYBRID Hub: Large bearings & reinforced axle for E-MTB loads, Center Lock
- Hybrid 4 Straightpull: High-strength spokes with bonded Pro-Lock nipples
Technical Data:
- Intended Use: All-Mountain (ASTM 4)
- Size: 27.5" / 650B (ETRTO 30-584)
- Rim Height: 25 mm
- Inner Width (Mouth Width): 30 mm
- Outer Width: 36 mm
- Rim: Carbon, hookless, Tubeless Ready (TSS)
- Spokes/Nipples: DT Hybrid 4 Straightpull, Pro-Lock bonded
- Hub: DT Swiss 240 HYBRID, Center Lock, Ratchet EXP OS 30T
- Rear Axle: Boost 12 × 148 mm
- Freehub: Shimano MicroSpline (12-speed)
- Spoke Count: 28
- Valve: SV/Presta (6.5 mm)
- Weight (RW): approx. 891 g
- E-Bike Approval: up to 32 km/h / 250 W
- Max. System Weight: 130 kg
- Color: Black
Scope of Delivery:
- 1× DT Swiss HXC 1501 SPLINE ONE LS Rear Wheel (27.5", Boost 12×148, Center Lock, Shimano MicroSpline)
- Includes Tubeless Valve
- Note: Workshop packaging (without outer packaging)
Manufacturer Article No.: WHXC15LTGD2CA19514 | EAN: 7613052340449
HXC 1501 LS – maximum agility & traction on E-MTBs: lightweight carbon, direct ratchet feel, full E-MTB robustness.
SKU: 9514 (V1B)
DT Swiss HXC 1501 SPLINE ONE LS Rear Wheel 27.5" | Carbon | 30mm Inner Width | Center Lock | Boost 12x148mm | Shimano MicroSpline
Check compatibility
Will this wheel fit your bike?
In our short video, we explain what to look out for when checking axle size, freehub type and brake rotor mount.
Light, stiff, E-MTB-ready: The DT Swiss HXC 1501 SPLINE ONE LS rear wheel (27.5") is the Light Support version for agile E-MTBs with less motor assistance. The hookless carbon rim with a 30 mm inner width offers maximum grip at low pressure, while the 240 HYBRID hub with Ratchet EXP OS 30T ensures direct power transmission (approx. 12° engagement).
Highlights:
- Ratchet EXP OS 30T: Stiffer, large-area star ratchet engagement (≈12°) for immediate propulsion
- LS Concept: Weight-optimized for light-support E-MTBs – high performance with lower system weight
- Hookless Carbon, 30 mm: Wide tire support for traction & control at low air pressure
- 240 HYBRID Hub: Large bearings & reinforced axle for E-MTB loads, Center Lock
- Hybrid 4 Straightpull: High-strength spokes with bonded Pro-Lock nipples
Technical Data:
- Intended Use: All-Mountain (ASTM 4)
- Size: 27.5" / 650B (ETRTO 30-584)
- Rim Height: 25 mm
- Inner Width (Mouth Width): 30 mm
- Outer Width: 36 mm
- Rim: Carbon, hookless, Tubeless Ready (TSS)
- Spokes/Nipples: DT Hybrid 4 Straightpull, Pro-Lock bonded
- Hub: DT Swiss 240 HYBRID, Center Lock, Ratchet EXP OS 30T
- Rear Axle: Boost 12 × 148 mm
- Freehub: Shimano MicroSpline (12-speed)
- Spoke Count: 28
- Valve: SV/Presta (6.5 mm)
- Weight (RW): approx. 891 g
- E-Bike Approval: up to 32 km/h / 250 W
- Max. System Weight: 130 kg
- Color: Black
Scope of Delivery:
- 1× DT Swiss HXC 1501 SPLINE ONE LS Rear Wheel (27.5", Boost 12×148, Center Lock, Shimano MicroSpline)
- Includes Tubeless Valve
- Note: Workshop packaging (without outer packaging)
Manufacturer Article No.: WHXC15LTGD2CA19514 | EAN: 7613052340449
HXC 1501 LS – maximum agility & traction on E-MTBs: lightweight carbon, direct ratchet feel, full E-MTB robustness.
