High-End 29" carbon rear wheel for aggressive trail and E-MTB use.

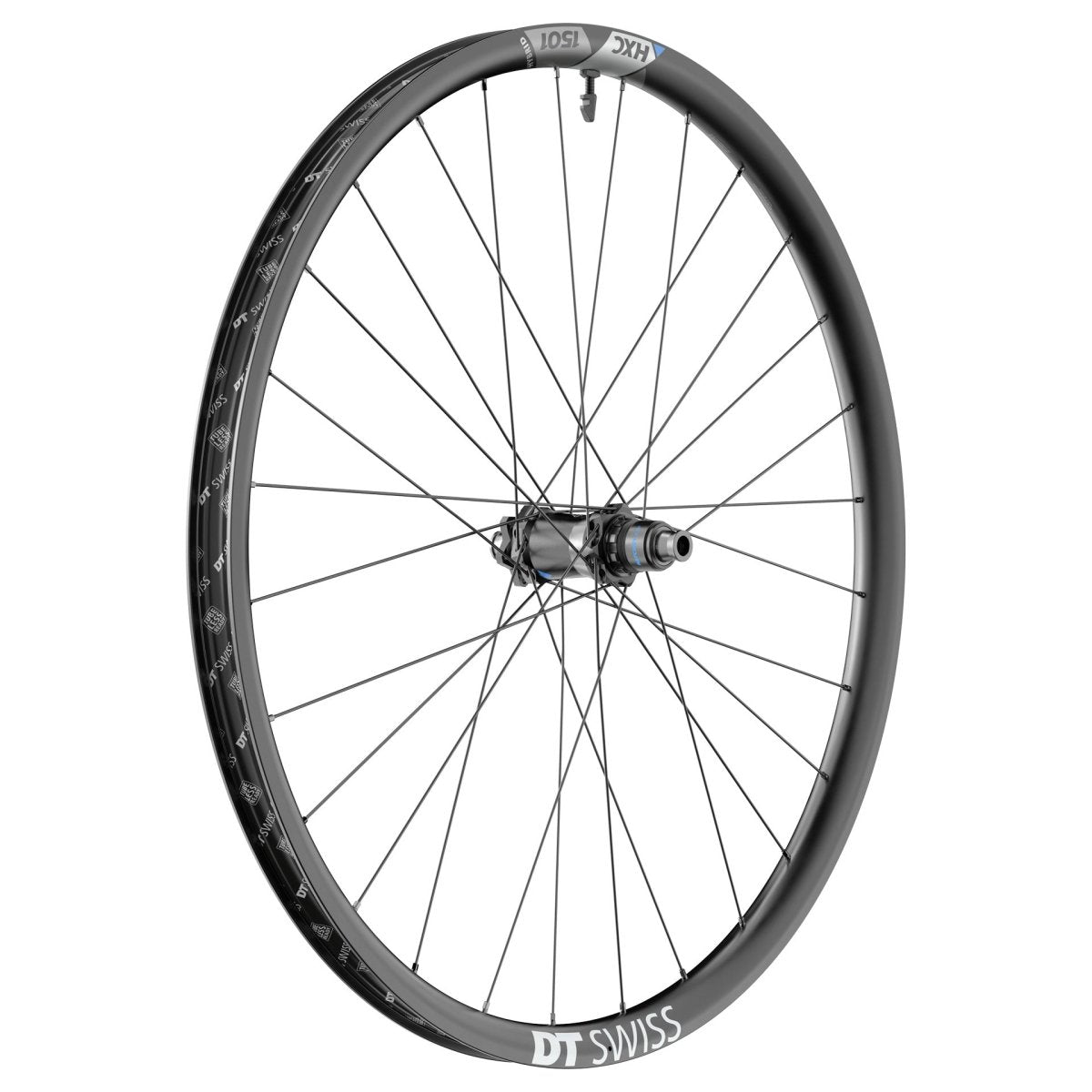

The DT Swiss HXC 1501 SPLINE ONE 29" rear wheel with a 30 mm inner width combines low weight with high lateral stiffness and maximum control on demanding terrain. The modern hookless carbon rim ensures optimal tire support and precise handling on fast trails.
Equipped with the high-quality DT Swiss 240 hub with Ratchet EXP OS 30, this wheel stands for direct power transfer and durable performance. In combination with DT hybrid 2 Straightpull spokes, a resilient carbon rear wheel for modern 12x148 mm Boost setups is created – including E-MTB approval up to 250 W.
Technical data:
- Model: HXC 1501 SPLINE ONE
- Version: Rear wheel
- Size: 29" / 700C
- Rim: Carbon, Hookless tubeless TSS
- Rim height: 25 mm
- Inner width: 30 mm
- Outer width: 36 mm
- Axle: 12x148 mm Boost thru-axle
- Brake disc mount: 6-hole (IS)
- Freehub: SRAM XD
- Hub: DT Swiss 240 with Ratchet EXP OS 30
- Net weight: 1020 g
- Max. system weight: 140 kg
- ASTM: 4
- E-Bike approval: Yes (up to 32 km/h / 250 W)
- Manufacturer number: WHXC150TFDNCA18297
SKU: 8297 (U2C8)
DT Swiss HXC 1501 SPLINE ONE Rear Wheel 29" | 30 mm Inner Width | 12x148 mm Boost Thru Axle | 6-Bolt | SRAM XD
Check compatibility
Will this wheel fit your bike?
In our short video, we explain what to look out for when checking axle size, freehub type and brake rotor mount.
High-End 29" carbon rear wheel for aggressive trail and E-MTB use.
The DT Swiss HXC 1501 SPLINE ONE 29" rear wheel with a 30 mm inner width combines low weight with high lateral stiffness and maximum control on demanding terrain. The modern hookless carbon rim ensures optimal tire support and precise handling on fast trails.
Equipped with the high-quality DT Swiss 240 hub with Ratchet EXP OS 30, this wheel stands for direct power transfer and durable performance. In combination with DT hybrid 2 Straightpull spokes, a resilient carbon rear wheel for modern 12x148 mm Boost setups is created – including E-MTB approval up to 250 W.
Technical data:
- Model: HXC 1501 SPLINE ONE
- Version: Rear wheel
- Size: 29" / 700C
- Rim: Carbon, Hookless tubeless TSS
- Rim height: 25 mm
- Inner width: 30 mm
- Outer width: 36 mm
- Axle: 12x148 mm Boost thru-axle
- Brake disc mount: 6-hole (IS)
- Freehub: SRAM XD
- Hub: DT Swiss 240 with Ratchet EXP OS 30
- Net weight: 1020 g
- Max. system weight: 140 kg
- ASTM: 4
- E-Bike approval: Yes (up to 32 km/h / 250 W)
- Manufacturer number: WHXC150TFDNCA18297
