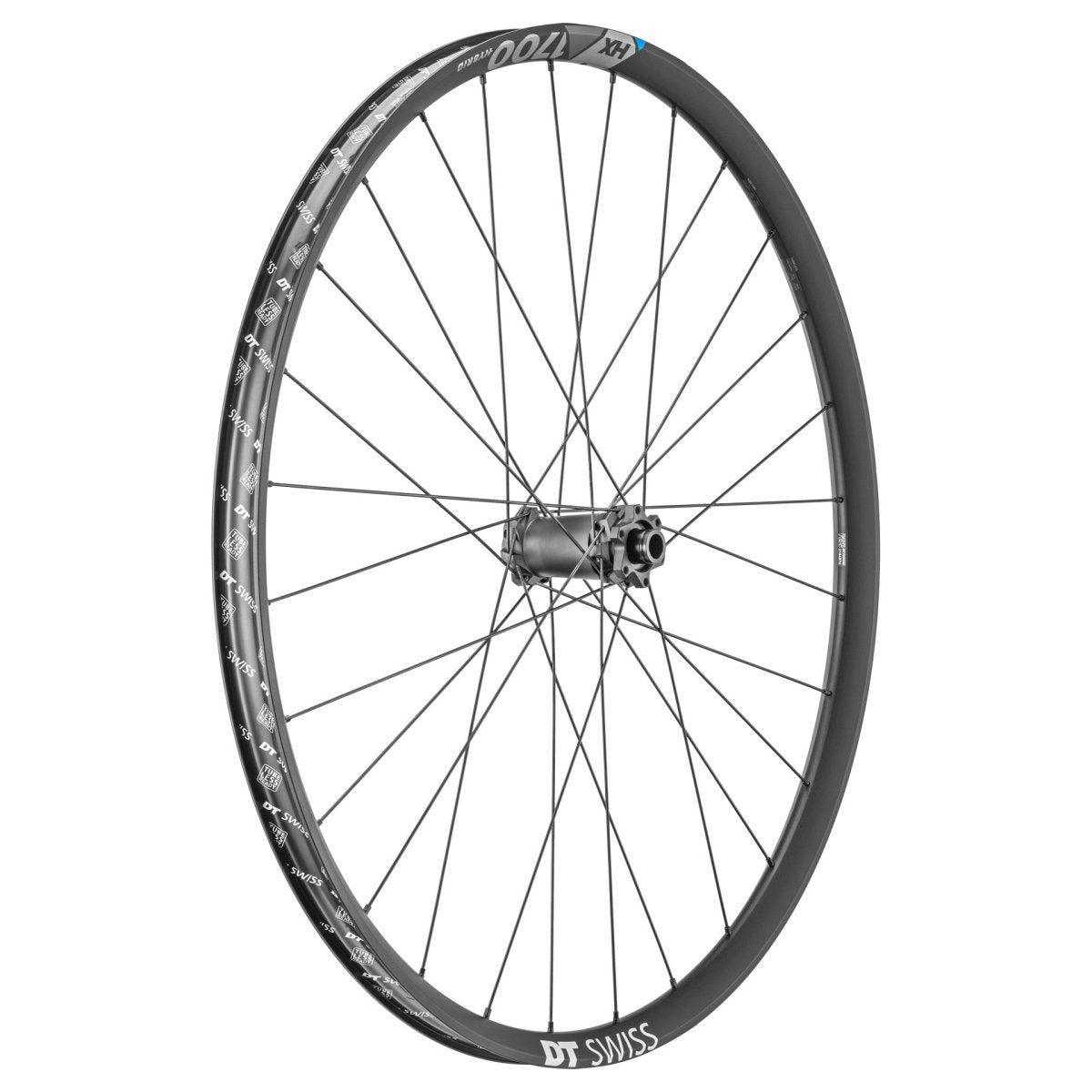

Robust E-MTB front wheel for tough trails & high loads.

The DT Swiss HX 1700 SPLINE 29" front wheel with 30 mm inner width is made for modern E-MTBs used in rough terrain. With Boost 15x110 mm thru-axle, 6-bolt disc, and reinforced hybrid components, it offers exactly the stability you need for technical trails, bikepark use, and powerful motor support.

The aluminum rim with a hooked / crotchet profile is Tubeless Ready (tubeless TC) and works well with wide tires, which are optimally supported on the 30 mm inner rim width. This gives you plenty of grip, more comfort, and better control – ideal for aggressive riding and typical E-MTB loads. With a 35 mm outer width and 21 mm rim height, the wheel sits firmly and stably on the trail.

At its heart is a reliable DT Swiss 350 hub, spoked with particularly robust DT Hybrid 1 Straightpull spokes – developed for higher torques and system weights up to 150 kg (rider + bike + luggage). The ASTM classification 4 makes it clear: This front wheel is at home on tough trails, enduro routes, and in E-MTB use.

With a net weight of approx. 1005 g, the HX 1700 SPLINE 29" front wheel offers a strong combination of durability, E-bike compatibility, and solid performance – perfect if you want to upgrade your E-MTB front end to a resilient branded wheel.

Highlights:

• E-MTB ready: approved for e-bikes up to 32 km/h or 250 W – ideal for powerful drives.
• 30 mm inner width: perfect base for wide E-MTB/enduro tires with plenty of grip and lateral support.
• Boost & 6-bolt: 15x110 mm thru-axle and 6-bolt disc mount – suitable for modern E-MTB forks.
• Hybrid construction: DT 350 hub with DT Hybrid 1 Straightpull spokes for high continuous loads.
• High load capacity: max. system weight 150 kg, ASTM classification 4 for tough off-road use.

Technical specifications:

• Model: DT Swiss HX 1700 SPLINE front wheel
• Intended use: E-MTB, Enduro, All-Mountain (ASTM classification 4)
• Wheel size: 29" / 700C
• Rim material: Aluminum
• Rim construction: Hooked / Crotchet tubeless TC (Tubeless Ready, corresponding rim tape & valve required)
• Rim height: 21 mm
• Inner width (jaw width): 30 mm
• Outer width: 35 mm
• Hub type: DT Swiss 350
• Spokes left: DT Hybrid 1 Straightpull
• Spokes right: DT Hybrid 1 Straightpull
• Brake mount: 6-bolt disc (IS)
• Front axle system: 15 x 110 mm thru-axle (Boost)
• Approved for e-bikes: yes, up to 32 km/h or max. 250 W
• ASTM classification: 4
• Max. system weight: 150 kg (rider + bike + luggage)
• Net weight front wheel: approx. 1005 g
• Color: black

Scope of delivery:

• 1 x DT Swiss HX 1700 SPLINE front wheel 29" | 30 mm inner width | Boost 15x110 mm | 6-bolt disc
• Incl. tubeless valve and mounted rim tape
• Note: Workshop packaging

Manufacturer part no.: WHX1700BFIXSO18405 | EAN: 7613052348179

The DT Swiss HX 1700 SPLINE 29" front wheel is a robust, E-MTB approved front solution with 30 mm inner width, hybrid spokes and high system approval – ideal for anyone who doesn't want to compromise on stability and control off-road.
