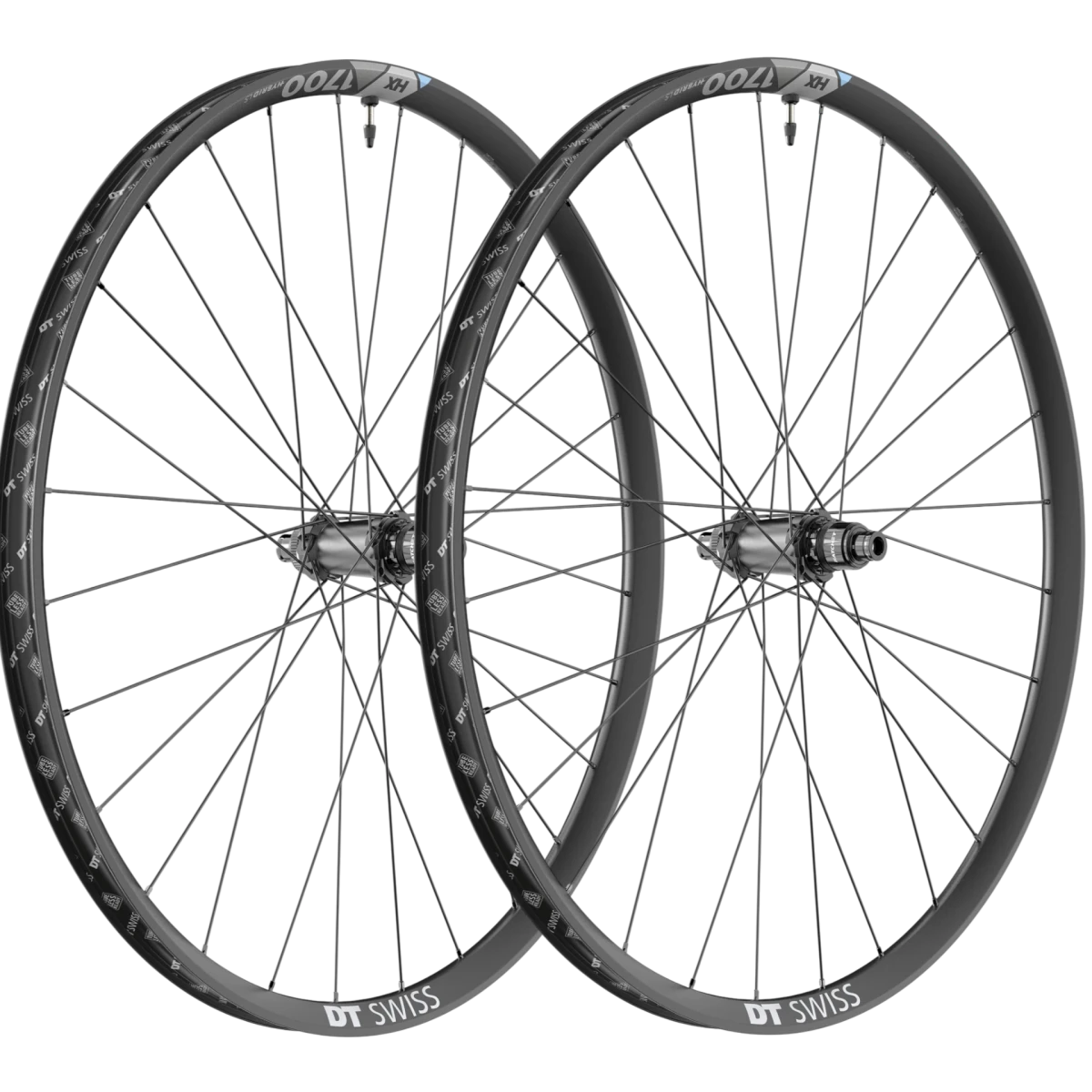

Robust 29" Boost wheelset for trail and E-MTB use.
The DT Swiss HX 1700 SPLINE LS 29" wheelset is specifically designed for high loads in trail and E-MTB applications. The stable aluminum rims with a 30 mm inner width ensure optimal tire support, high directional stability, and precise control in technical terrain.
The front features a proven DT Swiss 350 hub, while the rear has a DT Swiss 350 hub with Ratchet System 24 for direct and durable power transfer. In combination with DT hybrid 3 Straightpull spokes, this creates a particularly durable wheelset for modern Boost setups. Approved for E-MTBs up to 250 W.
Technical Data Front Wheel:
- Size: 29" / 700C
- Inner width: 30 mm
- Rim height: 21 mm
- Axle: 15x110 mm Boost thru axle
- Brake disc mount: Centerlock
- Hub: DT Swiss 350
- Weight: 944 g
Technical Data Rear Wheel:
- Size: 29" / 700C
- Inner width: 30 mm
- Rim height: 21 mm
- Axle: 12x148 mm Boost thru axle
- Brake disc mount: Centerlock
- Freehub: SRAM XD
- Hub: DT Swiss 350 with Ratchet System 24
- Weight: 1078 g
General Data:
- Rim: Aluminum, Hooked / Crotchet tubeless TC
- Spokes: DT hybrid 3 Straightpull
- Max. system weight: 130 kg
- ASTM: 4
- E-Bike approval: Yes (up to 32 km/h / 250 W)
SKU: 9510 (V5C) + 9512 (V6C)
DT Swiss HX 1700 SPLINE LS Wheelset 29" | 30mm Jaw Width | 15x110 / 12x148mm Boost | Centerlock | SRAM XD
Check compatibility
Will this wheel fit your bike?
In our short video, we explain what to look out for when checking axle size, freehub type and brake rotor mount.
Robust 29" Boost wheelset for trail and E-MTB use.
The DT Swiss HX 1700 SPLINE LS 29" wheelset is specifically designed for high loads in trail and E-MTB applications. The stable aluminum rims with a 30 mm inner width ensure optimal tire support, high directional stability, and precise control in technical terrain.
The front features a proven DT Swiss 350 hub, while the rear has a DT Swiss 350 hub with Ratchet System 24 for direct and durable power transfer. In combination with DT hybrid 3 Straightpull spokes, this creates a particularly durable wheelset for modern Boost setups. Approved for E-MTBs up to 250 W.
Technical Data Front Wheel:
- Size: 29" / 700C
- Inner width: 30 mm
- Rim height: 21 mm
- Axle: 15x110 mm Boost thru axle
- Brake disc mount: Centerlock
- Hub: DT Swiss 350
- Weight: 944 g
Technical Data Rear Wheel:
- Size: 29" / 700C
- Inner width: 30 mm
- Rim height: 21 mm
- Axle: 12x148 mm Boost thru axle
- Brake disc mount: Centerlock
- Freehub: SRAM XD
- Hub: DT Swiss 350 with Ratchet System 24
- Weight: 1078 g
General Data:
- Rim: Aluminum, Hooked / Crotchet tubeless TC
- Spokes: DT hybrid 3 Straightpull
- Max. system weight: 130 kg
- ASTM: 4
- E-Bike approval: Yes (up to 32 km/h / 250 W)
