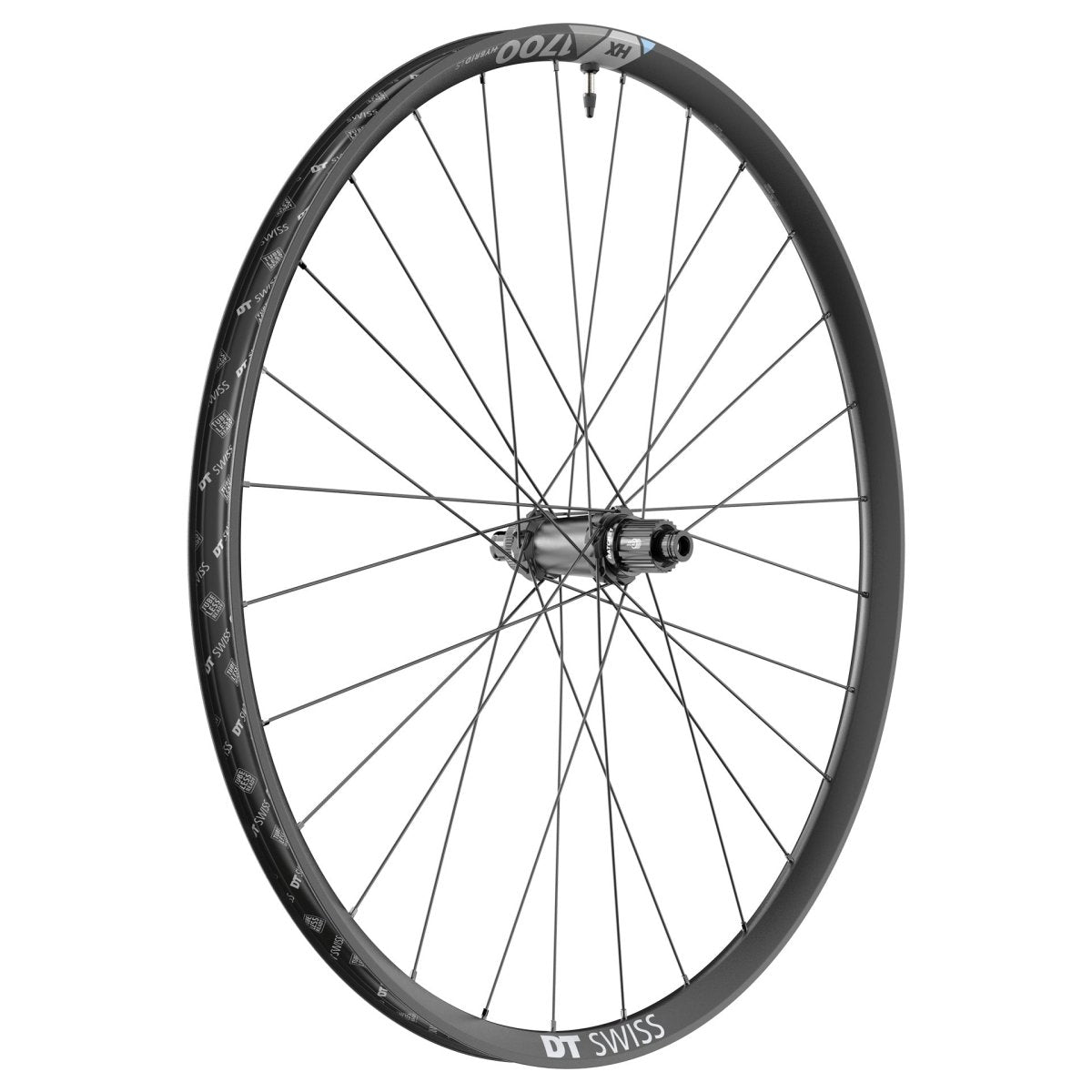

The DT Swiss HX 1700 SPLINE LS rear wheel is specially developed for the high demands of E-MTBs. With its sturdy aluminum rim, reinforced Hybrid 3 spokes, and the proven 350 hub with Ratchet System 24, it offers reliability, control, and durability on all trails. A 30 mm internal width ensures optimal support for wide tires and more grip off-road.
Highlights:
- Hybrid-optimized (LS): designed for E-MTB loads, stable & durable
- 30 mm internal width: optimal tire support for grip & control
- DT 350 hub with Ratchet 24: smooth, reliable power transfer
- Hybrid 3 Straightpull spokes: high stiffness & load capacity
- Tubeless Ready: incl. tubeless valve and Center Lock adapter
Technical data:
- Manufacturer: DT Swiss
- Model: HX 1700 SPLINE LS
- Position: Rear wheel
- Wheel size: 27.5" (650B)
- Rim: Aluminum, Hooked/Crotchet, Tubeless compatible (TC)
- Internal width: 30 mm
- External width: 35 mm
- Rim height: 21 mm
- Brake disc mount: Center Lock
- Axle / Installation dimension: 12x148 mm Boost (thru axle)
- Hub: DT Swiss 350, Ratchet System 24
- Freehub: Shimano MicroSpline 12-speed
- Spokes: DT Hybrid 3 Straightpull left & right
- ASTM Category: 4
- Approved for E-bikes: Yes (up to 32 km/h / max. 250 W)
- Max. system weight: 130 kg
- Weight: approx. 1038 g (manufacturer's specification)
- Color: Black
Scope of delivery:
- 1x DT Swiss HX 1700 SPLINE LS Rear Wheel – 27.5", 30 mm, Boost, Center Lock, Shimano MicroSpline
- 1x Tubeless Valve
- Note: Workshop packaging (without outer packaging)
Manufacturer's item no.: WHX17LSTGD2SA19508 | EAN: 7613052340746 | GTIN: 7613052340746
HX 1700 SPLINE LS – stable, precise and made for demanding E-MTB trails.
SKU: 9508 (W7B)
DT Swiss HX 1700 SPLINE LS Rear Wheel 27.5" | Alloy | 30 mm Inner Width | 12x148 mm Boost | Center Lock | Shimano MicroSpline
Check compatibility
Will this wheel fit your bike?
In our short video, we explain what to look out for when checking axle size, freehub type and brake rotor mount.
The DT Swiss HX 1700 SPLINE LS rear wheel is specially developed for the high demands of E-MTBs. With its sturdy aluminum rim, reinforced Hybrid 3 spokes, and the proven 350 hub with Ratchet System 24, it offers reliability, control, and durability on all trails. A 30 mm internal width ensures optimal support for wide tires and more grip off-road.
Highlights:
- Hybrid-optimized (LS): designed for E-MTB loads, stable & durable
- 30 mm internal width: optimal tire support for grip & control
- DT 350 hub with Ratchet 24: smooth, reliable power transfer
- Hybrid 3 Straightpull spokes: high stiffness & load capacity
- Tubeless Ready: incl. tubeless valve and Center Lock adapter
Technical data:
- Manufacturer: DT Swiss
- Model: HX 1700 SPLINE LS
- Position: Rear wheel
- Wheel size: 27.5" (650B)
- Rim: Aluminum, Hooked/Crotchet, Tubeless compatible (TC)
- Internal width: 30 mm
- External width: 35 mm
- Rim height: 21 mm
- Brake disc mount: Center Lock
- Axle / Installation dimension: 12x148 mm Boost (thru axle)
- Hub: DT Swiss 350, Ratchet System 24
- Freehub: Shimano MicroSpline 12-speed
- Spokes: DT Hybrid 3 Straightpull left & right
- ASTM Category: 4
- Approved for E-bikes: Yes (up to 32 km/h / max. 250 W)
- Max. system weight: 130 kg
- Weight: approx. 1038 g (manufacturer's specification)
- Color: Black
Scope of delivery:
- 1x DT Swiss HX 1700 SPLINE LS Rear Wheel – 27.5", 30 mm, Boost, Center Lock, Shimano MicroSpline
- 1x Tubeless Valve
- Note: Workshop packaging (without outer packaging)
Manufacturer's item no.: WHX17LSTGD2SA19508 | EAN: 7613052340746 | GTIN: 7613052340746
HX 1700 SPLINE LS – stable, precise and made for demanding E-MTB trails.
