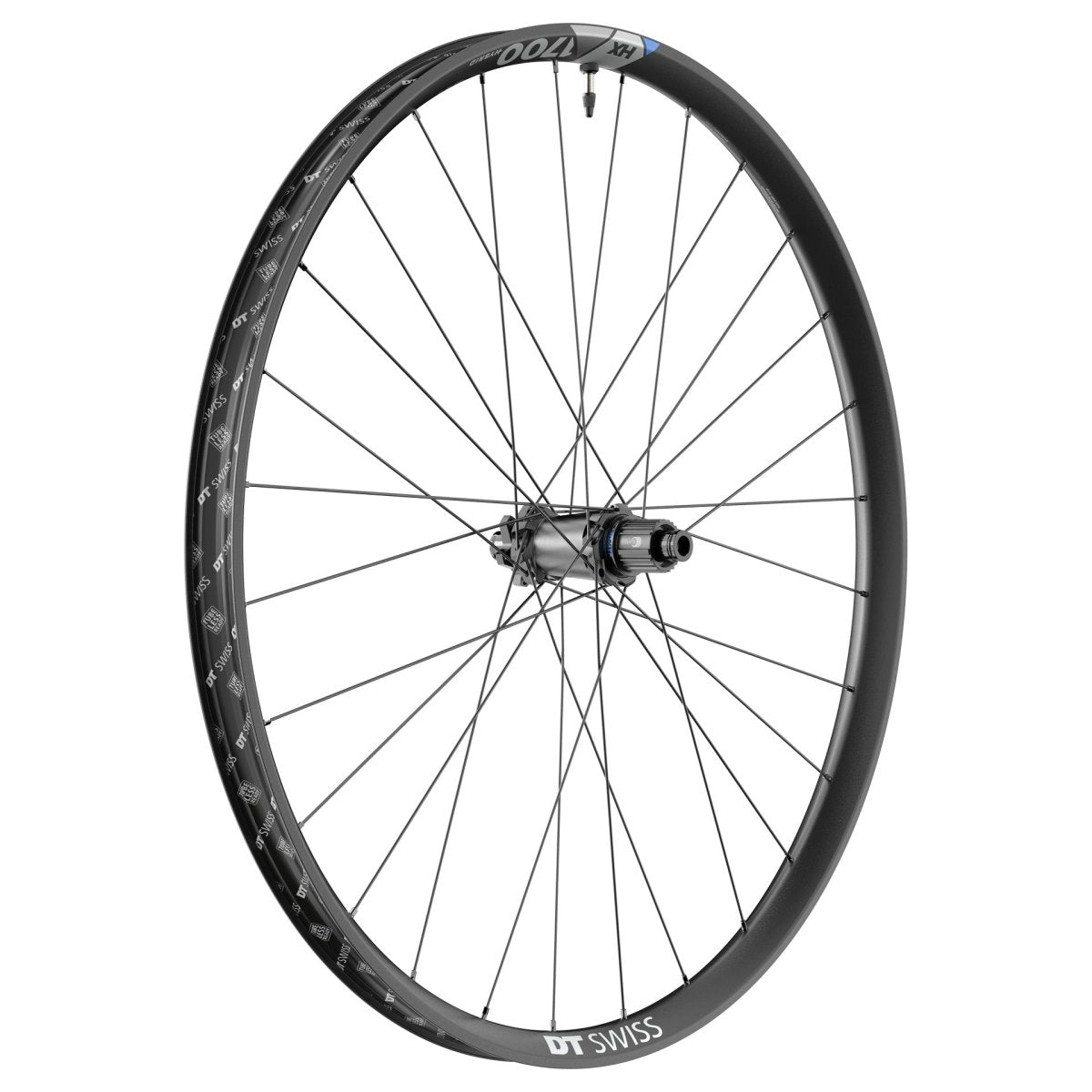

The DT Swiss HX 1700 SPLINE 27.5" rear wheel is the perfect choice for modern e-MTBs with wide tires. With its robust construction, 35 mm internal width, and a reliable 350 hub body with Ratchet System 24, it was specially developed for demanding trails and high loads.
The aluminum rim with a 21 mm profile height and forged rim hook is designed for tubeless operation and offers ideal conditions for wide tires with its 35 mm internal width. The high-quality straight-pull spokes of the DT Hybrid series ensure a balanced ratio of weight, stiffness, and durability – even with a maximum system weight of 150 kg.
Functional advantages:
- Robust 35 mm internal width: Ideal for wide e-MTB tires
- 350 hub with Ratchet System 24: Reliable engagement and easy maintenance
- High-end hybrid spokes: Optimized specifically for the stresses of e-MTBs
Technical details:
- Rim: Aluminum, 27.5" / 650B, Tubeless Ready, Hooked profile
- Internal width: 35 mm | External width: 40 mm
- Rim height: 21 mm
- Hub: DT Swiss 350 | Boost 12x148 mm | 6-bolt Disc | Shimano HG freehub
- Spokes: DT Hybrid 1 Straightpull (left & right)
- Weight: approx. 1156 g
- Max. system weight: 150 kg
- ASTM classification: Category 4 (Trail, All Mountain, Enduro)
- E-bike compatible: Yes (max. 25 km/h / 250 W)
Scope of delivery:
- 1x DT Swiss HX 1700 SPLINE Rear Wheel 27.5" | 35 mm | 12x148 mm Boost | 6-bolt | Shimano HG
- Note: Workshop packaging (without outer packaging)
Top performance and durability – made for the toughest e-MTB applications.
SKU: T231
DT Swiss HX 1700 SPLINE 27.5" Rear Wheel | 35mm Inner Width | 12x148mm Boost | 6-Bolt | Shimano HG Freehub
Check compatibility
Will this wheel fit your bike?
In our short video, we explain what to look out for when checking axle size, freehub type and brake rotor mount.
The DT Swiss HX 1700 SPLINE 27.5" rear wheel is the perfect choice for modern e-MTBs with wide tires. With its robust construction, 35 mm internal width, and a reliable 350 hub body with Ratchet System 24, it was specially developed for demanding trails and high loads.
The aluminum rim with a 21 mm profile height and forged rim hook is designed for tubeless operation and offers ideal conditions for wide tires with its 35 mm internal width. The high-quality straight-pull spokes of the DT Hybrid series ensure a balanced ratio of weight, stiffness, and durability – even with a maximum system weight of 150 kg.
Functional advantages:
- Robust 35 mm internal width: Ideal for wide e-MTB tires
- 350 hub with Ratchet System 24: Reliable engagement and easy maintenance
- High-end hybrid spokes: Optimized specifically for the stresses of e-MTBs
Technical details:
- Rim: Aluminum, 27.5" / 650B, Tubeless Ready, Hooked profile
- Internal width: 35 mm | External width: 40 mm
- Rim height: 21 mm
- Hub: DT Swiss 350 | Boost 12x148 mm | 6-bolt Disc | Shimano HG freehub
- Spokes: DT Hybrid 1 Straightpull (left & right)
- Weight: approx. 1156 g
- Max. system weight: 150 kg
- ASTM classification: Category 4 (Trail, All Mountain, Enduro)
- E-bike compatible: Yes (max. 25 km/h / 250 W)
Scope of delivery:
- 1x DT Swiss HX 1700 SPLINE Rear Wheel 27.5" | 35 mm | 12x148 mm Boost | 6-bolt | Shimano HG
- Note: Workshop packaging (without outer packaging)
Top performance and durability – made for the toughest e-MTB applications.
