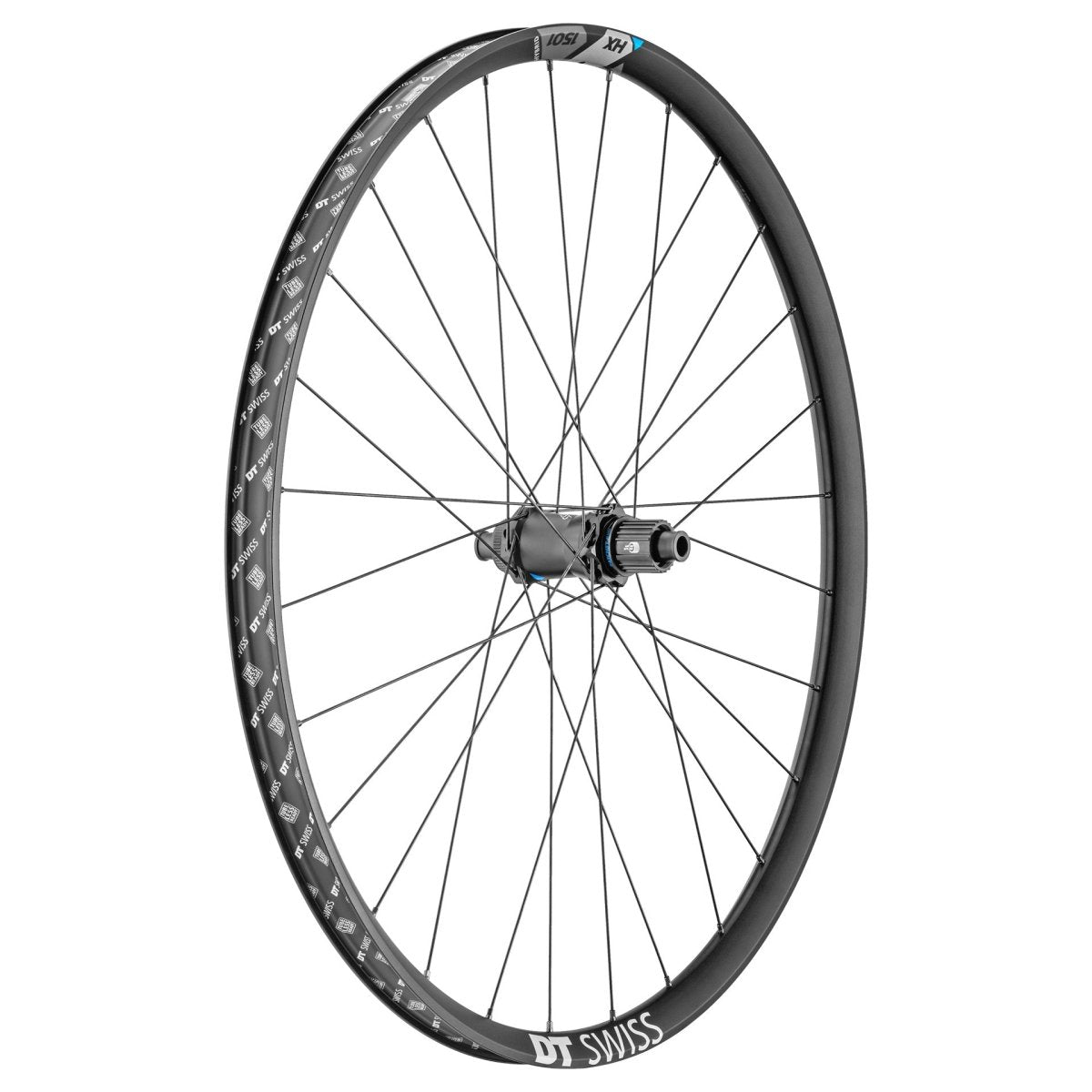

The DT Swiss HX 1501 SPLINE ONE rear wheel was specially developed for tough E-MTB and all-mountain use. With a 30 mm inner rim width, reinforced hybrid spokes, and the DT Swiss 240 hub with Ratchet EXP OS 30 system, it offers the perfect blend of stability, stiffness, and durability. Thanks to its tubeless-ready construction, a quick, puncture-proof setup is possible – ideal for technically demanding trails.
Highlights:
- 30 mm Inner Rim Width: optimal for wide E-MTB tires with maximum grip
- DT 240 Hub: with Ratchet EXP OS 30 system for direct, reliable power transfer
- Hybrid 2 Spokes: reinforced Straightpull spokes for maximum stability
- Aluminum Rim: robust, welded & tubeless-ready
- E-Bike Ready: approved for E-MTBs up to 32 km/h & 250 W
Technical Data:
- Manufacturer: DT Swiss
- Model: HX 1501 SPLINE ONE
- Position: Rear wheel
- Wheel Size: 27.5" / 650B
- Rim: Aluminum, Hooked/Crotchet, Tubeless Compatible (TC)
- Rim Height: 21 mm
- Inner Rim Width: 30 mm
- Outer Rim Width: 35 mm
- Hub: DT Swiss 240 with Ratchet EXP OS 30
- Brake Rotor Mount: Center Lock
- Axle / Installation Dimension: 12x148 mm Boost (Thru Axle)
- Freehub: Shimano Microspline (12-speed)
- Spokes: DT Hybrid 2 Straightpull (left & right)
- Weight: approx. 1052 g (manufacturer's specification)
- Max. System Weight: 150 kg
- ASTM Category: 4
- E-Bike Approved: Yes (up to 32 km/h / max. 250 W)
- Color: Black
Scope of Delivery:
- 1x DT Swiss HX 1501 SPLINE ONE Rear Wheel – 27.5", 30 mm Inner Rim Width, Boost, Center Lock, Shimano Microspline
- 1x Tubeless Valve
- Note: Workshop Packaging (without outer packaging)
Manufacturer Article No.: WHX1501TGD3SO18299 | EAN: 7613052347820 | GTIN: 7613052347820
HX 1501 SPLINE ONE – the robust high-end rear wheel for E-MTBs and all-mountain use.
SKU: 8299 (V1A2)
DT Swiss HX 1501 SPLINE ONE Rear Wheel 27.5" | 30mm Inner Width | Centerlock | 12x148mm Boost | Shimano MicroSpline
Check compatibility
Will this wheel fit your bike?
In our short video, we explain what to look out for when checking axle size, freehub type and brake rotor mount.
The DT Swiss HX 1501 SPLINE ONE rear wheel was specially developed for tough E-MTB and all-mountain use. With a 30 mm inner rim width, reinforced hybrid spokes, and the DT Swiss 240 hub with Ratchet EXP OS 30 system, it offers the perfect blend of stability, stiffness, and durability. Thanks to its tubeless-ready construction, a quick, puncture-proof setup is possible – ideal for technically demanding trails.
Highlights:
- 30 mm Inner Rim Width: optimal for wide E-MTB tires with maximum grip
- DT 240 Hub: with Ratchet EXP OS 30 system for direct, reliable power transfer
- Hybrid 2 Spokes: reinforced Straightpull spokes for maximum stability
- Aluminum Rim: robust, welded & tubeless-ready
- E-Bike Ready: approved for E-MTBs up to 32 km/h & 250 W
Technical Data:
- Manufacturer: DT Swiss
- Model: HX 1501 SPLINE ONE
- Position: Rear wheel
- Wheel Size: 27.5" / 650B
- Rim: Aluminum, Hooked/Crotchet, Tubeless Compatible (TC)
- Rim Height: 21 mm
- Inner Rim Width: 30 mm
- Outer Rim Width: 35 mm
- Hub: DT Swiss 240 with Ratchet EXP OS 30
- Brake Rotor Mount: Center Lock
- Axle / Installation Dimension: 12x148 mm Boost (Thru Axle)
- Freehub: Shimano Microspline (12-speed)
- Spokes: DT Hybrid 2 Straightpull (left & right)
- Weight: approx. 1052 g (manufacturer's specification)
- Max. System Weight: 150 kg
- ASTM Category: 4
- E-Bike Approved: Yes (up to 32 km/h / max. 250 W)
- Color: Black
Scope of Delivery:
- 1x DT Swiss HX 1501 SPLINE ONE Rear Wheel – 27.5", 30 mm Inner Rim Width, Boost, Center Lock, Shimano Microspline
- 1x Tubeless Valve
- Note: Workshop Packaging (without outer packaging)
Manufacturer Article No.: WHX1501TGD3SO18299 | EAN: 7613052347820 | GTIN: 7613052347820
HX 1501 SPLINE ONE – the robust high-end rear wheel for E-MTBs and all-mountain use.
