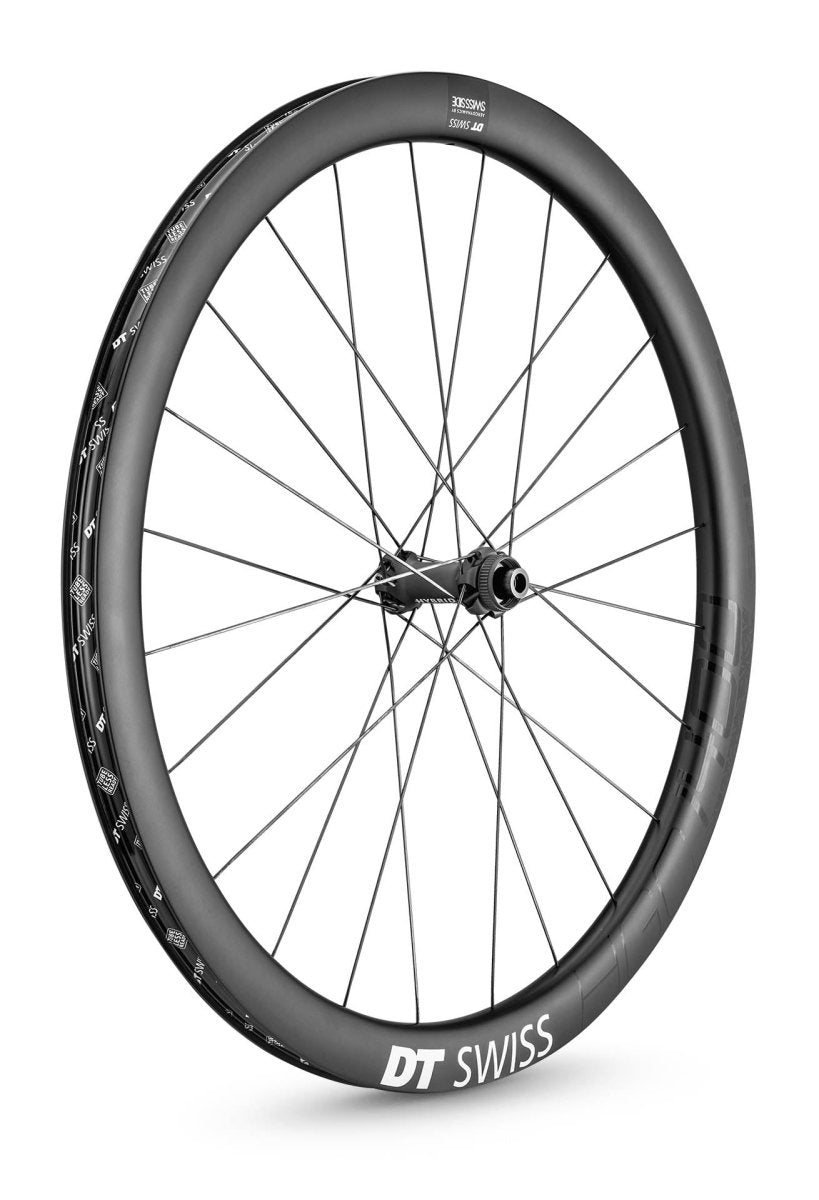

The DT Swiss HGC 1400 SPLINE front wheel is the perfect choice for demanding gravel and all-road e-bike adventures. With a 42 mm deep carbon rim, 24 mm internal width, and robust hybrid spokes, it delivers stability, control, and efficiency. The combination of the DT Swiss 240 hub and hookless tubeless rim ensures high reliability and perfect tubeless performance.
Highlights:
- Carbon Hookless Rim: Tubeless TSS – stable, lightweight, and puncture-proof
- 42 mm Rim Depth: aerodynamic and robust, ideal for wide gravel tires
- 24 mm Internal Width: optimal support for traction & comfort
- DT 240 Hub: High-end performance and durable precision
- Hybrid Spokes: DT aero comp® hybrid Straightpull for maximum stiffness
Technical Data:
- Manufacturer: DT Swiss
- Model: HGC 1400 SPLINE
- Position: Front Wheel
- Wheel Size: 27.5" / 650B
- Rim: Carbon, Hookless Tubeless TSS
- Rim Depth: 42 mm
- Internal Width (Mouth Width): 24 mm
- Outer Width: 32 mm
- Hub: DT Swiss 240
- Brake Disc Mount: Center Lock
- Axle / Installation Dimension: 12x110 mm Boost (Thru Axle)
- Spokes: DT aero comp® hybrid Straightpull (left & right)
- ASTM Category: 2
- Approved for E-Bikes: Yes (up to 32 km/h / max. 250 W)
- Max. System Weight: 140 kg
- Weight: approx. 746 g (manufacturer's specification)
- Color: Black
Scope of Delivery:
- 1x DT Swiss HGC 1400 SPLINE Front Wheel – 27.5", 42 mm, 12x110 mm Boost, Center Lock
- 1x Tubeless Valve
- Note: Workshop Packaging (without outer packaging)
Manufacturer Article No.: WHGC140BJDXCA10749 | EAN: 7613052373287 | GTIN: 7613052373287
The HGC 1400 SPLINE – Carbon Power for Gravel and All-Road, optimized for E-Bikes and the toughest tours.
SKU: 749 (V3A2)
DT Swiss HGC 1400 SPLINE Front Wheel 650B / 27.5" | Carbon | 42 mm Rim Height | 12x110 mm Boost | Disc | Center Lock
Check compatibility
Will this wheel fit your bike?
In our short video, we explain what to look out for when checking axle size, freehub type and brake rotor mount.
The DT Swiss HGC 1400 SPLINE front wheel is the perfect choice for demanding gravel and all-road e-bike adventures. With a 42 mm deep carbon rim, 24 mm internal width, and robust hybrid spokes, it delivers stability, control, and efficiency. The combination of the DT Swiss 240 hub and hookless tubeless rim ensures high reliability and perfect tubeless performance.
Highlights:
- Carbon Hookless Rim: Tubeless TSS – stable, lightweight, and puncture-proof
- 42 mm Rim Depth: aerodynamic and robust, ideal for wide gravel tires
- 24 mm Internal Width: optimal support for traction & comfort
- DT 240 Hub: High-end performance and durable precision
- Hybrid Spokes: DT aero comp® hybrid Straightpull for maximum stiffness
Technical Data:
- Manufacturer: DT Swiss
- Model: HGC 1400 SPLINE
- Position: Front Wheel
- Wheel Size: 27.5" / 650B
- Rim: Carbon, Hookless Tubeless TSS
- Rim Depth: 42 mm
- Internal Width (Mouth Width): 24 mm
- Outer Width: 32 mm
- Hub: DT Swiss 240
- Brake Disc Mount: Center Lock
- Axle / Installation Dimension: 12x110 mm Boost (Thru Axle)
- Spokes: DT aero comp® hybrid Straightpull (left & right)
- ASTM Category: 2
- Approved for E-Bikes: Yes (up to 32 km/h / max. 250 W)
- Max. System Weight: 140 kg
- Weight: approx. 746 g (manufacturer's specification)
- Color: Black
Scope of Delivery:
- 1x DT Swiss HGC 1400 SPLINE Front Wheel – 27.5", 42 mm, 12x110 mm Boost, Center Lock
- 1x Tubeless Valve
- Note: Workshop Packaging (without outer packaging)
Manufacturer Article No.: WHGC140BJDXCA10749 | EAN: 7613052373287 | GTIN: 7613052373287
The HGC 1400 SPLINE – Carbon Power for Gravel and All-Road, optimized for E-Bikes and the toughest tours.
