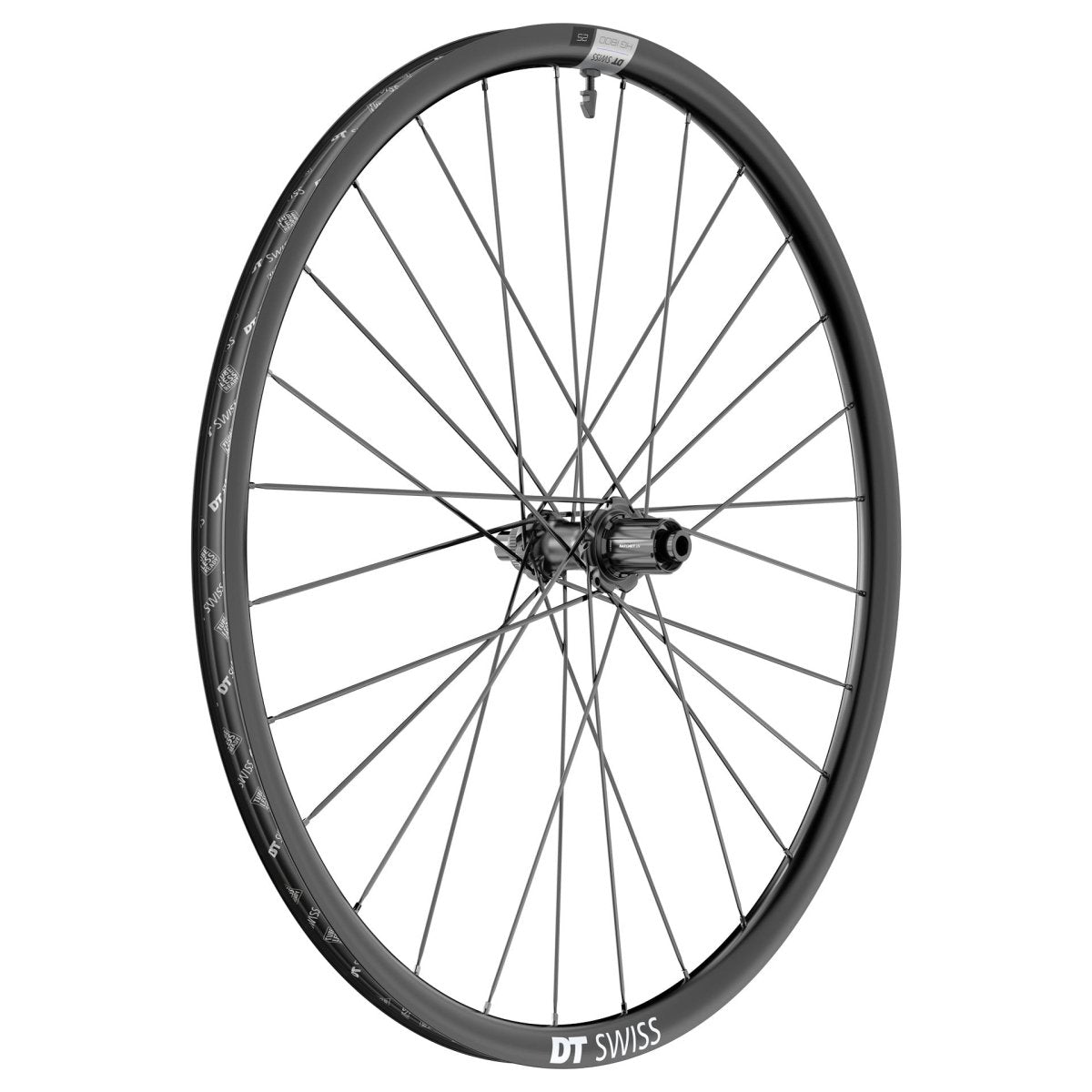

The DT Swiss HG 1800 SPLINE DB 25 Rear Wheel was specially developed for use on hybrid and e-gravel bikes. With its robust construction, high system weight of up to 140 kg, and reliable Ratchet LN hub, it is the perfect combination of durability, stability, and efficiency. The 24 mm inner width ensures optimal seating for modern gravel and touring tires, while the Tubeless-Ready design allows for easy conversion.

Features – DT Swiss HG 1800 SPLINE DB 25 Rear Wheel

• Hybrid-optimized design: developed for E-gravel and touring bikes with high loads
• Ratchet LN freewheel: proven DT Swiss ratchet system technology for efficient power transmission
• Aluminum rim with 24 mm inner width: ideal for wide tires up to 50 mm
• Tubeless Ready: for more grip, comfort, and puncture resistance
• High load capacity: System weight up to 140 kg – perfect for e-bikes

Technical data:

• Model: HG 1800 SPLINE DB 25
• Wheel size: 28" / 29"
• Installation width: 12x142 mm
• Brake disc mount: Center Lock
• Freehub: Shimano HG
• Rim inner width: 24 mm
• Rim height: 25 mm
• Rim material: Aluminum
• Hub: DT Swiss 370 with Ratchet LN 18
• Spokes: DT New Aero® Hybrid Straightpull
• ASTM classification: 2
• System weight (max.): 140 kg
• Approved for e-bikes: Yes (max. 32 km/h or 250 W)
• Weight: 1111 g

Scope of delivery:

• 1x DT Swiss HG 1800 SPLINE DB 25 Rear Wheel 12x142 mm | Shimano HG
• incl. pre-installed tubeless rim tape
• incl. tubeless valve
• Note: Workshop packaging (without outer packaging)

Manufacturer no.: WHG1800NIDMSO21636 | EAN: 7613052303420

Robust, efficient, and e-bike compatible – the DT Swiss HG 1800 SPLINE DB 25 Rear Wheel combines maximum reliability with state-of-the-art Ratchet technology.
