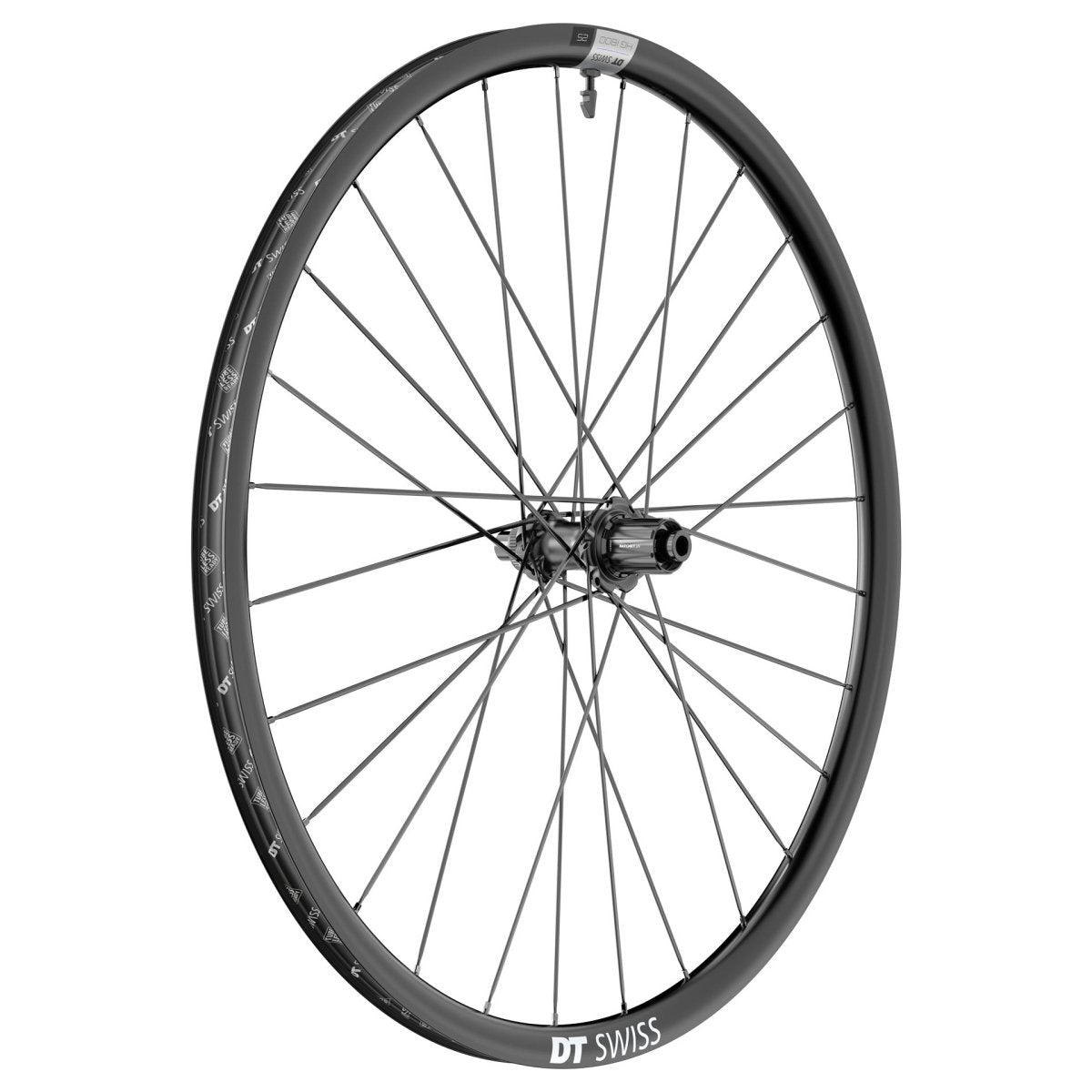

The DT Swiss HG 1800 Spline DB 25 rear wheel was specially developed for gravel and e-gravel bikes and impresses with its robust construction, e-bike approval, and proven DT Swiss Ratchet LN technology. Perfect for adventures on the road, off-road, or on long tours!
Highlights:
- Rim diameter: 29" / 700C
- Inner width: 24 mm (ideal for tire widths 32–50 mm)
- Rim height: 25 mm
- System weight: approved up to 140 kg – also for e-bikes
- Freehub: Shimano HG 11-speed (Road)
- Freehub system: DT Swiss Ratchet LN 18T
Rim:
- Material: Aluminum
- Rim joint: Sleeve joint
- Tire interface: Hooked (Crotchet) – Tubeless Ready
- Valve hole: Presta (SV)
- Outer width: 28 mm
Hub:
- Model: DT Swiss 370 Hybrid
- Axle system: 12 mm thru-axle
- Installation width: 142 mm
- Brake disc mount: Center Lock
Spokes & Nipples:
- Spokes: DT New Aero Hybrid Straightpull
- Lacing: 3-cross (1:1)
- Nipples: DT ProLock Squorx ProHead Aluminum
Technical Data:
- Weight: approx. 1105 g
- ASTM Classification: 2 (Road, light off-road)
- E-Bike Approval: Yes, up to 25 km/h or 250 W
Scope of Delivery:
- DT Swiss HG 1800 Spline DB 25 Rear Wheel 12x142 mm Shimano HG
- incl. mounted tubeless rim tape
- incl. tubeless valve
- Note: Delivered in workshop packaging (without outer packaging)
Manufacturer No.: WHG1800NIDMSA24286 | EAN: 7613052303420
SKU: A8E2
DT Swiss HG 1800 Spline DB 25 Rear Wheel 12x142 mm Shimano HG
Check compatibility
Will this wheel fit your bike?
In our short video, we explain what to look out for when checking axle size, freehub type and brake rotor mount.
The DT Swiss HG 1800 Spline DB 25 rear wheel was specially developed for gravel and e-gravel bikes and impresses with its robust construction, e-bike approval, and proven DT Swiss Ratchet LN technology. Perfect for adventures on the road, off-road, or on long tours!
Highlights:
- Rim diameter: 29" / 700C
- Inner width: 24 mm (ideal for tire widths 32–50 mm)
- Rim height: 25 mm
- System weight: approved up to 140 kg – also for e-bikes
- Freehub: Shimano HG 11-speed (Road)
- Freehub system: DT Swiss Ratchet LN 18T
Rim:
- Material: Aluminum
- Rim joint: Sleeve joint
- Tire interface: Hooked (Crotchet) – Tubeless Ready
- Valve hole: Presta (SV)
- Outer width: 28 mm
Hub:
- Model: DT Swiss 370 Hybrid
- Axle system: 12 mm thru-axle
- Installation width: 142 mm
- Brake disc mount: Center Lock
Spokes & Nipples:
- Spokes: DT New Aero Hybrid Straightpull
- Lacing: 3-cross (1:1)
- Nipples: DT ProLock Squorx ProHead Aluminum
Technical Data:
- Weight: approx. 1105 g
- ASTM Classification: 2 (Road, light off-road)
- E-Bike Approval: Yes, up to 25 km/h or 250 W
Scope of Delivery:
- DT Swiss HG 1800 Spline DB 25 Rear Wheel 12x142 mm Shimano HG
- incl. mounted tubeless rim tape
- incl. tubeless valve
- Note: Delivered in workshop packaging (without outer packaging)
Manufacturer No.: WHG1800NIDMSA24286 | EAN: 7613052303420
