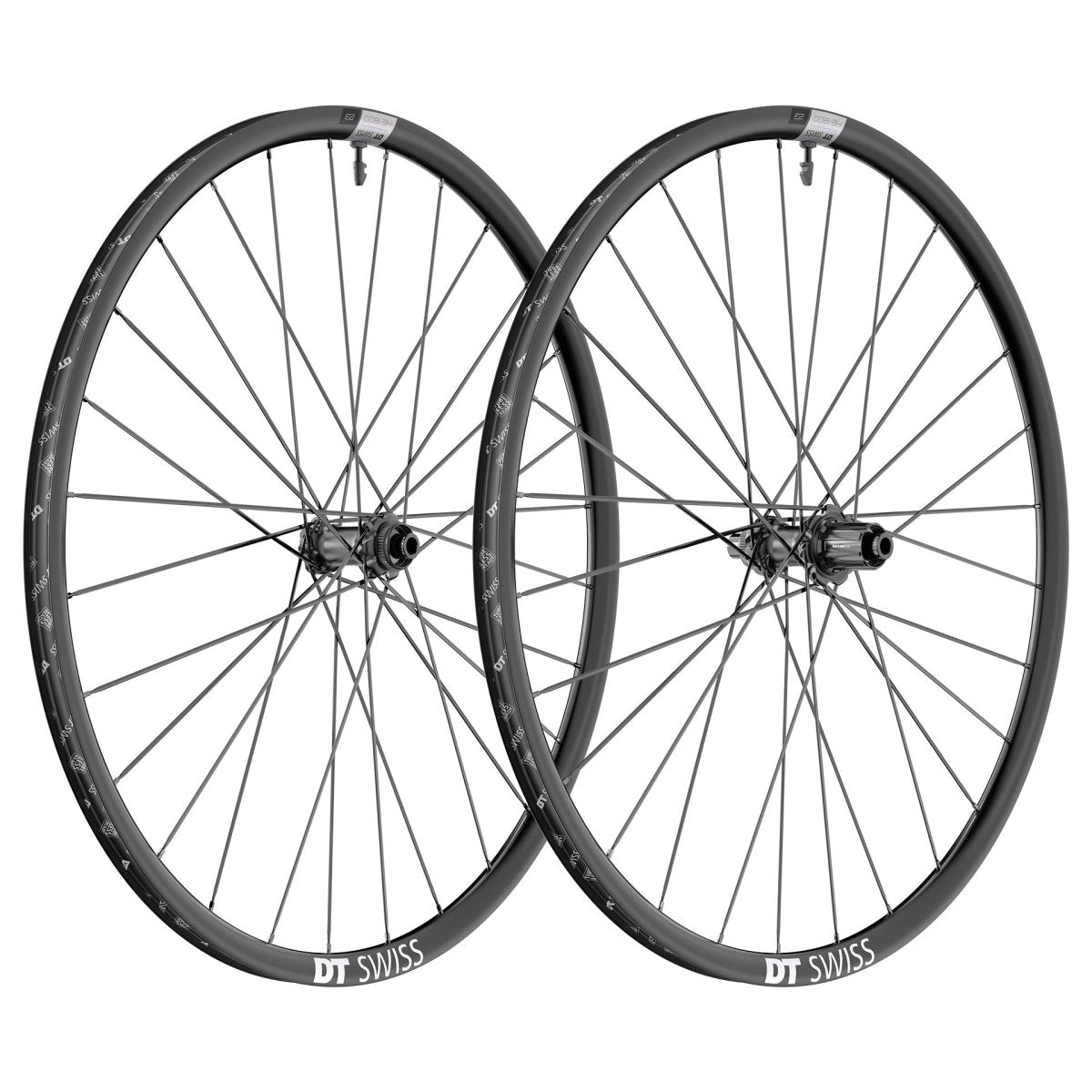

Robust, efficient, and e-bike-ready: The DT Swiss HE1800 SPLINE db 23 wheelset (28"/700C) combines the durable Hybrid chassis with Ratchet LN 18T freewheel technology and hooked, tubeless-ready rims. Ideal for fast commutes, fitness, and (E-)endurance bikes with Centerlock disc brake mounts and Shimano HG freehub.

Highlights:

• Hybrid/Endurance (HE): approved for e-bikes (up to 32 km/h / 250 W) & high mileage
• Ratchet LN 18T: large-surface ratchet engagement (approx. 20°) – low wear, minimal free play
• Hooked, Tubeless Ready: 22 mm inner width for 28–47 mm tires, secure fit & easy tubeless setup
• Stable System: Straightpull spokes + Pro Lock Squorx nipples & sleeved-joint rim
• High Payload: max. system weight 130 kg (rider + bike + luggage)

Technical Data:

• Field of Use: E-Bike / Hybrid / Endurance (ASTM 2)
• Size: 28" / 700C

• Front Axle: 12x100 mm
• Rear Axle: 12x142 mm
• Rim Height: 23 mm
• Inner Width: 22 mm
• Outer Width: 26 mm
• Rim Profile: Aluminum, Hooked / Crotchet, Tubeless Ready (TC)
• Hubs: DT Swiss 370 SPLINE, Center Lock, Ratchet LN 18T
• Freehub: Shimano HG
• Spokes: DT new aero® hybrid straightpull (front & rear)
• Nipples: DT Pro Lock Squorx
• Approval: E-bike up to 32 km/h / 250 W
• Max. System Weight: 130 kg
• Weight: approx. 908 g (front) / 1042 g (rear), Set approx. 1950 g

Scope of Delivery:

• 1× Front Wheel HE 1800 SPLINE db 23 (Center Lock) 12x100 mm
• 1× Rear Wheel HE 1800 SPLINE db 23 (Center Lock, Shimano HG) 12x142 mm
• 1× Pair of Tubeless Valves

Manufacturer Part No.: WHE1800AIDXSA21638 (front) | WHE1800NIDMSA21640 (rear) | EAN: 7613052303444 (front) | 7613052303468 (rear)

HE 1800 SPLINE – the reliable everyday and touring wheelset for heavy use and many kilometers, even on an e-bike.
