Maximum stability for modern e-mountain bikes: The DT Swiss H 1900 Spline 35 rear wheel with XD freehub was specially designed for demanding use on trails, in enduro and on e-MTBs. With a 35 mm jaw width, robust hybrid spokes and the proven Ratchet LN System, it sets new standards in terms of durability and control.
Highlights:
- 35 mm jaw width: ideal for wide tires – more traction & damping off-road
- 370 hub with Ratchet LN: reliable star ratchet freehub – easy to maintain & durable
- Hybrid spokes: specially reinforced for e-bikes & high loads
- Tubeless Ready rim: Hooked design with pre-mounted rim tape – ready for tubeless
- Approved for e-MTBs: up to 32 km/h or 250 W – high system load of up to 150 kg
Technical data:
- Manufacturer: DT Swiss
- Model: H1900 Spline 35
- Size: 29 inch / 700C
- ETRTO: 622x35c
- Jaw width: 35 mm
- Outer width: 40 mm
- Rim height: 20 mm
- Rim material: Aluminum, Hooked / Crotchet Tubeless TC
- Axle system: 12x148 mm Boost thru axle
- Freehub: SRAM XD
- Brake disc mount: Centerlock
- Hub: DT Swiss 370 with Ratchet LN 18T
- Spokes: DT Hybrid 1 Straightpull (left & right)
- Tubeless Ready: yes
- ASTM classification: Category 4 (Enduro, E-MTB)
- Max. system weight: 150 kg
- Approved for e-bikes: yes (up to 32 km/h / 250 W)
- Weight: approx. 1213 g
Suitable for:
- E-MTB, Enduro, Trail
- 29" bikes with Boost rear triangle and XD cassettes
Scope of delivery:
- 1x DT Swiss H 1900 Spline 35 rear wheel 29", 12x148 mm, SRAM XD
- Note: Workshop packaging (without outer packaging)
Manufacturer no.: W0H1900TEDNSA18360 | EAN: 7613052349626
Maximum load capacity meets DT Swiss Performance – the H 1900 Spline 35 is made for demanding e-MTB use.
SKU: 8360

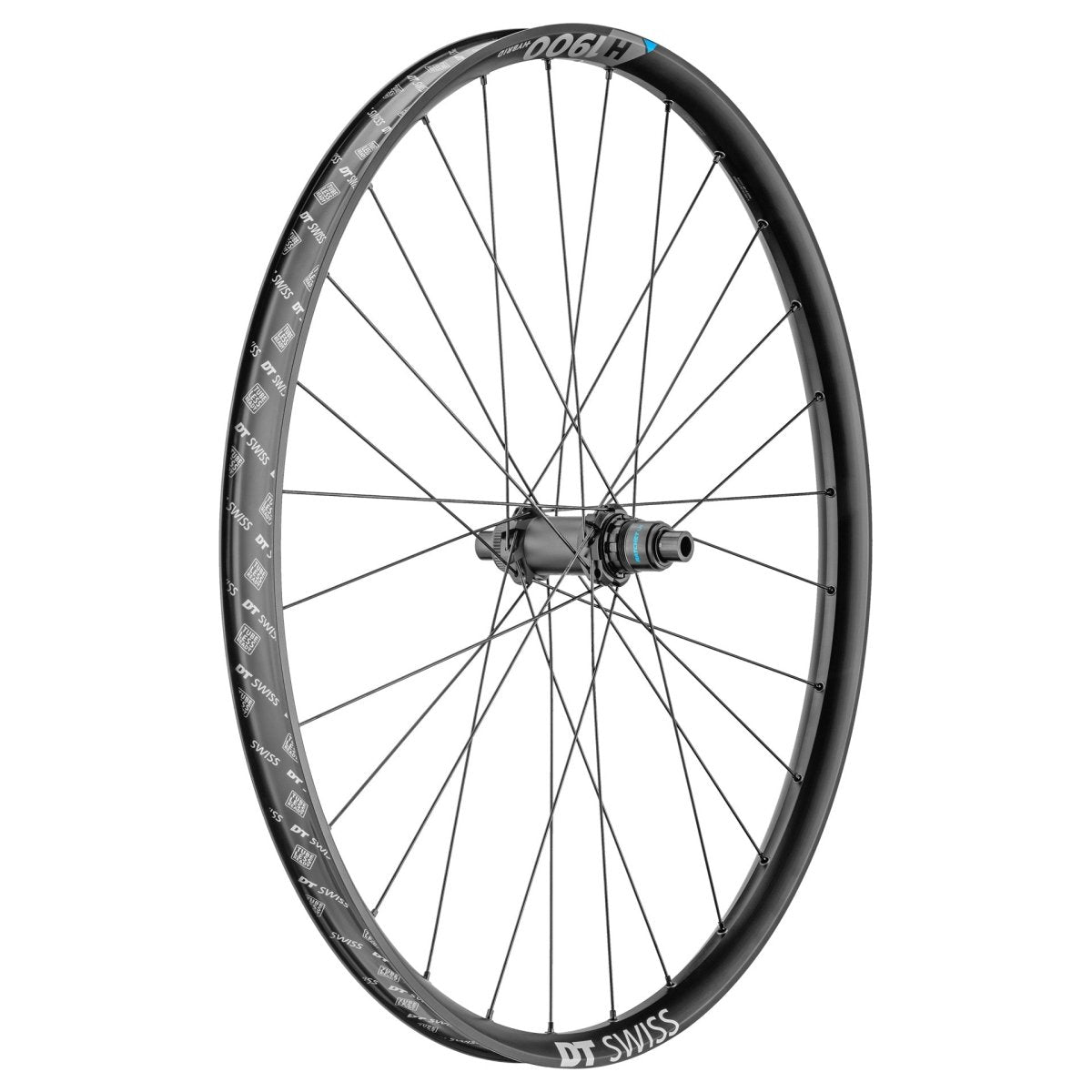

DT Swiss H 1900 Spline 35 Rear Wheel 29" 12x148 mm Centerlock SRAM XD
Check compatibility
Will this wheel fit your bike?
In our short video, we explain what to look out for when checking axle size, freehub type and brake rotor mount.
Maximum stability for modern e-mountain bikes: The DT Swiss H 1900 Spline 35 rear wheel with XD freehub was specially designed for demanding use on trails, in enduro and on e-MTBs. With a 35 mm jaw width, robust hybrid spokes and the proven Ratchet LN System, it sets new standards in terms of durability and control.
Highlights:
- 35 mm jaw width: ideal for wide tires – more traction & damping off-road
- 370 hub with Ratchet LN: reliable star ratchet freehub – easy to maintain & durable
- Hybrid spokes: specially reinforced for e-bikes & high loads
- Tubeless Ready rim: Hooked design with pre-mounted rim tape – ready for tubeless
- Approved for e-MTBs: up to 32 km/h or 250 W – high system load of up to 150 kg
Technical data:
- Manufacturer: DT Swiss
- Model: H1900 Spline 35
- Size: 29 inch / 700C
- ETRTO: 622x35c
- Jaw width: 35 mm
- Outer width: 40 mm
- Rim height: 20 mm
- Rim material: Aluminum, Hooked / Crotchet Tubeless TC
- Axle system: 12x148 mm Boost thru axle
- Freehub: SRAM XD
- Brake disc mount: Centerlock
- Hub: DT Swiss 370 with Ratchet LN 18T
- Spokes: DT Hybrid 1 Straightpull (left & right)
- Tubeless Ready: yes
- ASTM classification: Category 4 (Enduro, E-MTB)
- Max. system weight: 150 kg
- Approved for e-bikes: yes (up to 32 km/h / 250 W)
- Weight: approx. 1213 g
Suitable for:
- E-MTB, Enduro, Trail
- 29" bikes with Boost rear triangle and XD cassettes
Scope of delivery:
- 1x DT Swiss H 1900 Spline 35 rear wheel 29", 12x148 mm, SRAM XD
- Note: Workshop packaging (without outer packaging)
Manufacturer no.: W0H1900TEDNSA18360 | EAN: 7613052349626
Maximum load capacity meets DT Swiss Performance – the H 1900 Spline 35 is made for demanding e-MTB use.
