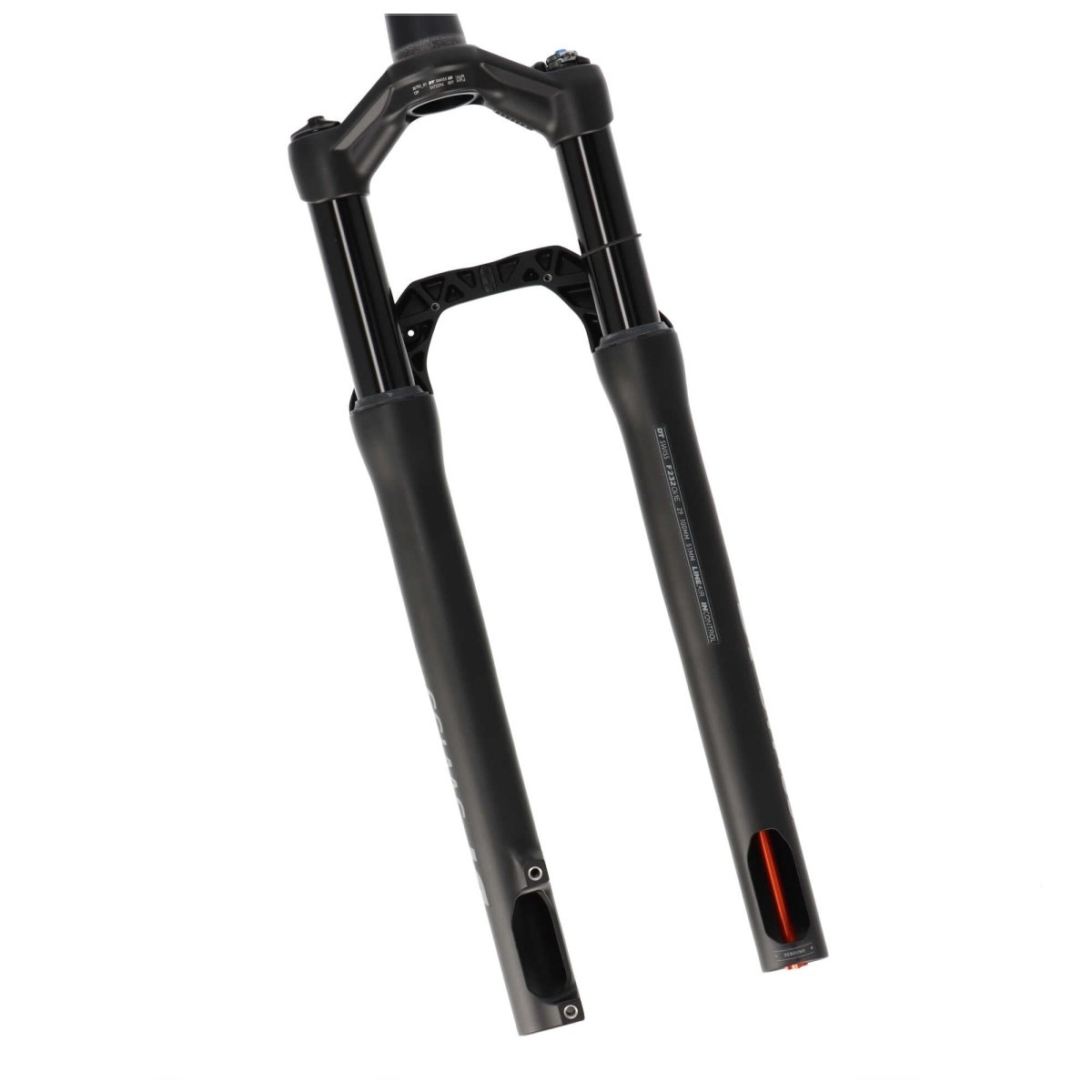

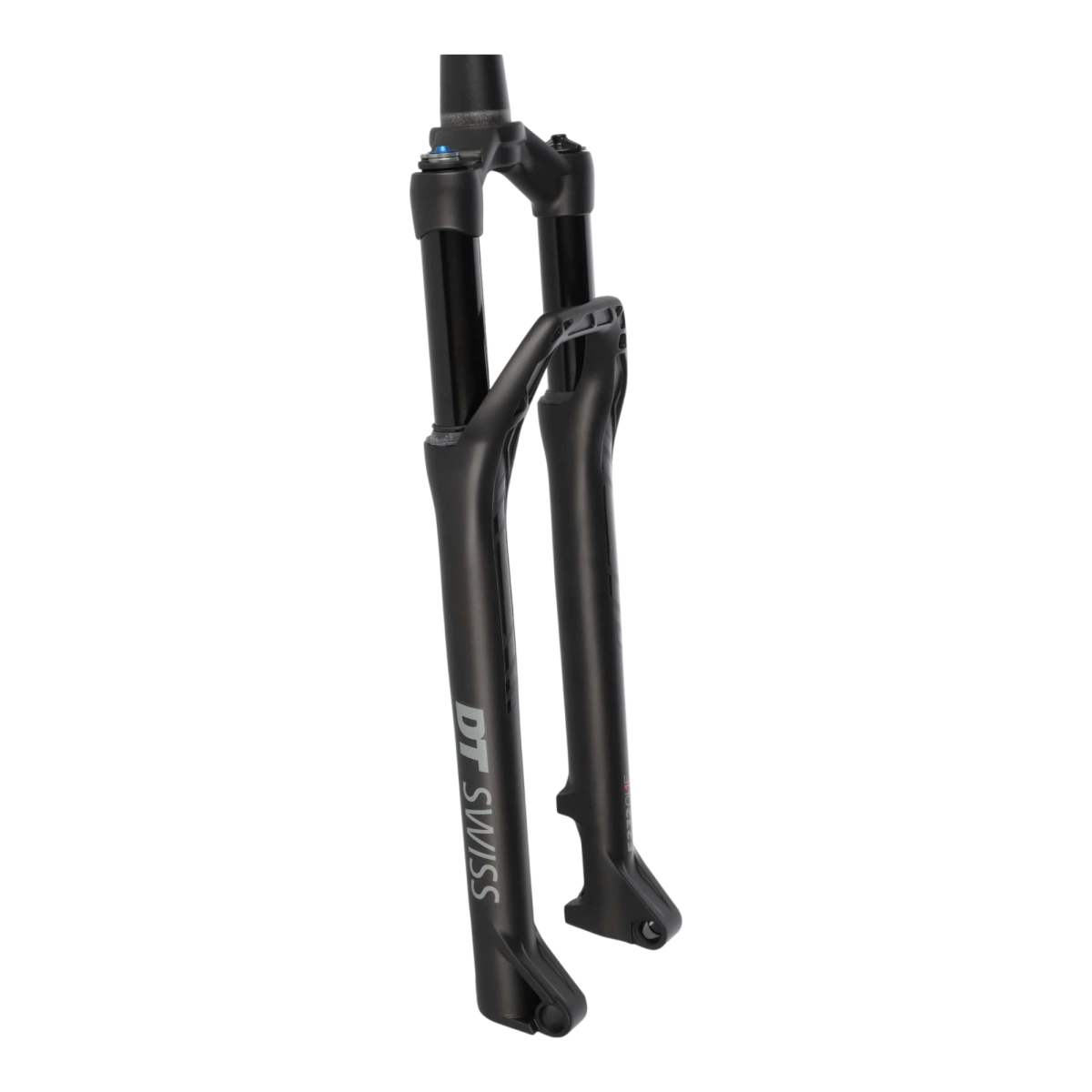

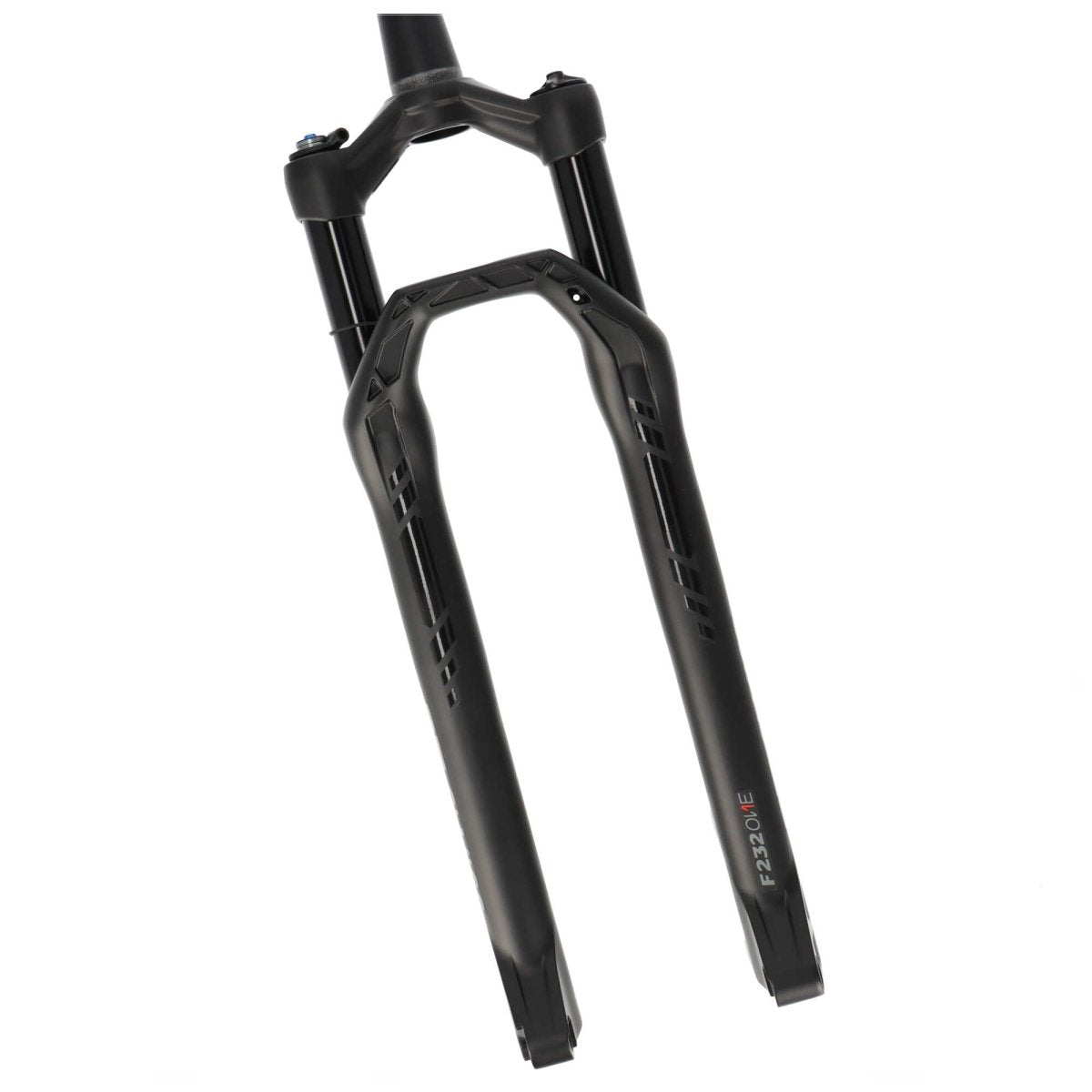

The DT Swiss F 232 ONE suspension fork was specially developed for the demands of modern cross-country use. With a travel of 100 mm, a weight of only 1480 g, and the industry-leading stiffness-to-weight ratio, it is ideal for challenging XC trails with rock gardens, berms, and technical climbs.

Thanks to Remote Lockout, the fork can be conveniently locked from the handlebar – ideal for explosive sprints and steep climbs. The combination of the LINEAIR air spring and INCONTROL damping offers a sensitive response with three riding modes.

Highlights:

• Remote Version: Includes lockout remote
• Travel: 100 mm
• Offset: 51 mm
• Optimized Ratio: Stiffness vs. Weight
• Air Spring: LINEAIR system with volume spacer tuning
• Damping: INCONTROL 3-position (Open – Drive – Lock)

Technical Data:

• Wheel Size: 29 inches
• Installation Width: 110 mm Boost

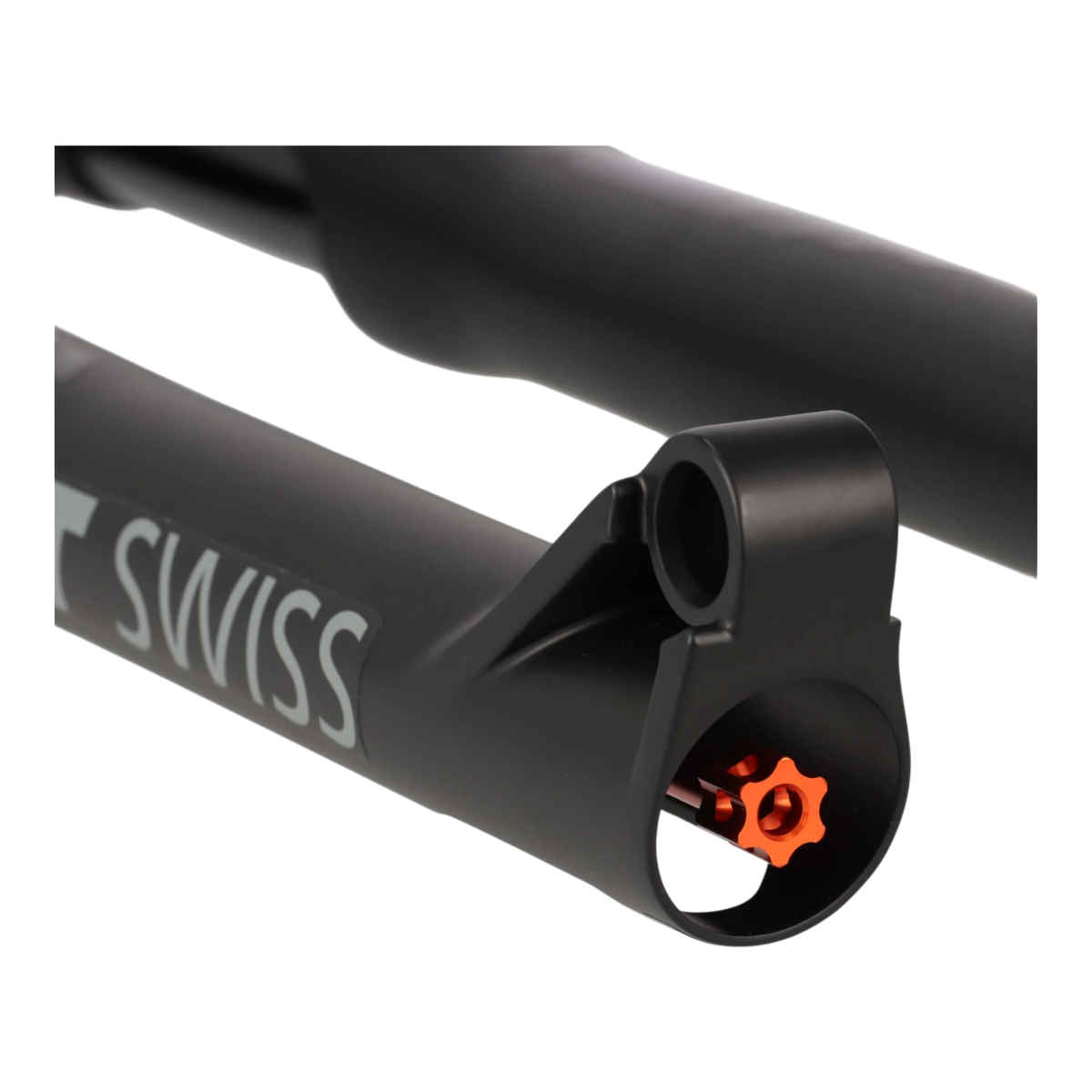

• Axle: 15 mm Thru Axle
• Installation Length: 507 mm
• Max. Tire Width: 2.5"

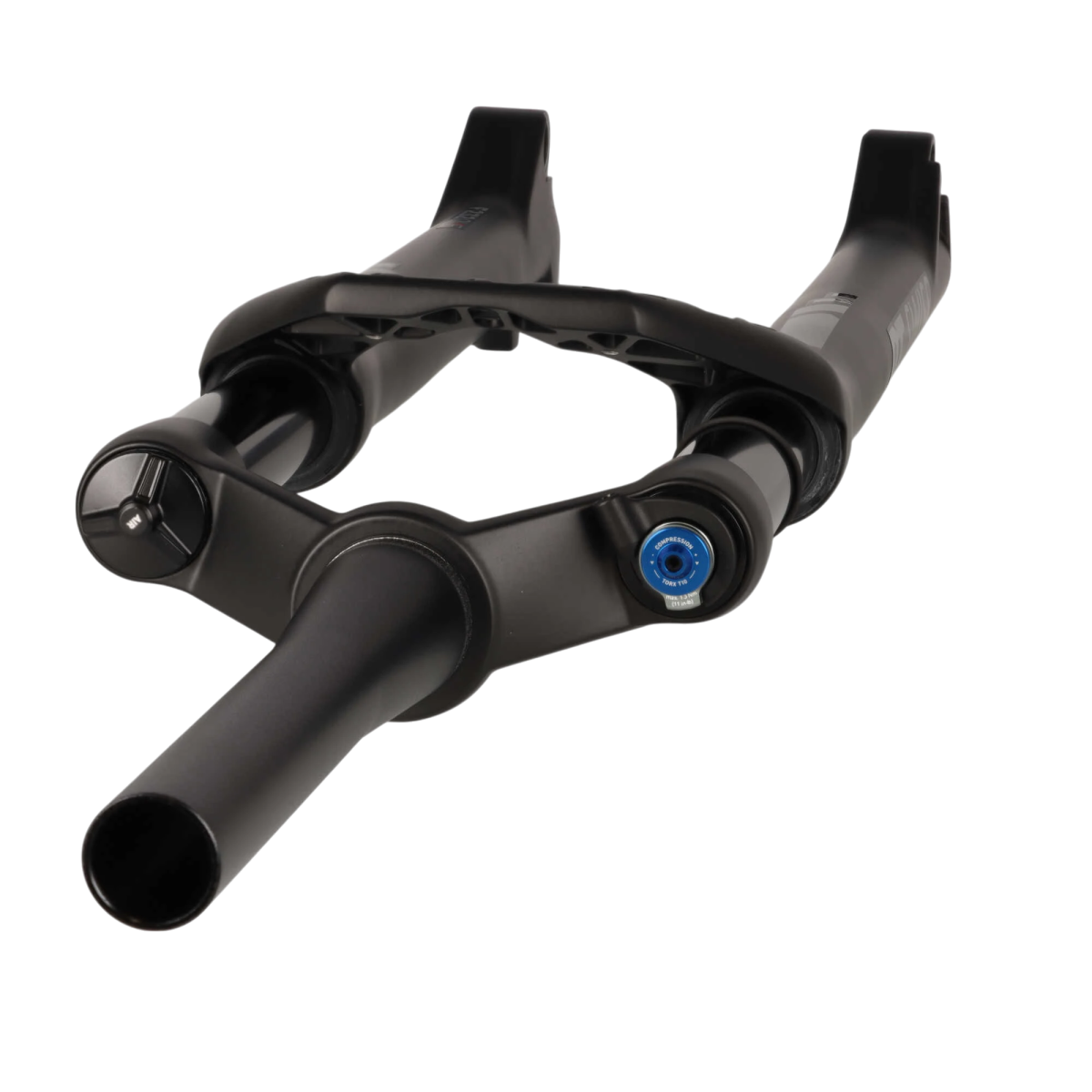

• Steerer Tube: Tapered 1.5 – 1 1/8", 230 mm length
• Stanchion Diameter: 32 mm
• Brake Caliper Mount: PM 6"
• Max. Brake Disc Diameter: 203 mm
• Materials: Aluminum (crown, steerer), Magnesium (lower legs)
• Color: Black
• Weight: 1480 g
• Max. System Weight: 130 kg

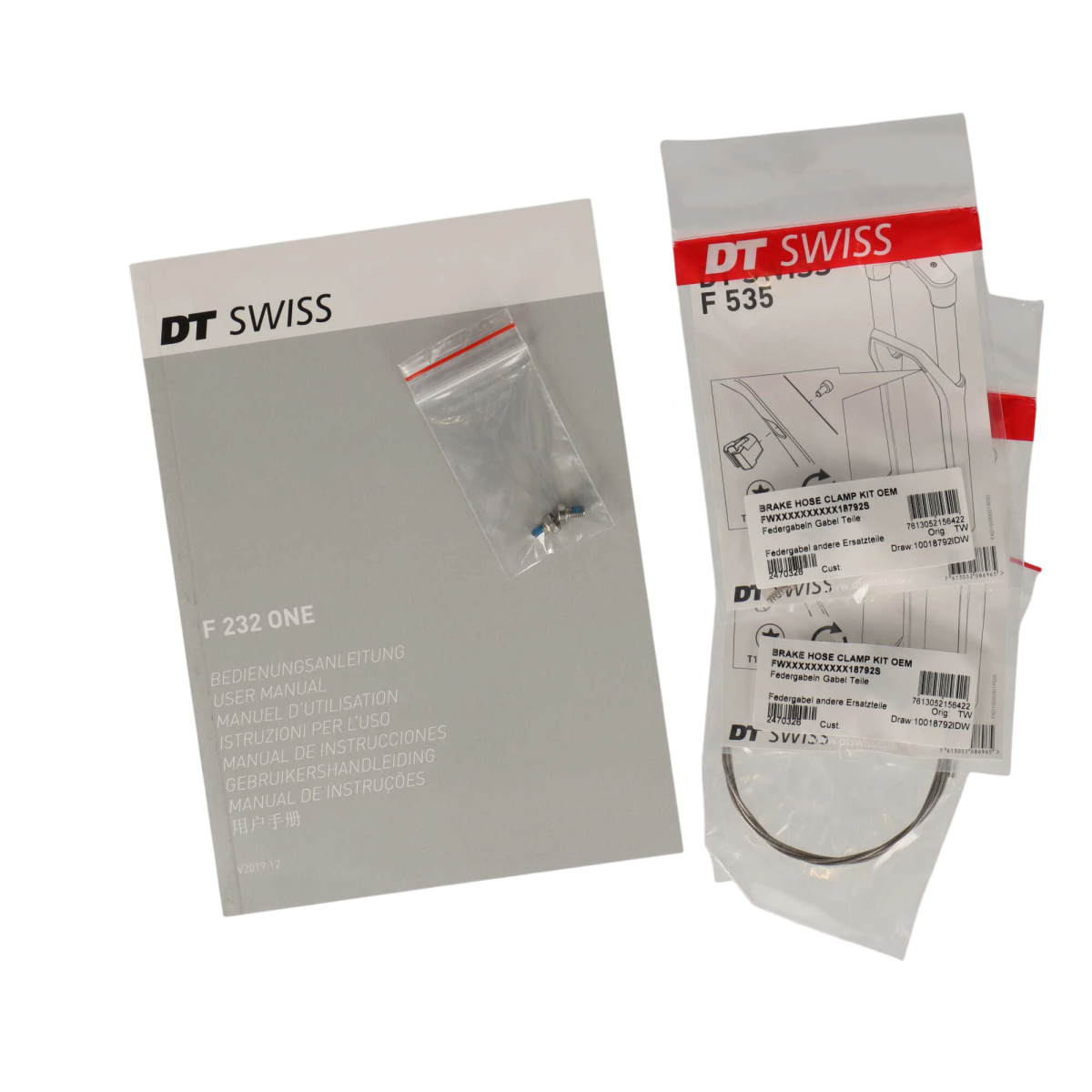

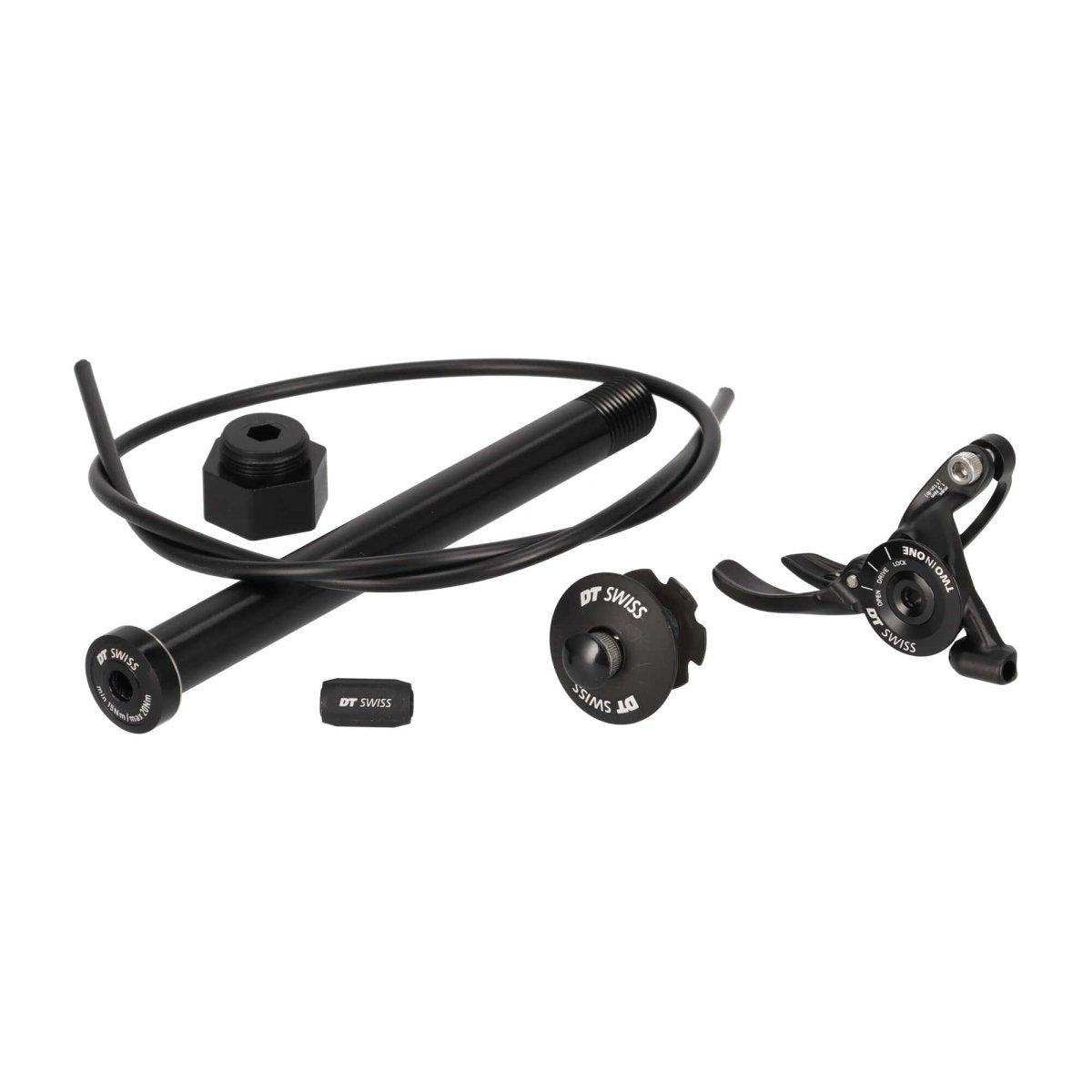

Scope of Delivery:

• DT Swiss F 232 ONE Suspension Fork 29" 100 mm Boost with Remote Lockout

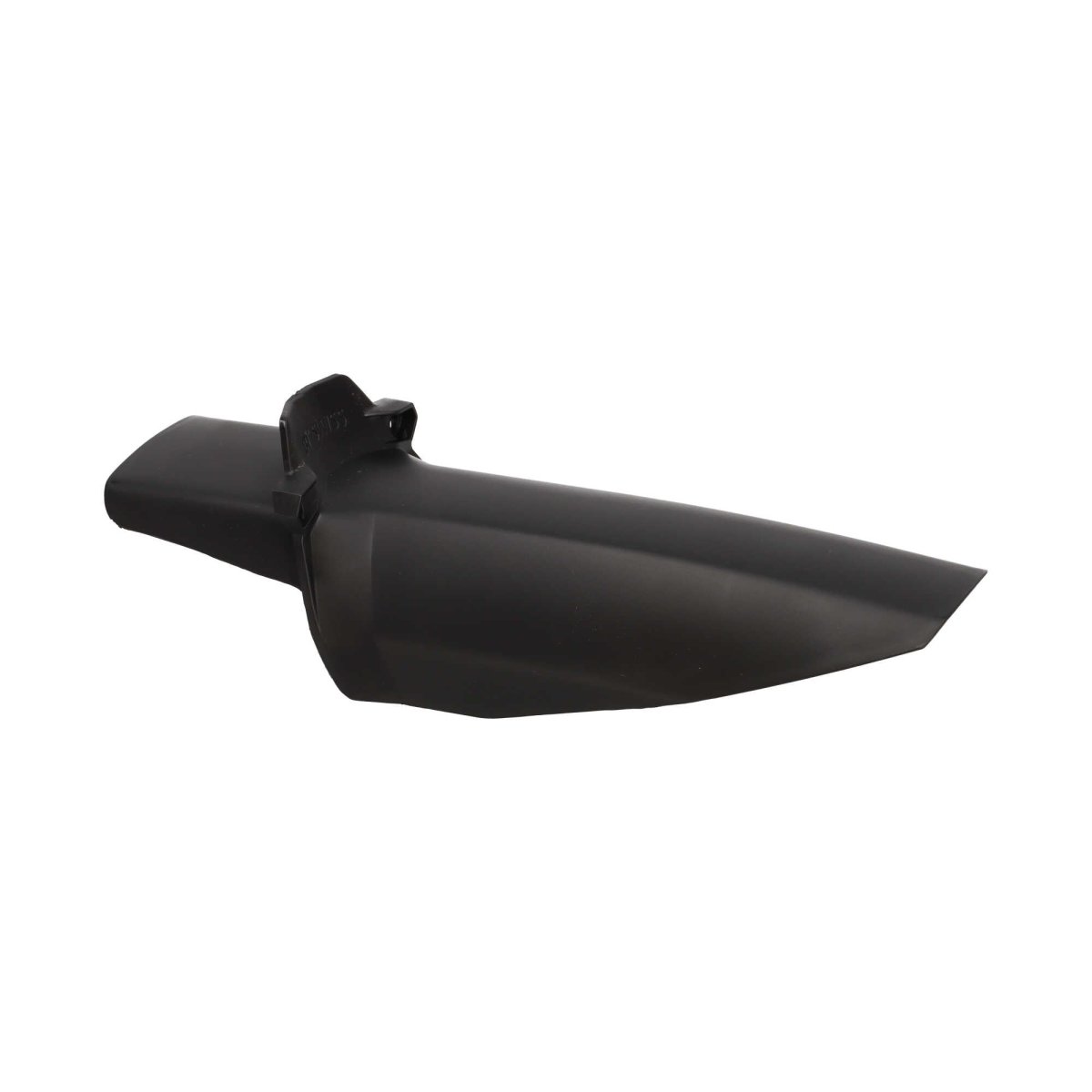

• Mudfender Mudguard
• APT Kit (Volume Spacers)
• Brake Line Fasteners
• Star Nut

Manufacturer No.: F232OCHLPGAS26792S | EAN: 7613052370620

Perfect for XC racers and ambitious trail riders!
