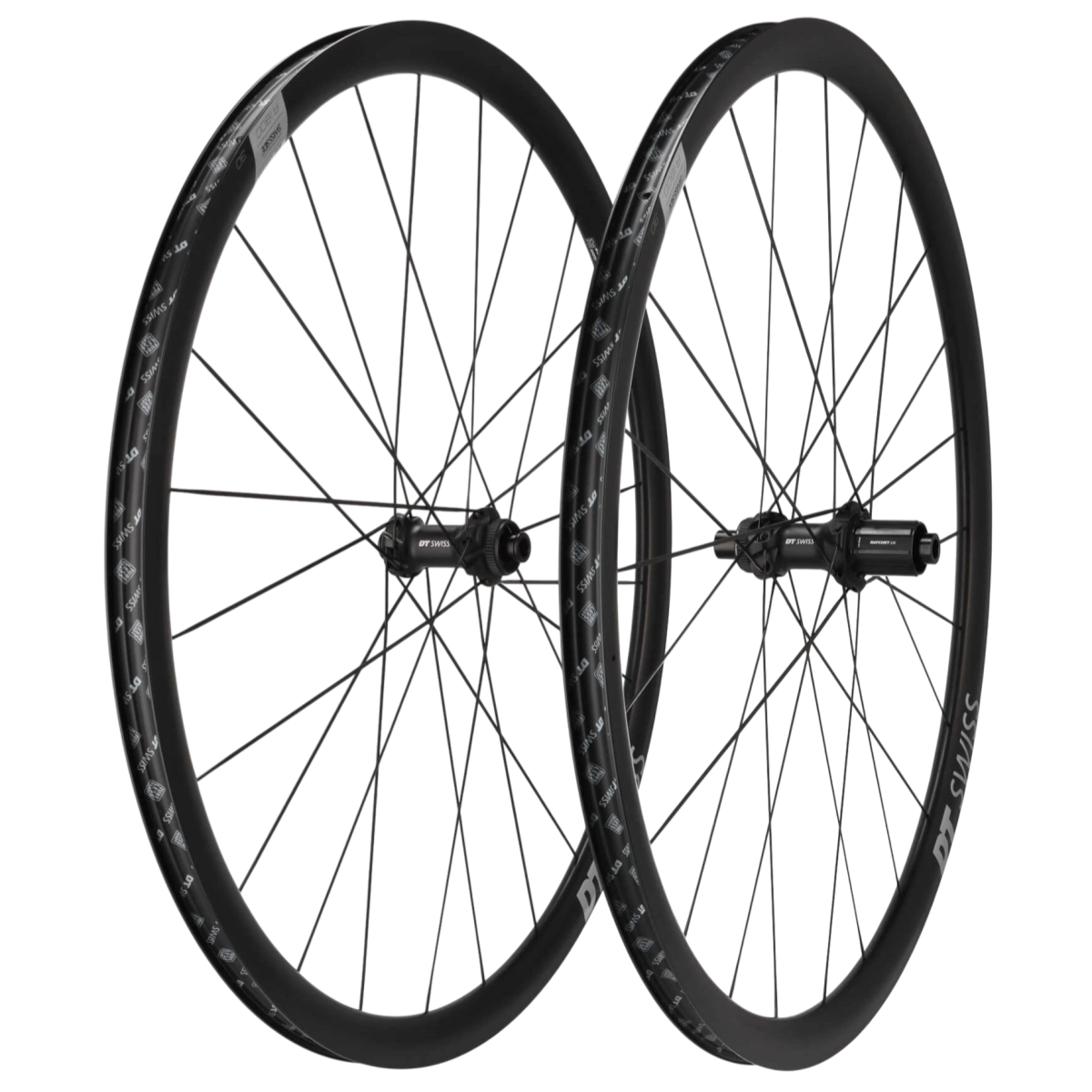

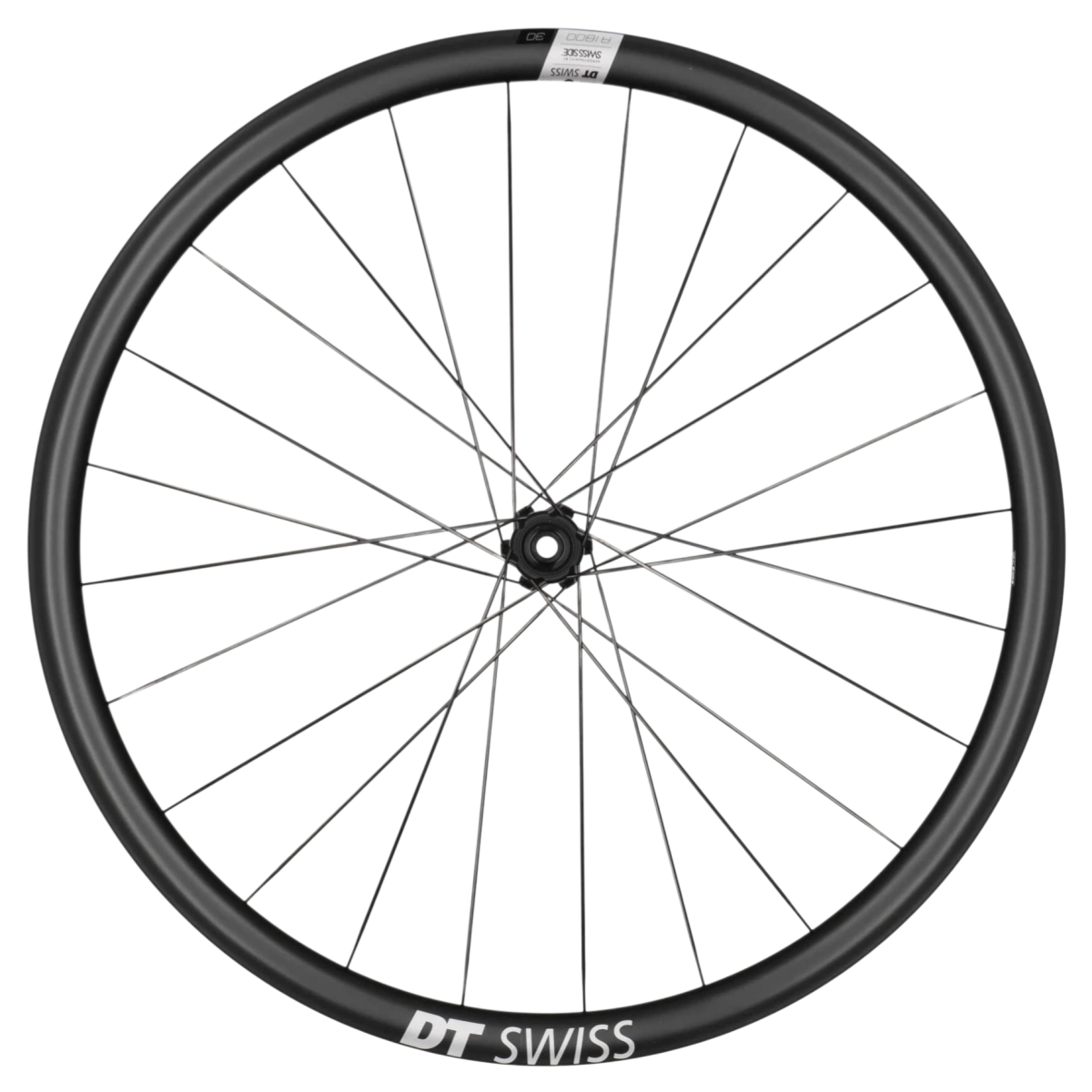

The DT Swiss A1800 SPLINE 30 wheelset combines aerodynamic efficiency with proven DT Swiss technology. The 30 mm high aluminum rims were developed in collaboration with SwissSide and reduce air resistance by about 15 watts at 45 km/h – ideal for riders who want to achieve more speed.
With the proven Ratchet LN freehub system, Centerlock mount, and a tubeless-ready rim, this wheelset is a true asset for fast training rides and ambitious amateur races alike. The wheel is optimized for an inner rim width of 20 mm, offering a balanced combination of comfort and control.
Top features at a glance:

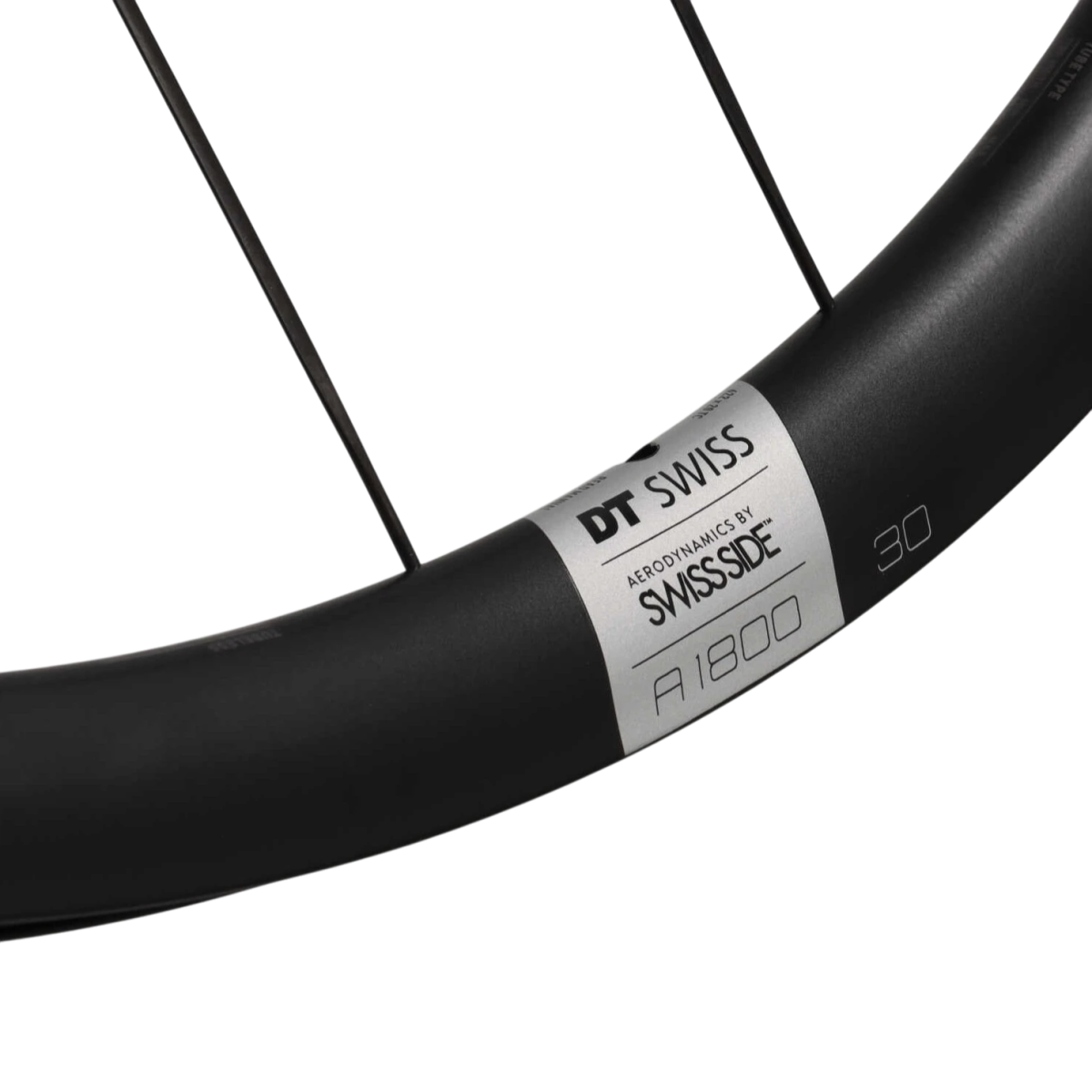

- Aerodynamically optimized: 15 watts savings at 45 km/h thanks to 30 mm high rims (rim shape optimized in collaboration with Swissside)

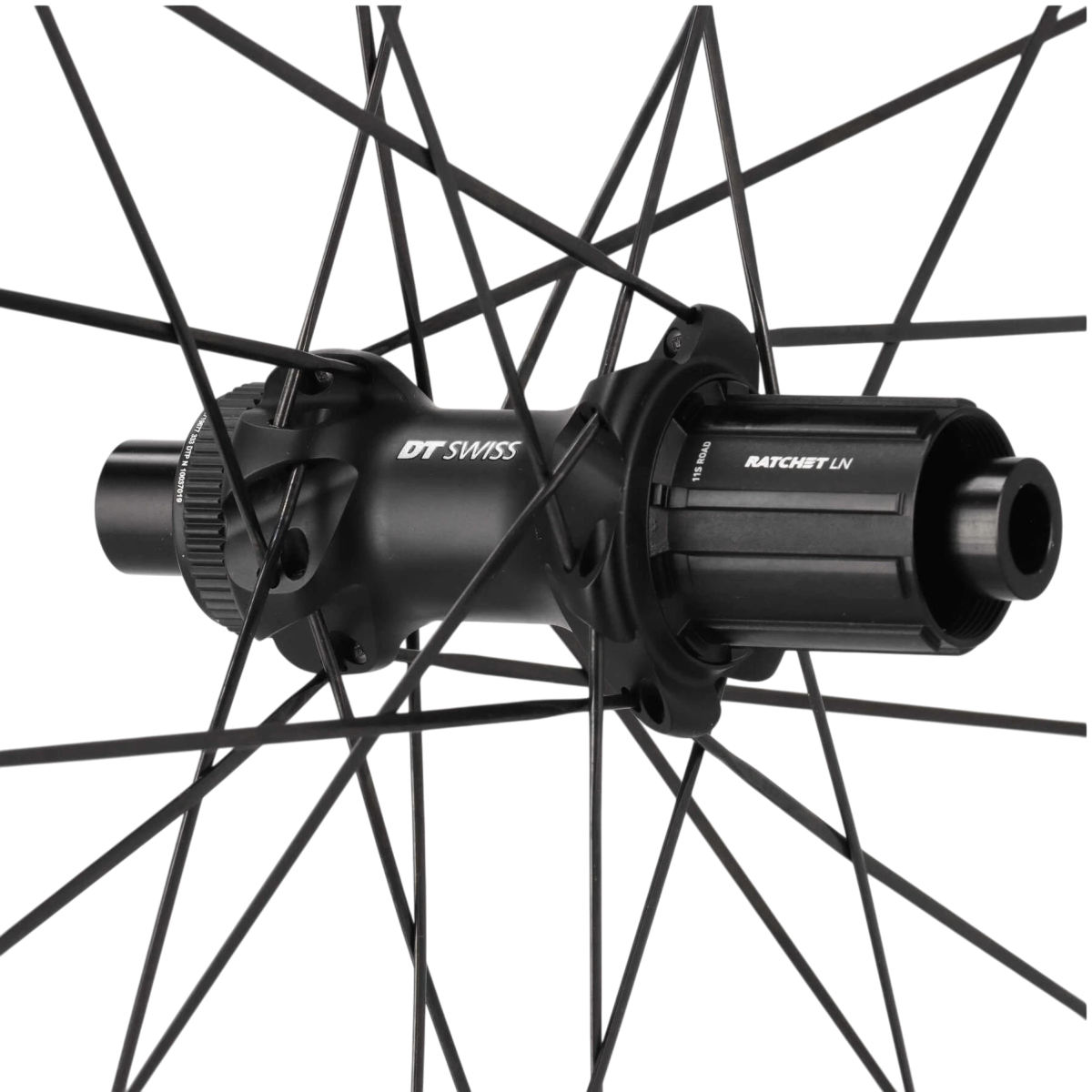

- Ratchet LN freehub: Reliable engagement for direct power transfer
- Tubeless Ready: For more comfort, puncture protection, and efficiency
Technical specifications:
- Wheel size: 28 inch / 700C
- Rim material: Aluminum, tubeless ready
- Rim height: 30 mm
- Inner rim width: 20 mm
- Outer width: 24 mm
- Front axle: 12x100 mm thru axle
- Rear axle: 12x142 mm thru axle
- Freehub: Shimano HG

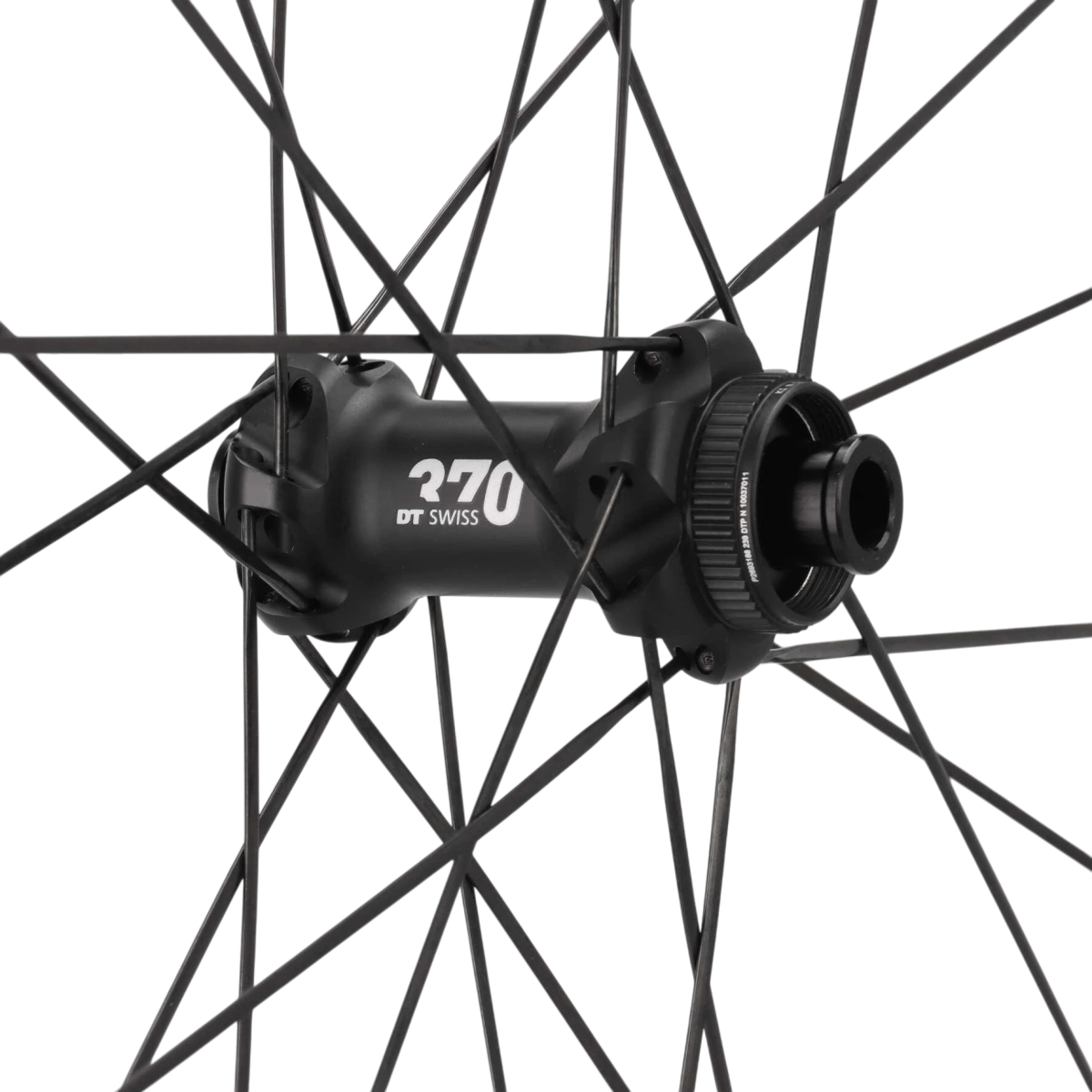

- Hub type: DT Swiss 370
- Spokes: DT aero comp® wide straightpull
- Brake disc mount: Centerlock
- Max. system weight: 110 kg
- Front wheel weight: approx. 835 g
- Rear wheel weight: approx. 964 g
- Approved for e-bikes: No
Scope of delivery:
- 1x DT Swiss A 1800 SPLINE 30 front wheel (12x100 mm)
- 1x DT Swiss A 1800 SPLINE 30 rear wheel (12x142 mm, Shimano HG)
- Note: Workshop packaging (without retail packaging)
Manufacturer part no.: W0A1800AIDXSO20789 / W0A1800NIDMSO20790
EAN: 07613052317731 / 07613052317939
SKU: U49+U50 (W12)
DT Swiss A 1800 SPLINE 30 Wheelset | Road Bike 28 Inch | Centerlock Disc | Shimano HG Freehub
Check compatibility
Will this wheel fit your bike?
In our short video, we explain what to look out for when checking axle size, freehub type and brake rotor mount.
The DT Swiss A1800 SPLINE 30 wheelset combines aerodynamic efficiency with proven DT Swiss technology. The 30 mm high aluminum rims were developed in collaboration with SwissSide and reduce air resistance by about 15 watts at 45 km/h – ideal for riders who want to achieve more speed.
With the proven Ratchet LN freehub system, Centerlock mount, and a tubeless-ready rim, this wheelset is a true asset for fast training rides and ambitious amateur races alike. The wheel is optimized for an inner rim width of 20 mm, offering a balanced combination of comfort and control.
Top features at a glance:
- Aerodynamically optimized: 15 watts savings at 45 km/h thanks to 30 mm high rims (rim shape optimized in collaboration with Swissside)
- Ratchet LN freehub: Reliable engagement for direct power transfer
- Tubeless Ready: For more comfort, puncture protection, and efficiency
Technical specifications:
- Wheel size: 28 inch / 700C
- Rim material: Aluminum, tubeless ready
- Rim height: 30 mm
- Inner rim width: 20 mm
- Outer width: 24 mm
- Front axle: 12x100 mm thru axle
- Rear axle: 12x142 mm thru axle
- Freehub: Shimano HG
- Hub type: DT Swiss 370
- Spokes: DT aero comp® wide straightpull
- Brake disc mount: Centerlock
- Max. system weight: 110 kg
- Front wheel weight: approx. 835 g
- Rear wheel weight: approx. 964 g
- Approved for e-bikes: No
Scope of delivery:
- 1x DT Swiss A 1800 SPLINE 30 front wheel (12x100 mm)
- 1x DT Swiss A 1800 SPLINE 30 rear wheel (12x142 mm, Shimano HG)
- Note: Workshop packaging (without retail packaging)
Manufacturer part no.: W0A1800AIDXSO20789 / W0A1800NIDMSO20790
EAN: 07613052317731 / 07613052317939
