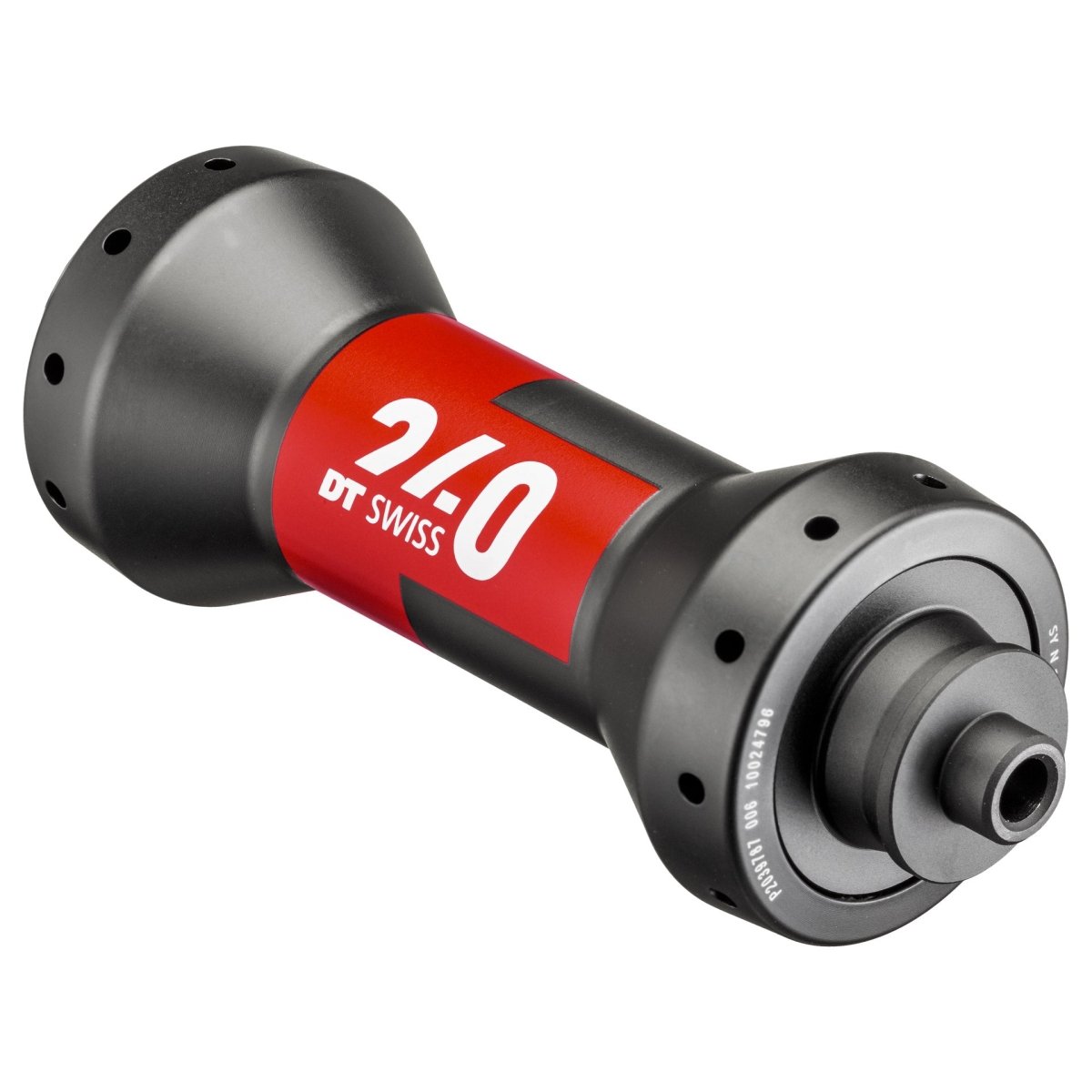

The DT Swiss 240 EXP front hub stands for absolute top performance in road bike and cyclocross use. The latest version with Ratchet EXP technology impresses with an even lighter and stiffer design while offering simplified maintenance.

This variant comes without disc brake mounts (non-disc) and is designed for classic rim brakes. With a 5x100 mm installation width and quick release axle standard, it fits perfectly into classic road bikes. The high-quality industrial bearings and the sophisticated sealing system ensure a long-lasting smooth ride – even approved for e-bikes up to 25 km/h.

Click here for the matching rear hub.

Highlights:

• Ratchet EXP Technology: Optimized power transmission and durability
• Extremely low maintenance: No bearing play, simple plug-in system
• Straightpull spoke mounting: for even load distribution and higher stability
• Rim brake compatible: no disc mount

Technical data:

• Intended use: Road bike, Cyclocross
• Material: Aluminum (body), Steel (inner bearing)
• Axle standard: 5x100 mm quick release
• Brake system: Non-Disc (rim brake)
• Number of holes: 20 holes
• Spoke type: Straightpull
• Bearings: 2x industrial bearings
• Approved for e-bikes: Yes, up to max. 32 km/h or 250 W
• Color: Matte black with red and white decals
• Weight: 105 g

Scope of delivery:

• 1x DT Swiss 240 EXP front hub 5x100 mm, 20 hole, non-disc (straightpull)
• Note: Workshop packaging (without outer packaging)

Maximum efficiency and minimum maintenance – Swiss engineering at the highest level!
