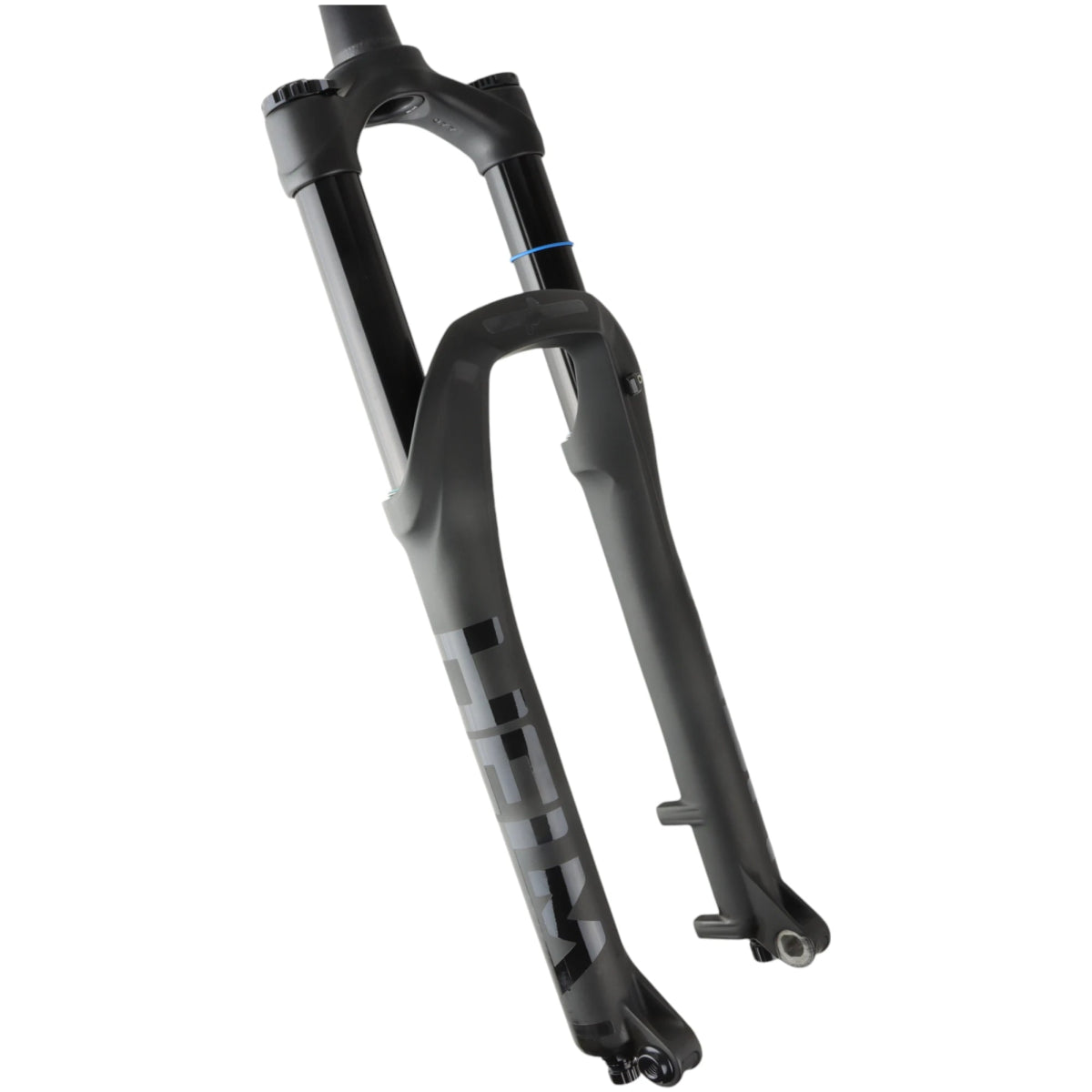

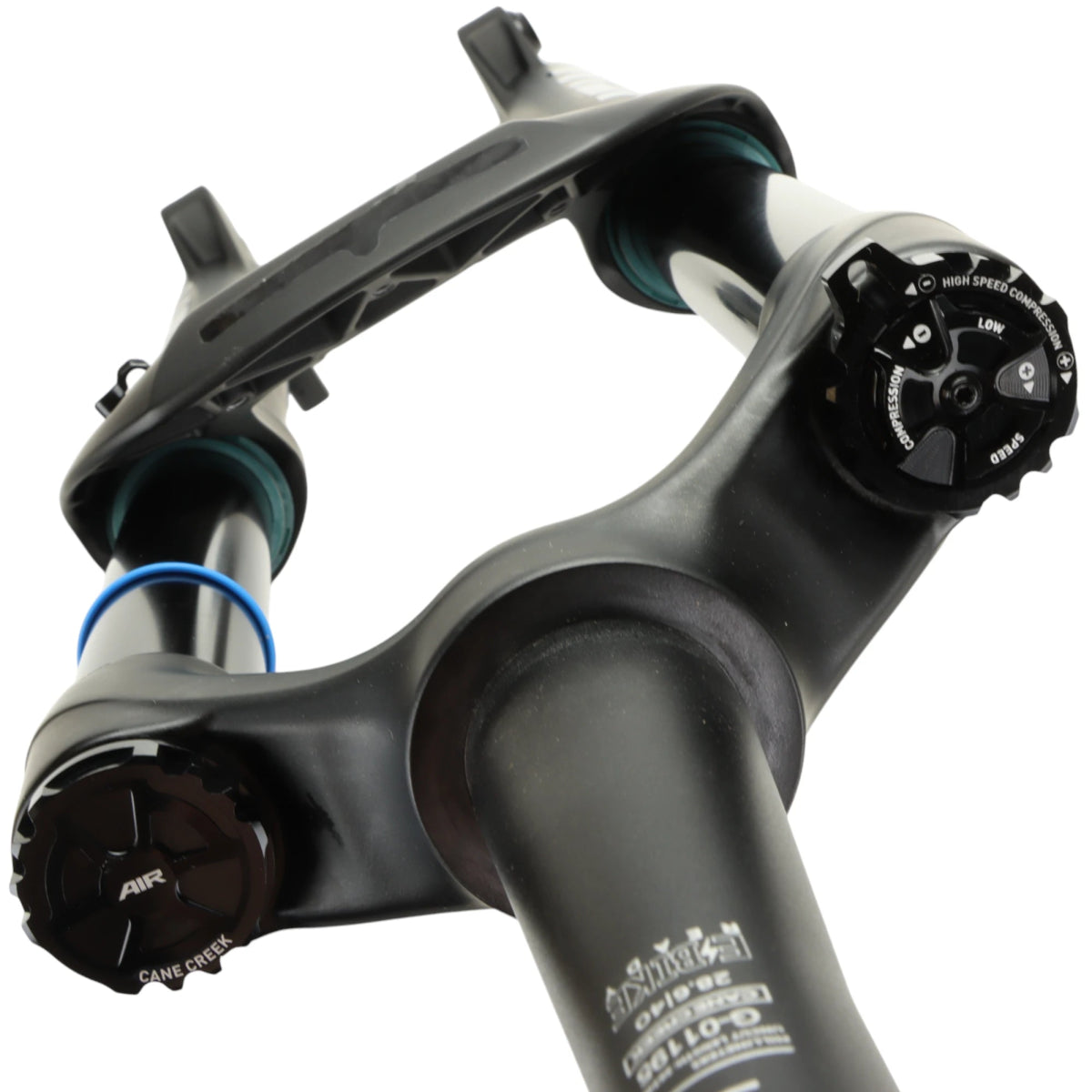

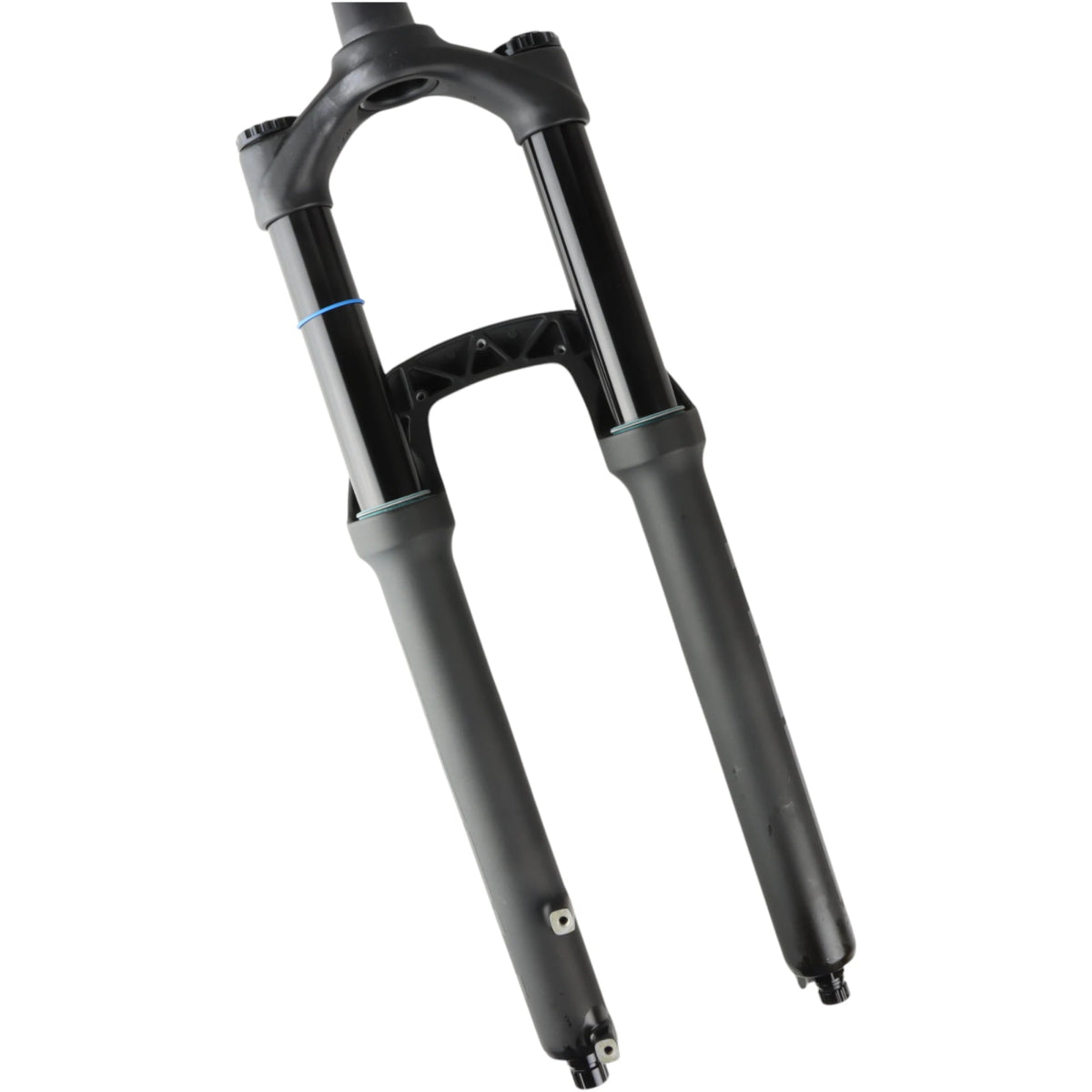

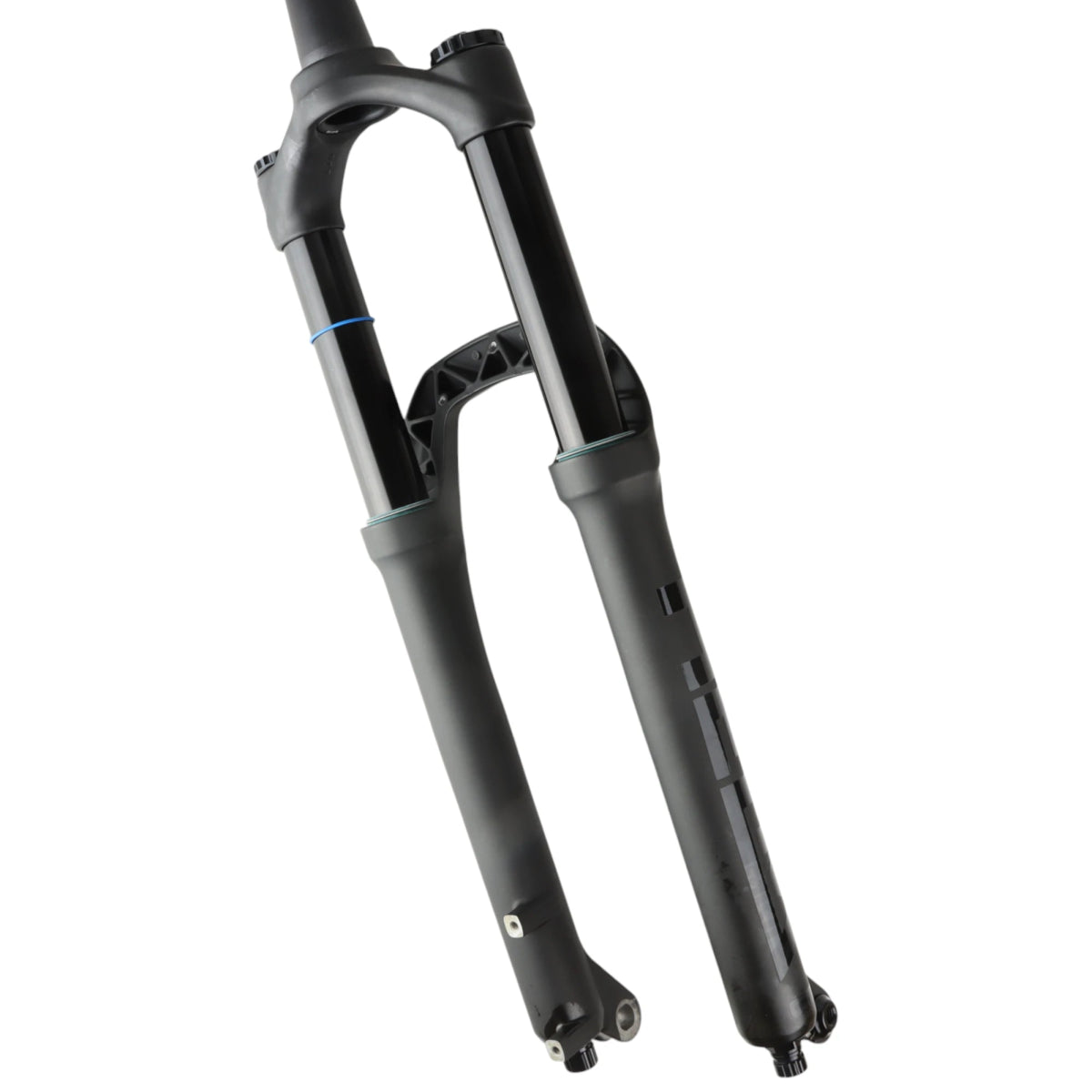

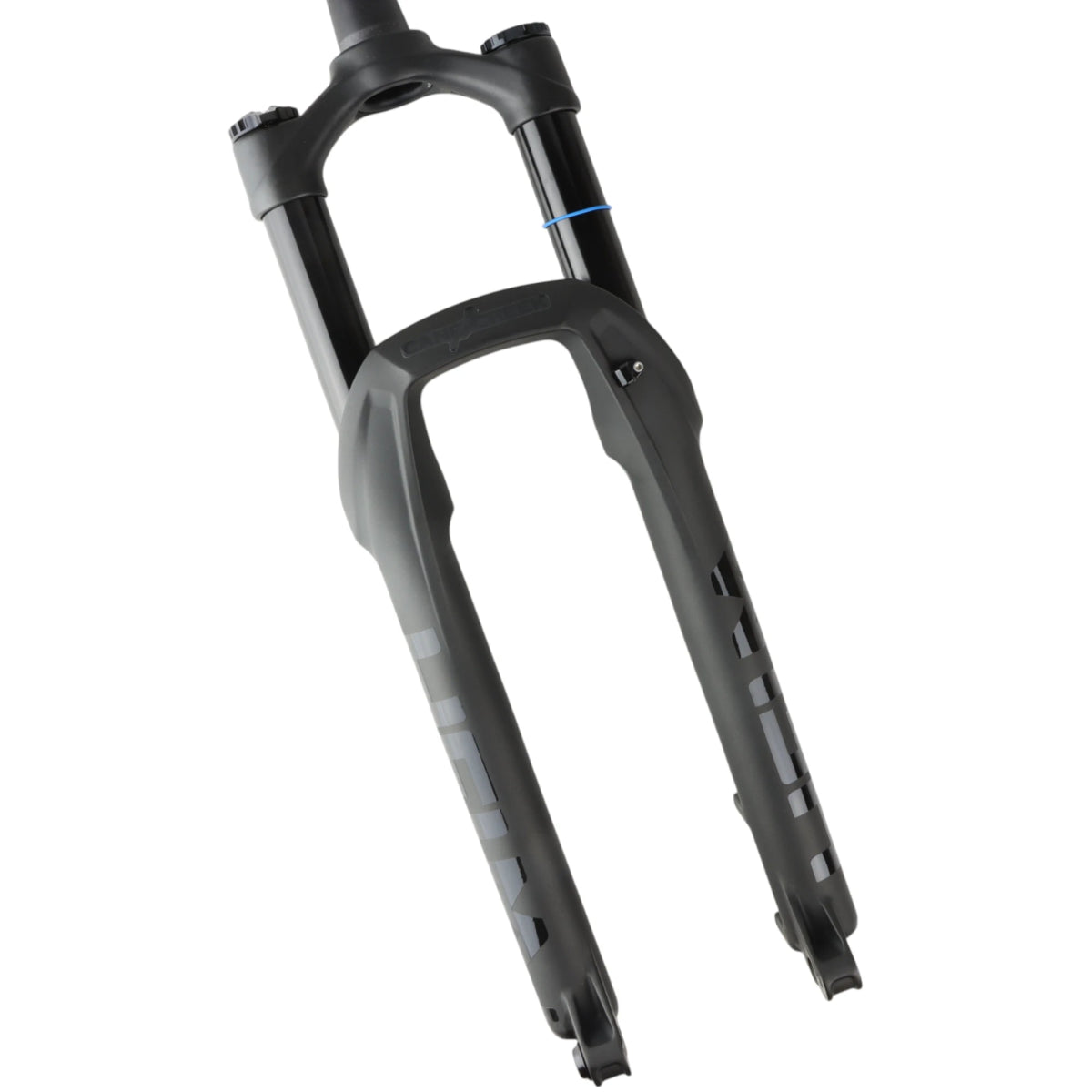

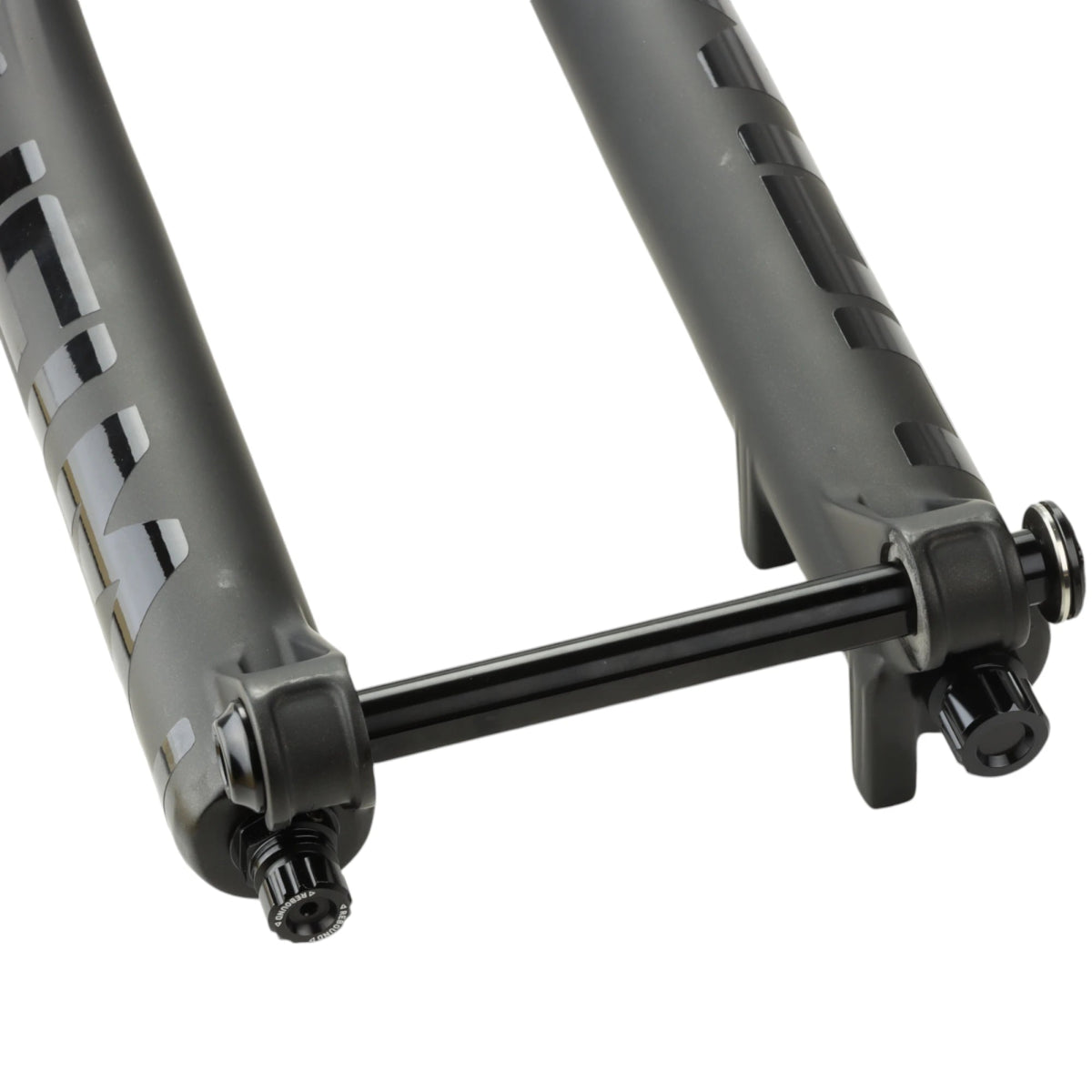

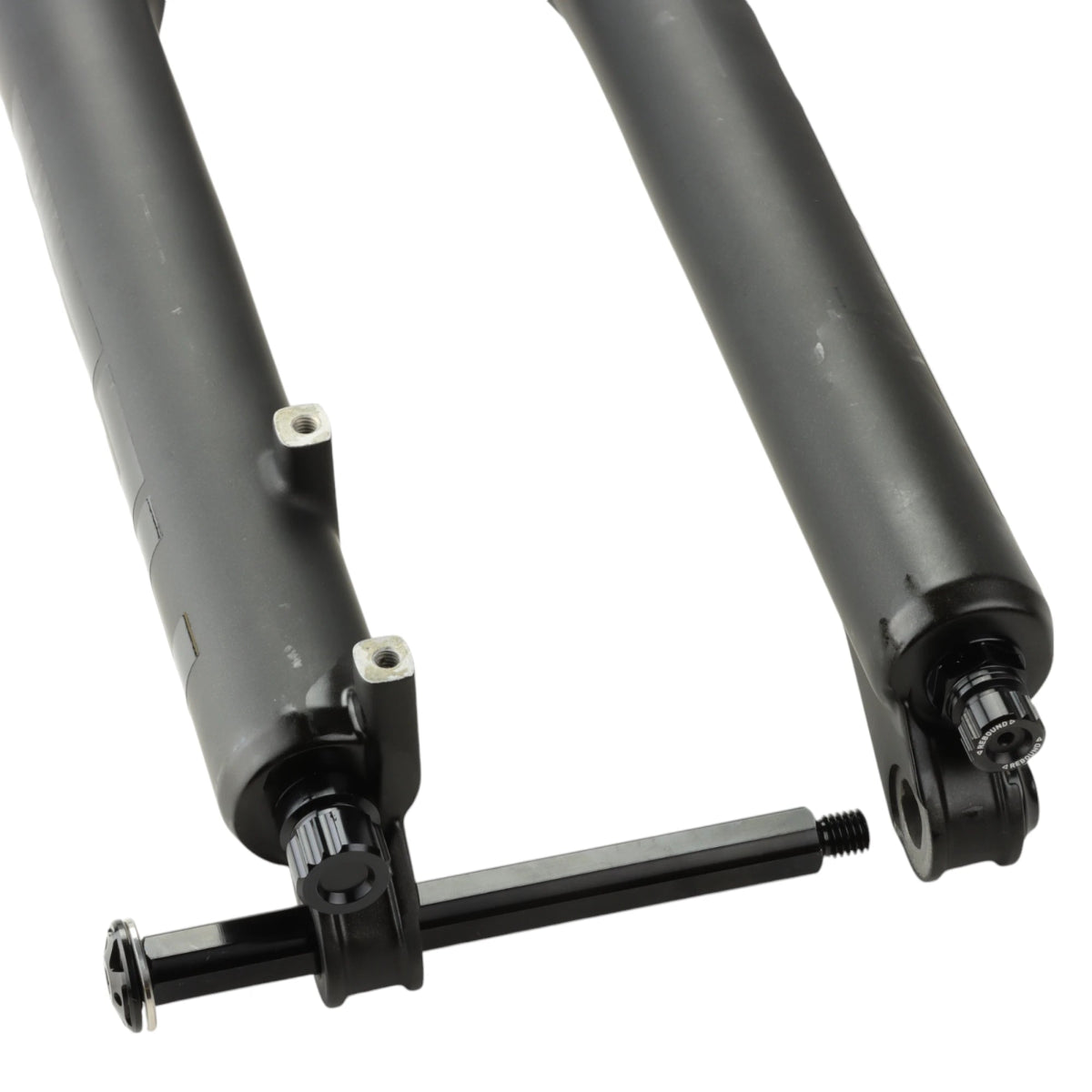

The Cane Creek Helm MKII Air is a versatile suspension fork for demanding all-mountain and enduro use. With 150 mm of travel and a 15 x 110 mm Boost thru-axle, it offers stability and control on all trails. The fork is equipped with high-quality SKF dust wipers and a sealed oil head, allowing for precise adjustment of high-speed and low-speed compression, as well as rebound.
Its innovative design allows independent adjustment of the positive and negative air chambers, enabling optimal adaptation to different terrain types. The maximum tire clearance is 28 x 2.5 inches; with the fork fully compressed, there should be at least 10 mm of tire clearance to the fork crown.
Features:
- Travel: 150 mm, variably adjustable
- High-quality SKF dust wipers and sealed oil damper cartridge
- Independent adjustment of positive and negative air chambers
- Threadless seal head on the air piston for easy access
- Revised knob design for easier handling
- Increased air volume can be adjusted without tools
Specifications:
- Intended Use: All Mountain, Enduro
- Wheel Size: 27.5 inches

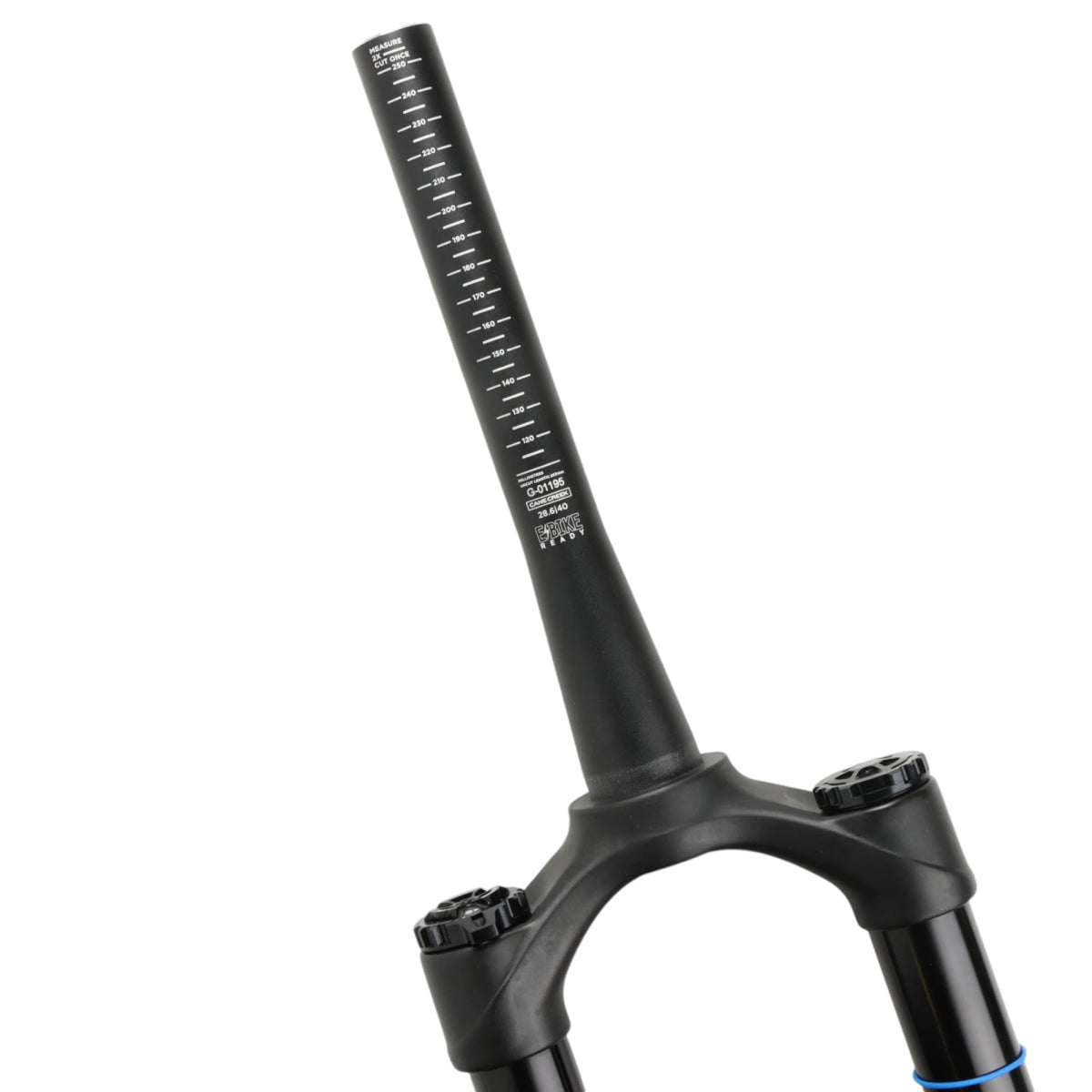

- Steerer Tube: 1 1/8" - 1.5" tapered
- Axle System: 15 x 110 mm thru-axle (Boost)
- Brake Mount: Disc PM7 (Direct Mount 180 mm)
- Spring Rate: Air pressure adjustable
- Offset: 44 mm
- Stanchion Diameter: 35 mm
- Material: Aluminum (steerer tube & stanchions), Magnesium (lower legs)
- Weight: 2055 g
- Steerer Tube Length: 263 mm

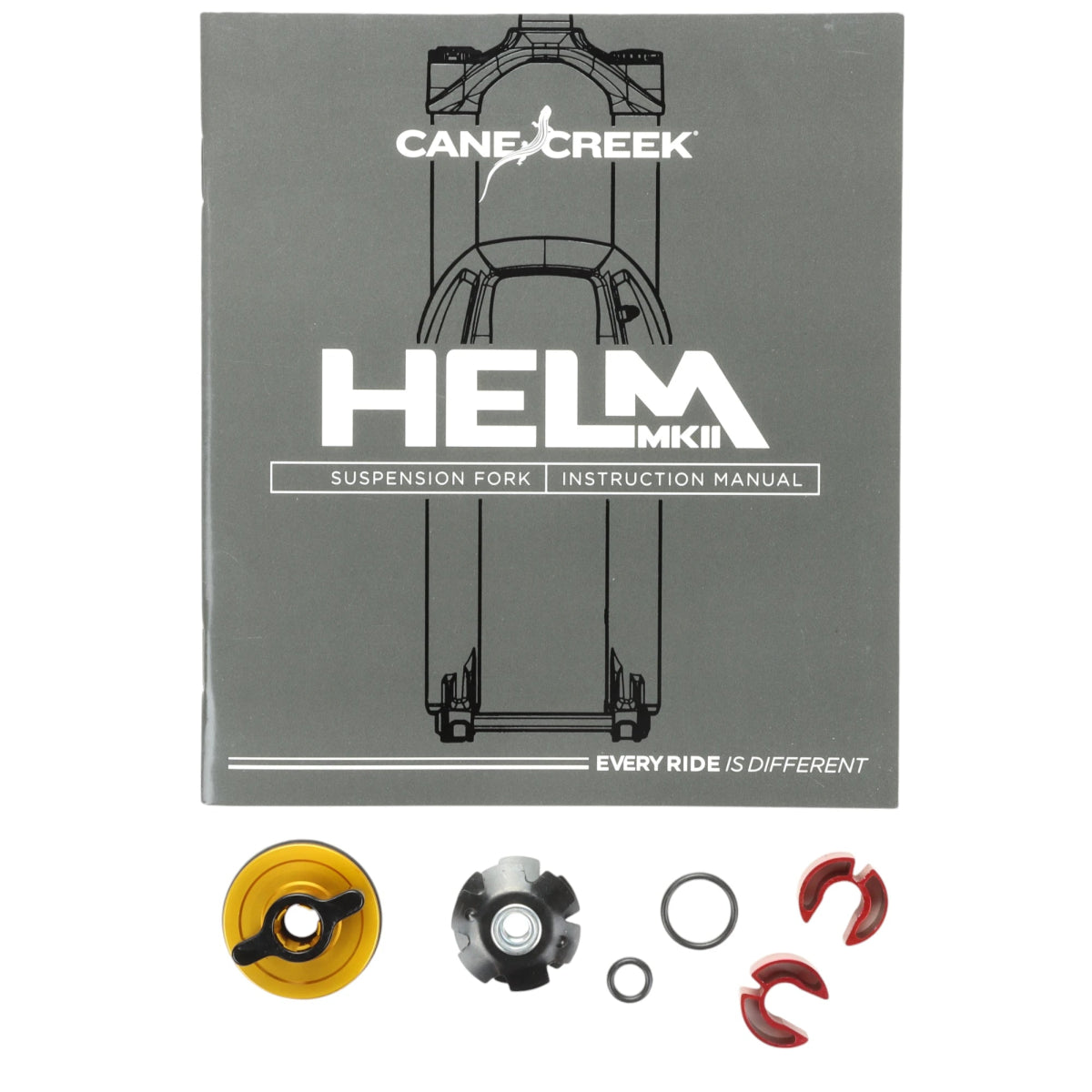

Scope of Delivery:
- 1x Cane Creek Helm MKII Air 27.5 inch 150 mm Suspension Fork Boost 15x110 mm Tapered
- Includes thru-axle, star nut, and accessories
EAN: 840226096575 | Manufacturer No: BAG0655
SKU: D11D1
