B-stock: Mounted for testing – with scratches and mounting marks. The product was mounted for testing purposes for inspection or demonstration. This resulted in scratches and mounting marks. However, the product is still fully functional.
Your upgrade to Micro Spline for DT Swiss Ratchet LN hubs.

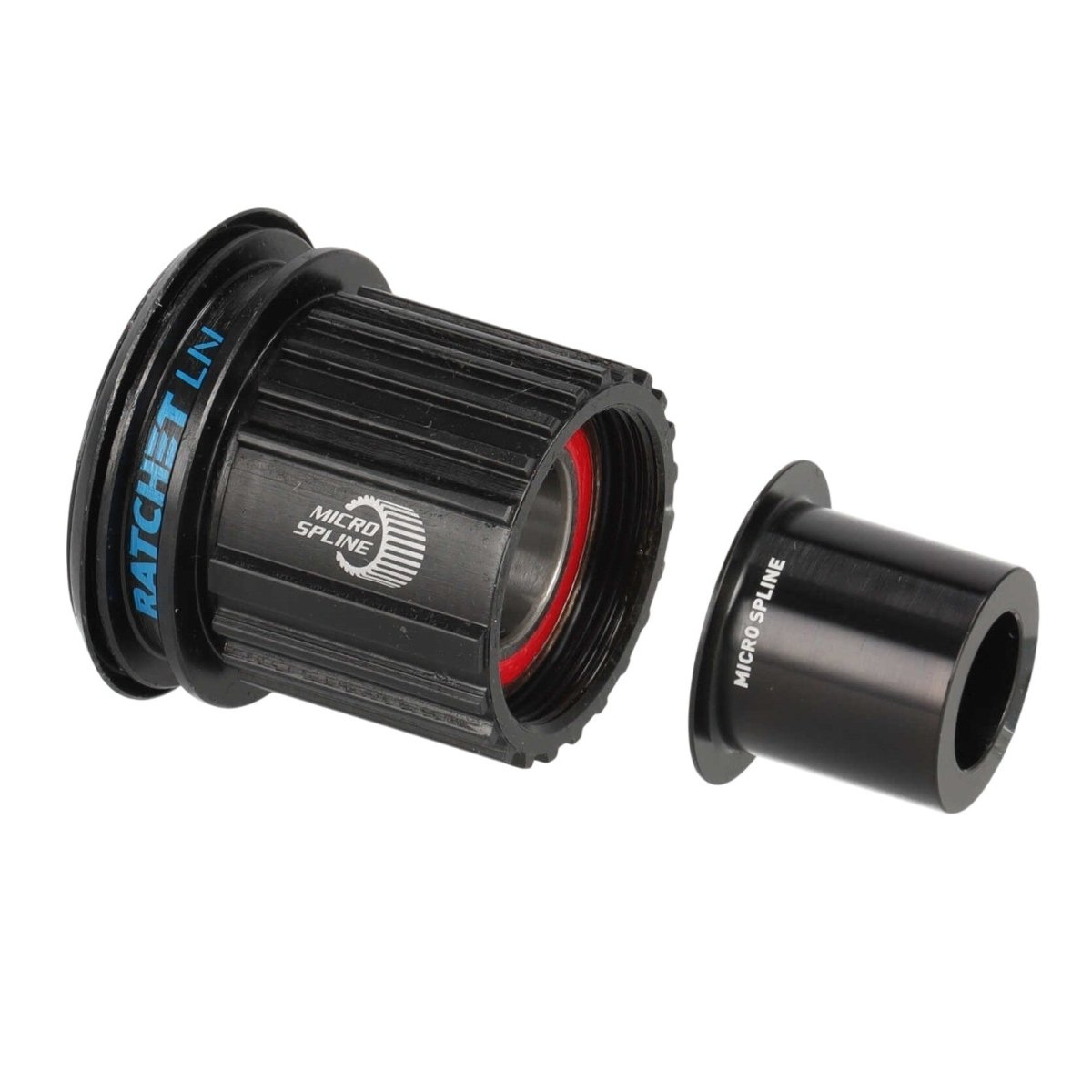

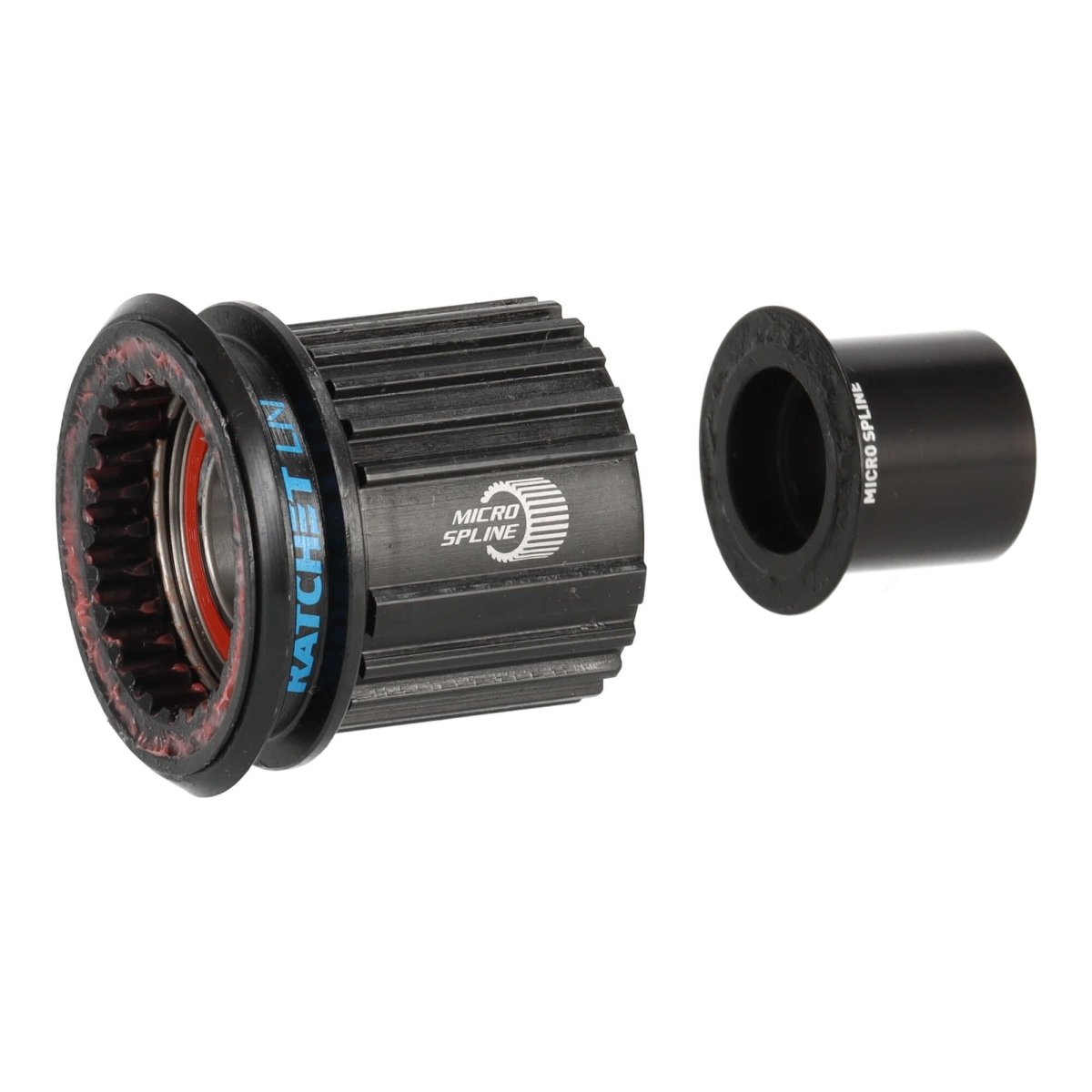

With the DT Swiss Ratchet LN steel freehub body for Shimano Micro Spline, you can convert your DT Swiss hub to modern 12-speed Shimano MTB cassettes. The robust steel body is particularly resistant to notching by the cassette, making it ideal for high-performance drivetrains on trail and enduro bikes.
The freehub body is specially designed for Ratchet LN freehub systems and fits DT Swiss hubs with a 12 mm thru-axle. Thanks to compatibility with 12x142 mm and 12x148 mm Boost rear dropouts, it covers a large proportion of modern MTB frames.
The set includes the matching end cap, so you can quickly and cleanly convert your hub to Micro Spline – ideal if you are switching from an older 10-/11-speed cassette to the current Shimano 12-speed system.
Highlights:
- Micro Spline Upgrade: makes DT Swiss Ratchet LN hubs compatible with Shimano 12-speed MTB cassettes.
- Steel Freehub Body: high resistance to notching and long lifespan.
- Incl. End Cap: Plug-&-Play solution for 12x142 & 12x148 mm rear hubs.
Technical Data:
- Manufacturer: DT Swiss
- Model: Ratchet LN Freehub Body Shimano Micro Spline
- Freehub Standard: Shimano Micro Spline (12-speed MTB)
- Freehub Body Material: Steel
- System: DT Swiss Ratchet LN
- Axle Standard: 12 mm thru-axle
- Compatible Installation Dimensions: 12x142 mm & 12x148 mm (Boost)
- Area of Use: MTB, Trail, All-Mountain, Enduro, E-MTB (depending on hub/wheel)
- Color: black / silver
Scope of Delivery:
- 1 x DT Swiss Ratchet LN Steel Freehub Body | Shimano Micro Spline | 12-speed
- 1 x matching end cap for 12 mm thru-axle
- Note: Workshop packaging (without outer packaging)
Manufacturer Part No.: HWYABL00S4452S | EAN: 7613052315294
Perfect if you want to convert your DT Swiss Ratchet LN hub to Shimano 12-speed Micro Spline – robust, precisely fitting and ready to use.
SKU: M2C4
DT Swiss Ratchet LN Steel Freehub Body and End Cap | Shimano Micro Spline | 12-speed (B-stock)
Check compatibility
Will this wheel fit your bike?
In our short video, we explain what to look out for when checking axle size, freehub type and brake rotor mount.
B-stock: Mounted for testing – with scratches and mounting marks. The product was mounted for testing purposes for inspection or demonstration. This resulted in scratches and mounting marks. However, the product is still fully functional.
Your upgrade to Micro Spline for DT Swiss Ratchet LN hubs.
With the DT Swiss Ratchet LN steel freehub body for Shimano Micro Spline, you can convert your DT Swiss hub to modern 12-speed Shimano MTB cassettes. The robust steel body is particularly resistant to notching by the cassette, making it ideal for high-performance drivetrains on trail and enduro bikes.
The freehub body is specially designed for Ratchet LN freehub systems and fits DT Swiss hubs with a 12 mm thru-axle. Thanks to compatibility with 12x142 mm and 12x148 mm Boost rear dropouts, it covers a large proportion of modern MTB frames.
The set includes the matching end cap, so you can quickly and cleanly convert your hub to Micro Spline – ideal if you are switching from an older 10-/11-speed cassette to the current Shimano 12-speed system.
Highlights:
- Micro Spline Upgrade: makes DT Swiss Ratchet LN hubs compatible with Shimano 12-speed MTB cassettes.
- Steel Freehub Body: high resistance to notching and long lifespan.
- Incl. End Cap: Plug-&-Play solution for 12x142 & 12x148 mm rear hubs.
Technical Data:
- Manufacturer: DT Swiss
- Model: Ratchet LN Freehub Body Shimano Micro Spline
- Freehub Standard: Shimano Micro Spline (12-speed MTB)
- Freehub Body Material: Steel
- System: DT Swiss Ratchet LN
- Axle Standard: 12 mm thru-axle
- Compatible Installation Dimensions: 12x142 mm & 12x148 mm (Boost)
- Area of Use: MTB, Trail, All-Mountain, Enduro, E-MTB (depending on hub/wheel)
- Color: black / silver
Scope of Delivery:
- 1 x DT Swiss Ratchet LN Steel Freehub Body | Shimano Micro Spline | 12-speed
- 1 x matching end cap for 12 mm thru-axle
- Note: Workshop packaging (without outer packaging)
Manufacturer Part No.: HWYABL00S4452S | EAN: 7613052315294
Perfect if you want to convert your DT Swiss Ratchet LN hub to Shimano 12-speed Micro Spline – robust, precisely fitting and ready to use.
