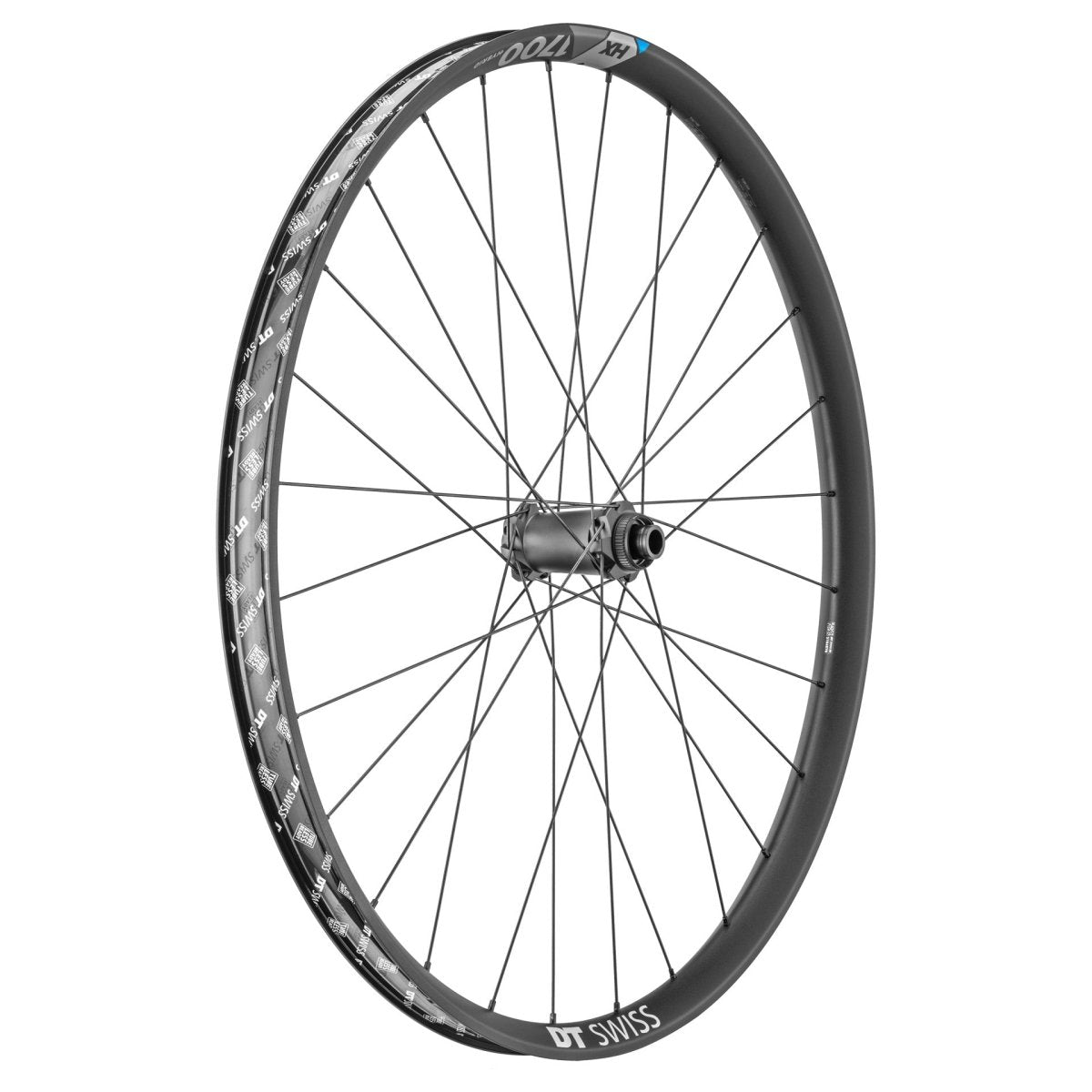

The DT Swiss HX 1700 SPLINE 27.5" Front Wheel is the top choice for E-MTBs and demanding trail bikes. It combines maximum stability with low weight and offers ultimate reliability even under the toughest conditions thanks to the DT Swiss 350 hub and reinforced Hybrid Straightpull spokes. The Centerlock mount allows for easy and precise installation of modern brake rotors.
Highlights:
- E-MTB Ready: developed for high torque and system weights up to 150 kg
- DT Swiss 350 Hub: durable, precise, and easy to maintain
- 35 mm Inner Rim Width: ideal for wide tires with maximum traction and stability
- Centerlock System: quick, secure, and lightweight brake rotor mounting
- Tubeless Ready: prepared for tubeless operation – more grip, fewer punctures
Technical Data:
- Manufacturer: DT Swiss
- Model: HX 1700 SPLINE
- Wheel Size: 27.5" / 650B
- Installation Width: 15x110 mm Boost
- Brake System: Centerlock Disc
- Rim Material: Aluminum
- Rim Height: 21 mm
- Inner Width: 35 mm
- Outer Width: 40 mm
- Hub: DT Swiss 350
- Spokes: DT Hybrid 1 Straightpull (left & right)
- Max. System Weight: 150 kg
- ASTM Classification: 4 (Enduro / E-MTB)
- Approved for E-Bikes: Yes (up to 32 km/h or 250 W)
- Rim Type: Hooked / Crotchet Tubeless TC
- Color: Black
- Weight: 1000 g
Scope of Delivery:
- 1x DT Swiss HX 1700 SPLINE 27.5" Front Wheel | Boost 15x110 mm | Centerlock Disc
- incl. Tubeless rim tape (mounted)
- incl. Tubeless valve
- Note: Workshop packaging (without outer packaging)
Manufacturer No.: WHX1700BGIXSA18410 | EAN: 7613052340838
DT Swiss HX 1700 SPLINE – the robust and lightweight E-MTB front wheel with 350 hub, Hybrid technology, and Centerlock system for maximum performance.
SKU: 8410 (V4C1)
DT Swiss HX 1700 SPLINE Front Wheel 27.5" | 35 mm Rim Width | 15x110 mm Boost | Centerlock Disc | E-MTB
Check compatibility
Will this wheel fit your bike?
In our short video, we explain what to look out for when checking axle size, freehub type and brake rotor mount.
The DT Swiss HX 1700 SPLINE 27.5" Front Wheel is the top choice for E-MTBs and demanding trail bikes. It combines maximum stability with low weight and offers ultimate reliability even under the toughest conditions thanks to the DT Swiss 350 hub and reinforced Hybrid Straightpull spokes. The Centerlock mount allows for easy and precise installation of modern brake rotors.
Highlights:
- E-MTB Ready: developed for high torque and system weights up to 150 kg
- DT Swiss 350 Hub: durable, precise, and easy to maintain
- 35 mm Inner Rim Width: ideal for wide tires with maximum traction and stability
- Centerlock System: quick, secure, and lightweight brake rotor mounting
- Tubeless Ready: prepared for tubeless operation – more grip, fewer punctures
Technical Data:
- Manufacturer: DT Swiss
- Model: HX 1700 SPLINE
- Wheel Size: 27.5" / 650B
- Installation Width: 15x110 mm Boost
- Brake System: Centerlock Disc
- Rim Material: Aluminum
- Rim Height: 21 mm
- Inner Width: 35 mm
- Outer Width: 40 mm
- Hub: DT Swiss 350
- Spokes: DT Hybrid 1 Straightpull (left & right)
- Max. System Weight: 150 kg
- ASTM Classification: 4 (Enduro / E-MTB)
- Approved for E-Bikes: Yes (up to 32 km/h or 250 W)
- Rim Type: Hooked / Crotchet Tubeless TC
- Color: Black
- Weight: 1000 g
Scope of Delivery:
- 1x DT Swiss HX 1700 SPLINE 27.5" Front Wheel | Boost 15x110 mm | Centerlock Disc
- incl. Tubeless rim tape (mounted)
- incl. Tubeless valve
- Note: Workshop packaging (without outer packaging)
Manufacturer No.: WHX1700BGIXSA18410 | EAN: 7613052340838
DT Swiss HX 1700 SPLINE – the robust and lightweight E-MTB front wheel with 350 hub, Hybrid technology, and Centerlock system for maximum performance.
