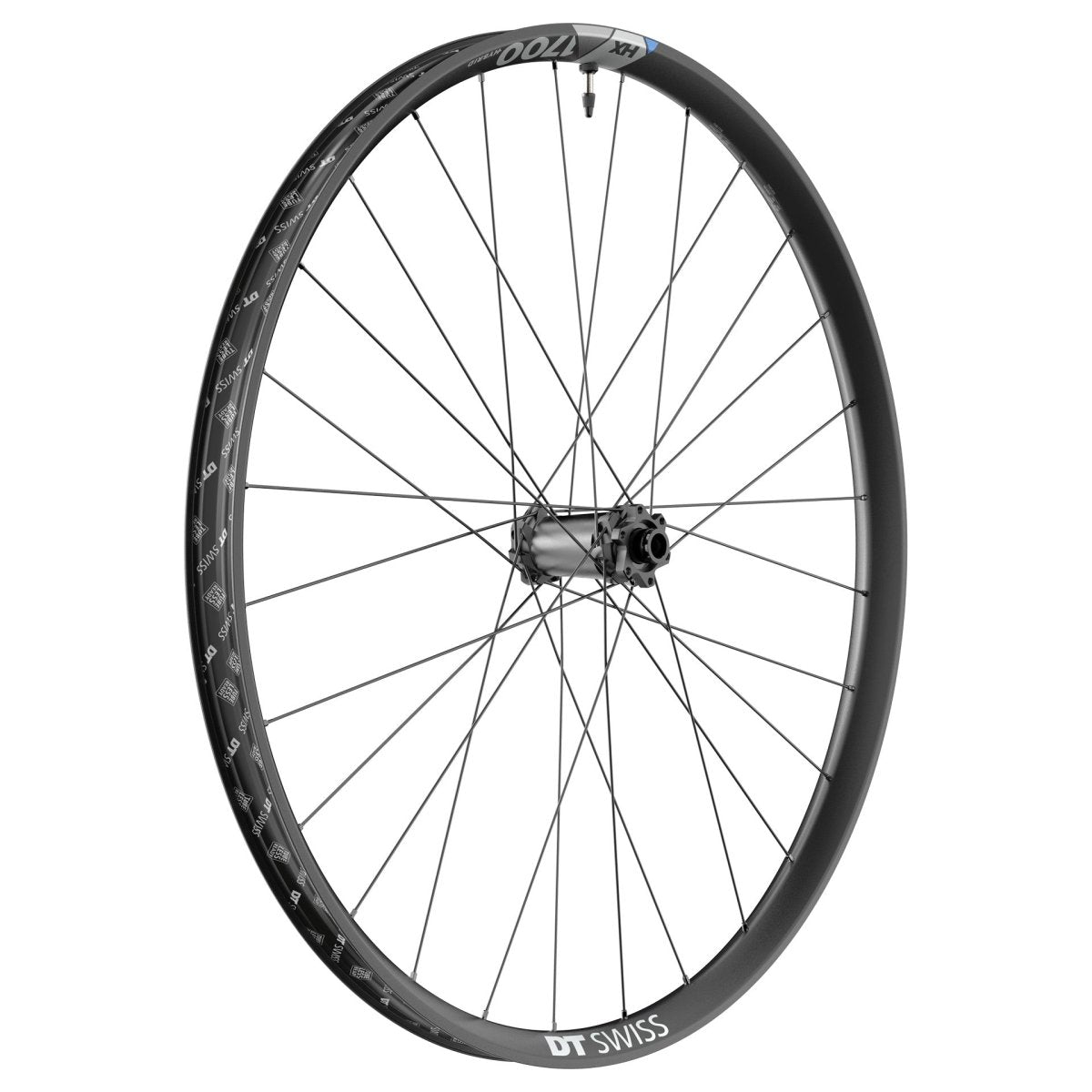

The DT Swiss HX 1700 SPLINE 27.5" front wheel was specially developed for modern e-MTBs. With its wide 35 mm aluminum rim, robust 350 hub body, and high load capacity, it is ideal for aggressive trail and enduro use – even under the most demanding conditions.
The combination of durable hybrid components, a tubeless-ready hooked rim, and Boost axle strength ensures maximum control, stability, and comfort on any terrain. Thanks to ASTM classification 4 and a 150 kg system weight, the wheel is also perfectly equipped for heavy riders and e-mountain bikes.
Functional Advantages:
- 35 mm Inner Width: Optimal for wide tires in the trail and e-MTB sector
- DT Swiss 350 Boost Hub: Proven technology for durable performance
- E-Bike Ready: Approved for e-MTBs up to 25 km/h / 250 W
Technical Details:
- Rim: Aluminum, 27.5" / 650B, Tubeless Ready, hooked profile (Hooked/Crotchet)
- Inner Width: 35 mm | Outer Width: 40 mm
- Rim Height: 21 mm
- Hub: DT Swiss 350 | Boost 15x110 mm | 6-bolt Disc (IS)
- Weight: approx. 1008 g
- Max. System Weight: 150 kg
- ASTM Classification: Category 4 (Trail, All Mountain, Enduro)
- E-Bike Compatible: Yes (max. 25 km/h / 250 W)
- Brake System: 6-bolt
Scope of Delivery:
- 1x DT Swiss HX 1700 SPLINE Front Wheel 27.5" | 35 mm | 15x110 mm Boost | 6-bolt IS
- Note: Workshop packaging (without outer packaging)
EAN: 7613052340876 | Manufacturer No.: WHX1700BHIXSA18414
A reliable e-MTB front wheel – strong, wide, and ready for any terrain.
SKU: T26 (T6)
DT Swiss HX 1700 SPLINE 27.5" Front Wheel | 35mm Inner Width | 15x110mm Boost | 6-Bolt (IS) | E-MTB Compatible
Check compatibility
Will this wheel fit your bike?
In our short video, we explain what to look out for when checking axle size, freehub type and brake rotor mount.
The DT Swiss HX 1700 SPLINE 27.5" front wheel was specially developed for modern e-MTBs. With its wide 35 mm aluminum rim, robust 350 hub body, and high load capacity, it is ideal for aggressive trail and enduro use – even under the most demanding conditions.
The combination of durable hybrid components, a tubeless-ready hooked rim, and Boost axle strength ensures maximum control, stability, and comfort on any terrain. Thanks to ASTM classification 4 and a 150 kg system weight, the wheel is also perfectly equipped for heavy riders and e-mountain bikes.
Functional Advantages:
- 35 mm Inner Width: Optimal for wide tires in the trail and e-MTB sector
- DT Swiss 350 Boost Hub: Proven technology for durable performance
- E-Bike Ready: Approved for e-MTBs up to 25 km/h / 250 W
Technical Details:
- Rim: Aluminum, 27.5" / 650B, Tubeless Ready, hooked profile (Hooked/Crotchet)
- Inner Width: 35 mm | Outer Width: 40 mm
- Rim Height: 21 mm
- Hub: DT Swiss 350 | Boost 15x110 mm | 6-bolt Disc (IS)
- Weight: approx. 1008 g
- Max. System Weight: 150 kg
- ASTM Classification: Category 4 (Trail, All Mountain, Enduro)
- E-Bike Compatible: Yes (max. 25 km/h / 250 W)
- Brake System: 6-bolt
Scope of Delivery:
- 1x DT Swiss HX 1700 SPLINE Front Wheel 27.5" | 35 mm | 15x110 mm Boost | 6-bolt IS
- Note: Workshop packaging (without outer packaging)
EAN: 7613052340876 | Manufacturer No.: WHX1700BHIXSA18414
A reliable e-MTB front wheel – strong, wide, and ready for any terrain.
