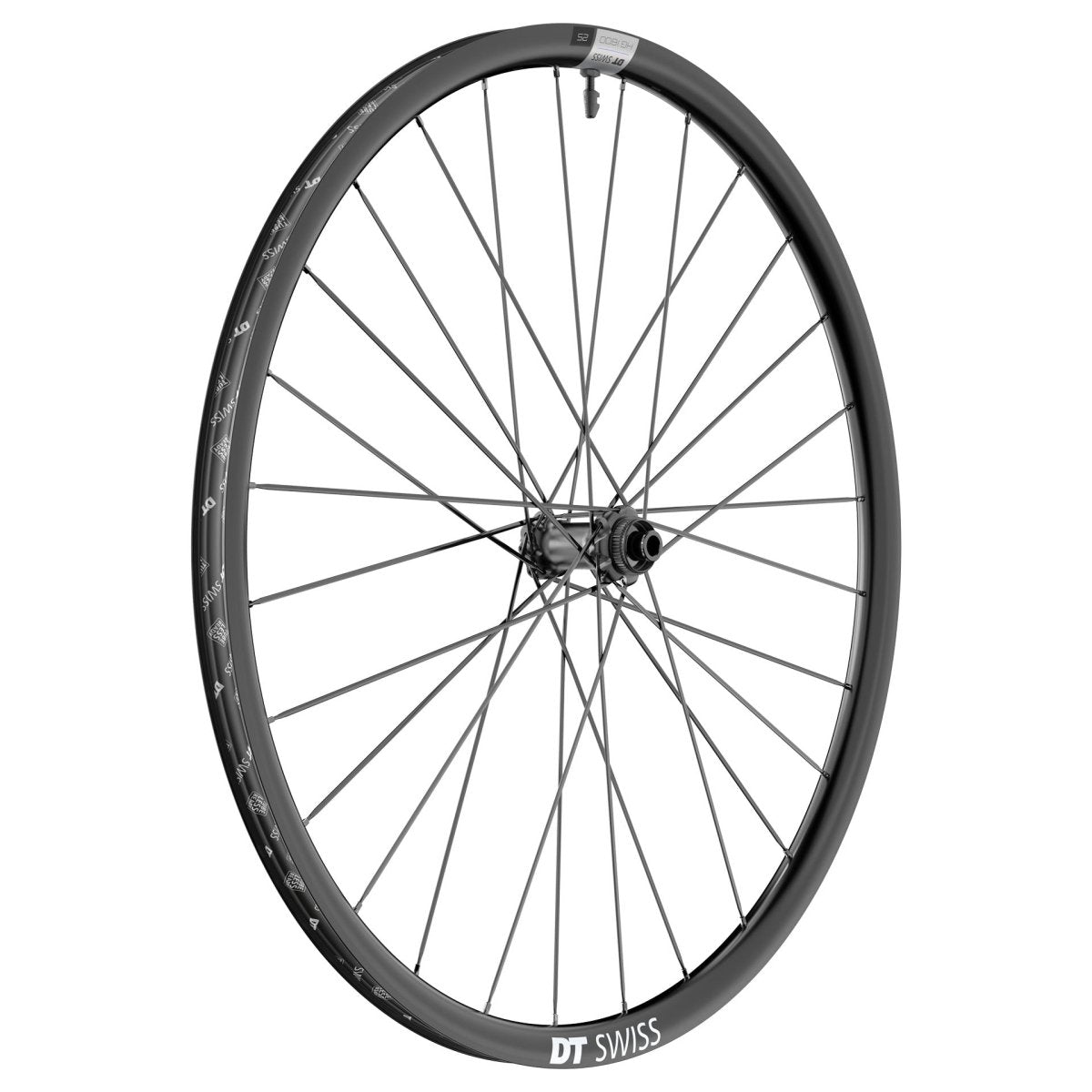

The DT Swiss HG 1800 SPLINE 25 front wheel is the robust solution for gravel and all-road bikes with e-bike approval. With its wide 24 mm inner rim width, stable hybrid spokes, and durable 370 hub, it is perfectly equipped for tough use. Thanks to its tubeless-ready design, you benefit from improved puncture protection, more grip, and increased riding comfort.
Highlights:
- Wide 24 mm inner rim width: ideal for wide gravel and all-road tires
- Hybrid spokes: increased stiffness & durability for heavy loads
- Tubeless Ready: more grip, comfort & puncture resistance
- E-bike approved: tested for systems up to 140 kg total weight
- 370 Hub: proven reliability & longevity
Technical data:
- Manufacturer: DT Swiss
- Model: HG 1800 SPLINE 25
- Area of use: Hybrid Gravel, Allroad
- Size: 28" / 700C
- Rim height: 25 mm
- Inner rim width: 24 mm
- Outer width: 28 mm
- Rim material: Aluminum
- Rim design: Hooked / Crotchet Tubeless TC
- Hub type: 370
- Spokes: DT new aero® hybrid straightpull (left & right)
- Brake disc mount: Center Lock
- Axle: 12x100 mm thru axle
- Net weight: 971 g
- max. system weight: 140 kg
- ASTM Classification: 2
- E-bike approved: Yes (up to 32 km/h / max. 250 W)
- Color: Black
Scope of delivery:
- 1x DT Swiss HG 1800 SPLINE 25 Front Wheel 28" | Disc Center Lock | 12x100 mm
- Includes rim tape (mounted) and tubeless valve
- Note: Workshop packaging (without outer packaging)
Manufacturer No.: WHG1800AIDXSO21634 | EAN: 7613052303406
DT Swiss HG 1800 SPLINE 25 – strong hybrid gravel front wheel for e-bikes & all-road with tubeless-ready technology and high load capacity.
SKU: V1
DT Swiss HG 1800 SPLINE 25 Front Wheel 28" | Disc Center Lock | 12x100 mm | Hybrid Gravel | Tubeless Ready
Check compatibility
Will this wheel fit your bike?
In our short video, we explain what to look out for when checking axle size, freehub type and brake rotor mount.
The DT Swiss HG 1800 SPLINE 25 front wheel is the robust solution for gravel and all-road bikes with e-bike approval. With its wide 24 mm inner rim width, stable hybrid spokes, and durable 370 hub, it is perfectly equipped for tough use. Thanks to its tubeless-ready design, you benefit from improved puncture protection, more grip, and increased riding comfort.
Highlights:
- Wide 24 mm inner rim width: ideal for wide gravel and all-road tires
- Hybrid spokes: increased stiffness & durability for heavy loads
- Tubeless Ready: more grip, comfort & puncture resistance
- E-bike approved: tested for systems up to 140 kg total weight
- 370 Hub: proven reliability & longevity
Technical data:
- Manufacturer: DT Swiss
- Model: HG 1800 SPLINE 25
- Area of use: Hybrid Gravel, Allroad
- Size: 28" / 700C
- Rim height: 25 mm
- Inner rim width: 24 mm
- Outer width: 28 mm
- Rim material: Aluminum
- Rim design: Hooked / Crotchet Tubeless TC
- Hub type: 370
- Spokes: DT new aero® hybrid straightpull (left & right)
- Brake disc mount: Center Lock
- Axle: 12x100 mm thru axle
- Net weight: 971 g
- max. system weight: 140 kg
- ASTM Classification: 2
- E-bike approved: Yes (up to 32 km/h / max. 250 W)
- Color: Black
Scope of delivery:
- 1x DT Swiss HG 1800 SPLINE 25 Front Wheel 28" | Disc Center Lock | 12x100 mm
- Includes rim tape (mounted) and tubeless valve
- Note: Workshop packaging (without outer packaging)
Manufacturer No.: WHG1800AIDXSO21634 | EAN: 7613052303406
DT Swiss HG 1800 SPLINE 25 – strong hybrid gravel front wheel for e-bikes & all-road with tubeless-ready technology and high load capacity.
