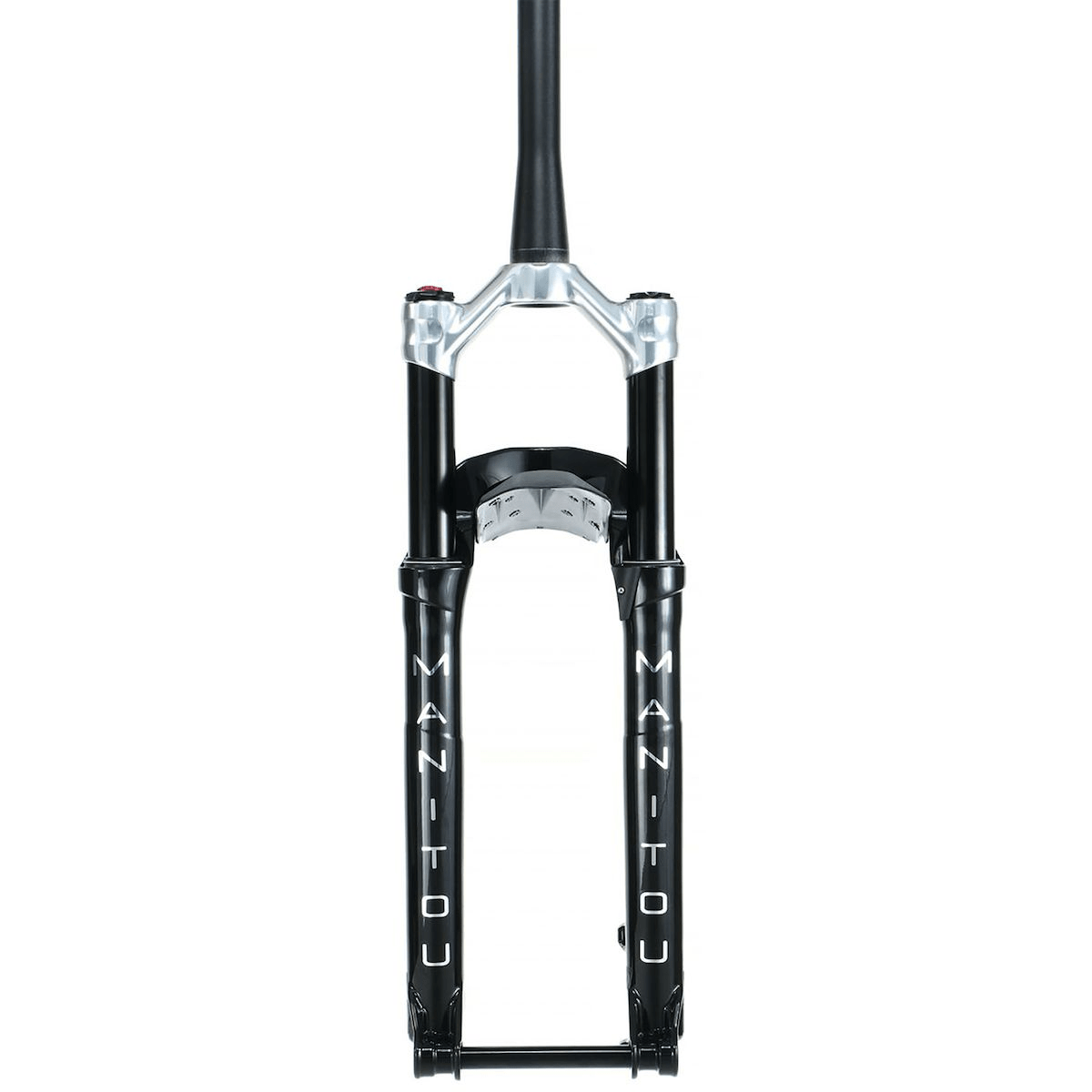

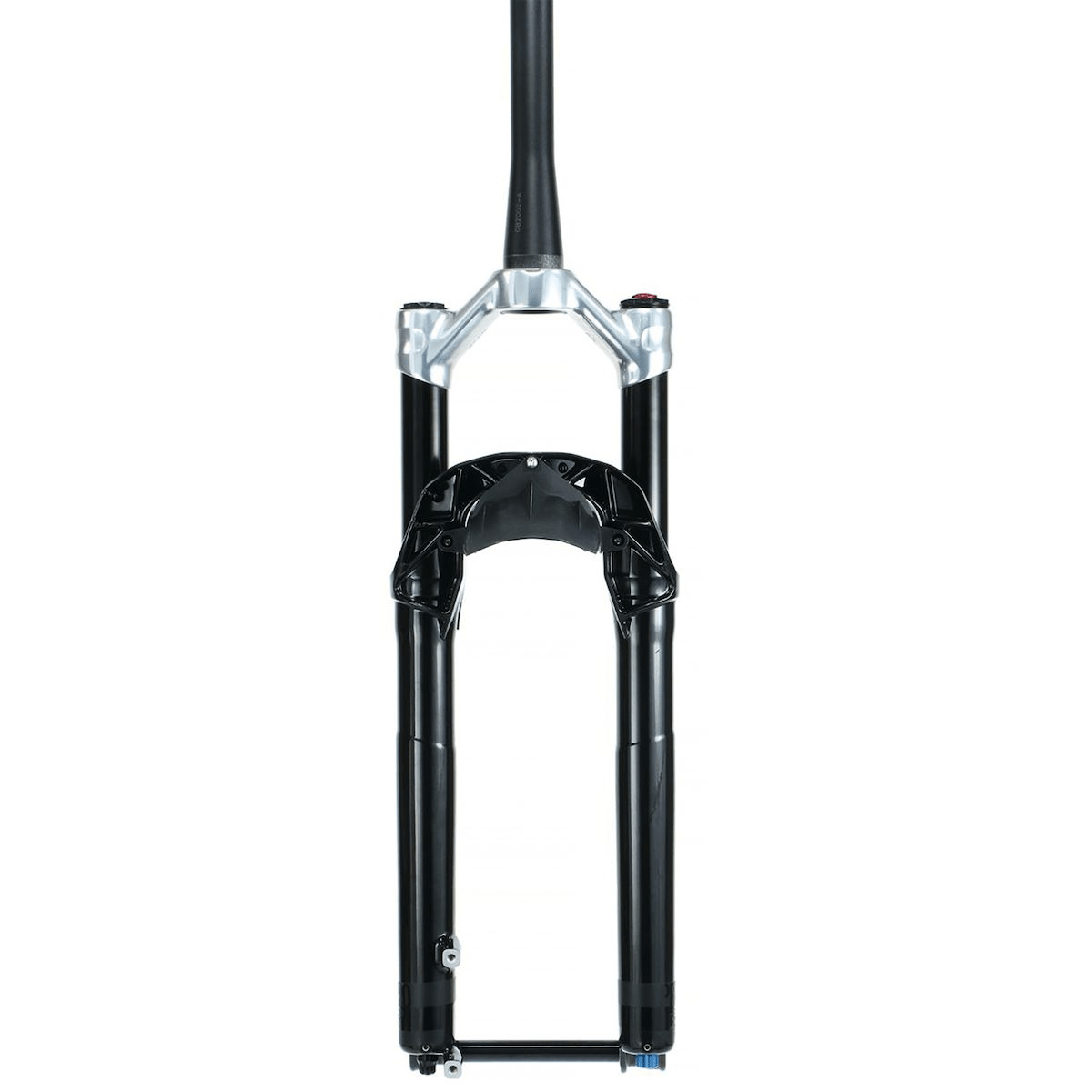

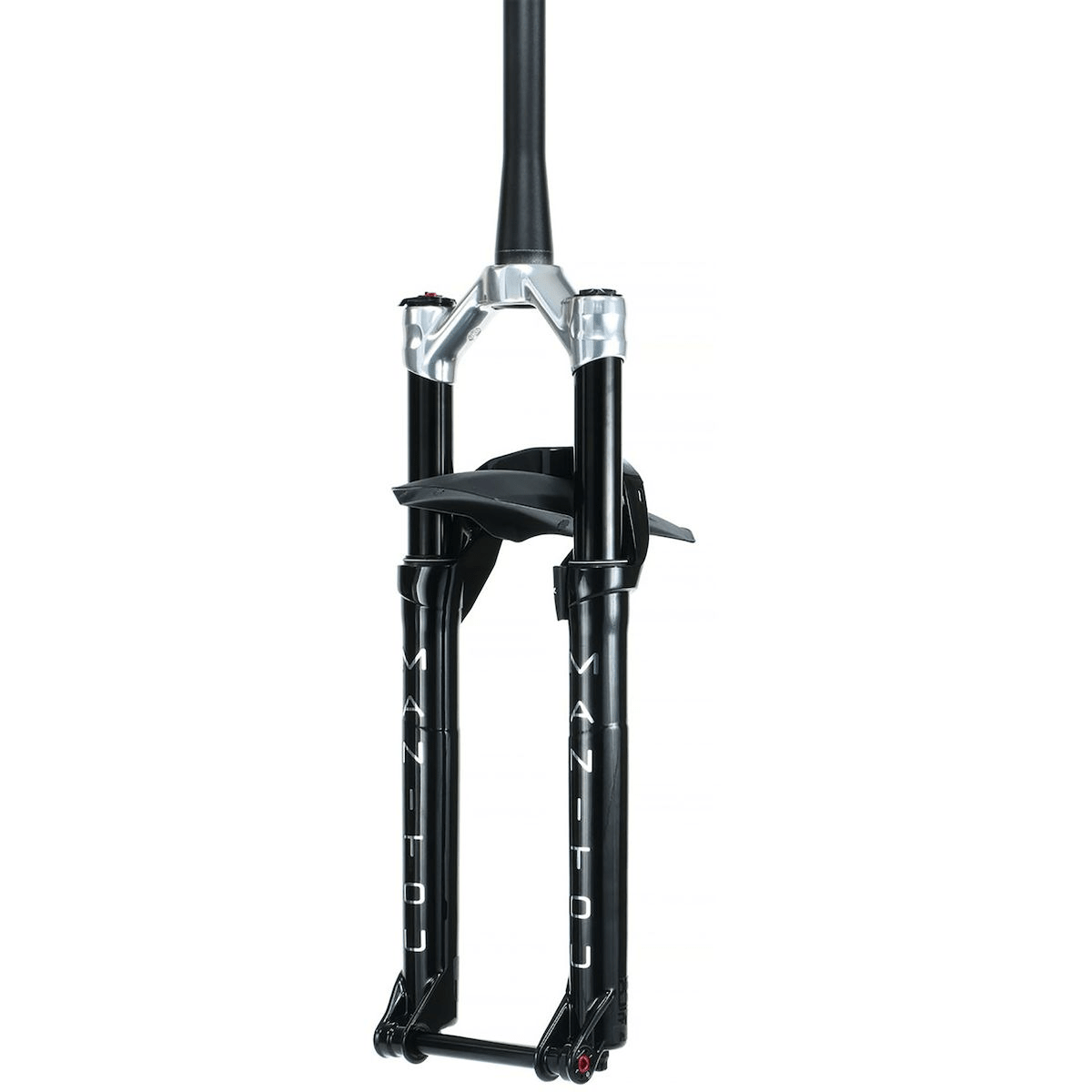

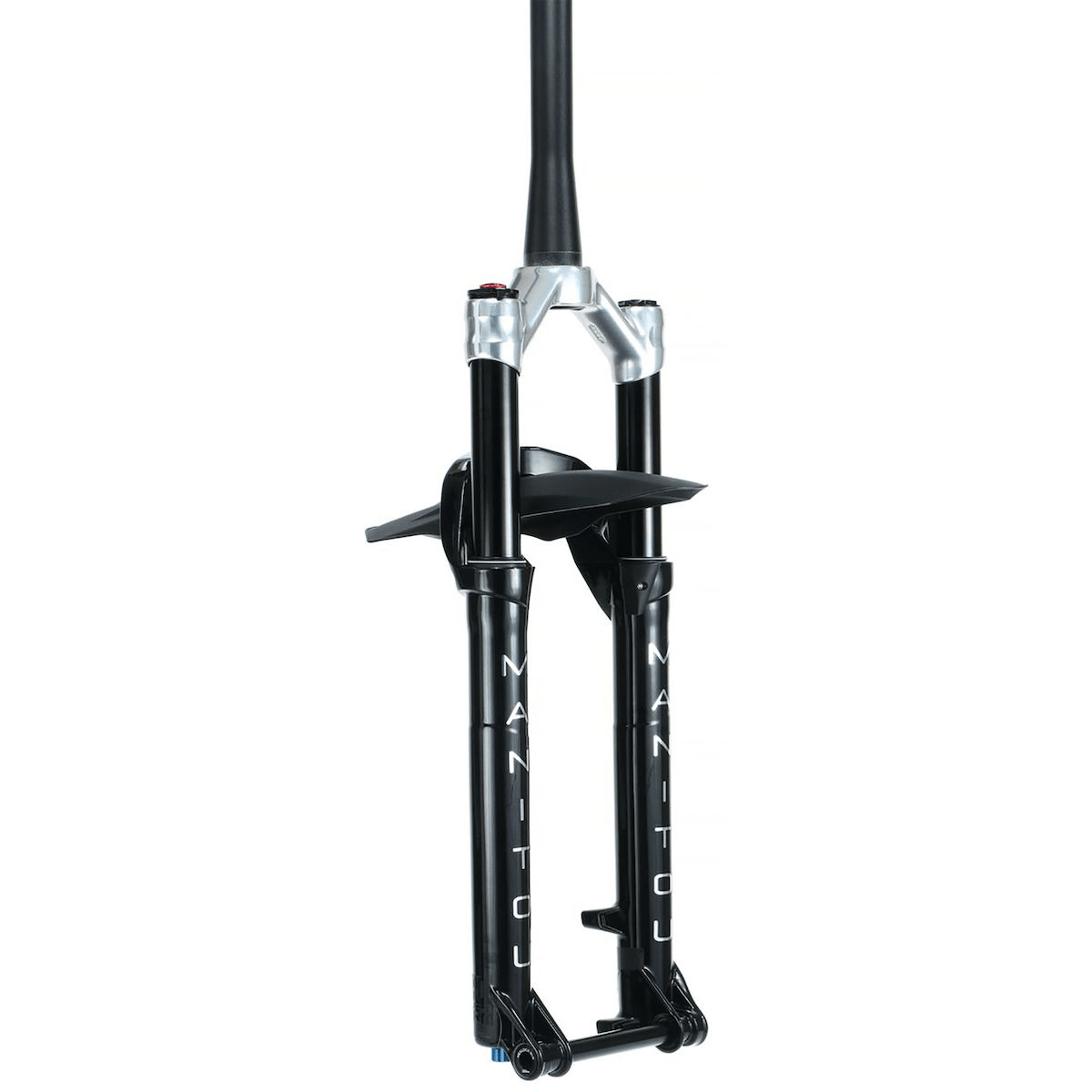

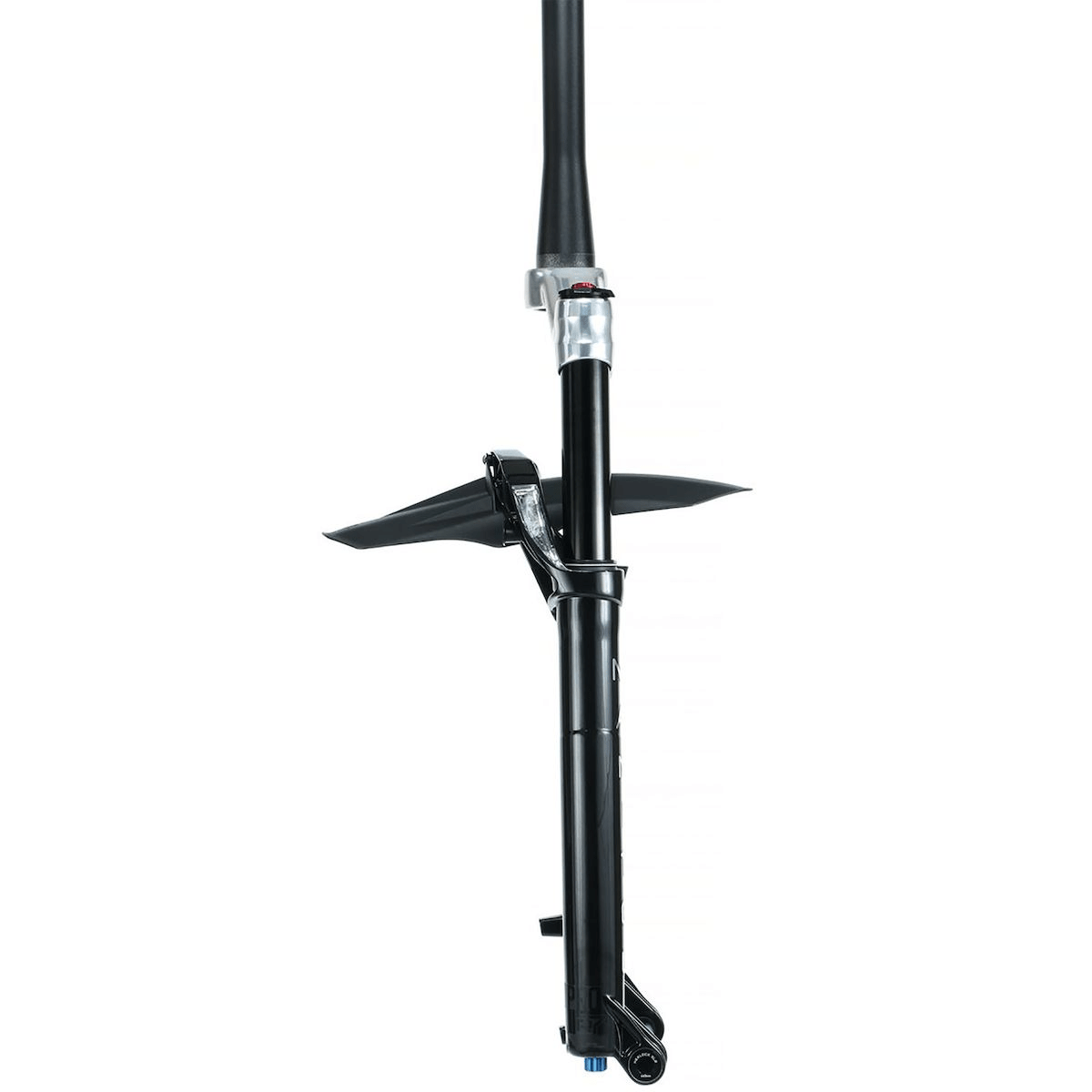

Ultralight high-end XC suspension fork with maximum performance.

The Manitou R7 Pro is one of the lightest and most powerful suspension forks in the cross-country and marathon sector. Weighing only approx. 1648 g, it is clearly aimed at ambitious riders who prioritize weight, efficiency and precision.

The combination of Dorado Air spring with IVA (Incremental Volume Adjust) and the high-quality VTT Pro damping allows for extremely fine tuning – from sensitive to progressive, perfect for race use and technical trails.

Thanks to Boost standard, tapered steerer tube and support for 27.5+ and 29", the R7 Pro is ideal for modern XC and marathon bikes.

Highlights:

• Only approx. 1648 g: a true lightweight for race and marathon bikes.
• Dorado Air + IVA: maximum fine-tuning of sensitivity & progression.
• VTT Pro damping: Open / Trail / Lock with fine-tuning in open mode.
• Boost 15x110 mm: precise handling and high stiffness.
• Race performance: developed for ambitious XC riders.

Technical Data:

• Manufacturer: Manitou
• Model: R7 Pro
• Model year: 2022
• Intended use: XC / Marathon / Trail
• Wheel size: 27.5+ / 29"
• Travel: 120 mm
• Offset: 44 mm
• Steerer tube: tapered (1.5" – 1 1/8")
• Stanchion diameter: 32 mm
• Spring: Dorado Air with IVA
• Damping: VTT Pro / TPC
• Adjustments: Air pressure, rebound, compression (Open / Trail / Lock), IVA
• Axle: 15 x 110 mm Boost (Hexlock)
• Brake mount: Postmount 160 mm (max. 203 mm)
• Max. tire width: 77 mm (27.5+), 68 mm (29")
• Material: Aluminium (AL7000 stanchions)
• Color: Black / Silver crown
• Weight: approx. 1648 g

Scope of delivery:

• 1x Manitou R7 Pro suspension fork 120 mm
• incl. Fender Kit (Mezzer compatible)
• incl. Magnum Spacer Kit

EAN: 847863026125

"Extremely lightweight high-end suspension fork for maximum XC performance and precise handling."
