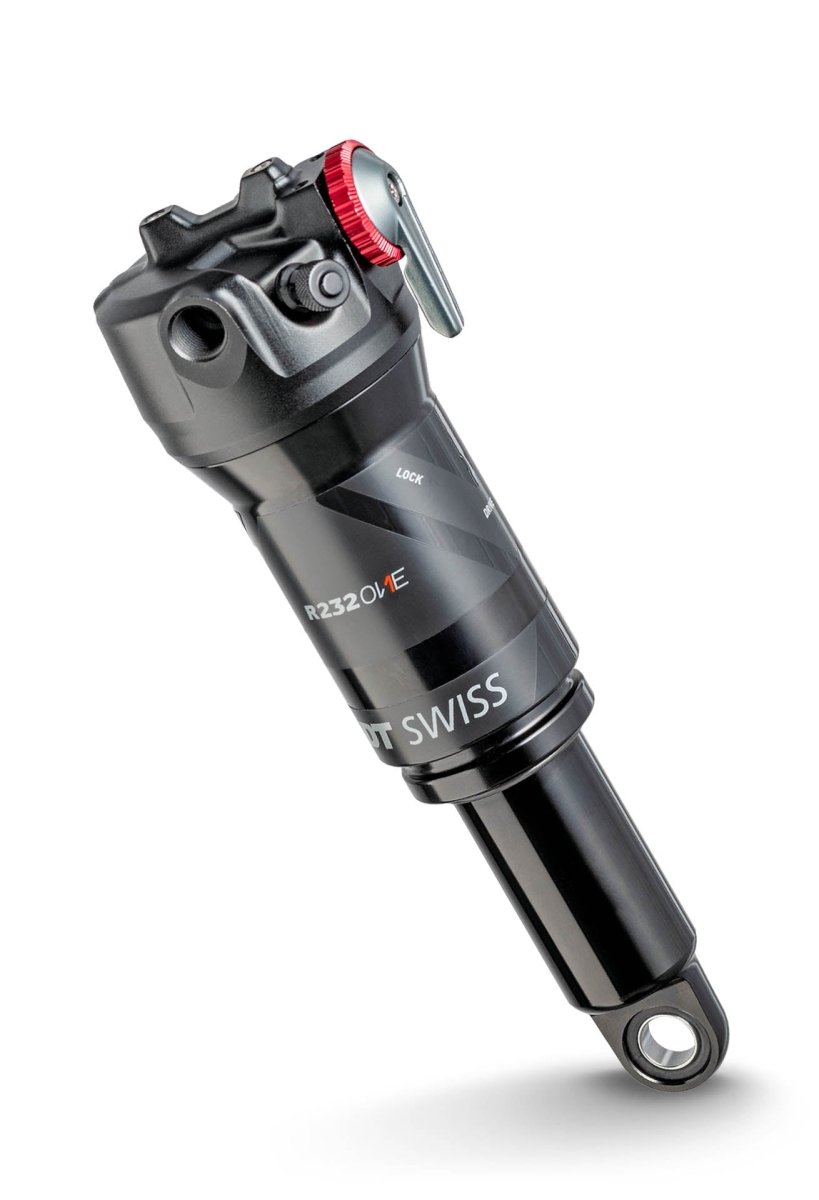

The DT Swiss R 232 ONE is an ultra-light air shock for XC and trail bikes – with 55 mm travel and Trunnion Mount for maximum frame integration. Developed for highest efficiency and sensitive response, it impresses on technical climbs as well as on fast descents.

The MM lever allows switching the shock modes directly on the frame – ideal for race conditions or dynamic terrain. The high-quality Spherical Bearing improves sensitivity and relieves the frame's pivot bearings from lateral forces. Weighing only 282 g (depending on hardware), the R 232 ONE is a true lightweight with uncompromising performance.

Functional Advantages:

• Light & precise: From just 282 g – optimised for sporty XC setups
• MM lever: Mode change directly on the shock – no handlebar remote needed
• Spherical Bearing: Ball bearing mount for high sensitivity & frame protection

Technical Details:

• Mounting length: 185 mm (Trunnion Mount)
• Travel: 55 mm
• Lockout: Lever (on the shock)
• Adjustments: Air pressure, Lockout, Rebound

• Bearing: Spherical Bearing
• Suspension: Air
• Colour: Black
• Weight: from 282 g (without hardware)

Scope of delivery:

• 1x DT Swiss R 232 ONE Shock 185x55 mm Trunnion

Manufacturer No.: C232ONEECESA29305S | EAN: 7613052349916

For sporty riders who do not want to compromise on weight, control and performance.
