This Öhlins mounting kit (bushings) is suitable for MTB shocks with a 15 mm shock eyelet, such as the Öhlins STX22, TTX Air and TTX22m. The bushing has a diameter of 12.74 mm and a length of 40 mm with an 8 mm bore. It is supplied with two plastic spacers and seals and enables secure mounting of the shock in the frame.
The matching plain bearings are already included with the shock. This kit completes the mounting for an installation width of 40 mm and an 8 mm bolt mount.
Technical data:
- Compatibility: Öhlins STX22, TTX Air, TTX22m shocks with 15 mm shock eyelet
- Installation width: 40 mm
- Bolt mount: 8 mm
- Bushing diameter: 12.74 mm (for 15 mm shock eyelet with plain bearing)

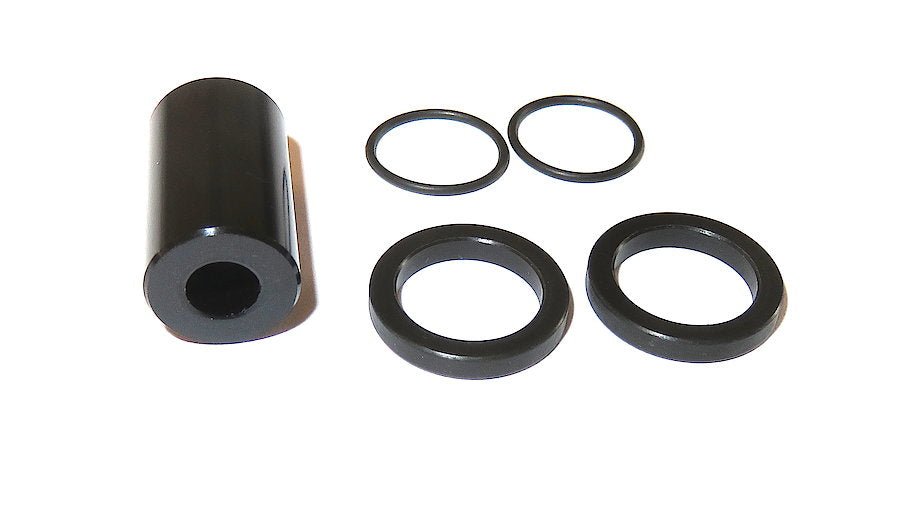

Scope of delivery:
- 1x metal sleeve 40 mm x 12.74 mm, 8 mm bore
- 2x plastic spacers 11.8 mm x 17.45 mm, 12.75 mm hole diameter
- 2x seals
- Note: Workshop packaging (without outer packaging)
Manufacturer part no.: 18130-17
SKU: C2C34
Öhlins Bushings 8x40 mm | 15 mm shock eyelet | for STX22, TTX Air, TTX22m shocks
This Öhlins mounting kit (bushings) is suitable for MTB shocks with a 15 mm shock eyelet, such as the Öhlins STX22, TTX Air and TTX22m. The bushing has a diameter of 12.74 mm and a length of 40 mm with an 8 mm bore. It is supplied with two plastic spacers and seals and enables secure mounting of the shock in the frame.
The matching plain bearings are already included with the shock. This kit completes the mounting for an installation width of 40 mm and an 8 mm bolt mount.
Technical data:
- Compatibility: Öhlins STX22, TTX Air, TTX22m shocks with 15 mm shock eyelet
- Installation width: 40 mm
- Bolt mount: 8 mm
- Bushing diameter: 12.74 mm (for 15 mm shock eyelet with plain bearing)
Scope of delivery:
- 1x metal sleeve 40 mm x 12.74 mm, 8 mm bore
- 2x plastic spacers 11.8 mm x 17.45 mm, 12.75 mm hole diameter
- 2x seals
- Note: Workshop packaging (without outer packaging)
Manufacturer part no.: 18130-17
