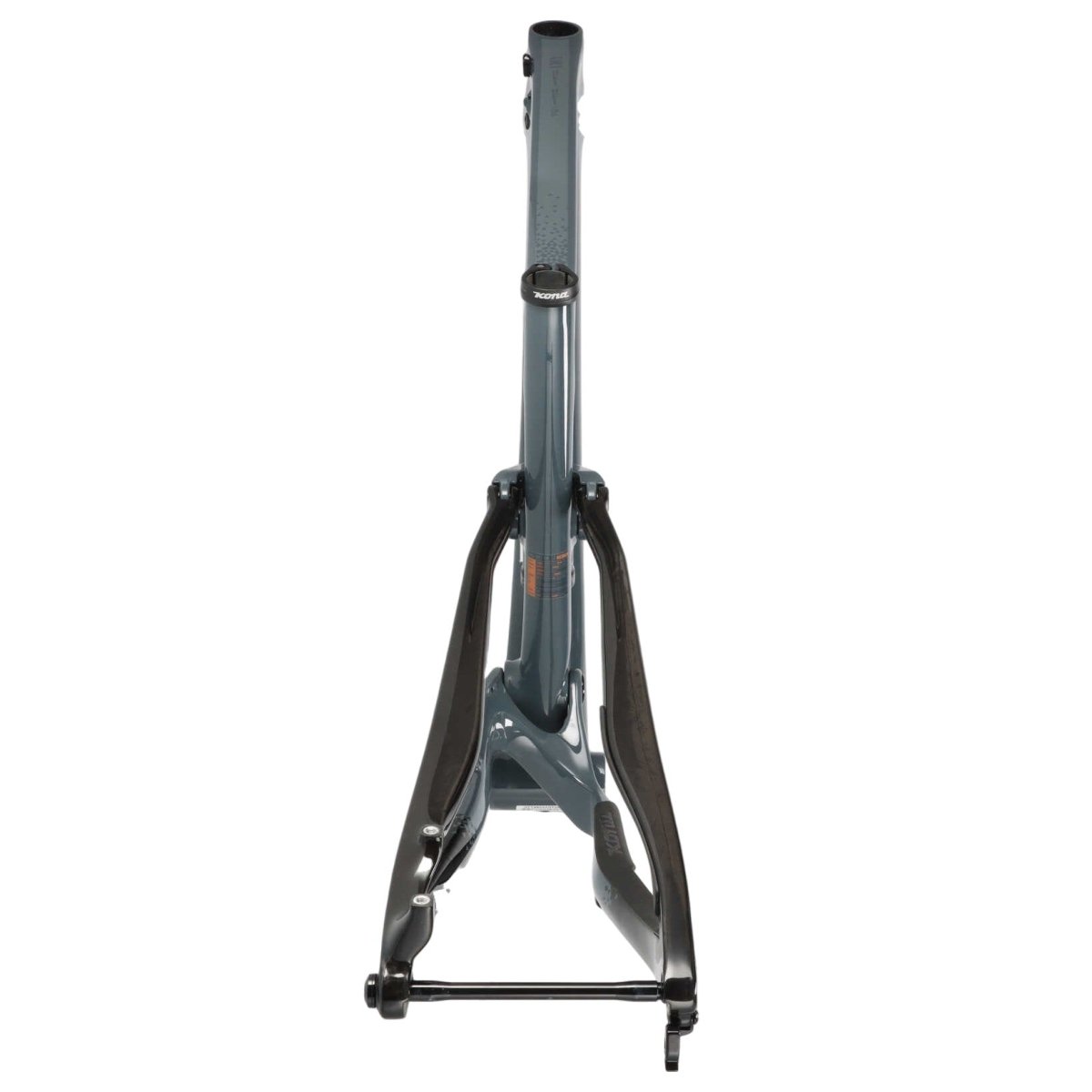

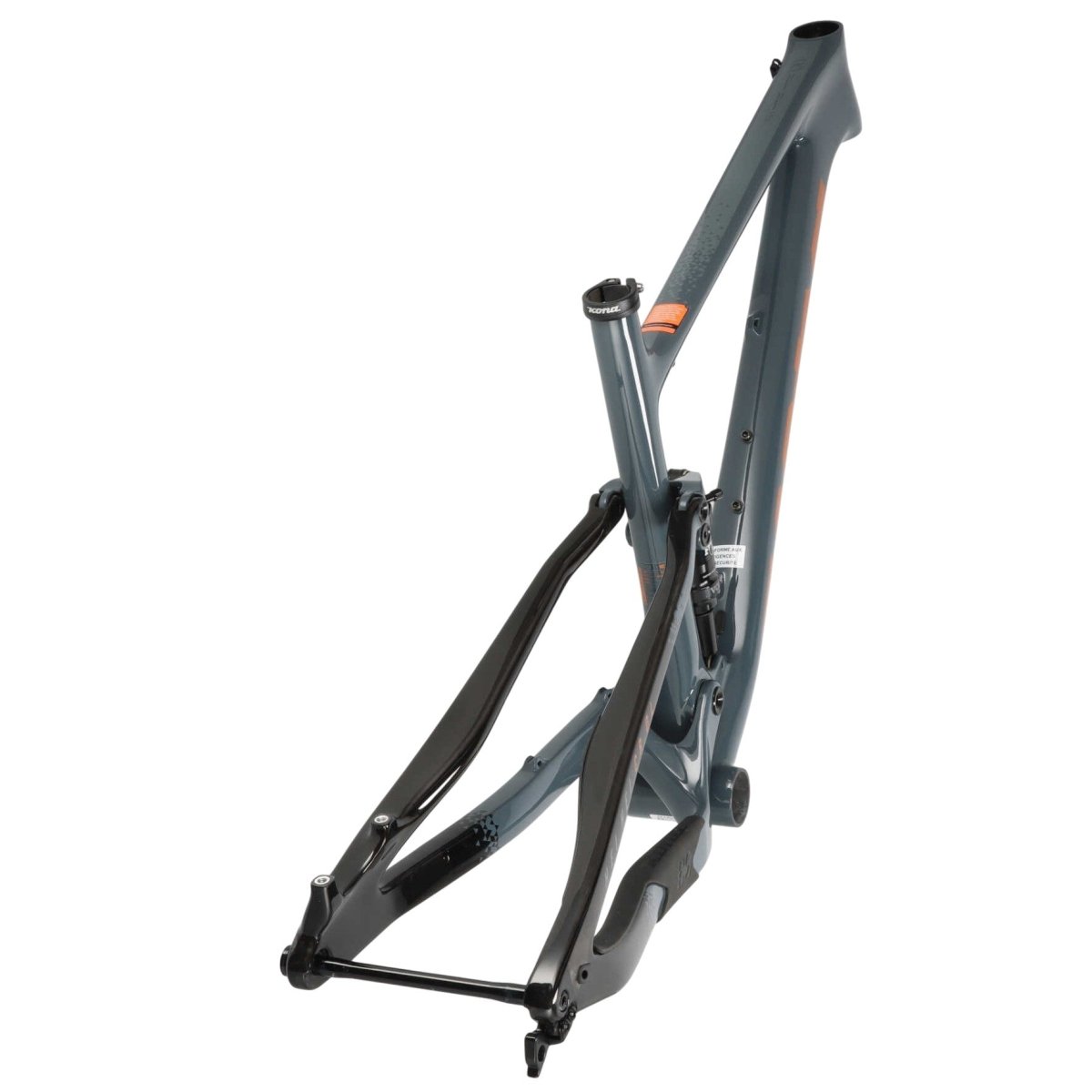

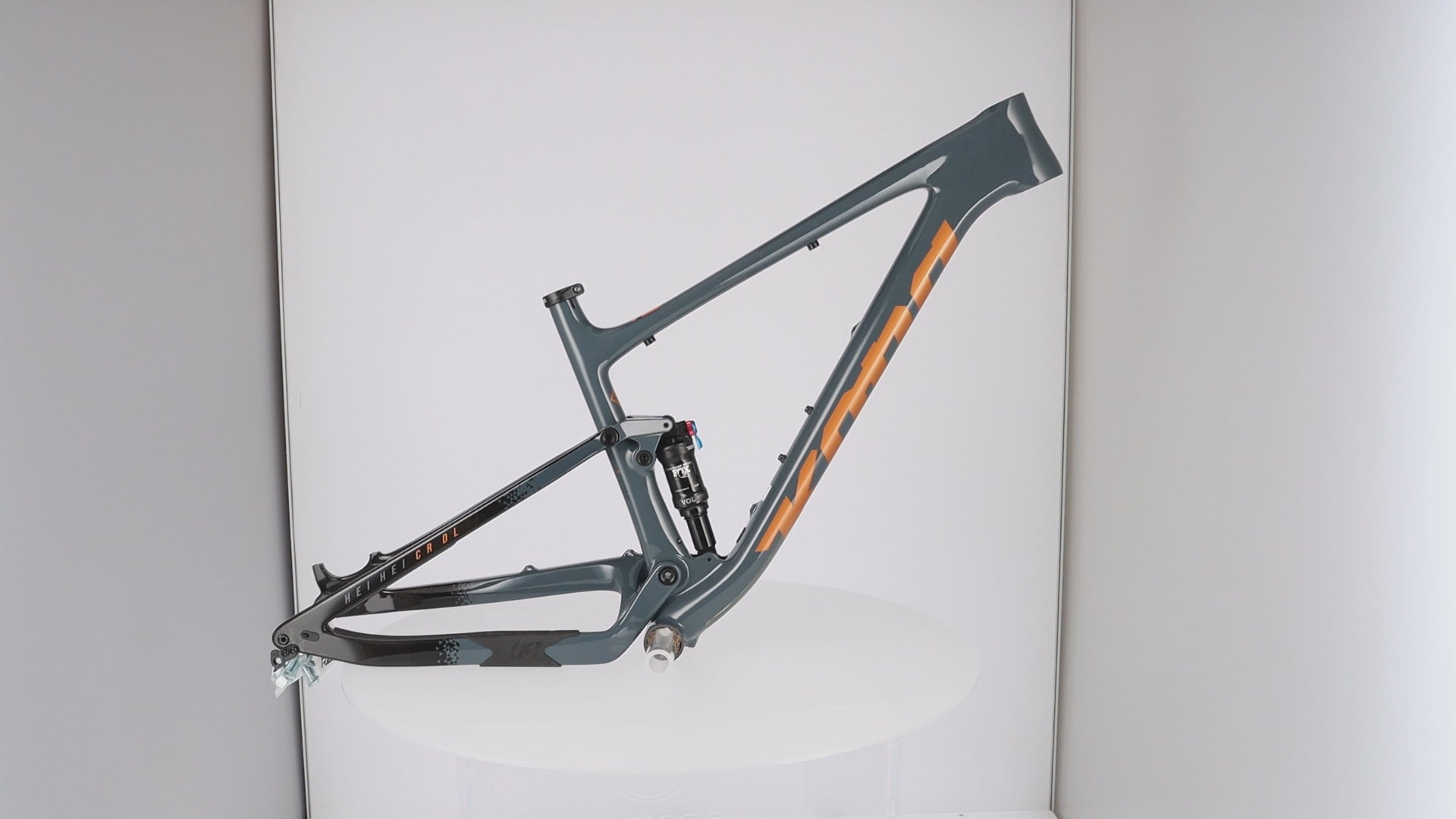

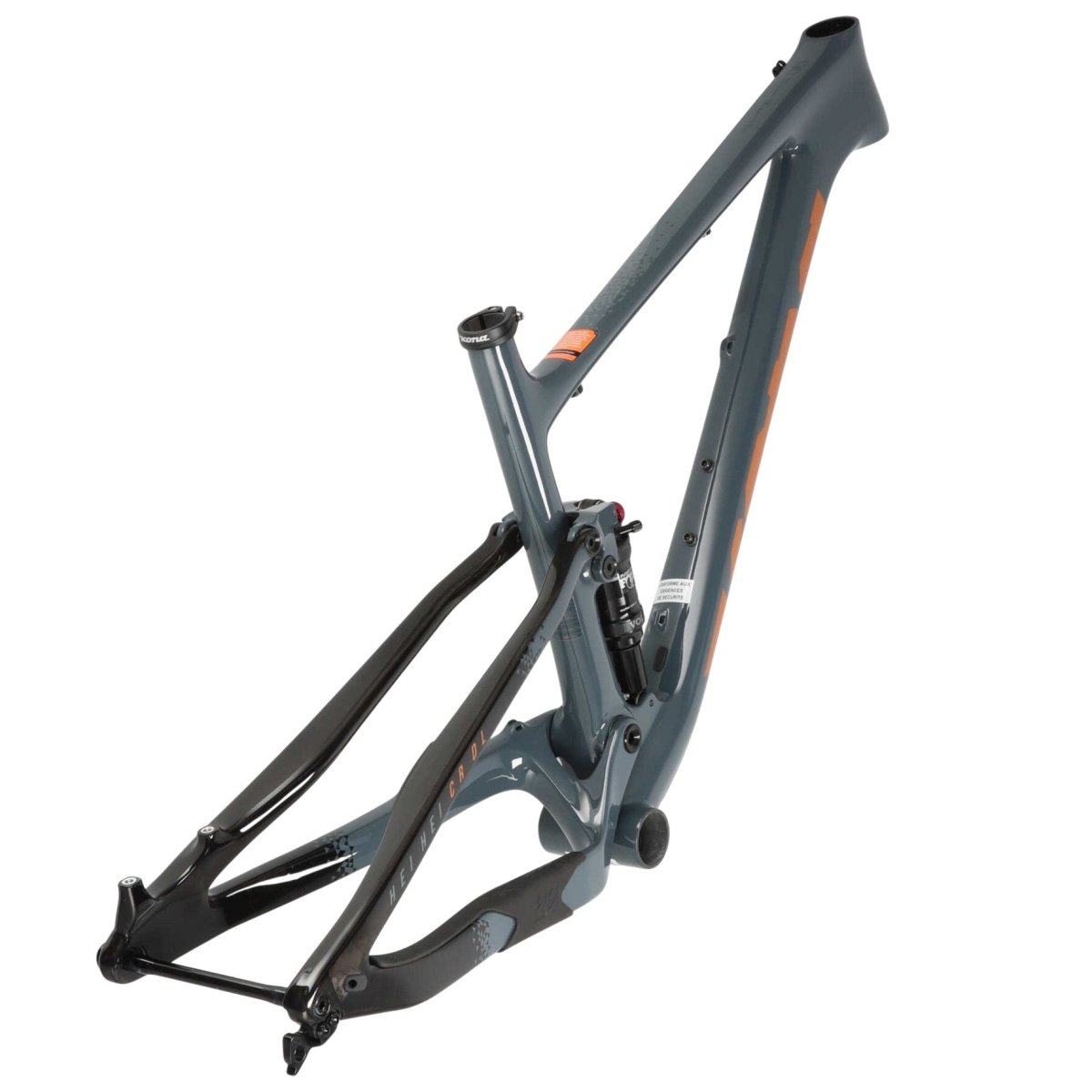

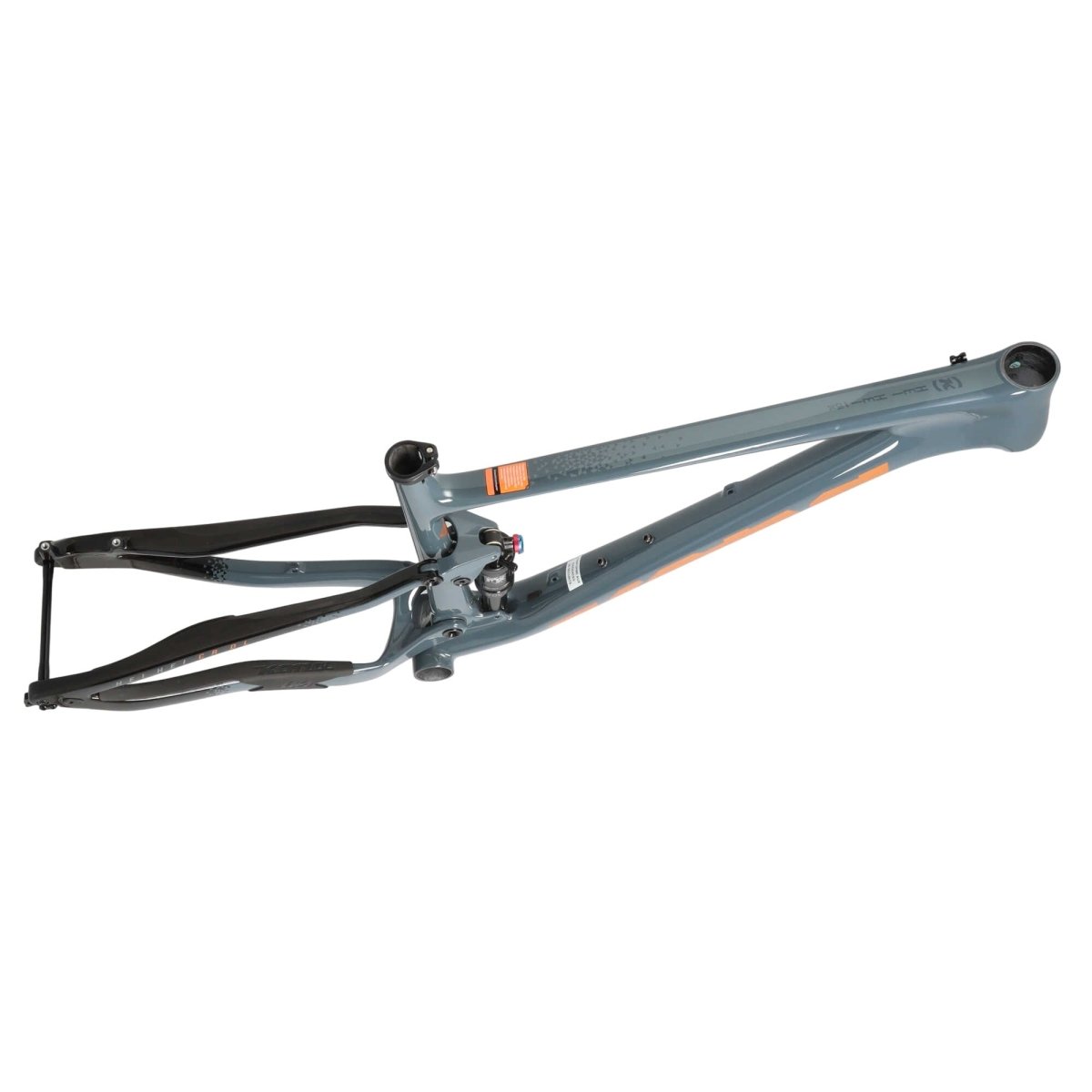

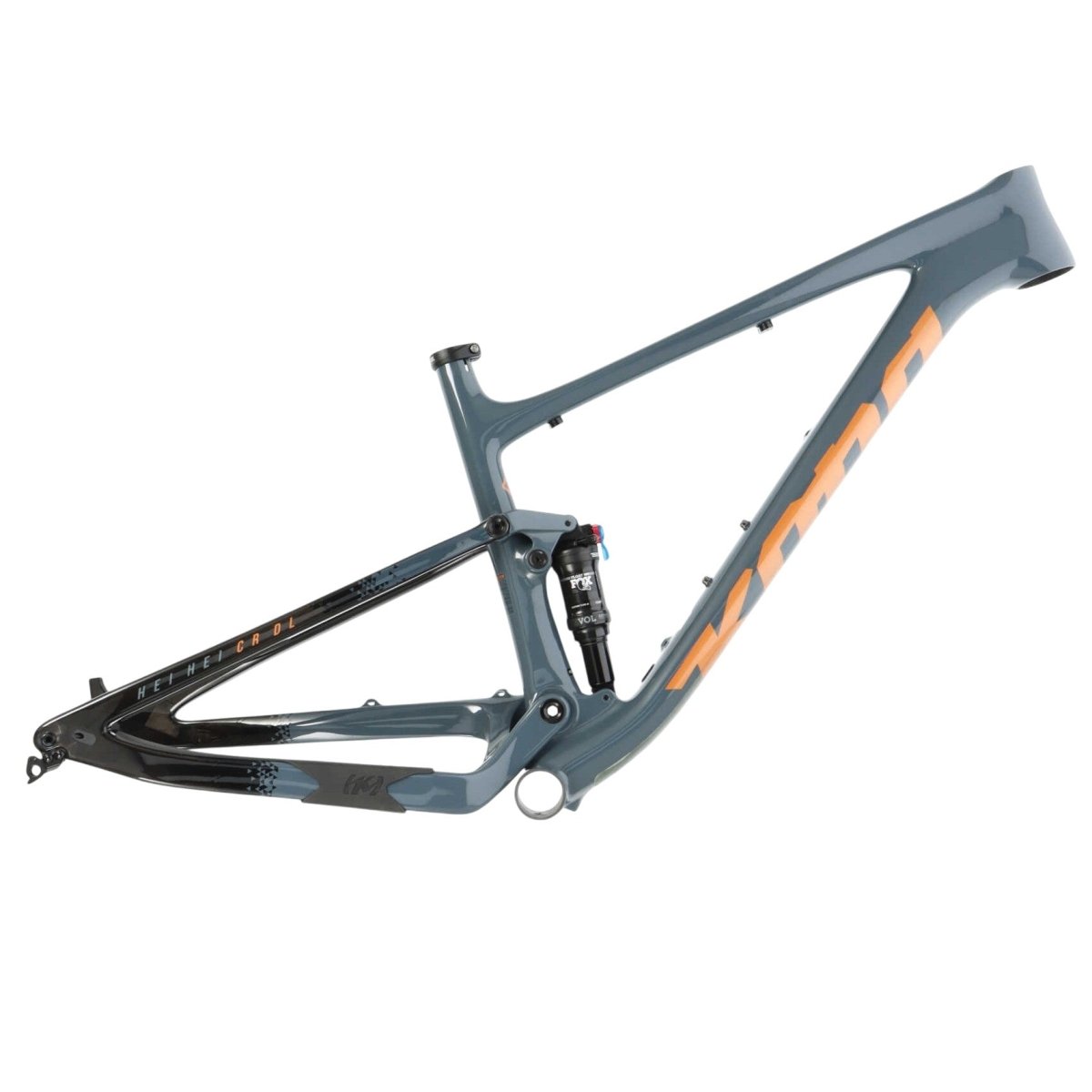

Race-ready carbon frame for top-level XC and marathon use.

The Kona Hei Hei CR DL Carbon frame (2019 model year) is the epitome of a modern full-suspension cross-country race bike. Developed and used by Kona's top XC racers, this frame is aimed at ambitious riders who are looking to chase KOMs or compete for podium finishes. The frame comes including a FOX DPS Performance shock, making it race-ready right out of the box.

Designed for 29" wheels, the frame offers 100–120 mm of front travel (depending on fork setup) and 100 mm of rear travel. This combination ensures maximum efficiency when accelerating, high speed over long distances, and sufficient control on technical sections. The Boost rear triangle (12x148 mm) guarantees high stiffness and precise handling.

With a PF92 bottom bracket, Postmount brake mount, and the head tube standard 44 mm top / 55.95 mm bottom, the frame meets all relevant XC and marathon standards. The gray / black color scheme emphasizes its clear, uncompromising race character.

The frame is designed for a 31.6 mm seatpost with a 34.9 mm seat clamp. Weighing only 2210 g, the Hei Hei CR DL is one of the particularly lightweight full-suspension frames in its class.

Highlights:

• Carbon XC Frame (2019): extremely lightweight, stiff, and race-proven.
• 29" Race Platform: maximum efficiency and smooth running.
• 100 mm Rear / 100–120 mm Front: perfect for XC & Marathon.
• Incl. FOX DPS Performance Shock: race-ready from the factory.
• Boost 12x148 mm: stiff rear triangle for precise race handling.

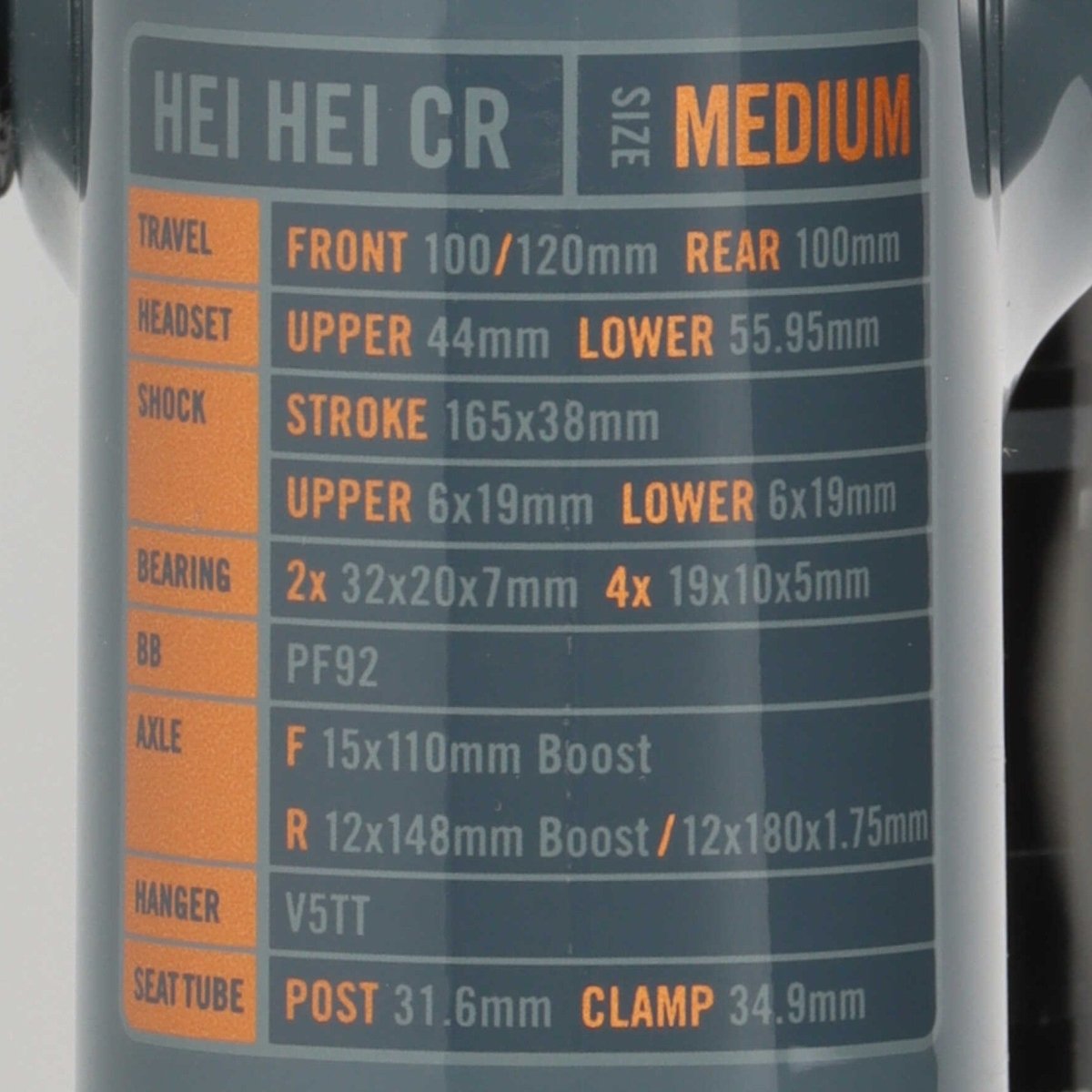

Technical Data:

• Manufacturer: Kona
• Model: Hei Hei CR DL
• Model Year: 2019
• Frame Type: Cross Country / Marathon Bicycle Frame (Full Suspension)
• Material: Carbon
• Frame Size: S/ M/ XL
• Color: gray / black
• Wheel Size: 29"
• Travel: 100 mm rear / 100–120 mm front

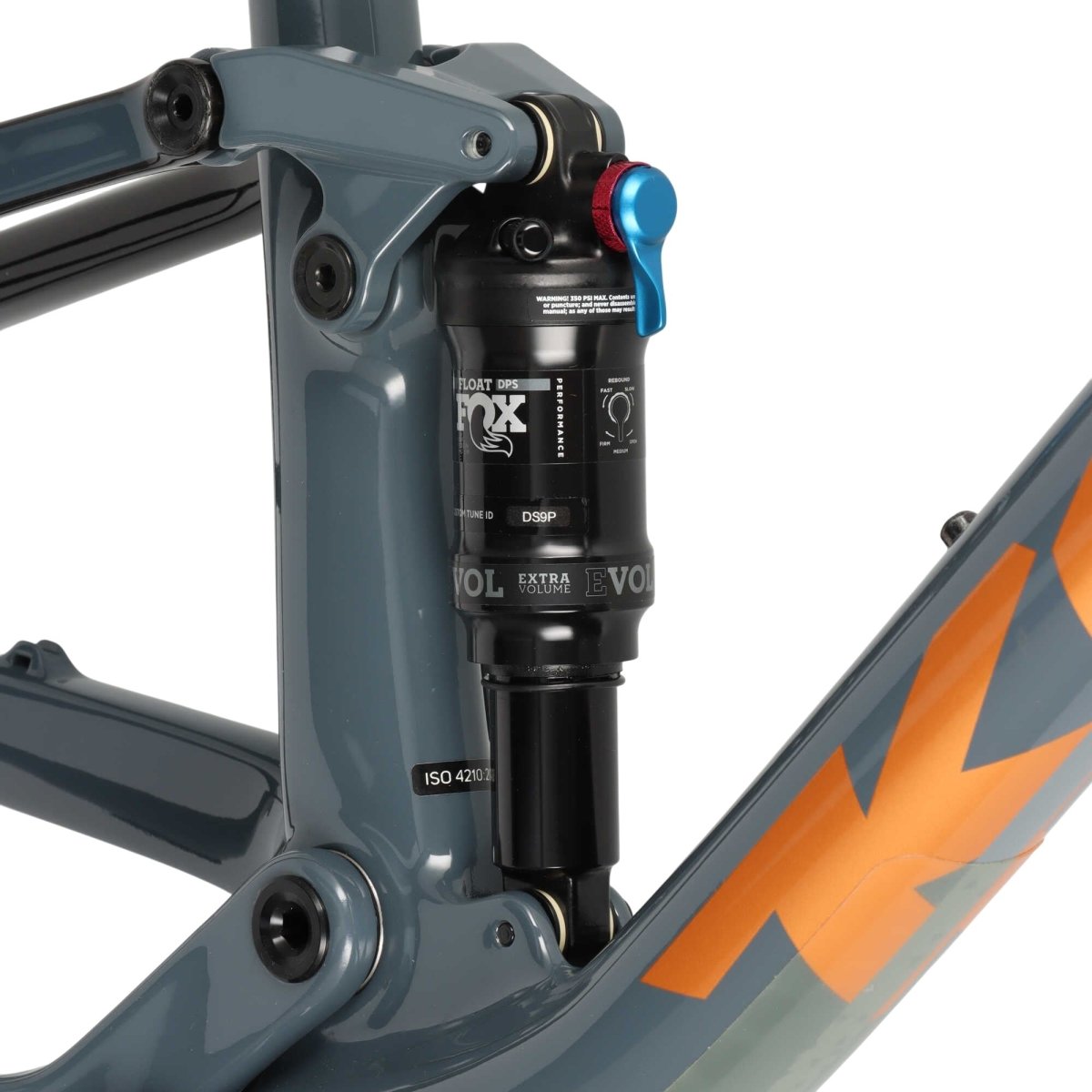

• Shock: FOX DPS Performance
• Rear Axle: 12 x 148 mm Boost
• Brake Mount: Postmount
• Seat Tube / Clamp: 31.6 mm / 34.9 mm
• Bottom Bracket: PF92
• Headset / Head Tube Standard: 44 mm top / 55.95 mm bottom
• Weight: 2210 g

Scope of Delivery:

• 1 x Kona Hei Hei CR DL Carbon Frame gray | Size M | 29"
• 1 x FOX DPS Performance Shock (mounted)
• Including thru-axle and derailleur hanger

EAN: 841073129652

The Kona Hei Hei CR DL frame (2019) is an uncompromising carbon base for XC and marathon racers seeking maximum efficiency, low weight, and race capability.
