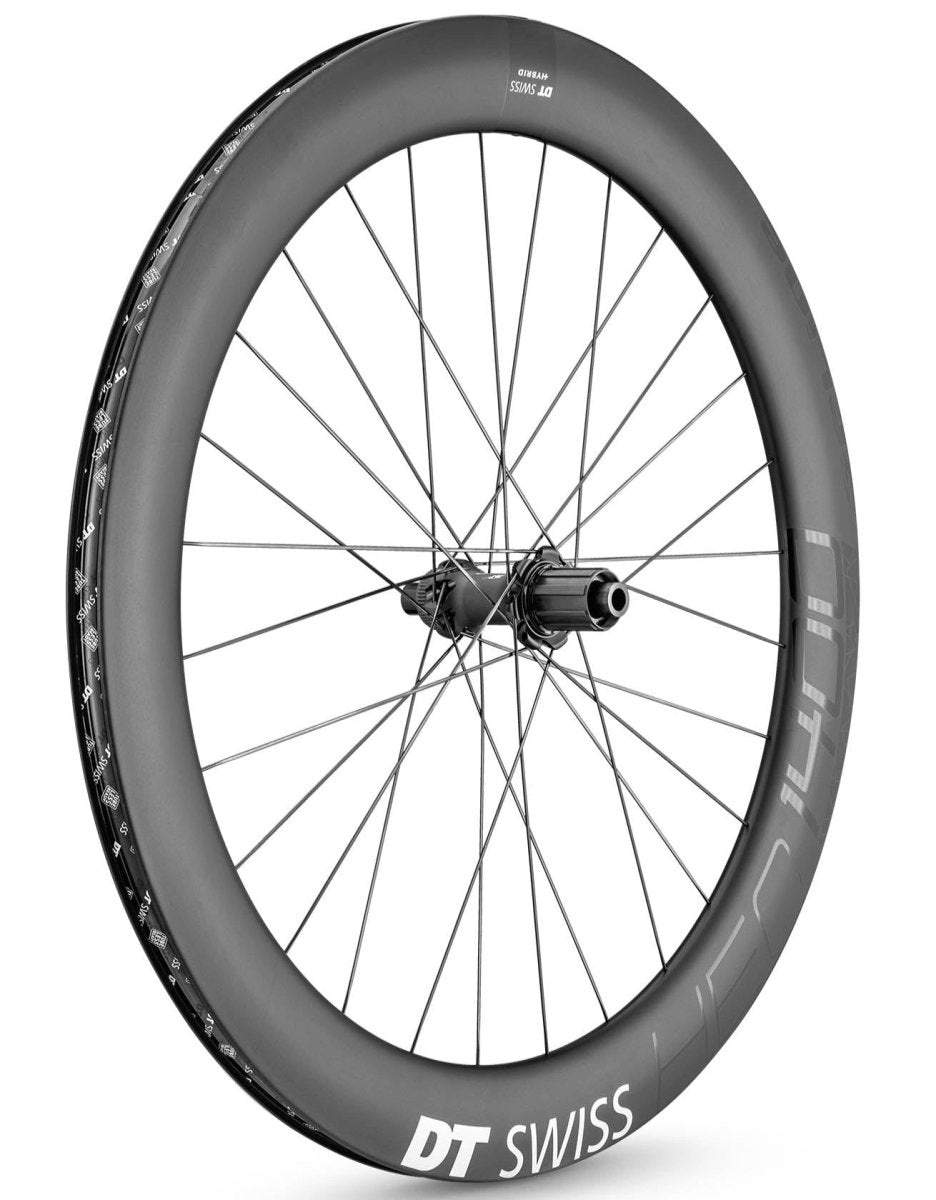

More aero, more range, more reserves: The DT Swiss HEC1400 SPLINE db 62 rear wheel (28"/700C) combines a 62 mm high carbon rim with a 240 hub and Ratchet 24T – eBike approved up to 130 kg. Hooked, tubeless-ready and with optional XDR freehub body in the package for maximum drivetrain compatibility.

Highlights:

• 62 mm Aero Carbon: high efficiency, stability & speed on Road/Gravel/eRoad
• 240 Hub & Ratchet 24T: stiff power transfer, defined engagement & easy maintenance
• Hybrid Spokes: DT aero comp^® hybrid straightpull – designed for eBike loads
• Hooked, Tubeless Ready (TC): secure tire fit & easy setup
• Dual Freehub: Shimano HG Road 11 (Steel, SS11) pre-mounted plus SRAM XDR included in delivery

Technical Data:

• Area of Use: E-Road, Road, Gravel (ASTM 2)
• Size: 28" / 700C
• Rim Height: 62 mm
• Inner Width (Mouth Width): 20 mm
• Outer Width: 27 mm
• Rim: Carbon, Hooked / Crotchet, Tubeless Ready (TC)
• Hub: DT Swiss 240, Centerlock, Ratchet System 24
• Rear Axle: 12 × 142 mm
• Freehub: Shimano HG Road 11 (SS11, Steel) pre-mounted; SRAM XDR included
• Spokes: DT aero comp^® hybrid straightpull (left/right)
• Weight (RW): approx. 1050 g
• Approval: eBike up to 32 km/h / 250 W
• Max. System Weight: 130 kg (Rider + Bike + Luggage)
• Color: black
• Brake Compatibility: Center Lock

Scope of Delivery:

• 1× DT Swiss HEC 1400 SPLINE db 62 Rear Wheel (12×142 mm, Center Lock)
• 1× Tubeless Valve
• 1× SRAM XDR Freehub Body for conversion (in addition to the pre-mounted Shimano HG Road 11 SS11)
• Note: Workshop Packaging (without outer packaging)

Manufacturer Part No.: WHEC140NIDVCA11423 | EAN: 7613052373232

HEC 1400 SPLINE 62 – Aero Carbon with eBike approval: fast, durable and maximally compatible.
