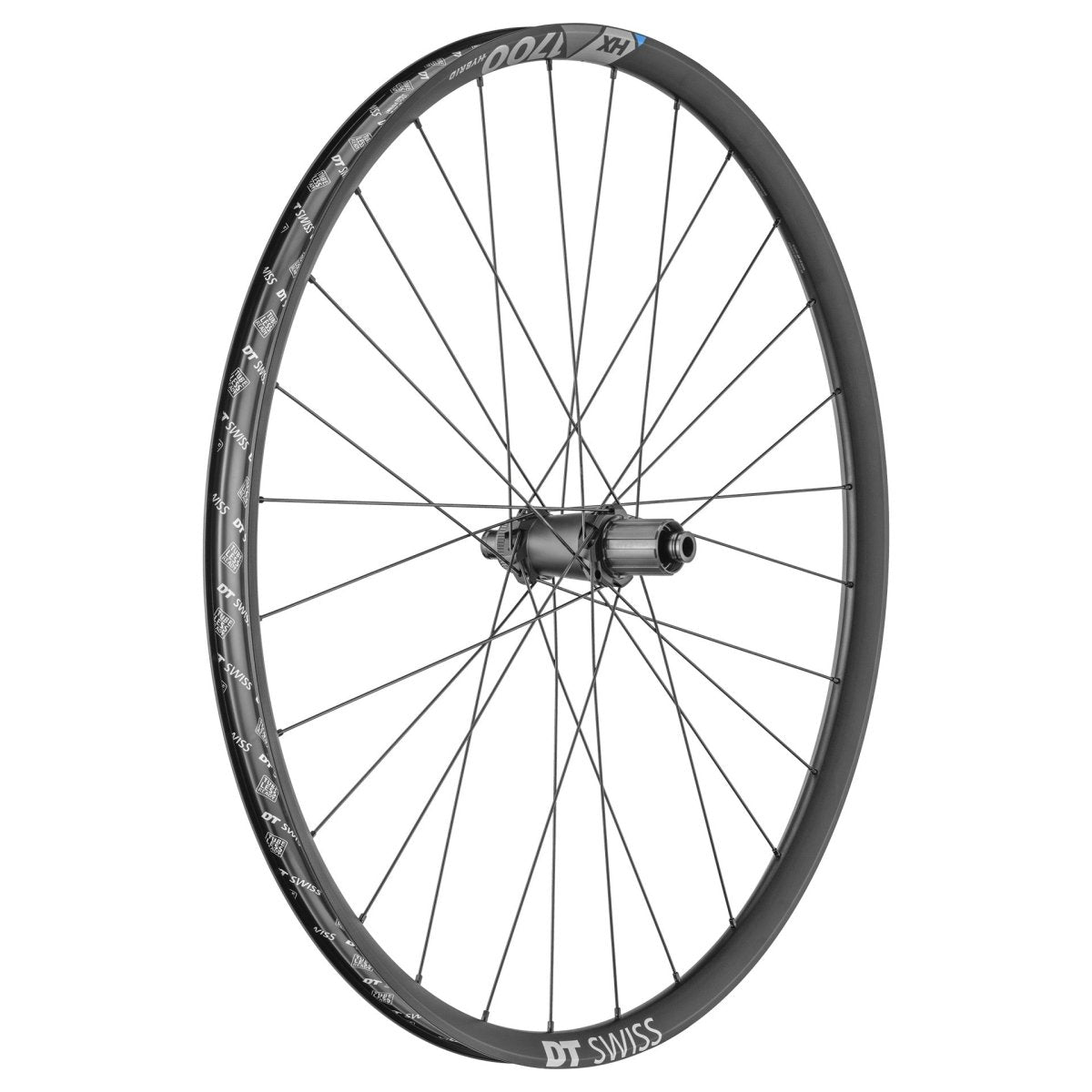

Robust 27.5" Boost rear wheel for trail and E-MTB use.
The DT Swiss HX 1700 SPLINE 27.5" rear wheel with a 30 mm internal width is designed for demanding use on trails and E-MTBs. The stable aluminum rim ensures optimal tire support and precise control on technical terrain.
The high-quality DT Swiss 350 hub with Ratchet System 24 provides direct power transmission and durable performance. In combination with DT hybrid 1 Straightpull spokes, it creates a robust wheelset for modern 12x148 mm Boost setups. Approved for E-MTBs up to 250 W.
Technical data:
- Model: HX 1700 SPLINE
- Version: Rear wheel
- Size: 27.5" / 650B
- Rim: Aluminum, Hooked / Crotchet tubeless TC
- Internal width: 30 mm
- Rim height: 21 mm
- Outer width: 35 mm
- Axle: 12x148 mm Boost thru axle
- Brake disc mount: Centerlock
- Freehub: Shimano HG
- Hub: DT Swiss 350 with Ratchet System 24
- Net weight: 1109 g
- Max. system weight: 150 kg
- ASTM: 4
- E-Bike approval: Yes (up to 32 km/h / 250 W)
- Manufacturer number: WHX1700TGDSSA18325
SKU: 8325 (V2A1)
DT Swiss HX 1700 SPLINE Rear Wheel 27.5" | 30 mm Inner Rim Width | 12x148 mm Boost Thru Axle | Centerlock | Shimano HG
Check compatibility
Will this wheel fit your bike?
In our short video, we explain what to look out for when checking axle size, freehub type and brake rotor mount.
Robust 27.5" Boost rear wheel for trail and E-MTB use.
The DT Swiss HX 1700 SPLINE 27.5" rear wheel with a 30 mm internal width is designed for demanding use on trails and E-MTBs. The stable aluminum rim ensures optimal tire support and precise control on technical terrain.
The high-quality DT Swiss 350 hub with Ratchet System 24 provides direct power transmission and durable performance. In combination with DT hybrid 1 Straightpull spokes, it creates a robust wheelset for modern 12x148 mm Boost setups. Approved for E-MTBs up to 250 W.
Technical data:
- Model: HX 1700 SPLINE
- Version: Rear wheel
- Size: 27.5" / 650B
- Rim: Aluminum, Hooked / Crotchet tubeless TC
- Internal width: 30 mm
- Rim height: 21 mm
- Outer width: 35 mm
- Axle: 12x148 mm Boost thru axle
- Brake disc mount: Centerlock
- Freehub: Shimano HG
- Hub: DT Swiss 350 with Ratchet System 24
- Net weight: 1109 g
- Max. system weight: 150 kg
- ASTM: 4
- E-Bike approval: Yes (up to 32 km/h / 250 W)
- Manufacturer number: WHX1700TGDSSA18325
