Robust premium hub for powerful E-MTB & Trail wheels.

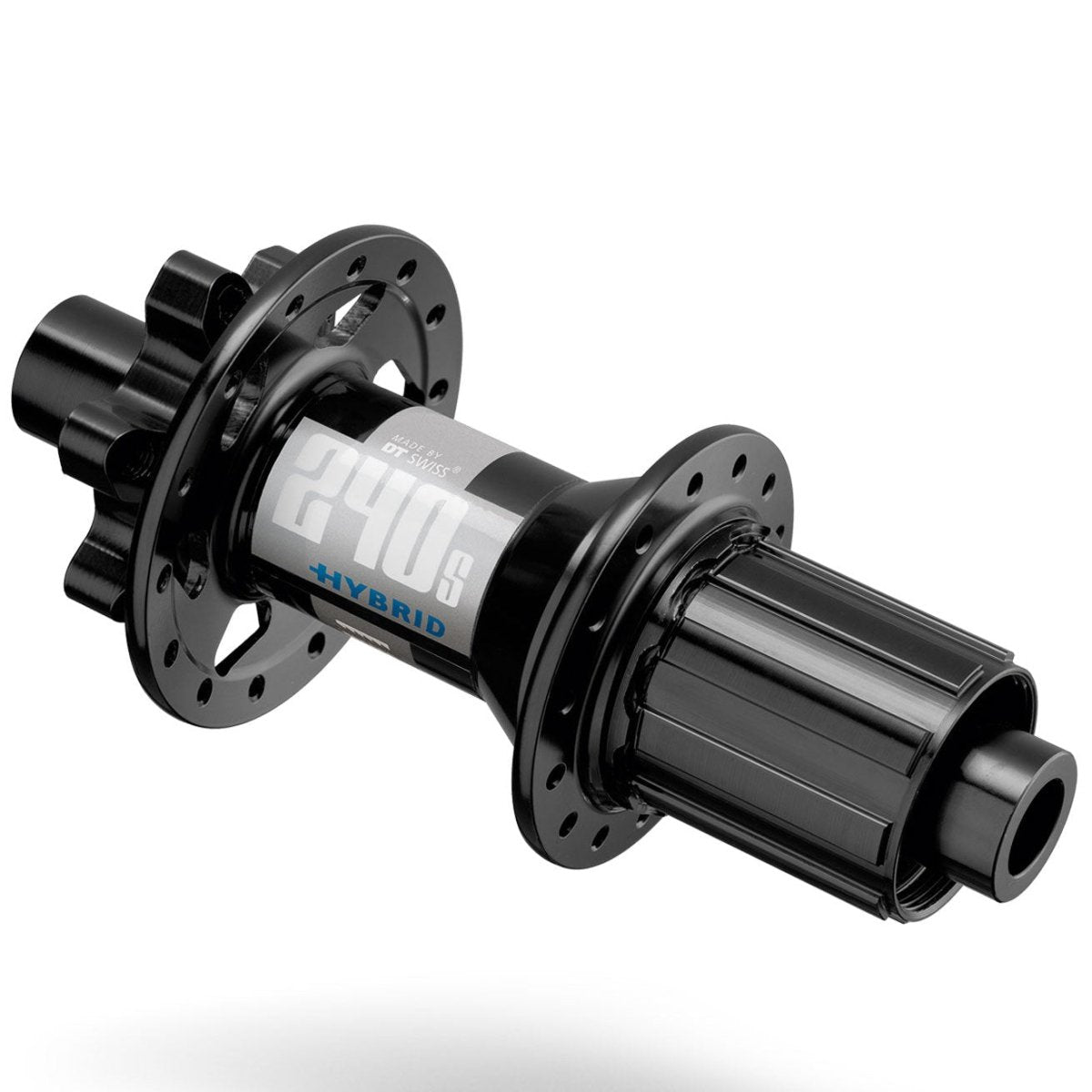

The DT Swiss 240 Hybrid Straightpull Rear Hub with 12x148 mm Boost, 32 holes, and 6-bolt disc mount was specially developed for high torques and tough use. Thanks to its reinforced housing, steel freehub body, and proven Ratchet System 24, it is perfect for modern E-MTBs and powerful trail bikes with Shimano 11-speed drivetrains.

The DT Swiss Ratchet System with precisely machined star ratchets offers large-area power transmission and extremely high reliability – ideal when strong motor assistance and aggressive riding styles meet. The steel freehub body (Shimano Steel SS) withstands the highest drivetrain loads and prevents indentations from the cassette. The hybrid design with an oversized hub body, reinforced spoke mounts, and heavy-duty axle allows for an approved system weight of up to 150 kg, making the hub the ideal basis for robust e-bike wheels.

Typical DT Swiss: The No-Tool Concept allows for quick, tool-free disassembly for maintenance or conversion. High-quality industrial bearings and efficient sealing ensure consistently smooth running – even in rain, mud, and many vertical meters. Whether it's an Enduro E-MTB, touring bike, or powerful hardtail: this 240 Hybrid is built for riders who want to rely on their wheels at all times.

Highlights:

• Hybrid design: reinforced housing, heavy-duty axle, and robust spoke mounts for high torques.
• Ratchet System 24: proven star ratchet freehub system for direct, reliable power transmission.
• Steel freehub body (Shimano Steel SS): ideal for Shimano 11-speed cassettes, particularly resistant to indentations.
• Boost standard 12x148 mm: maximum stiffness for modern E-MTB and MTB frames.
• E-bike ready: approved for e-bikes up to 32 km/h or 250 W and system weights up to approx. 150 kg.

Technical Data:

• Brand: DT Swiss
• Model: 240 Hybrid Straightpull Rear Hub
• Application: E-MTB, Trail, All-Mountain, Enduro
• Axle System: 12 mm Thru Axle
• Installation Width: 148 mm (Boost)
• Brake System: Disc Brake
• Brake Disc Mount: Disc IS (6-bolt)
• Hole Count: 32 holes
• Spoke Type: for J-Bend or standard spoke mounts of the Hybrid series (reinforced)
• Freehub System: Ratchet System 24
• Freehub Body: Shimano Steel (SS), compatible with Shimano 11-speed MTB / 10-/11-speed HG
• Approved for E-Bikes: yes, up to 32 km/h or max. 250 W
• Hub Body Material: Aluminum
• Freehub Body Material: Steel
• Color: black

Hybrid Advantages at a Glance:

• Oversized hub housing with increased wall thickness for greater stiffness.
• Heavy-duty axle and reinforced spoke mounts for maximum durability.
• Steel rotor and hardened star ratchets for high continuous loads in e-bike use.

Compatibility:

• Frames with Boost installation width 12x148 mm
• 6-bolt brake discs (IS standard)
• Shimano HG MTB cassettes (e.g., 11-speed)
• Modern E-MTB and MTB wheel builds with 32 spokes

Scope of Delivery:

• 1 x DT Swiss 240 Hybrid Rear Hub | 12x148 mm Boost | Disc IS (6-bolt) | 32 holes | Shimano Steel Freehub (SS)
• Without thru axle, spokes, brake discs, and other accessories
• Note: Workshop packaging (without retail packaging)

Manufacturer Part No.: H240TDDSR32SA4182S | EAN: 7613052184470 |

The DT Swiss 240 Hybrid 12x148 mm is the right choice for anyone who wants to build an extremely robust, high-performance rear wheel for E-MTB or powerful trail bikes with a Shimano 11-speed cassette.
