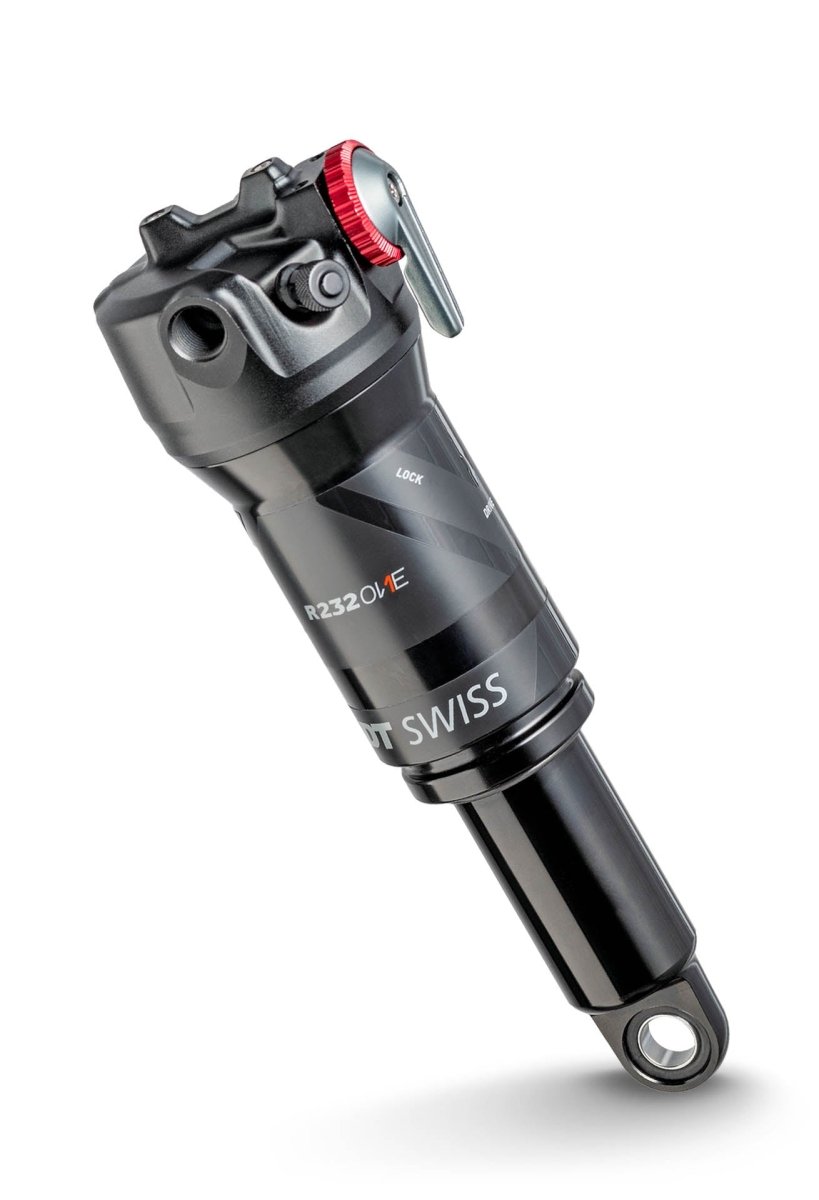

The DT Swiss R 232 ONE impresses as an uncompromisingly light air shock for XC and trail use. With its compact Trunnion mounting and specially tuned damping characteristics, it delivers precise control with maximum efficiency on demanding terrain.

Thanks to the MM lever (Manual/Manual), the shock can be switched directly on the frame – ideal for quick transitions between climb and descend. The high-quality Spherical Bearing mounting ensures a sensitive response and protects the frame from lateral forces. With a weight of only 267 g (depending on hardware), it is the perfect partner for sporty XC and marathon bikes.

Functional advantages:

• Light & efficient: From only 267 g – ideal for XC, trail and marathon
• MM lever: Shock modes can be easily switched via a lever directly on the shock
• Spherical Bearing: Ball bearing bushings for optimal deflection and frame relief

Technical details:

• Installation length: 165 mm (Trunnion Mount)
• Travel: 45 mm
• Lockout: Lever (on the shock)
• Settings: Air pressure, Lockout, Rebound
• Mounting: Spherical Bearing
• Suspension: Air
• Colour: Black
• Weight: from 267 g (without hardware)

Scope of delivery:

• 1x DT Swiss R 232 ONE shock 165x45 mm Trunnion (remote on the shock)

EAN: 7613052349831 | Manufacturer no.: C232OCMECESA29290S

For all those who want to gain speed uphill and maintain control downhill – the DT Swiss R 232 ONE is ready.
