Strong four-piston power at a fair price: The Shimano MT501/MT520 (rear) combines the BL-MT501 brake lever with the BR-MT520 4-piston caliper – ideal for everything from XC & Trail to E-MTB. Servo-Wave ensures quick response, while the opposing pistons with two piston diameters increase the contact area for controlled, consistent braking power. Thermally insulated pads & pistons increase durability and longevity. The brake hose is pre-assembled and bled - but still needs to be connected.

Highlights:

• 4-piston caliper (BR-MT520): high deceleration, precise modulation, wide contact surface
• Servo-Wave lever (BL-MT501): fast pad engagement, short free stroke, strong control
• Easy maintenance: D01 Resin pads, thermally insulated pistons & pads, Postmount mounting

Technical data (rear):

• Area of use: MTB, Trekking, E-MTB

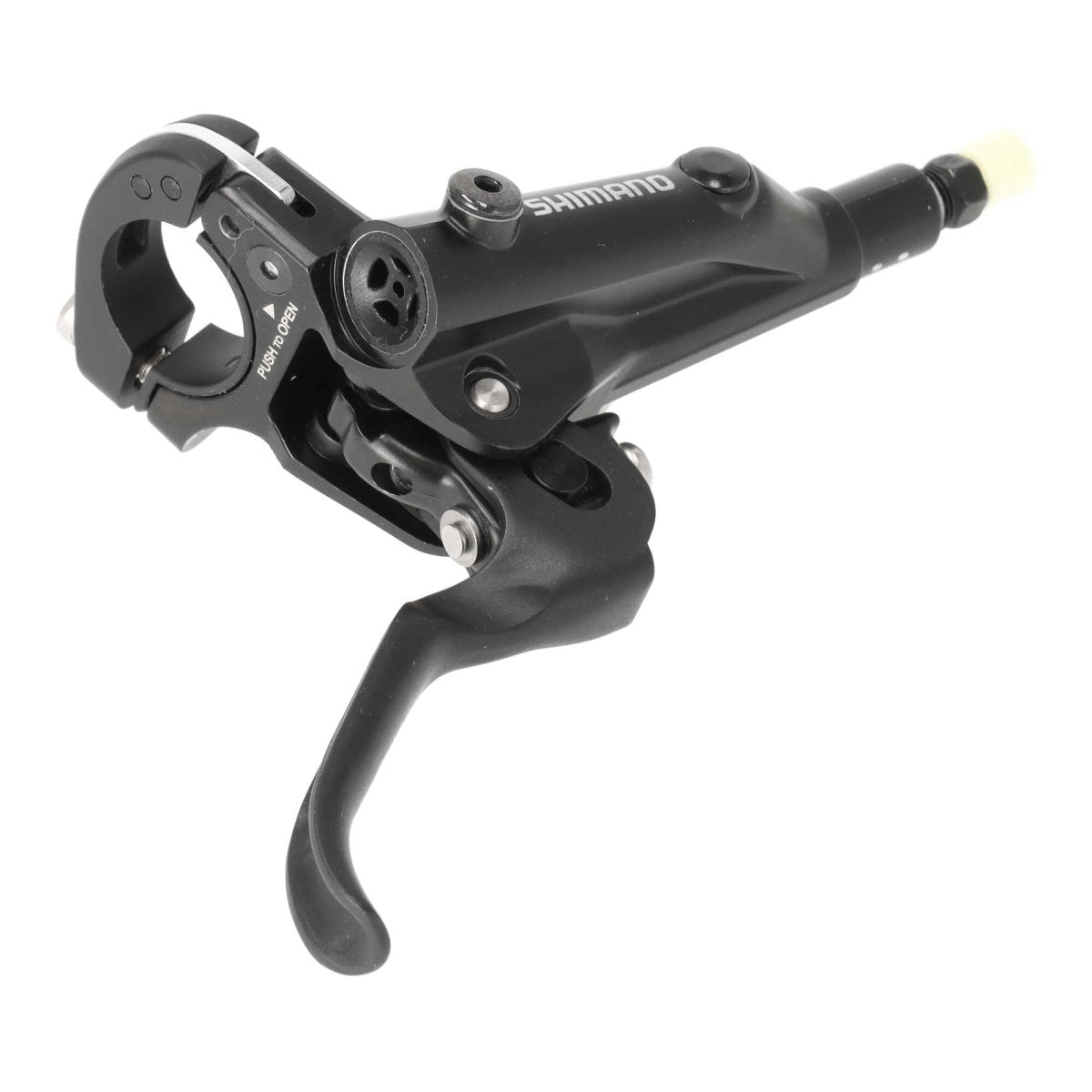

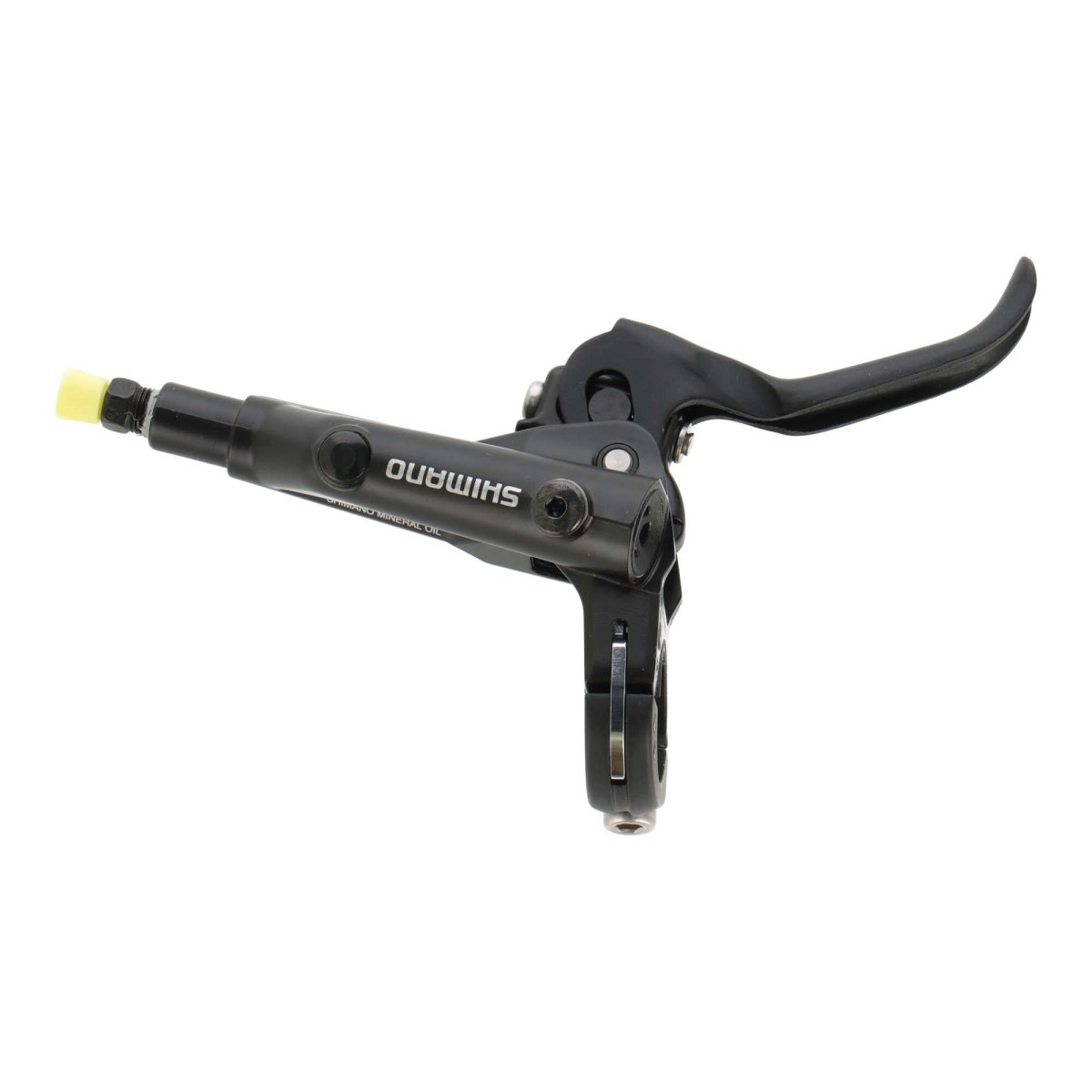

• Lever: BL-MT501, 2-finger, I-Spec compatible, reach adjustable with tool

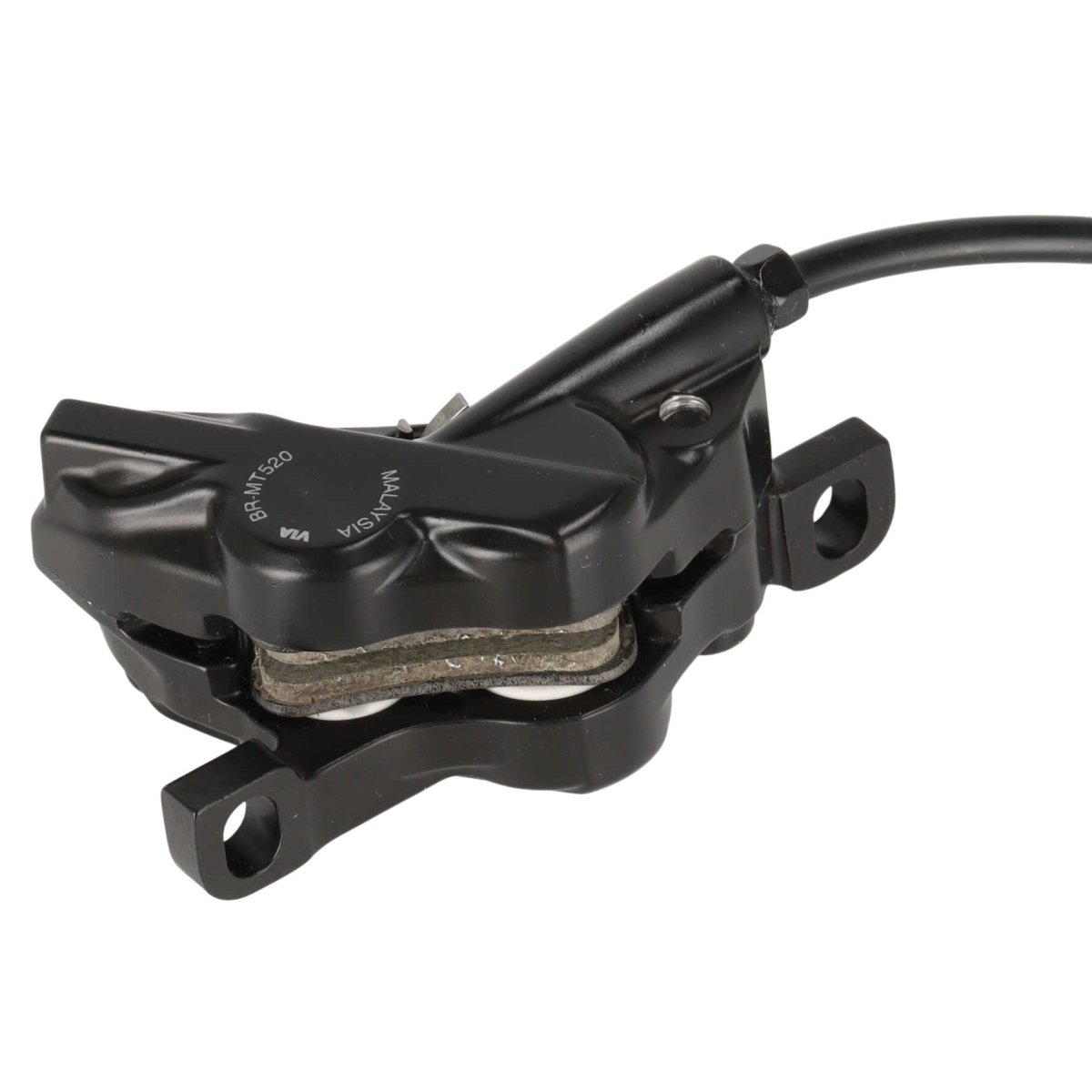

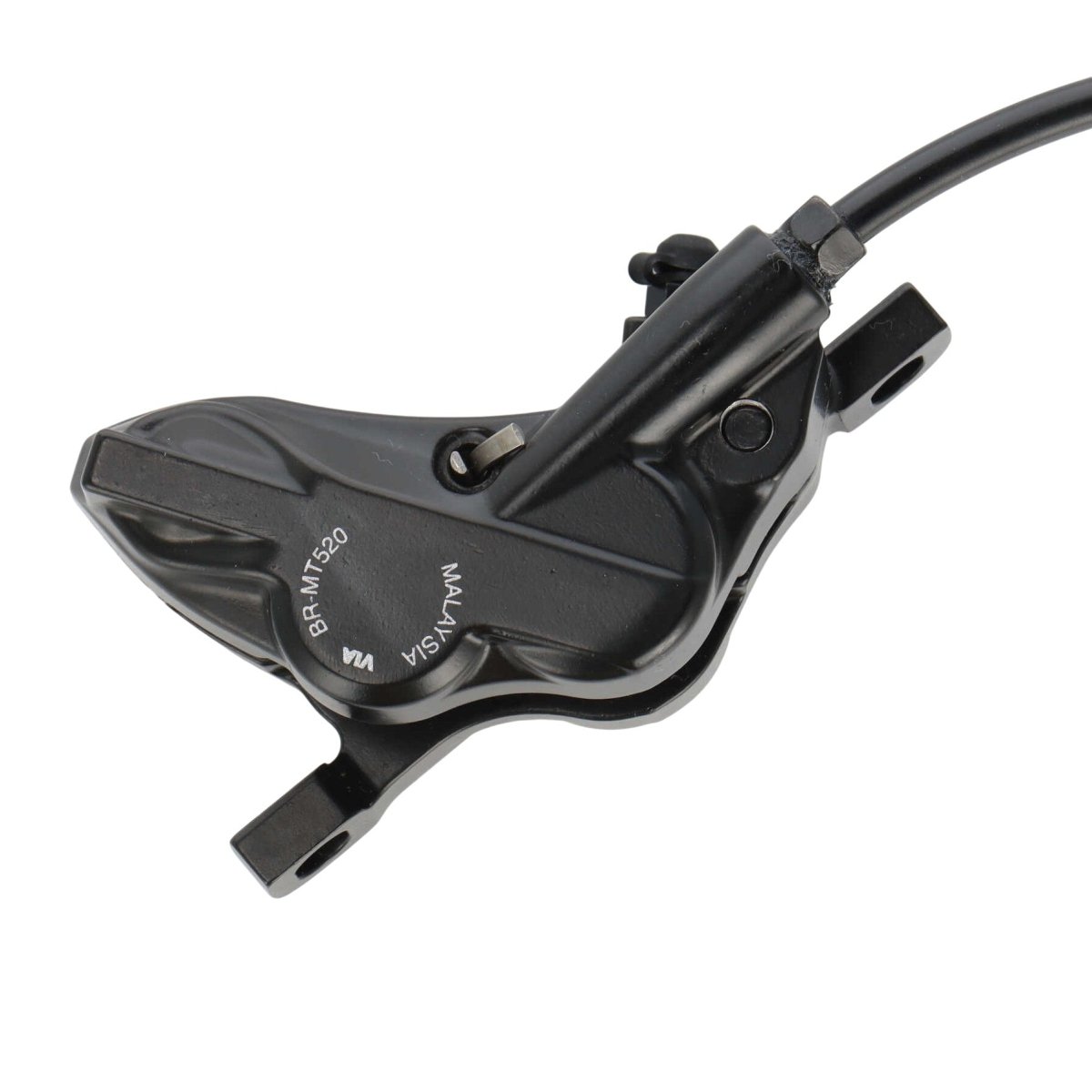

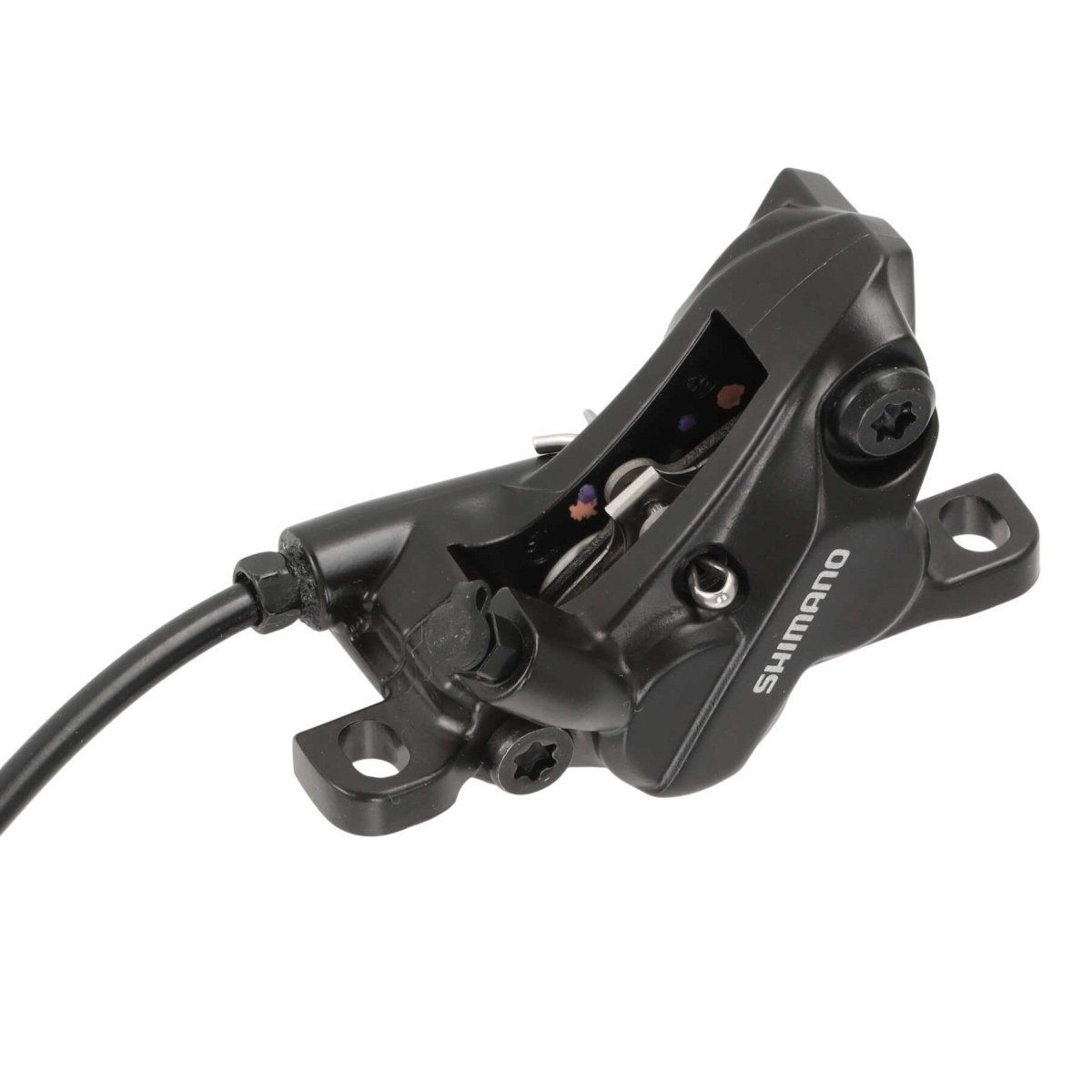

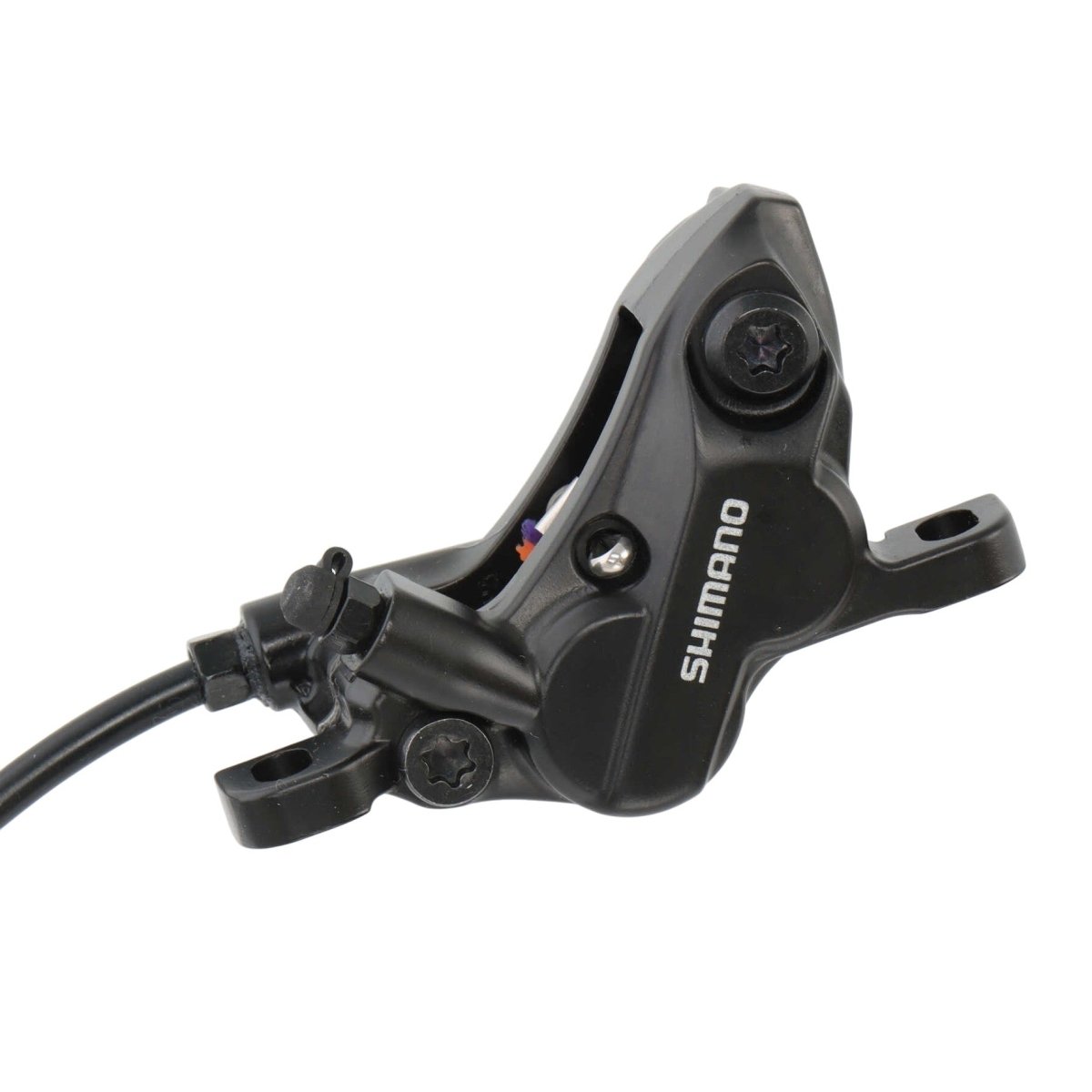

• Brake caliper: BR-MT520, 4-piston, aluminum, Postmount
• Brake hose: SM-BH90-SS, length approx. 1700 mm (can be shortened), pre-assembled/filled
• Brake medium: Shimano mineral oil
• Pads: D01 Resin (included)
• Features: Servo-Wave, open clamp, integrated reach adjustment, I-Spec
• Color: black

Scope of delivery:

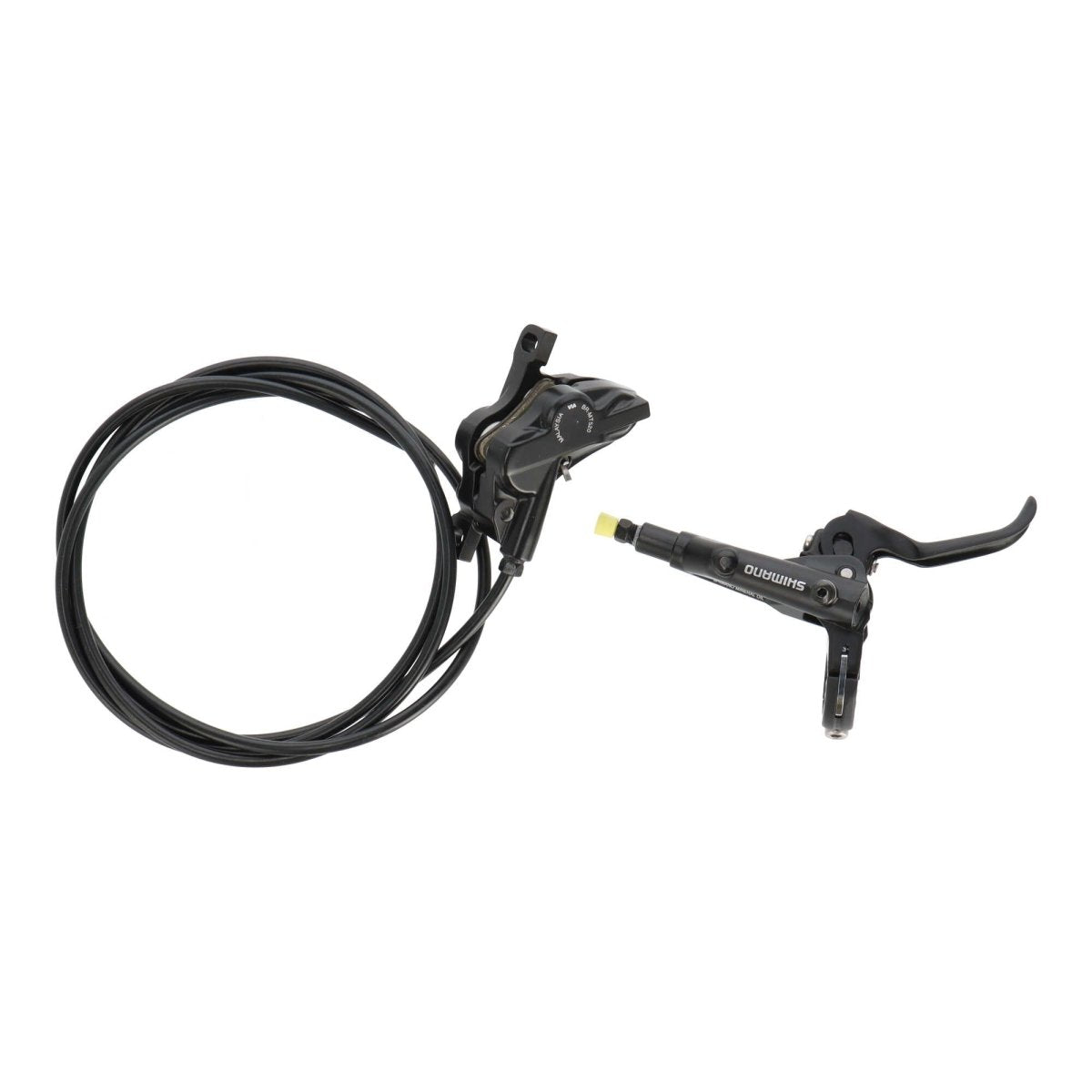

• 1× Shimano MT501/MT520 rear brake (BL-MT501 + BR-MT520), hose 1700 mm

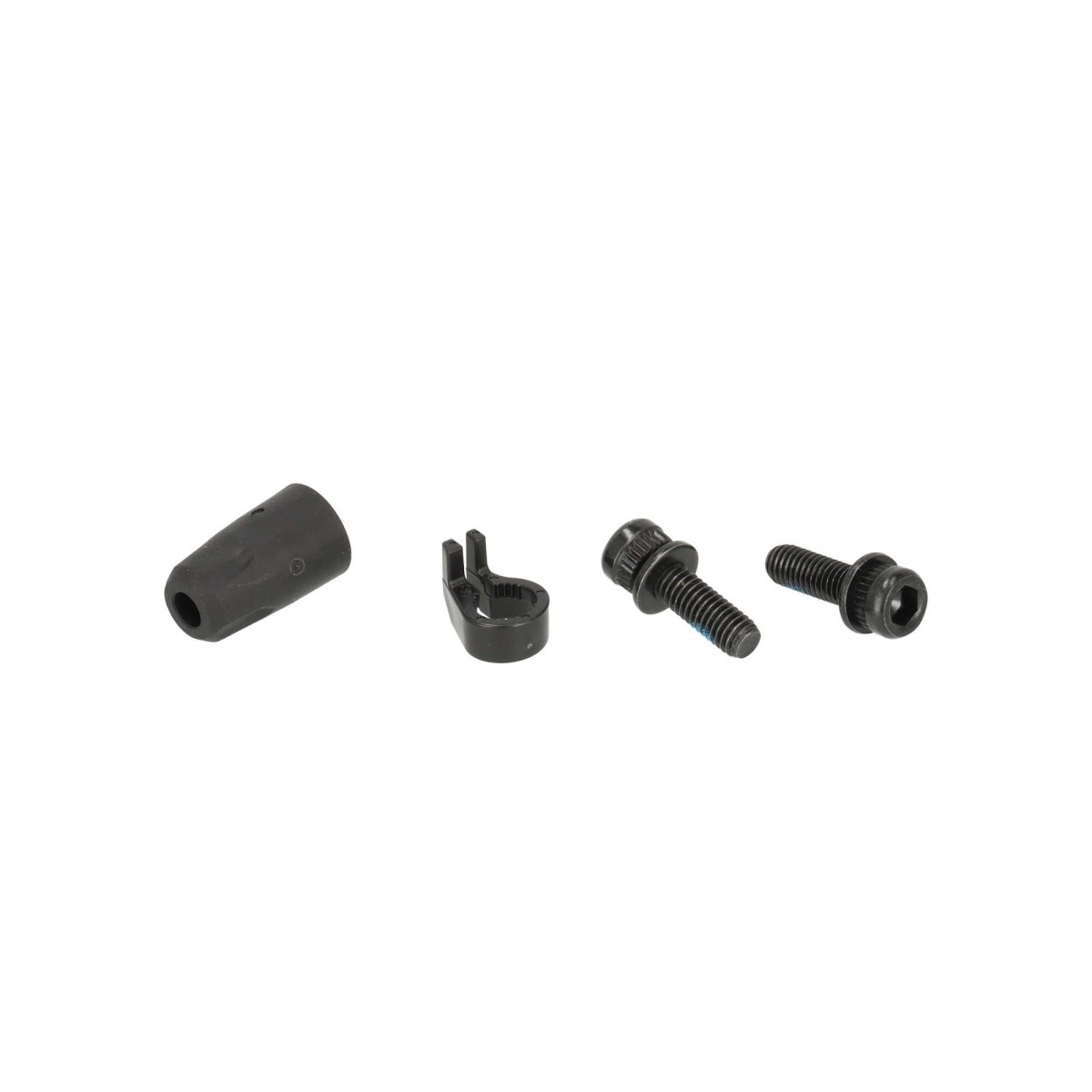

• Includes D01 Resin brake pads, 2 caliper mounting screws
• Note: Workshop packaging (without outer packaging)

Manufacturer part no.: AMT501EJRRXRX170

MT501/MT520 – the proven Shimano 4-piston combo: quick to react, stable on descents, ready for (E-)trails.
