Stable aluminum enduro frame for uncompromising 27.5" trail and enduro setups.

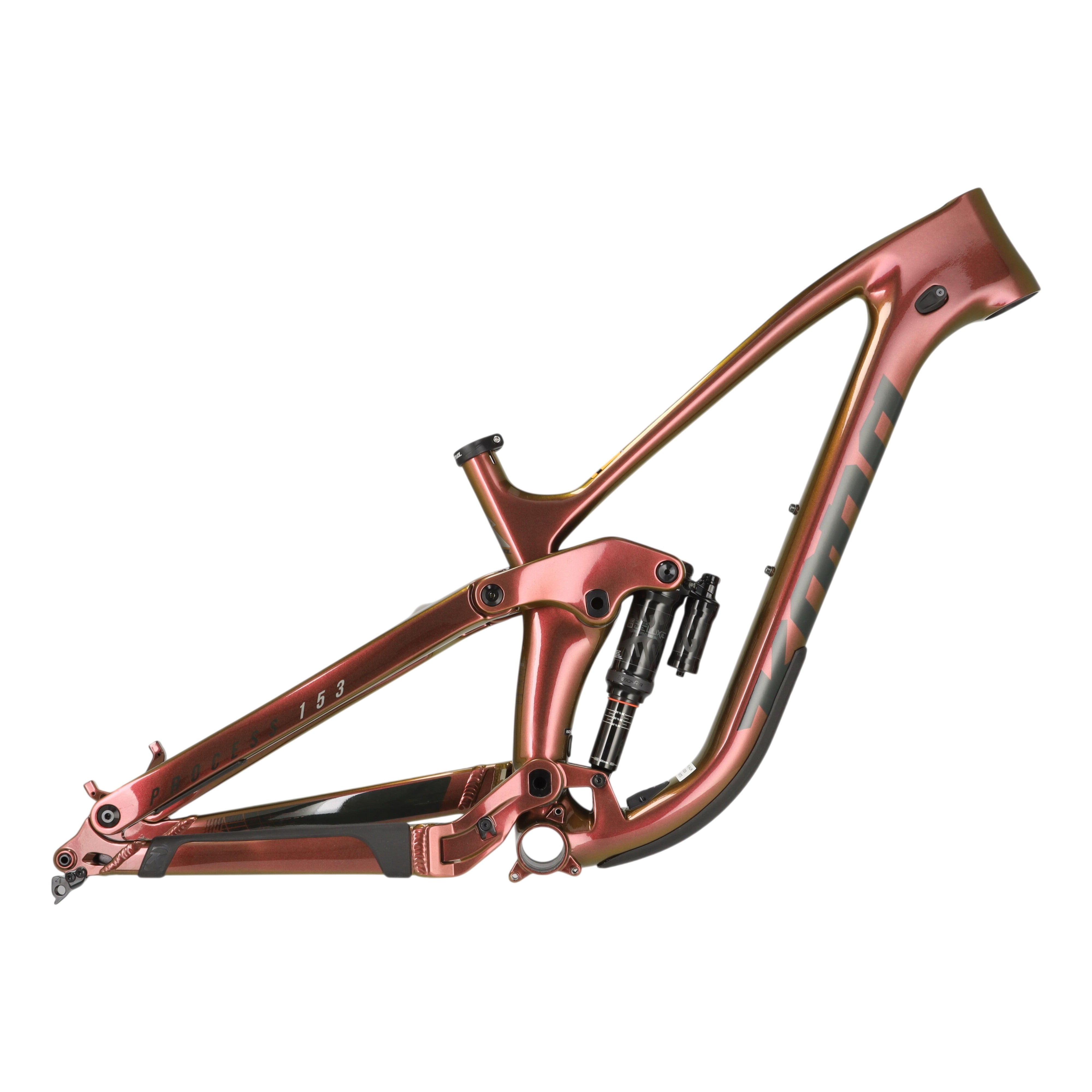

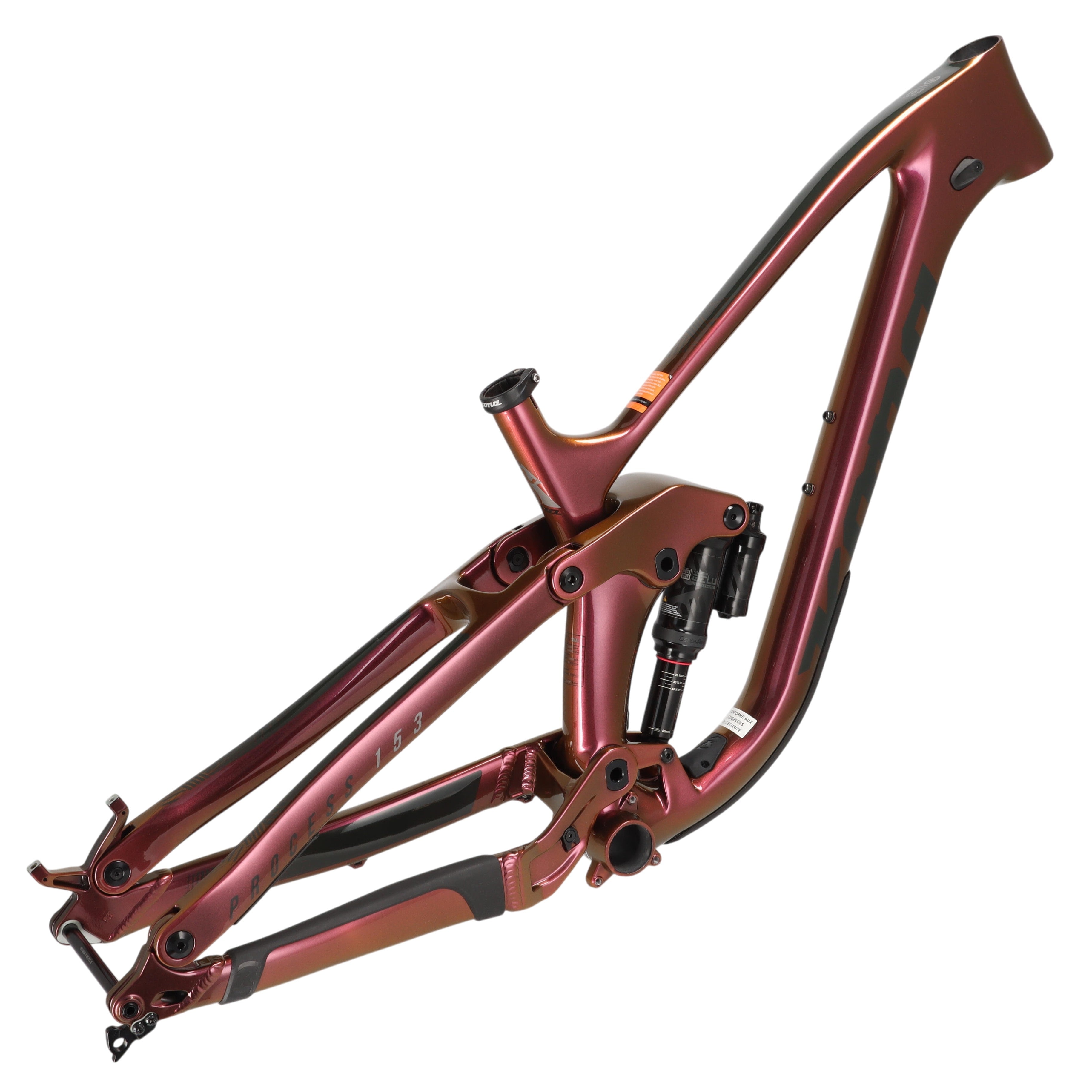

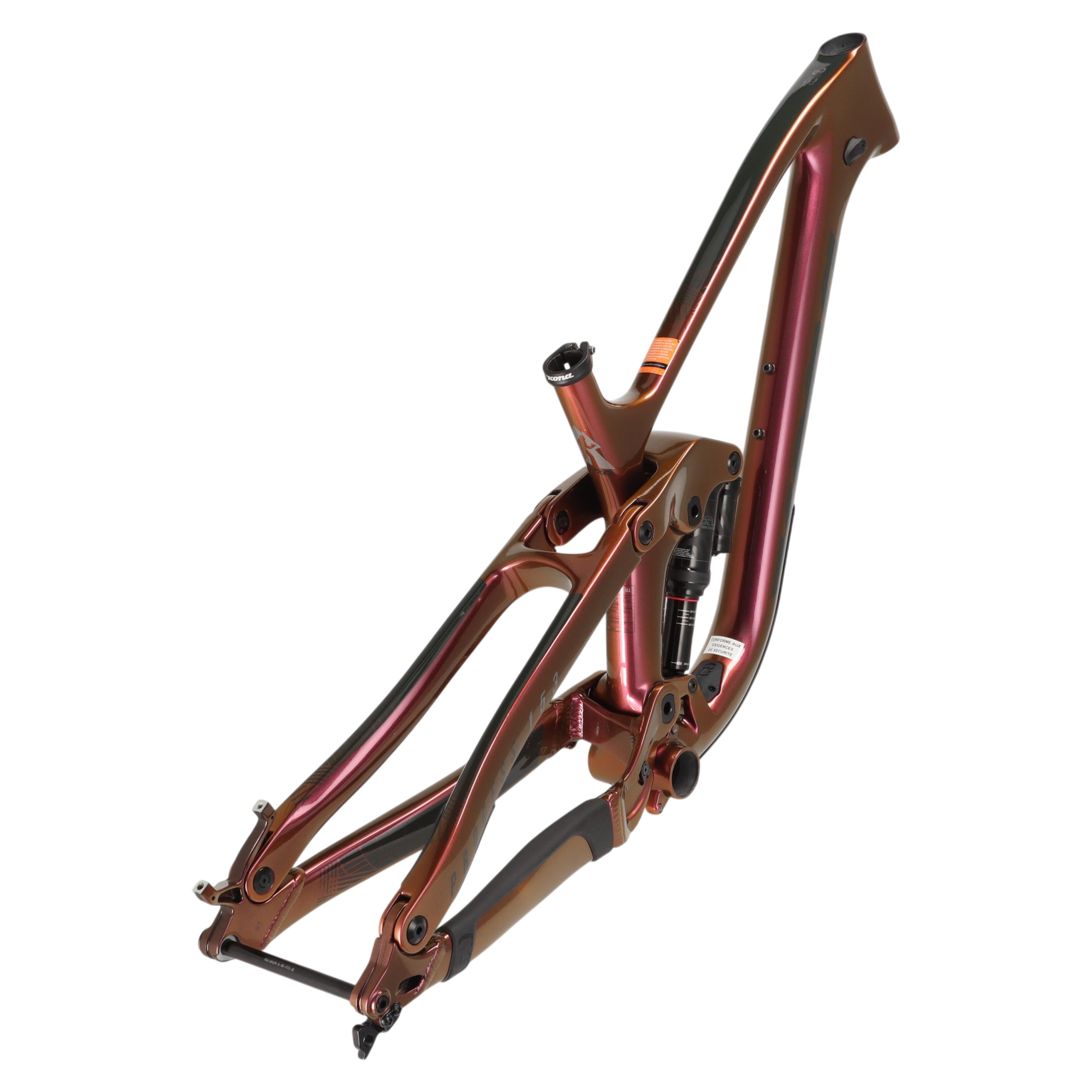

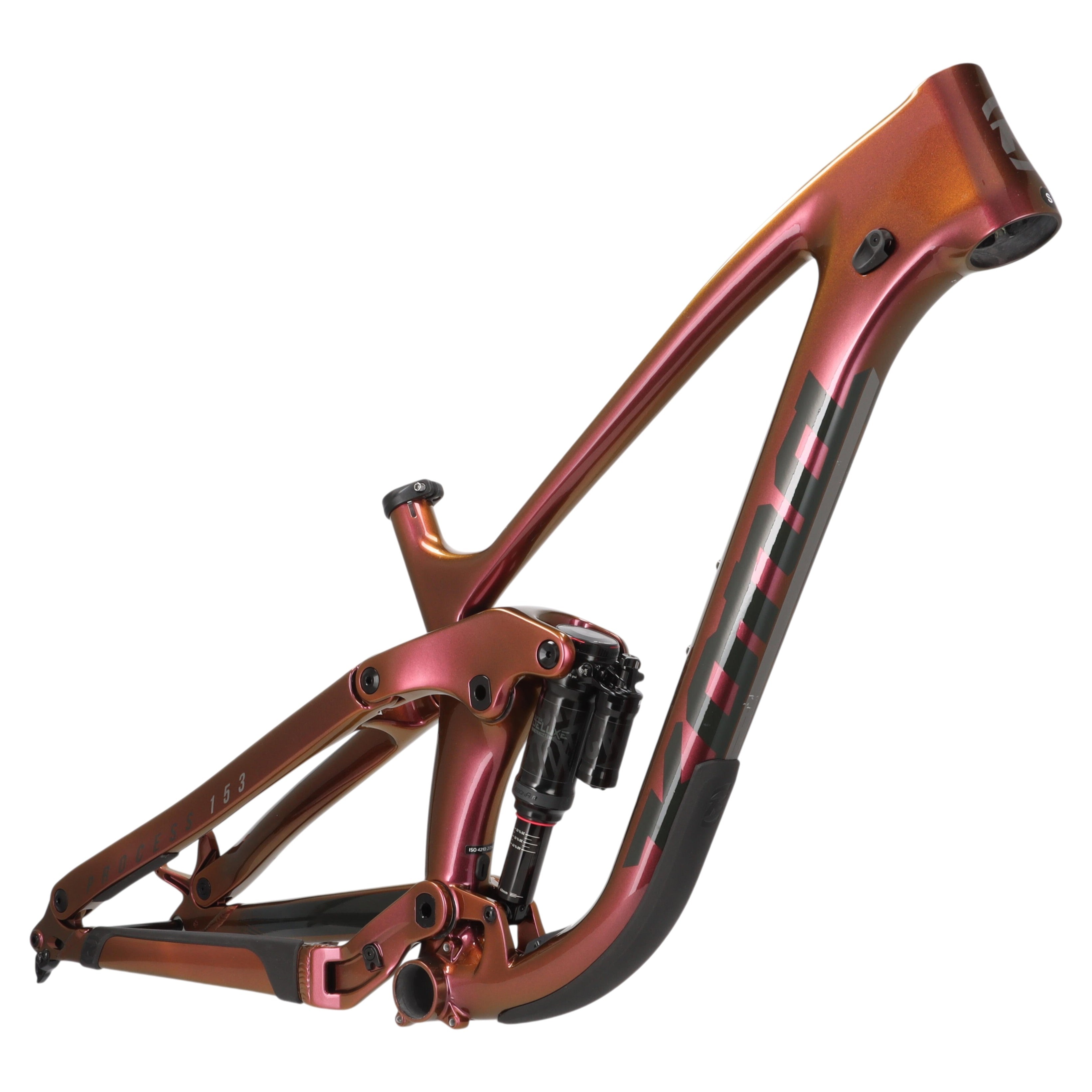

The Kona Process 153 CR/DL frame (model year 2020) in frame size XL is designed for tough trail and enduro use. With 27.5" wheels, 160 mm front travel and 153 mm rear travel, the frame offers high reserves for demanding descents, technical passages, and fast trails. The rust color gives the frame a striking, distinctive look.

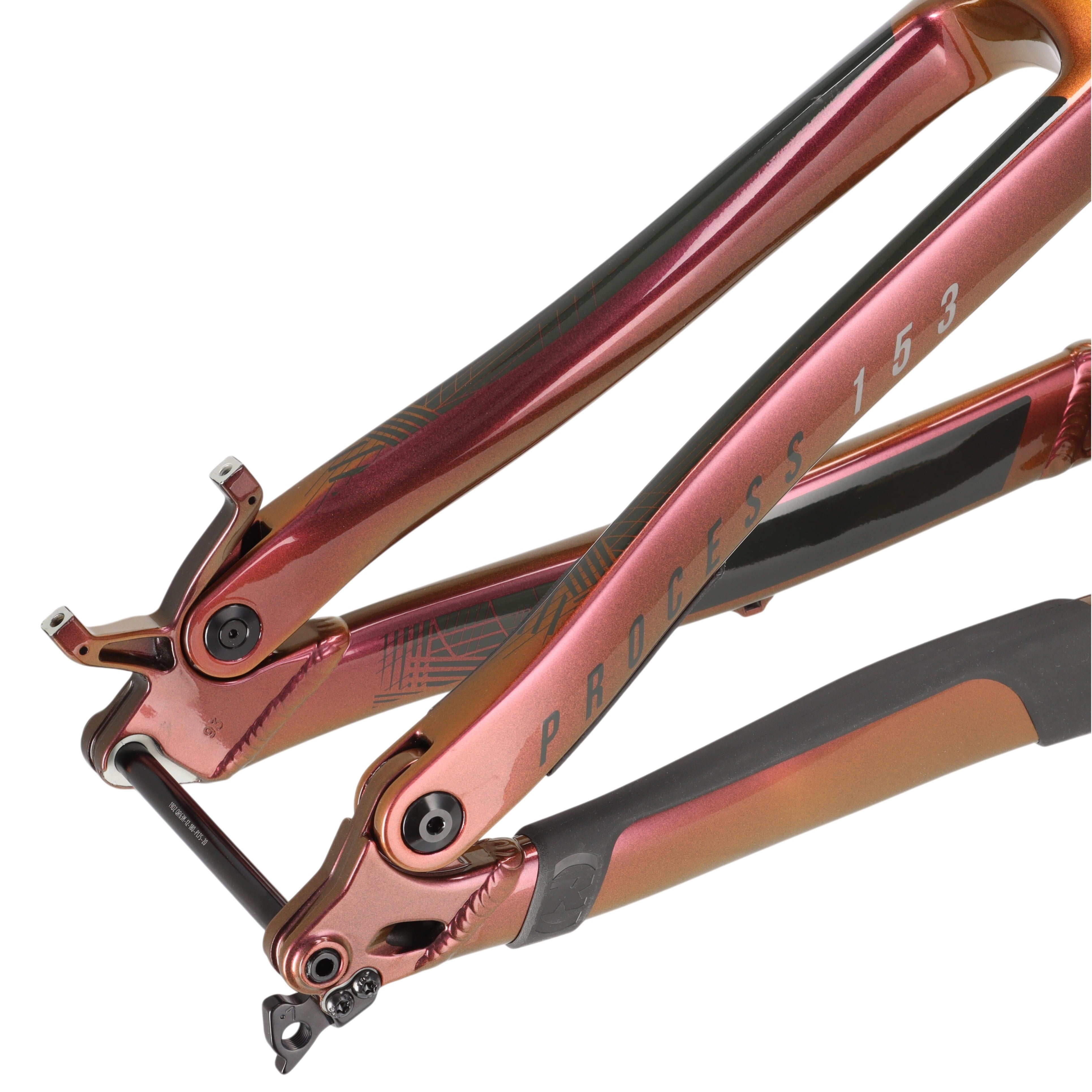

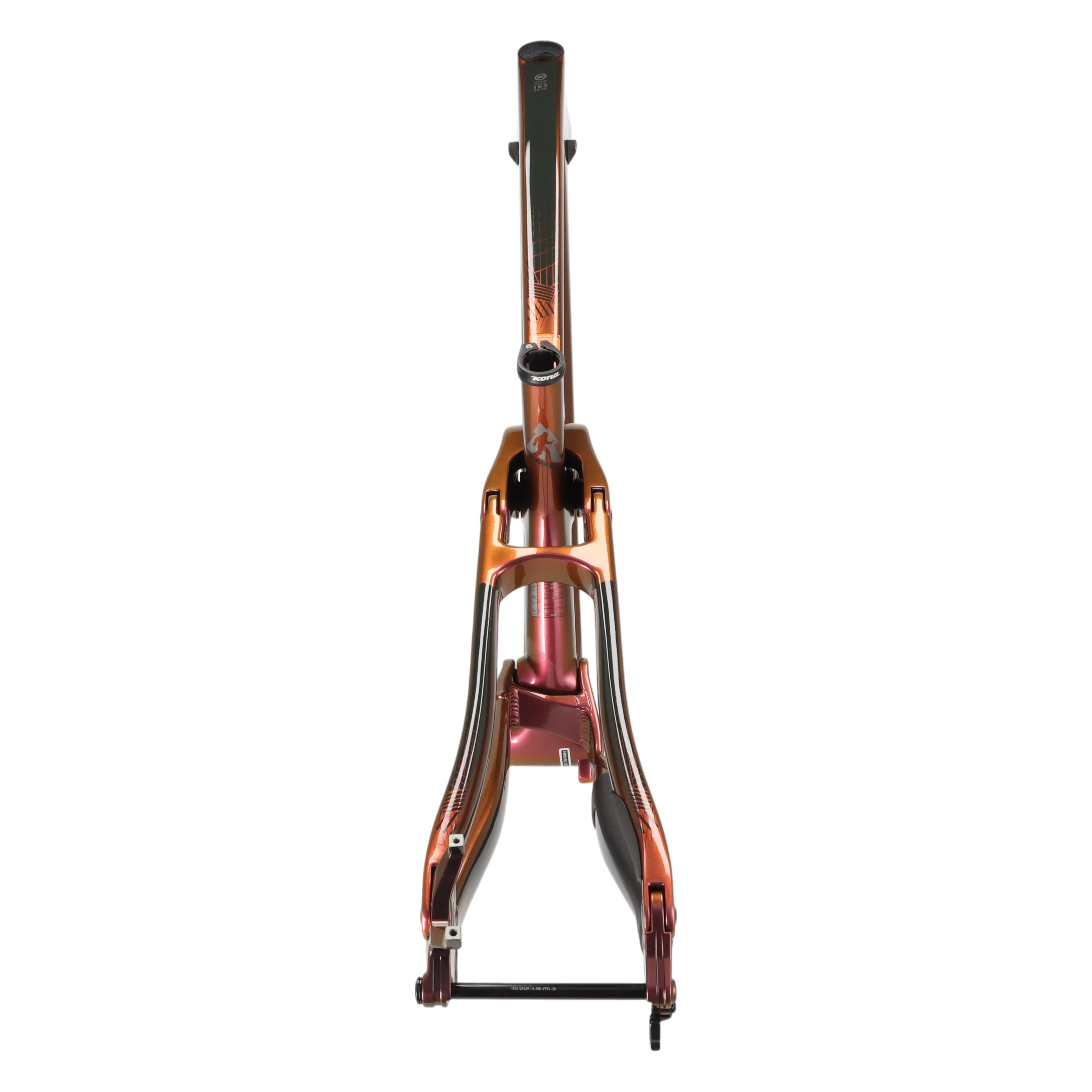

The rear triangle is designed for the Boost standard (12x148 mm) and ensures high stiffness and tracking stability at high speeds. The PF92 bottom bracket and the head tube standard with 44 mm at the top and 55.95 mm at the bottom correspond to the common standards of the model year.

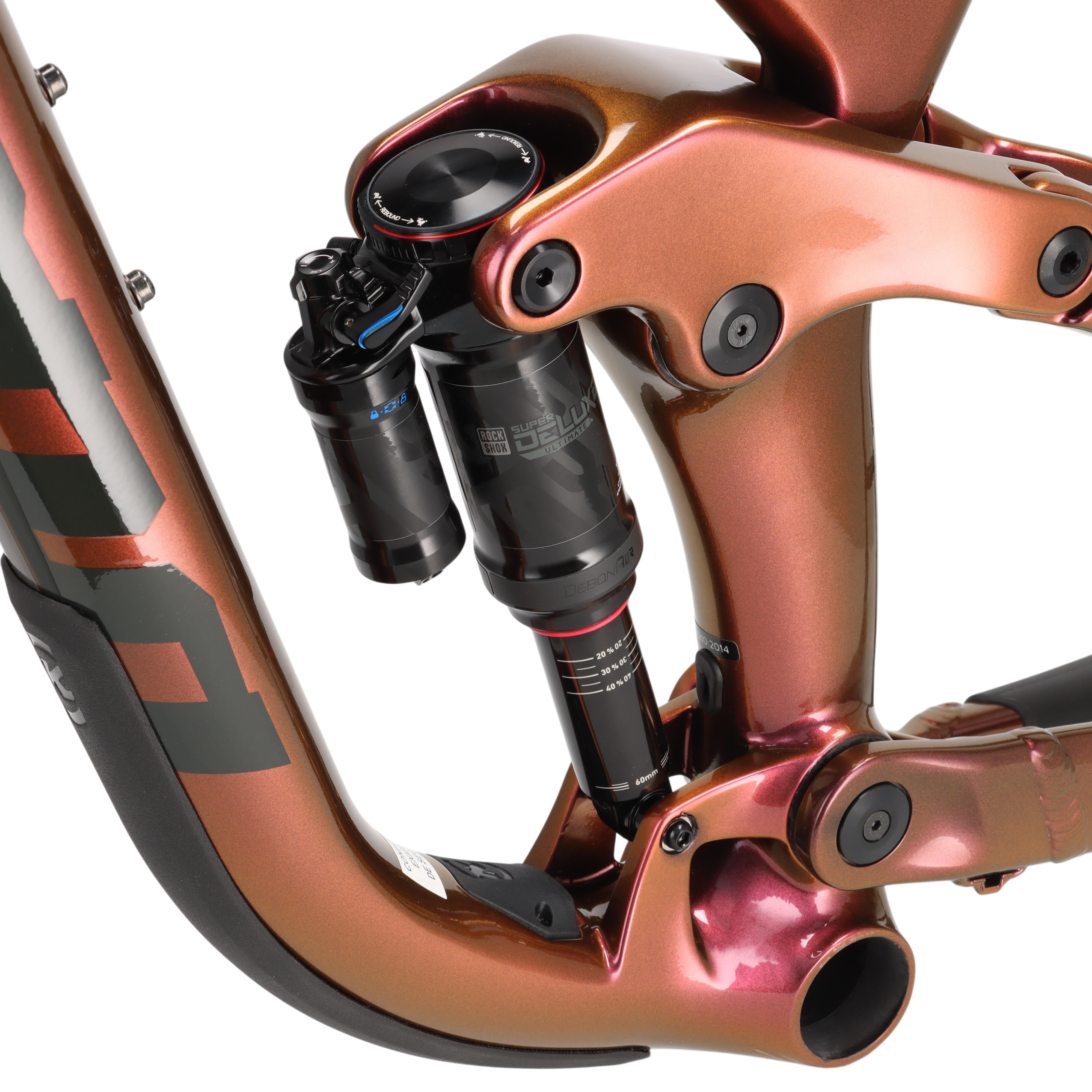

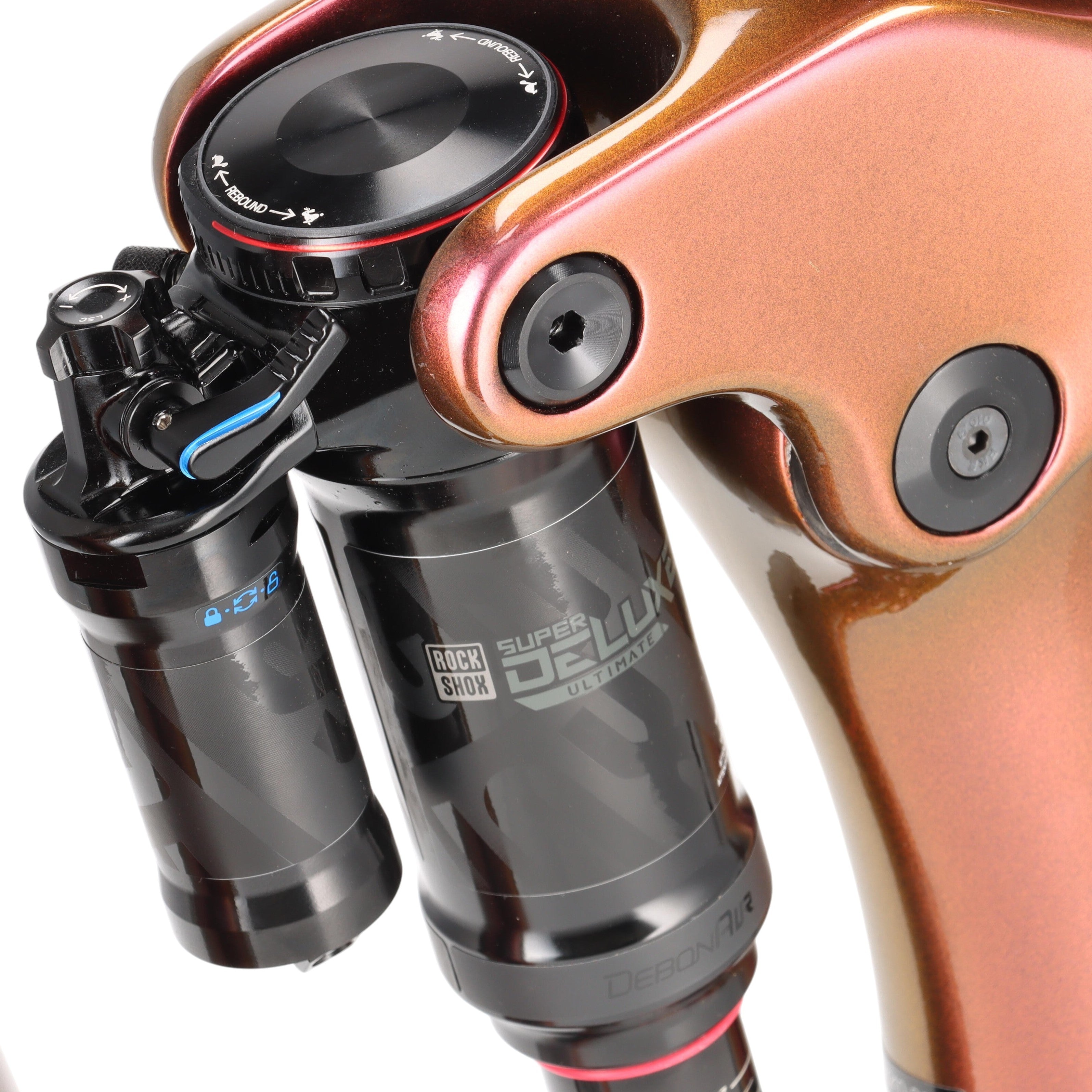

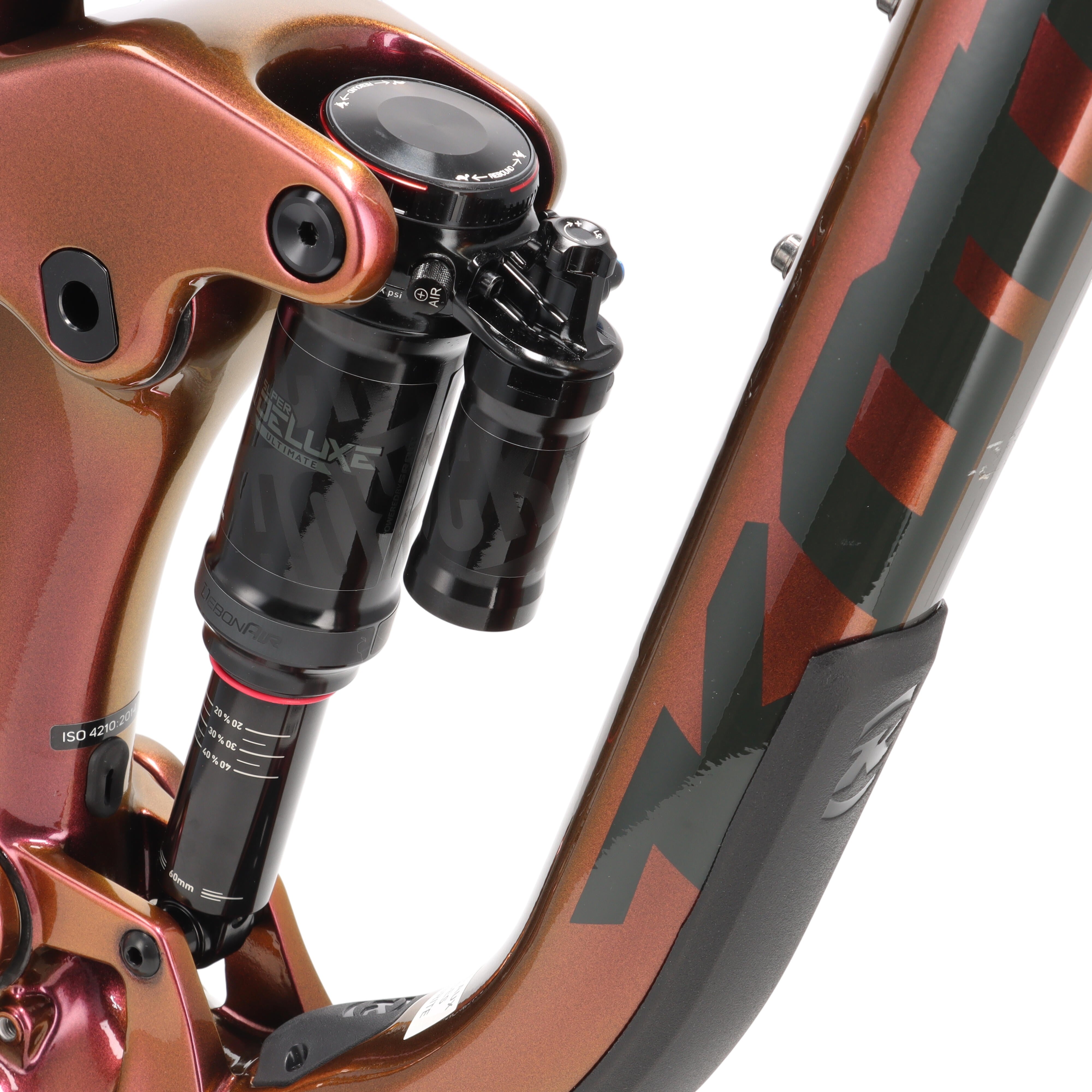

The frame has a seat tube diameter of 31.6 mm (front) and 34.9 mm (rear), according to the available specifications. The specified frame weight is 3800 g. The set includes a RockShox Super Deluxe Ultimate shock.

Highlights:

• Aluminum Enduro Frame (2020): robust and resilient for tough use.
• 160 / 153 mm travel: high reserves for enduro and bike park use.
• Boost 12x148 mm: stiffer rear triangle for precise handling.
• PF92 bottom bracket: stable, modern bottom bracket standard.

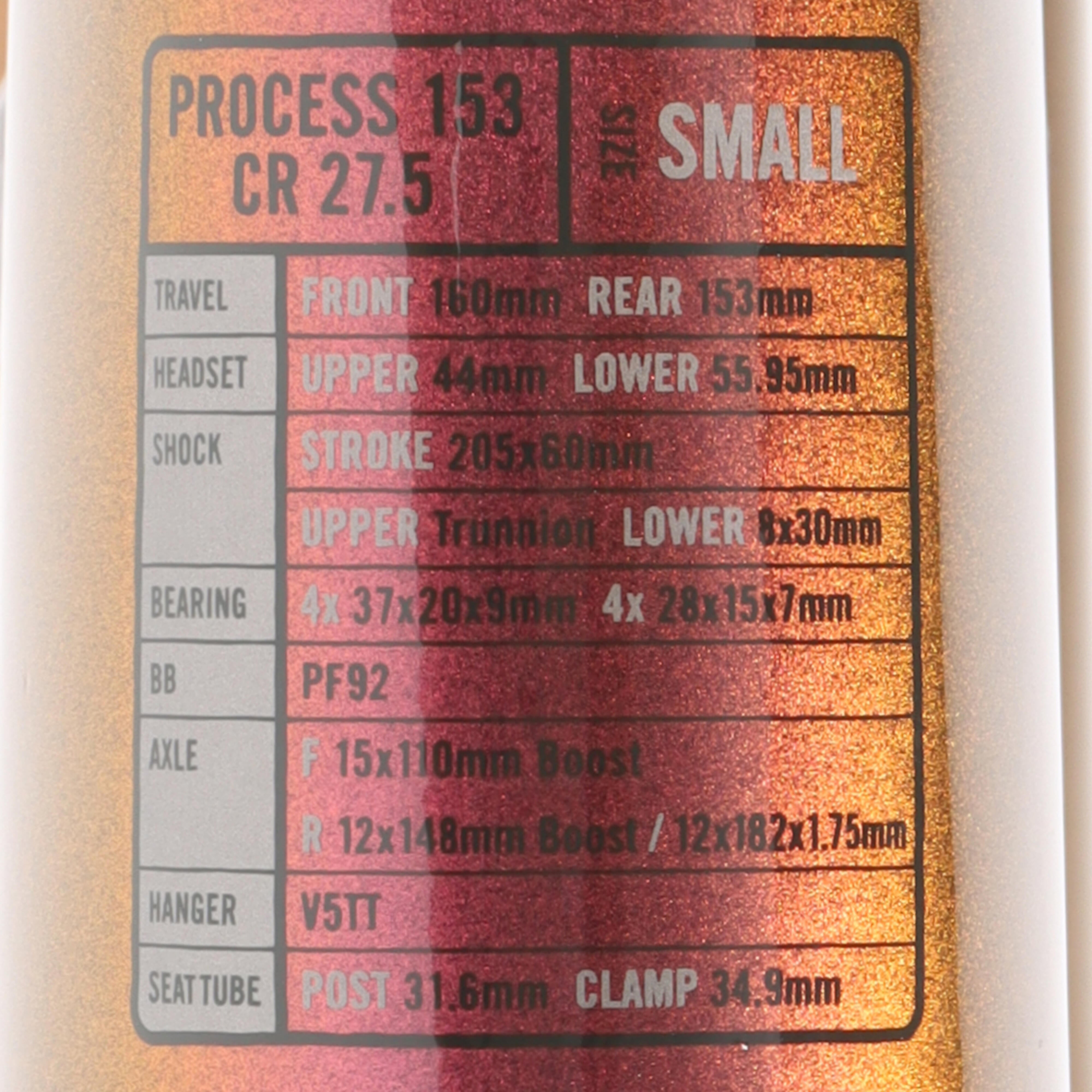

Technical data:

• Manufacturer: Kona
• Model: Process 153 CR/DL
• Model Year: 2020
• Frame Type: Bicycle frame / frameset
• Material: Aluminum
• Frame Size: XL
• Color: rust
• Inches / Wheel Size: 27.5"
• Travel: 160 mm front / 153 mm rear
• Rear Axle: 12 x 148 mm Boost
• Seat Tube Diameter: 31.6 mm (front) / 34.9 mm (rear)
• Bottom Bracket: PF92
• Headset / Head Tube Standard: top 44 mm / bottom 55.95 mm
• Weight: 3800 g
• EAN: 0841073134779

Scope of delivery:

• 1x Kona Process 153 CR/DL 27.5" Rust | Carbon Enduro Frameset | RockShox Super Deluxe Ultimate | Size XL

The Kona Process 153 CR/DL frame (2020) is an uncompromising aluminum base for a modern 27.5" enduro bike with plenty of travel and maximum grip.
