Aerodynamic Carbon Frameset for Ambitious Road Cyclists.

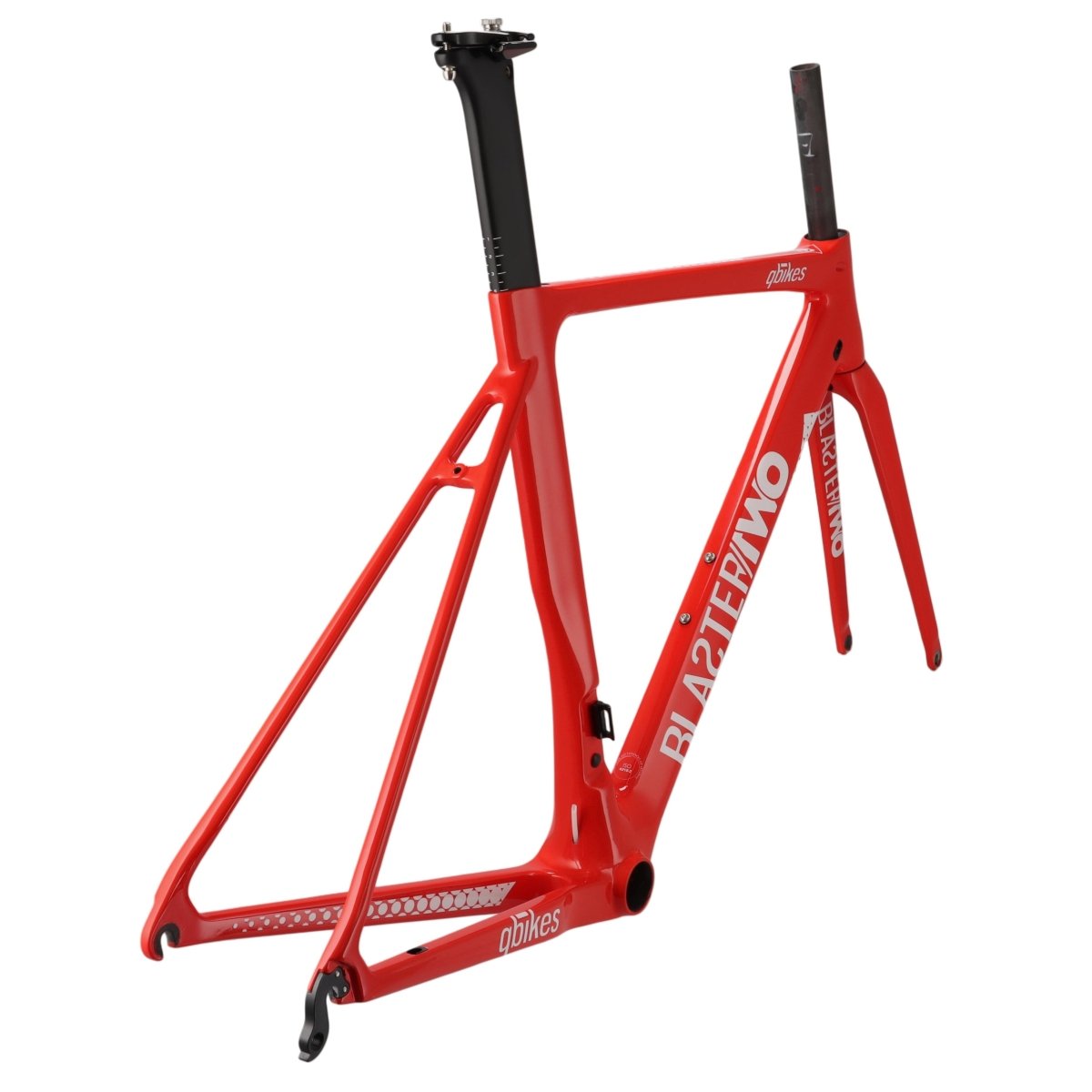

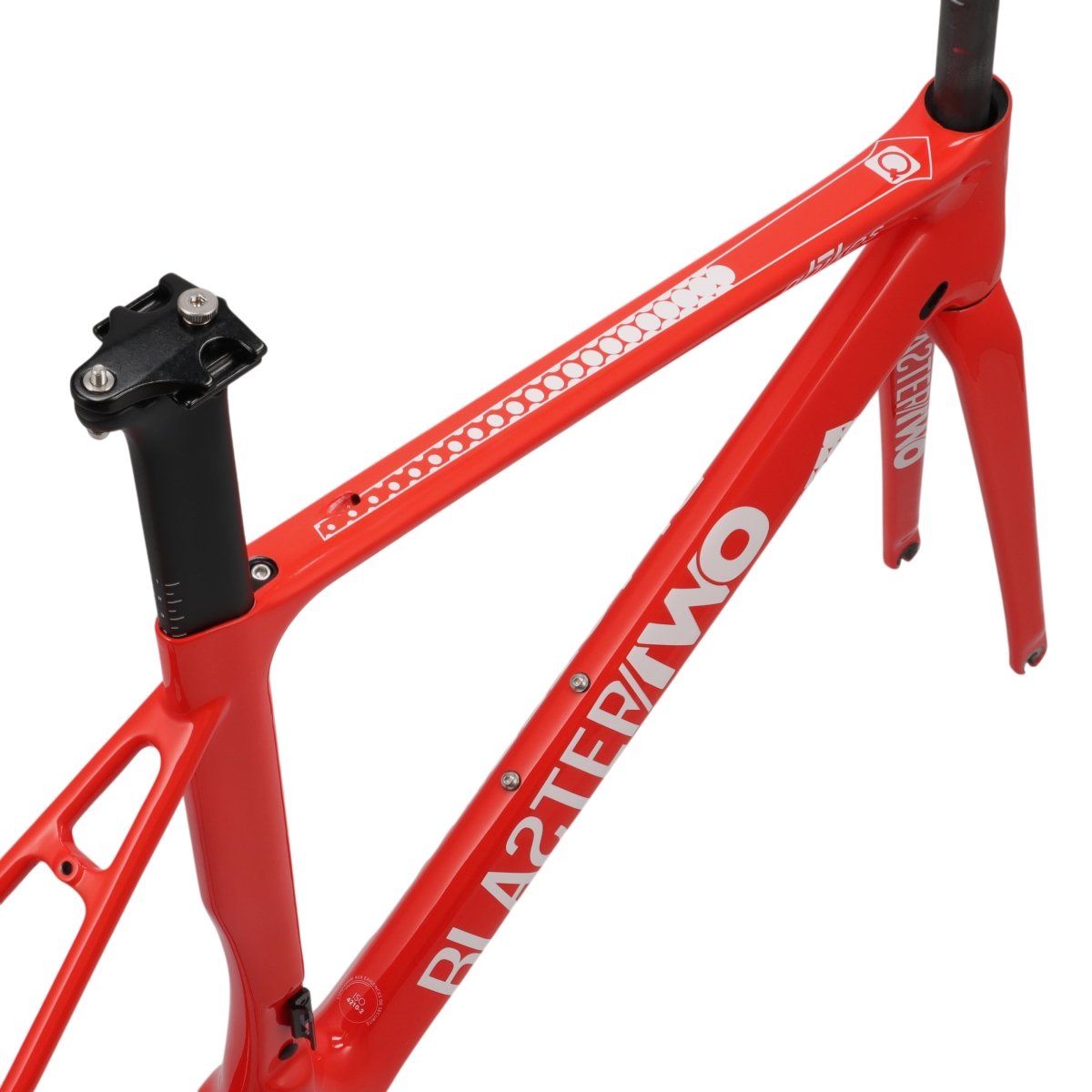

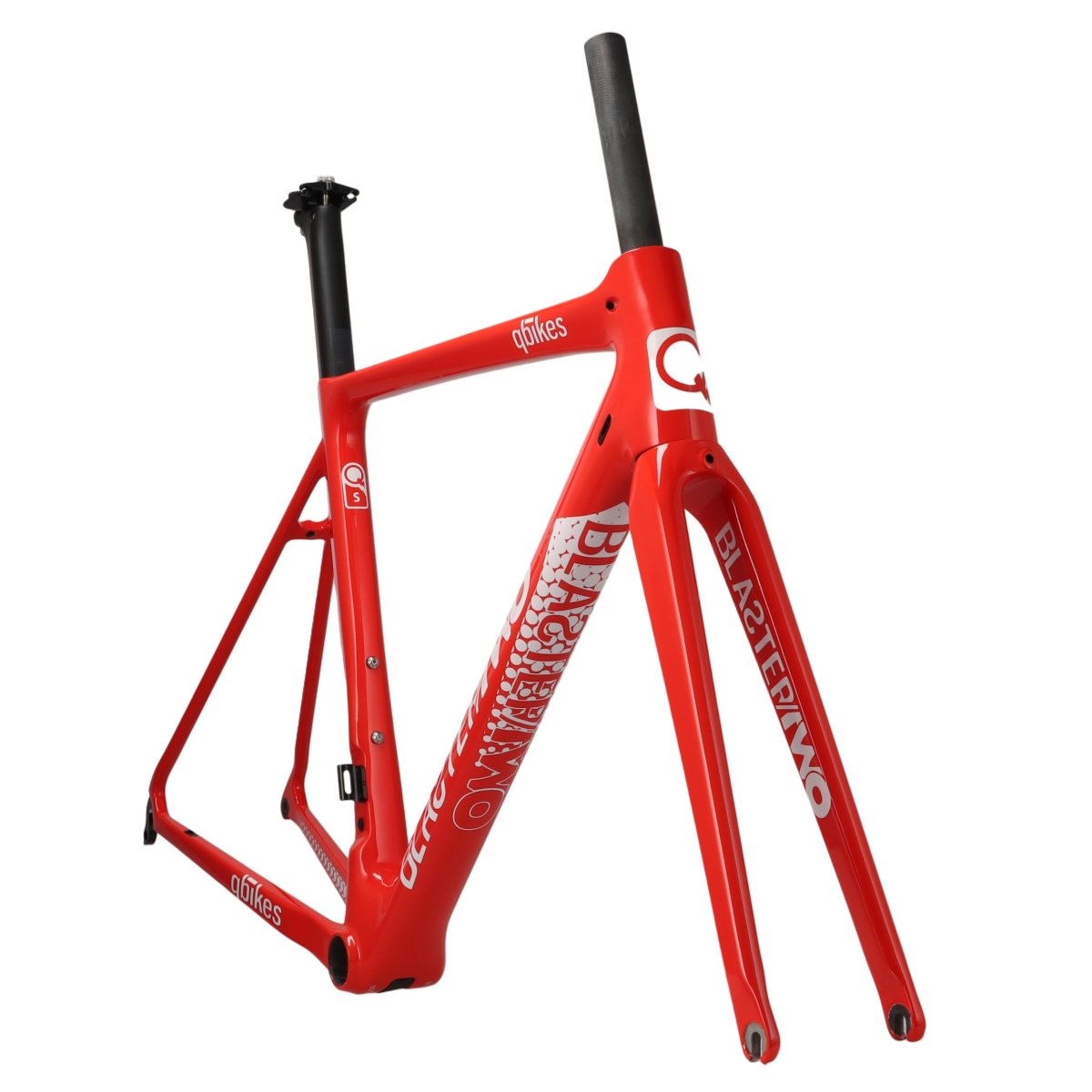

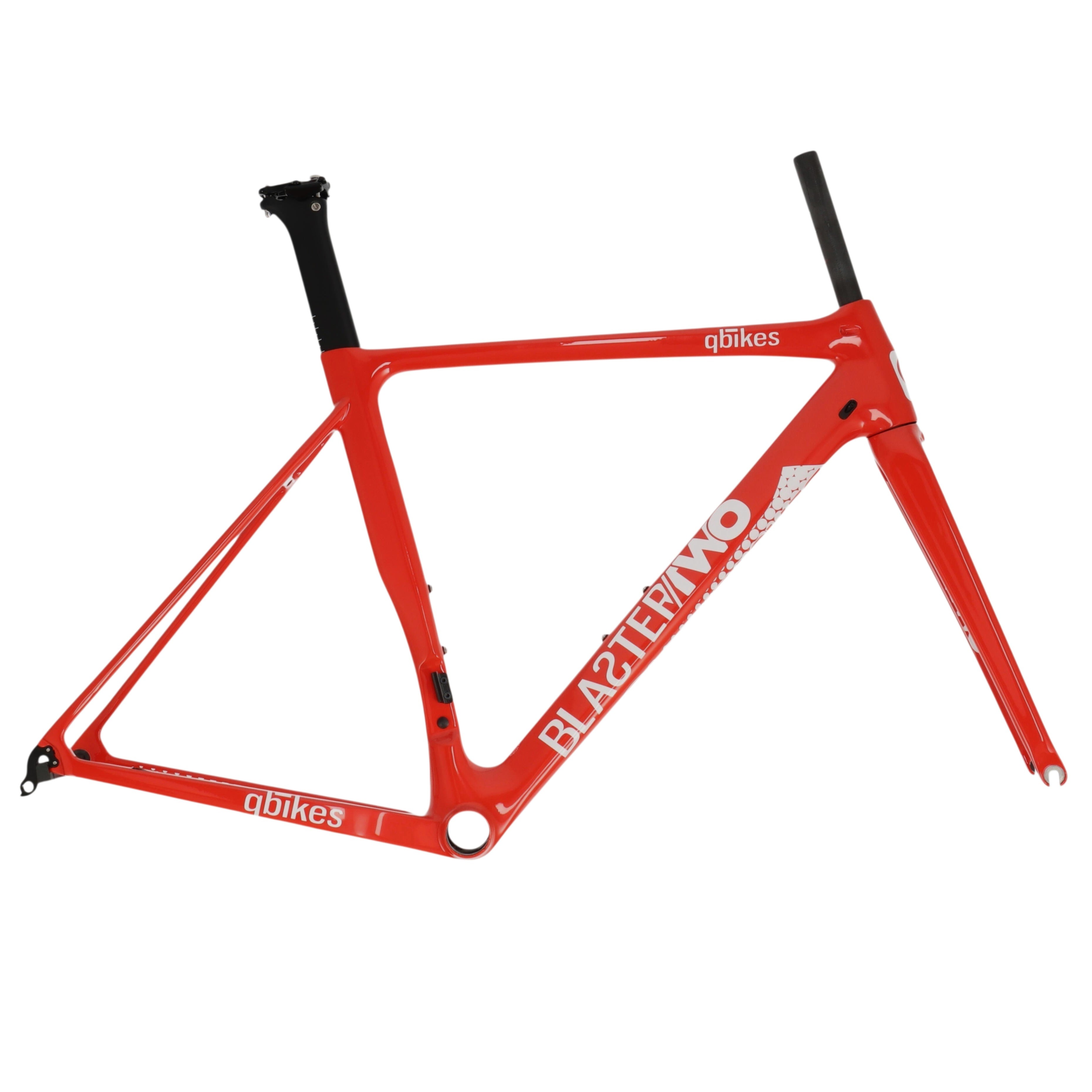

The QBikes Blaster TWO Carbon Frameset is the ideal basis for a fast aero road bike. The frame, fork, seatpost, and seat clamp are consistently designed for performance and provide a stiff, direct riding experience with low weight.

The carbon main frame in striking orange-red is designed for classic rim brakes and uses proven quick-release standards (100 mm front / 130 mm rear). The tapered carbon fork increases front-end stiffness and ensures precise steering at high speeds.

The frameset is designed for 28 inch (700C) wheels and features a braze-on derailleur mount. The main frame in size L weighs only approximately 1160 g.

Highlights:

• Carbon Aero Frame: stiff & streamlined.
• Only approx. 1160 g (Size L, Frame): light & race-ready.
• Incl. Carbon Fork: tapered for precise steering.
• Classic Quick Release: 100 / 130 mm.

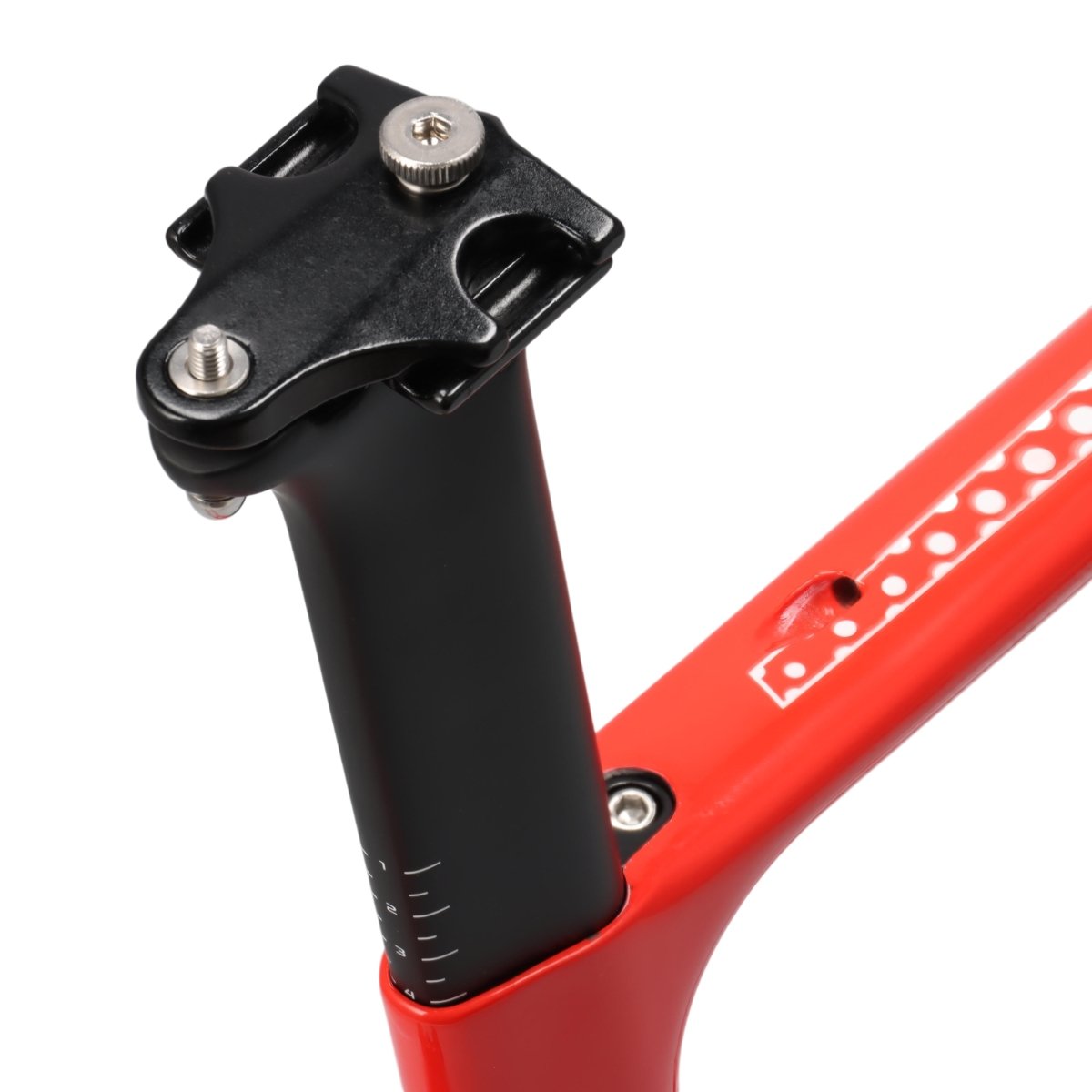

• Complete Set: incl. seatpost, clamp & derailleur hanger.

Technical Data:

• Manufacturer: Q-Bikes
• Model: Blaster TWO
• Type: Frameset
• Material: Carbon
• Wheel Size: 28" / 700C
• Brake Standard: Rim Brake
• Front Axle: 100 mm Quick Release
• Rear Axle: 130 mm Quick Release
• Headset Dimensions (not included): IS42/28.6 | IS52/40
• Bottom Bracket Dimension: Pressfit 86 mm (PF86)
• Fork: Carbon, tapered
• Safety Standard: ISO 4210-2
• Derailleur Mount: Braze-On
• Color: Orange-Red
• Frame Weight (Size L): approx. 1160 g

Geometry:

Size L

• Seat Tube Length: 54 cm (center of bottom bracket to top edge of seat tube)
• Top Tube Length: 55.5 cm (center of seat tube to center of head tube)

Size XL

• Seat Tube Length: 56 cm (center of bottom bracket to top edge of seat tube)
• Top Tube Length: 57.5 cm (center of seat tube to center of head tube)

Scope of Delivery:

• Carbon Frame
• Carbon Fork
• Seatpost
• Seat Clamp
• Derailleur Hanger
