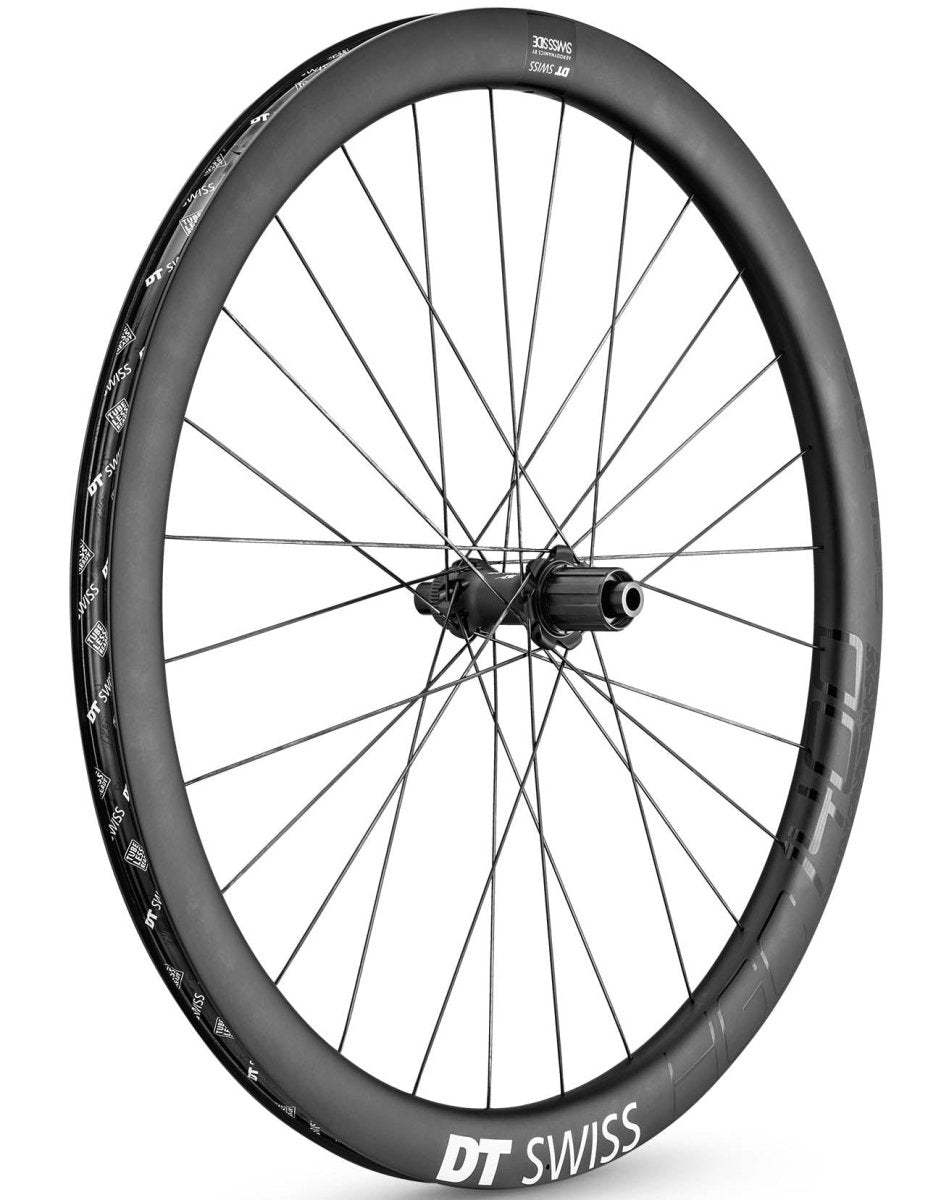

The DT Swiss HGC 1400 SPLINE DB 42 Rear Wheel 27.5" is a high-end carbon wheelset for gravel and e-gravel bikes. With its hookless tubeless carbon rim and the proven DT Swiss 240 hub with Ratchet System 24, it combines efficiency, durability, and smooth running – ideal for sporty tours on mixed terrain. The stable construction is specially designed for use on e-bikes up to 250 W and offers reliable performance even under high loads.
Highlights:
- Carbon rim with 42 mm height: aerodynamic & lightweight for more efficiency on gravel tracks
- 240 hub with Ratchet System 24: proven technology for fast power transmission
- Tubeless Ready (Hookless): more traction, fewer punctures, higher comfort
- Hybrid Aero Comp spokes: reinforced design for e-gravel loads
- Approved for e-bikes: up to 32 km/h or 250 W – maximum stability guaranteed
Technical Data:
- Manufacturer: DT Swiss
- Model: HGC 1400 SPLINE DB 42
- Wheel size: 27.5" / 650B
- Installation width: 12x142 mm
- Brake system: Centerlock Disc
- Rim material: Carbon
- Rim type: Hookless Tubeless TSS
- Rim height: 42 mm
- Inner width: 24 mm
- Outer width: 32 mm
- Hub: DT Swiss 240 with Ratchet System 24
- Freehub: Shimano HG
- Spokes: DT aero comp® hybrid straightpull (left & right)
- Max. system weight: 140 kg
- ASTM Classification: 2
- Approved for e-bikes: Yes (max. 32 km/h / 250 W)
- Color: Black
- Weight: 956 g
Scope of delivery:
- 1x DT Swiss HGC 1400 SPLINE DB 42 Rear Wheel 27.5" | 12x142 mm | Centerlock | Shimano HG
- incl. tubeless valve and rim tape (pre-assembled)
- Note: Workshop packaging (without outer packaging)
Manufacturer-No.: WHGC140NJDVCA11417 | EAN: 7613052373379
DT Swiss HGC 1400 SPLINE DB 42 – the ultimate carbon rear wheel for gravel and e-gravel with maximum stiffness, efficiency and reliability.
SKU: 1417 (K1C)
DT Swiss HGC 1400 SPLINE DB 42 Rear Wheel | 650B / 27.5" | Carbon | 12x142 mm | Centerlock | Shimano HG | Gravel / E-Gravel
Check compatibility
Will this wheel fit your bike?
In our short video, we explain what to look out for when checking axle size, freehub type and brake rotor mount.
The DT Swiss HGC 1400 SPLINE DB 42 Rear Wheel 27.5" is a high-end carbon wheelset for gravel and e-gravel bikes. With its hookless tubeless carbon rim and the proven DT Swiss 240 hub with Ratchet System 24, it combines efficiency, durability, and smooth running – ideal for sporty tours on mixed terrain. The stable construction is specially designed for use on e-bikes up to 250 W and offers reliable performance even under high loads.
Highlights:
- Carbon rim with 42 mm height: aerodynamic & lightweight for more efficiency on gravel tracks
- 240 hub with Ratchet System 24: proven technology for fast power transmission
- Tubeless Ready (Hookless): more traction, fewer punctures, higher comfort
- Hybrid Aero Comp spokes: reinforced design for e-gravel loads
- Approved for e-bikes: up to 32 km/h or 250 W – maximum stability guaranteed
Technical Data:
- Manufacturer: DT Swiss
- Model: HGC 1400 SPLINE DB 42
- Wheel size: 27.5" / 650B
- Installation width: 12x142 mm
- Brake system: Centerlock Disc
- Rim material: Carbon
- Rim type: Hookless Tubeless TSS
- Rim height: 42 mm
- Inner width: 24 mm
- Outer width: 32 mm
- Hub: DT Swiss 240 with Ratchet System 24
- Freehub: Shimano HG
- Spokes: DT aero comp® hybrid straightpull (left & right)
- Max. system weight: 140 kg
- ASTM Classification: 2
- Approved for e-bikes: Yes (max. 32 km/h / 250 W)
- Color: Black
- Weight: 956 g
Scope of delivery:
- 1x DT Swiss HGC 1400 SPLINE DB 42 Rear Wheel 27.5" | 12x142 mm | Centerlock | Shimano HG
- incl. tubeless valve and rim tape (pre-assembled)
- Note: Workshop packaging (without outer packaging)
Manufacturer-No.: WHGC140NJDVCA11417 | EAN: 7613052373379
DT Swiss HGC 1400 SPLINE DB 42 – the ultimate carbon rear wheel for gravel and e-gravel with maximum stiffness, efficiency and reliability.
